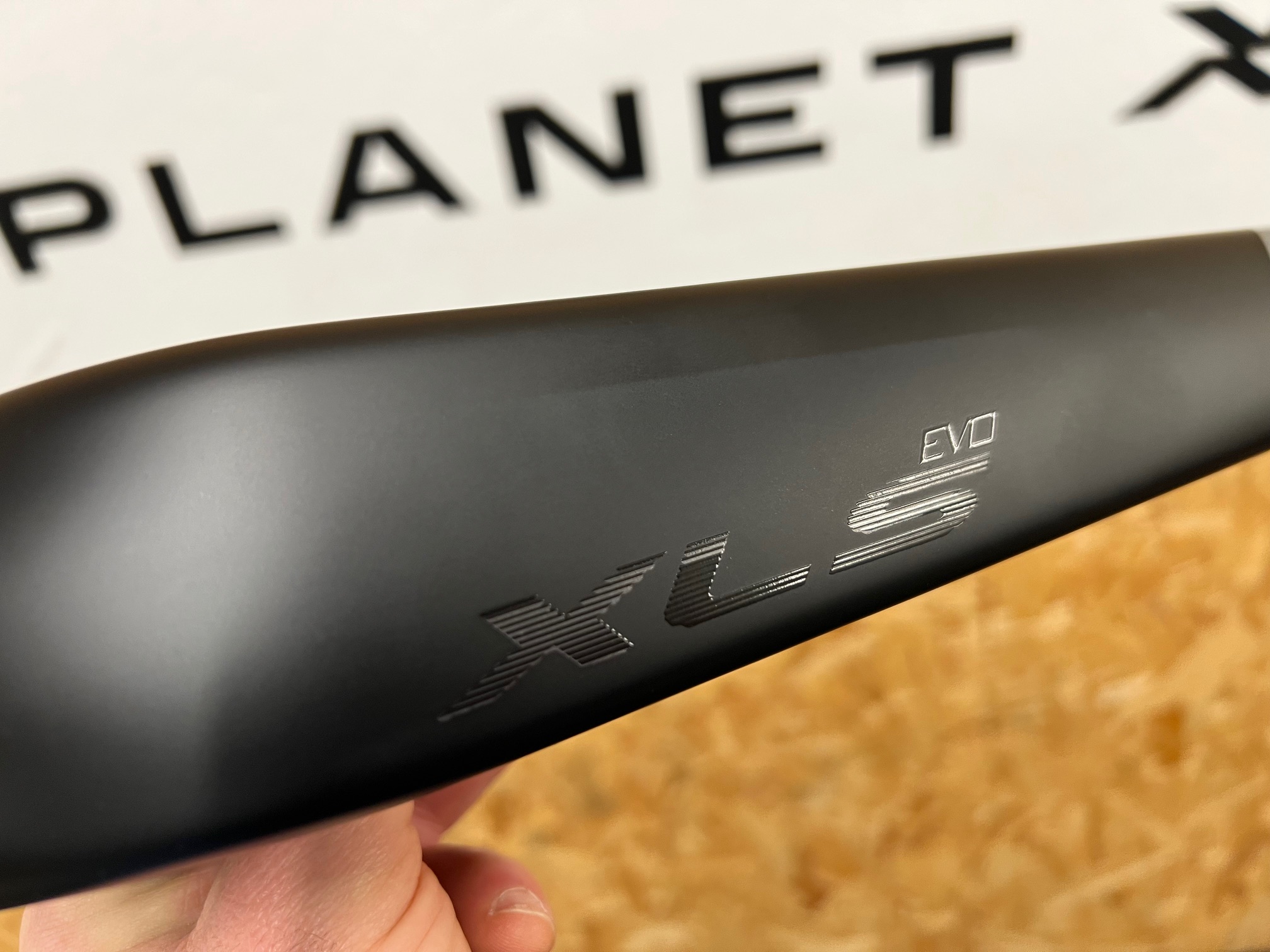

This clearance frameset has some cosmetic marks in the surface paint/lacquer around the BB facing and on the downtube decal, see the photos. The frame and fork are unused, the fork is not cut to size.
Size Large, Stealth Black
Built using Japanese Toray T700 carbon fibre, this lightweight, ultra-durable racing CX bike features confidence inspiring geometry, a power transferring BB shell and chainstays, and enough rear end compliance to take the edge off the even the roughest of courses. The XLS-EVO is all about the race. With plenty of tyre clearance for racing in the muddiest conditions. We’ve lowered the BB, extended the wheelbase and slackened the head angle to improve handling and give you bags of confidence when racing flat out.
5′9″ to 6′2″ (175cm- 188cm) |
Large /560 |
|
|
XS 490mm |
SMALL 520mm |
MED 540mm |
LRG 560mm |
XLG 580 |
A |
Head Angle (degrees) |
71.0 |
71.5 |
72.0 |
72.0 |
72.0 |
B |
Head Tube (mm) |
110 |
130 |
140 |
160 |
180 |
C |
Top Tube Effective(mm) |
520 |
534 |
545 |
560 |
575 |
D |
Seat Tube Angle (degrees) |
75.0 |
74.0 |
73.5 |
73.0 |
73.0 |
E |
Seat Tube C-T Actual (mm) |
490 |
520 |
540 |
560 |
580 |
F |
Chainstays (mm) |
425 |
425 |
425 |
425 |
425 |
G |
BB Drop (mm) |
64 |
64 |
64 |
64 |
64 |
H |
Stack (mm) |
534 |
553 |
564 |
583 |
602 |
I |
Reach (mm) |
377 |
377 |
378 |
382 |
390 |
J |
Front Centre (mm) |
590 |
591 |
591 |
601 |
616 |
K |
Wheelbase (mm) |
1007 |
1007 |
1008 |
1018 |
1033 |
