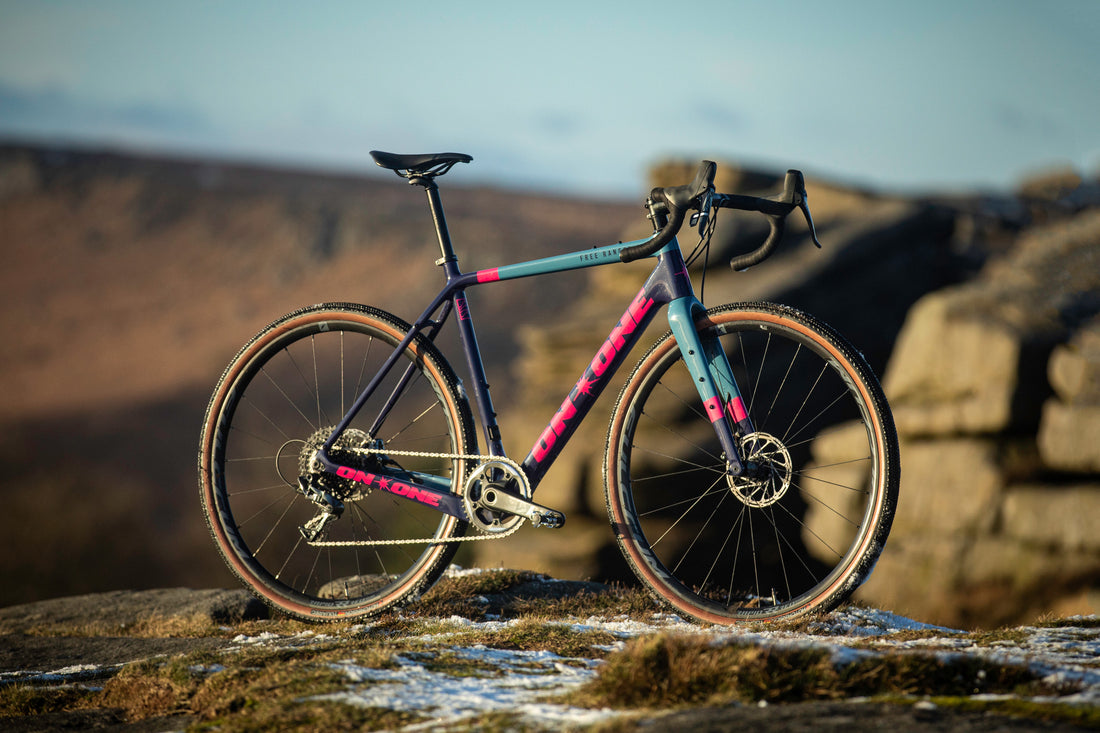

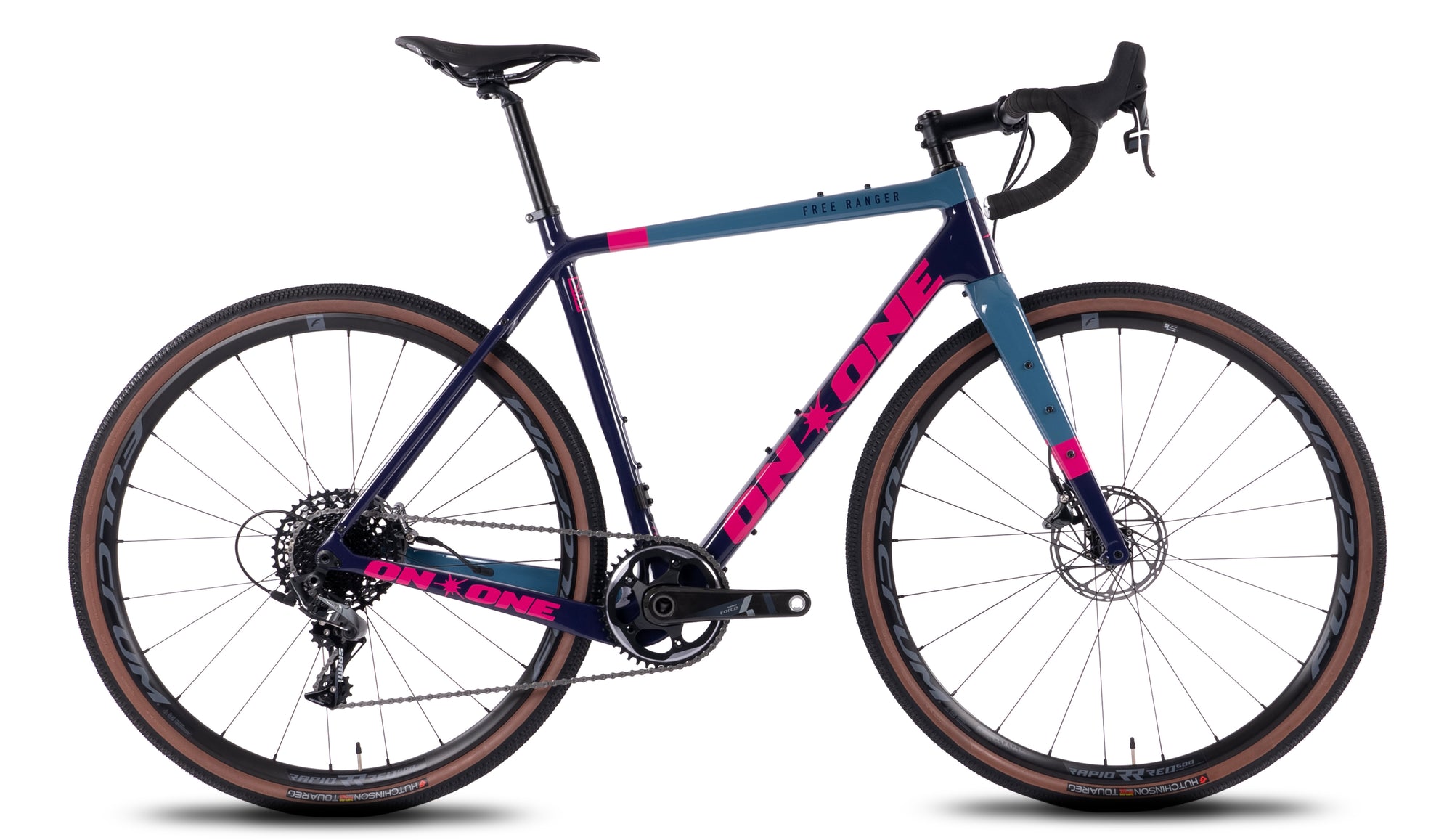

The Free Ranger is the latest road rapid, trail tough, expedition ready gravel allrounder. It's evolved carbon frame and fork deliver an agile, responsive ride with large volume 650B or 700c wheel versatility, disc brake control and full bike packing fixtures. Perfect for when you want an epic, fast and enjoyable bike ride.

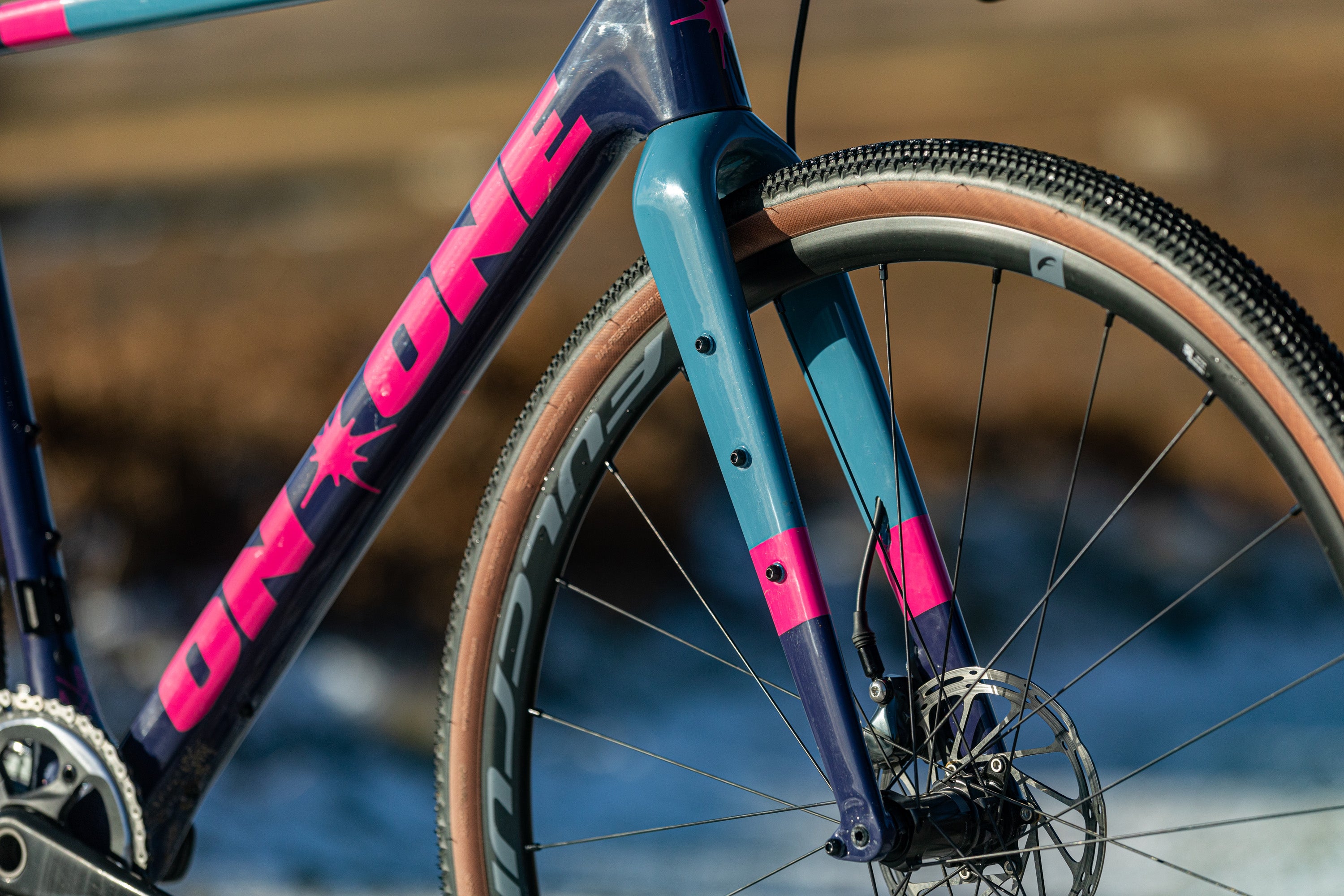

Lightweight Carbon Frame
Bikepacking Mounts

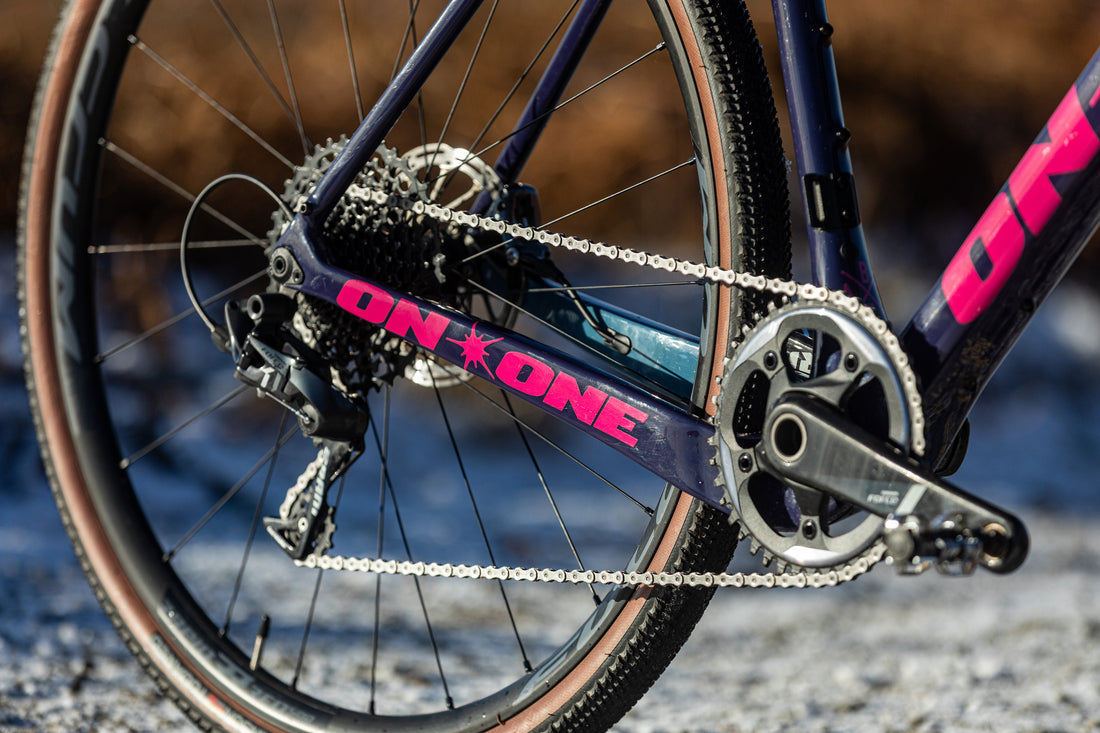

Gravel Specific Groupsets
Huge Tyre Clearance
-
On-One Free Ranger SRAM Apex XPLR Carbon Gravel Bike -
On-One Free Ranger SRAM Apex AXS Carbon Gravel Bike -
On-One Free Ranger SRAM Rival AXS XPLR E1 Gravel Bike -
On-One Free Ranger Shimano GRX 717 Di2 Carbon Gravel Bike -
On-One Free Ranger Shimano GRX 400 Carbon Gravel Bike -
On-One Free Ranger Shimano GRX RX820 Gravel Bike
Free Ranger Size Guide & Geometry
| RIDER HEIGHT | SUGGESTED FRAME SIZE |
|---|---|
| 5′3″ to 5′8″ (162cm-172cm) | X-Small |
| 5′7″ to 5′10″ (170cm-178cm) | Small |
| 5′9″ to 6′2″ (175cm -188cm) | Medium |
| 6′1″ to 6′4″ (185cm-193cm) | Large |
| 6′4 < (193cm+) | X-Large |
|
XS
|
S
|
M
|
L |
XL
|
||
|---|---|---|---|---|---|---|
|
A
|
Head Angle (degrees) |
70.5
|
71.0
|
71.5
|
72.0
|
72.0
|
| B | Head Tube (mm) |
120
|
140
|
150
|
170
|
190
|
| C | Top Tube Effective(mm) |
520
|
535
|
550
|
565
|
580
|
| D | Seat Tube Angle (degrees) |
74.5
|
74.0
|
73.0
|
73.0
|
73.0
|
| E | Seat Tube C-T Actual (mm) |
490
|
520
|
540
|
560
|
580
|
| F | Chainstays (mm) |
435
|
435
|
435
|
435
|
435
|
| G | BB Drop (mm) |
67
|
67
|
67
|
67
|
67
|
| H | Stack (mm) |
536
|
557
|
568
|
589
|
608
|
| I | Reach (mm) |
371
|
374
|
376
|
384
|
393
|
| J | Front Centre (mm) |
595
|
595
|
600
|
610
|
626
|
| K | Wheelbase (mm) |
1020
|
1021
|
1025
|
1036
|
1052
|
