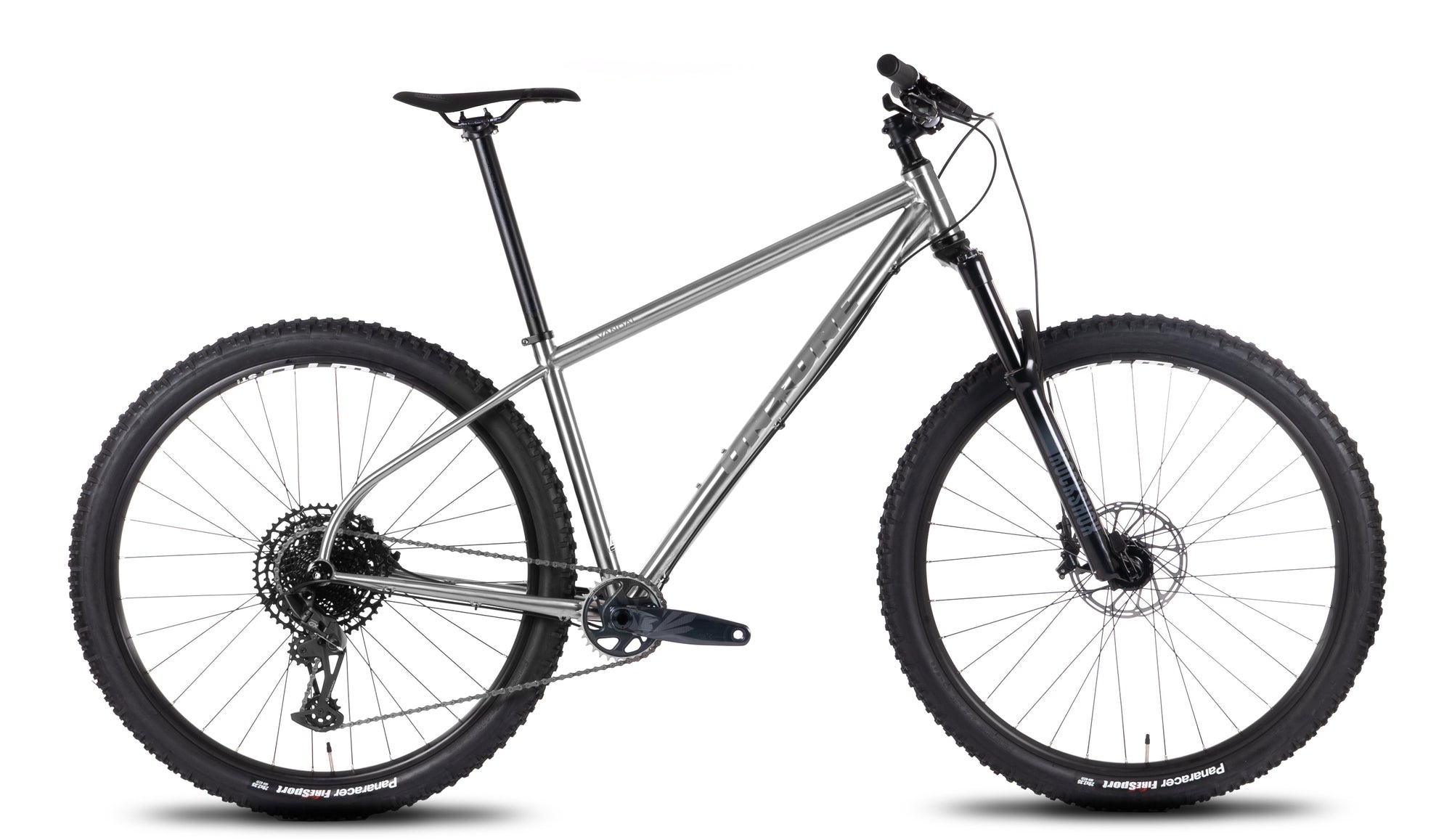

The Vandal takes our years of experience from originating and evolving the sweetest handling 29er trail bikes, culminating in a super-premium Aerospace Grade 9 3AL-2.5V Titanium ride. The 65 degree head angle is suited for multiple ride styles. From trial centres to all day epics. 445mm chainstays offer good balance of stability and back wheel agility. The 65mm BB drop keeps you extremely planted whilst ensuring ground clearance. Balanced stack and reach figures offer versatility, from trail centres to endurance adventures to technical singletrack
Aerospace Grade 9 3AL-2.5V Titanium Frame
130mm of Trail Eating Travel
1 x 12 Sram Eagle groupsets
Wide, Supportive Wheels and plenty of room for Big Rubber
Vandal Size and Geometry
| Rider Height | Suggested Frame Size |
|---|---|
| 5′3″ to 5′7″ (160cm-170cm) | SML/415mm |
| 5′6″ to 5′10″ (168cm-178cm) | MED/430mm |
| 5′9″ to 6′2″ (175cm- 188cm) | LRG/460mm |
| 6′1″ to 6′5″ (185cm- 196cm) | XL/485mm |

| SML 415mm |
MED 430mm |
LRG 460mm |
XL 485mm |
||
| A | Head Angle (degrees) | 65.0 | 65.0 | 65.0 | 65.0 |
| B | Head Tube (mm) | 105 | 110 | 120 | 130 |
| C | Top Tube Effective(mm) | 602 | 624 | 635 | 678 |
| D | Seat Tube Angle (degrees) | 74 | 74 | 74.5 | 74.5 |
| E | Seat Tube C-T Actual (mm) | 415 | 430 | 460 | 485 |
| F | Chainstays (mm) | 445 | 445 | 445 | 445 |
| G | BB Drop (mm) | 65 | 65 | 65 | 65 |
| H | Stack (mm) | 637 | 642 | 651 | 660 |
| I | Reach (mm) | 417 | 437 | 455 | 495 |
| J | Front Centre (mm) | 748 | 770 | 788 | 833 |
| K | Wheelbase (mm) | 1185.3 | 1207.4 | 1225.2 | 1271 |
