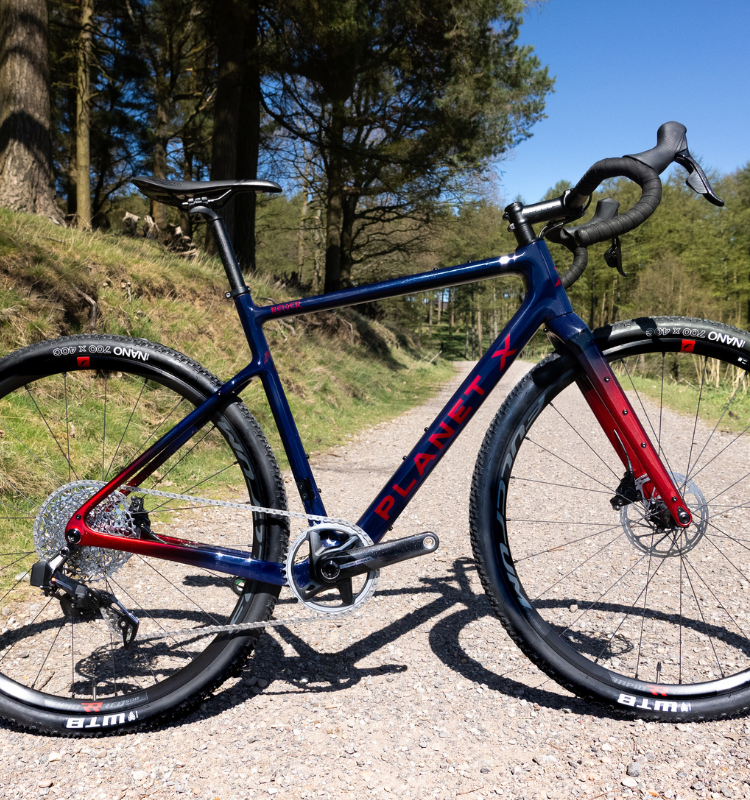

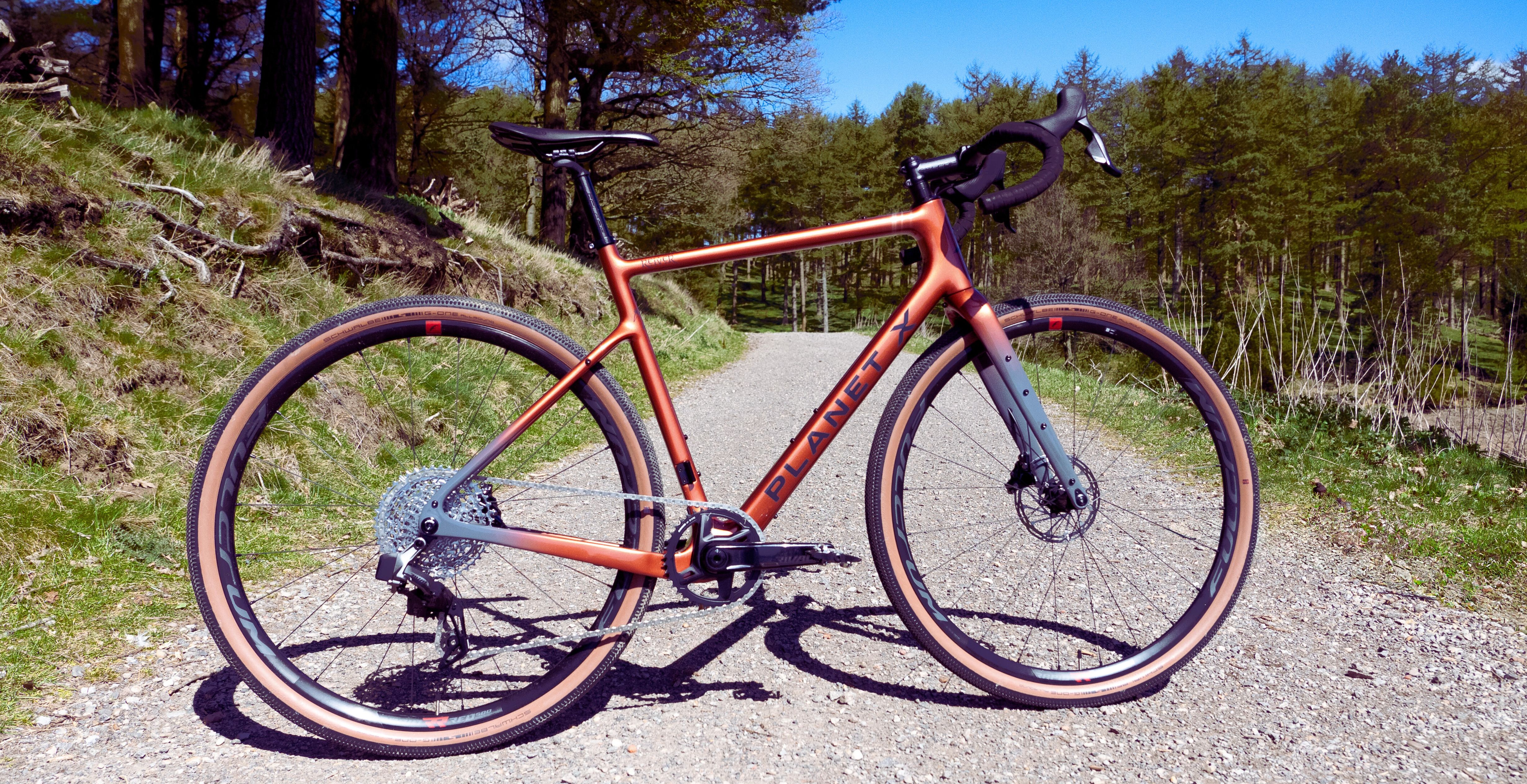

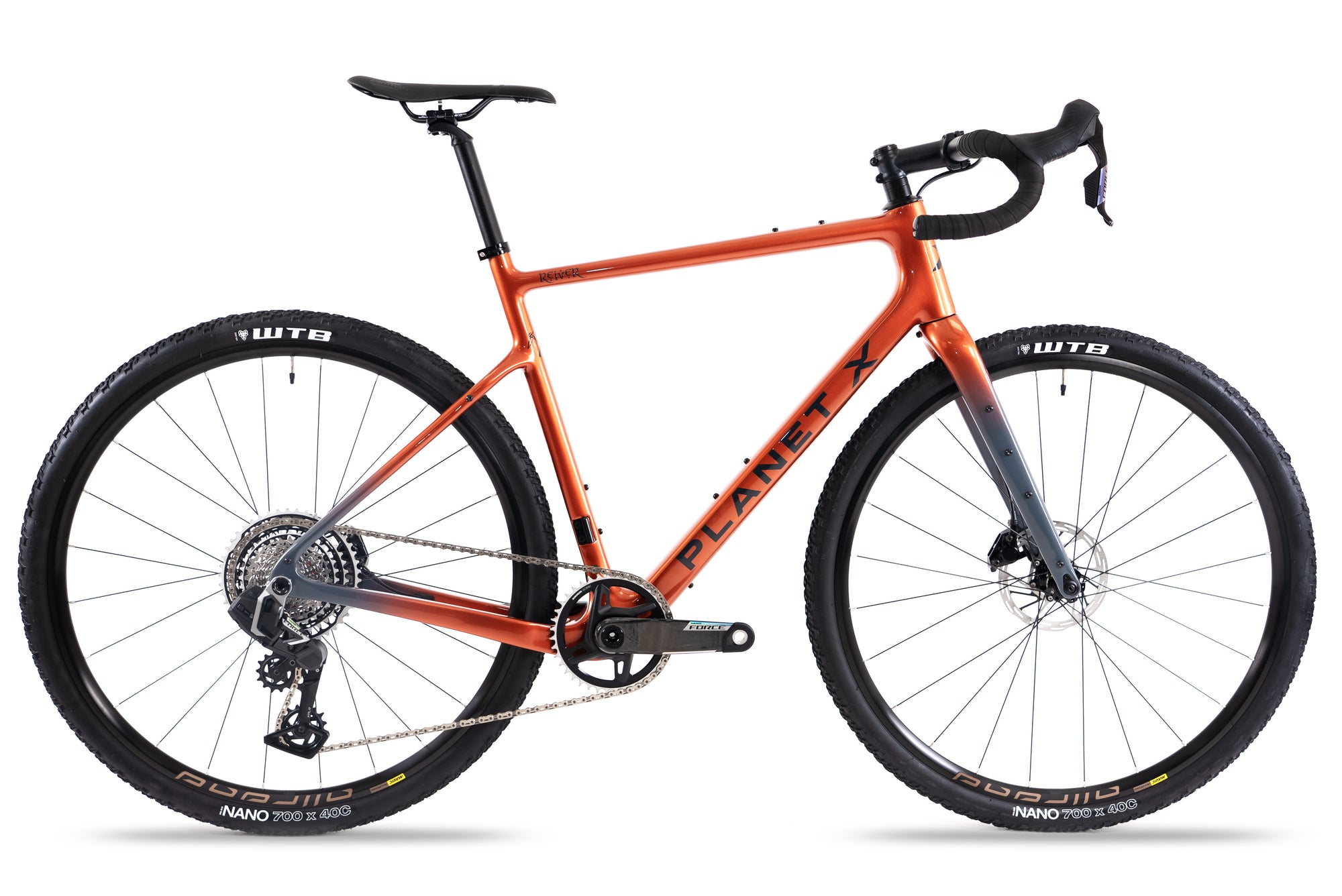

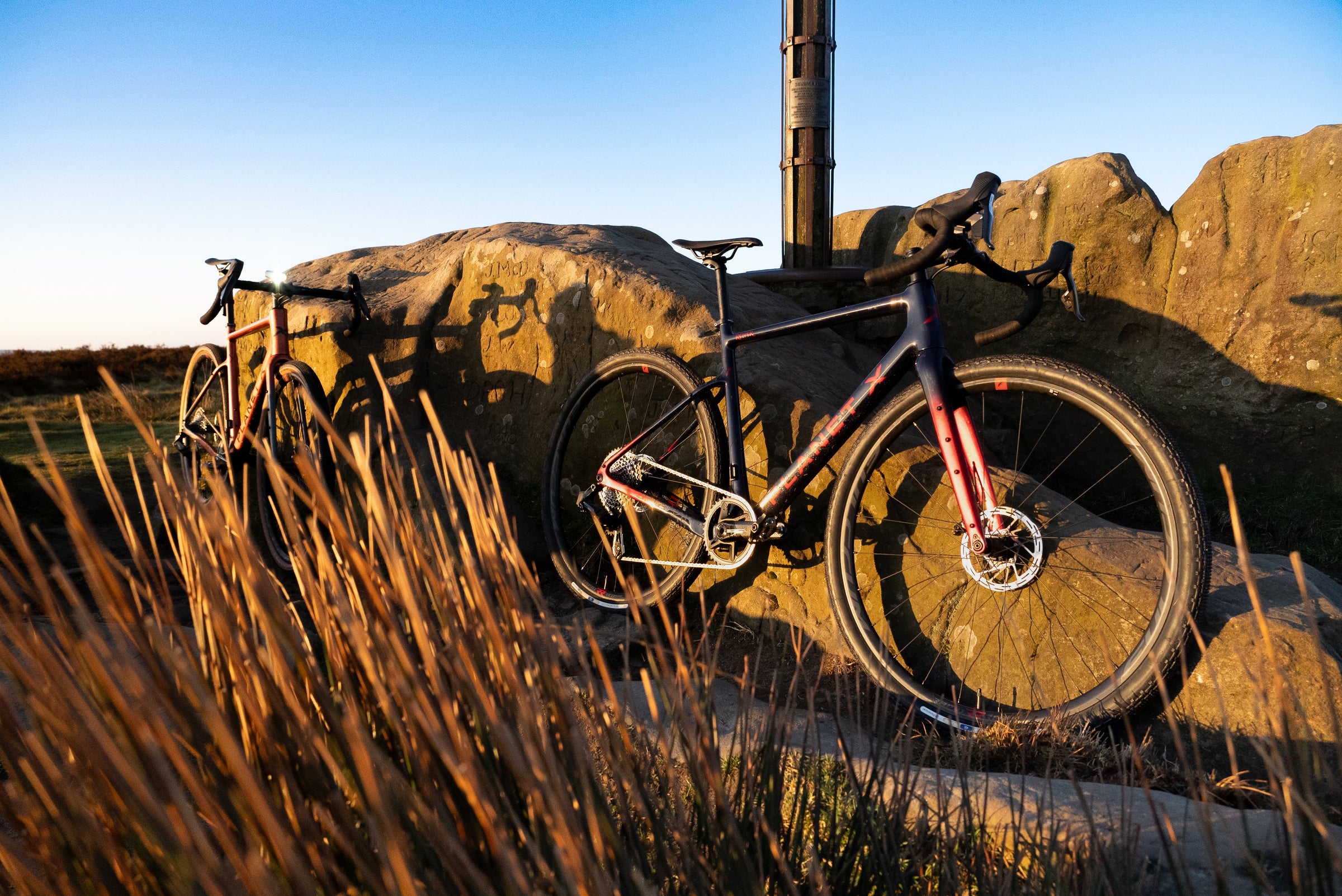

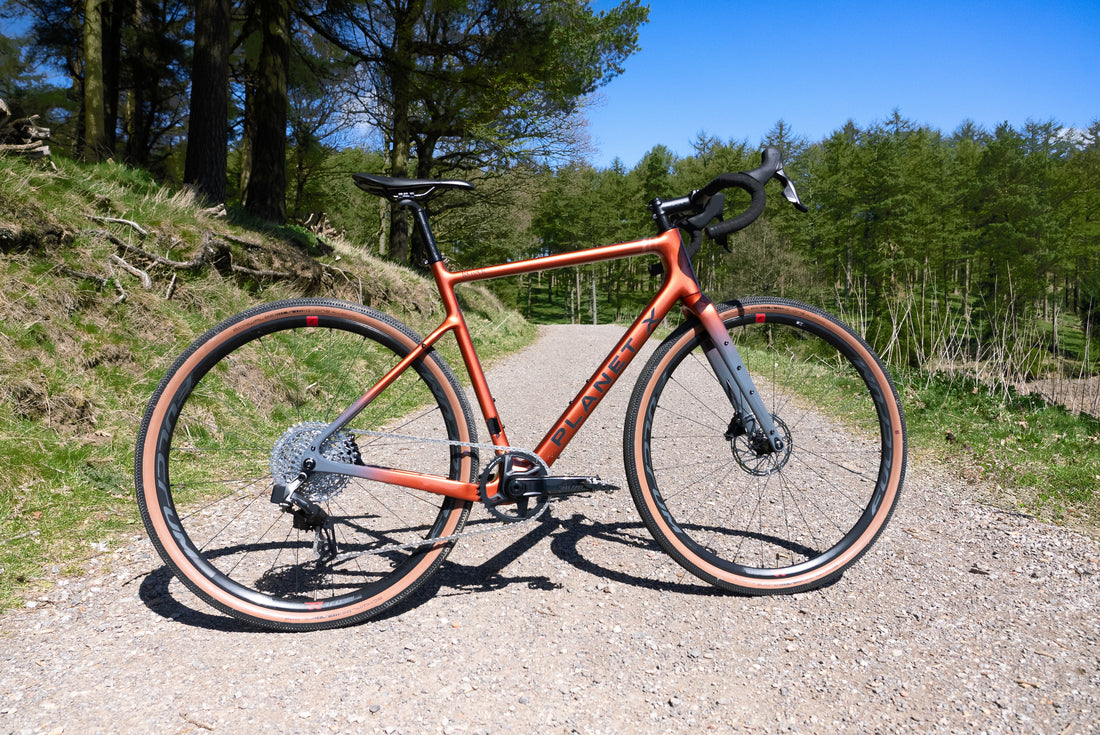

Our multi terrain carbon speed machine, the Reiver is a true gravel racer.
Named after the border raiders of old, this carbon gravel racer is ready to steal KOMs and cross boundaries like never before. Designed with speed and agility in mind this is the racers gravel bike.

Discover Reiver

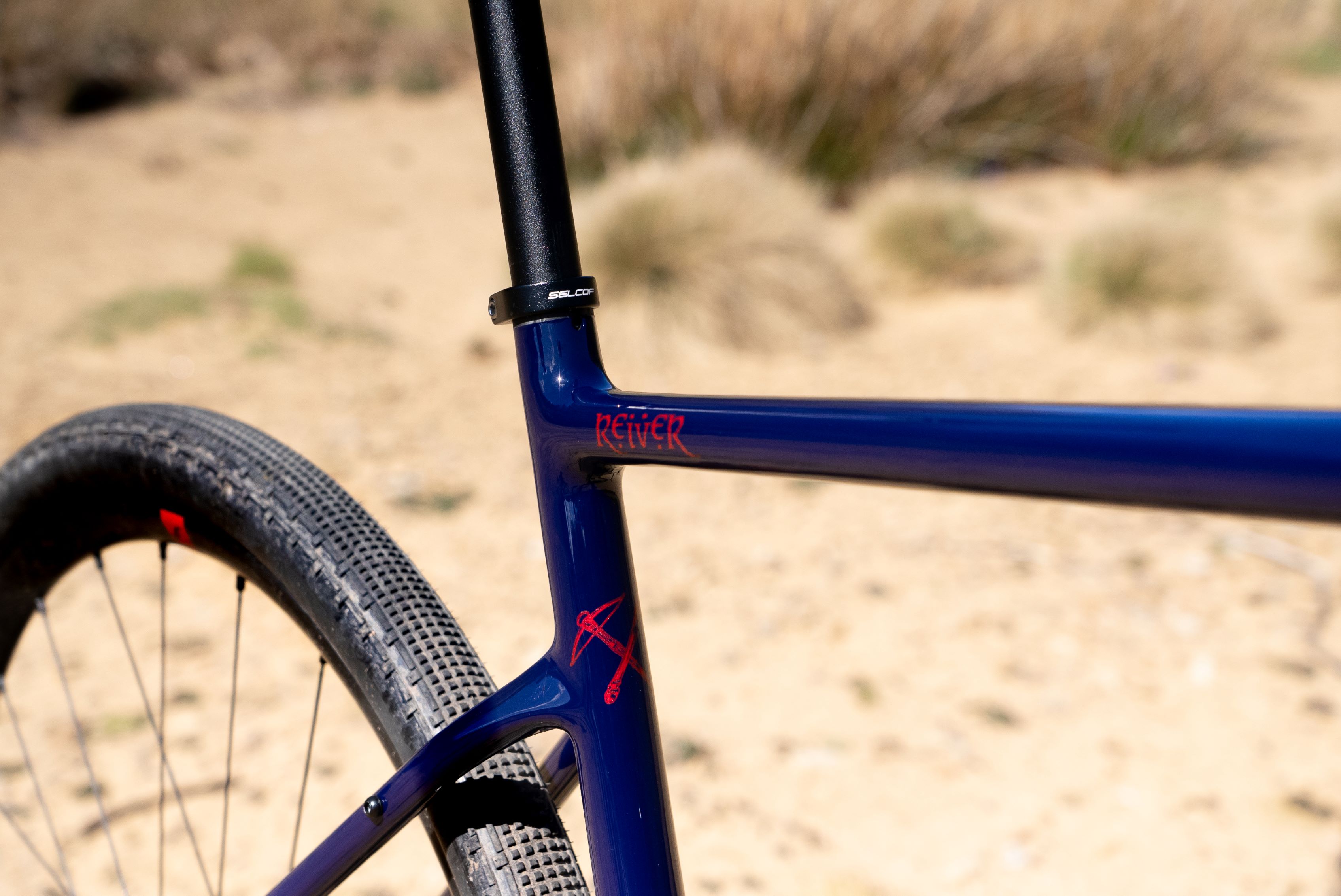

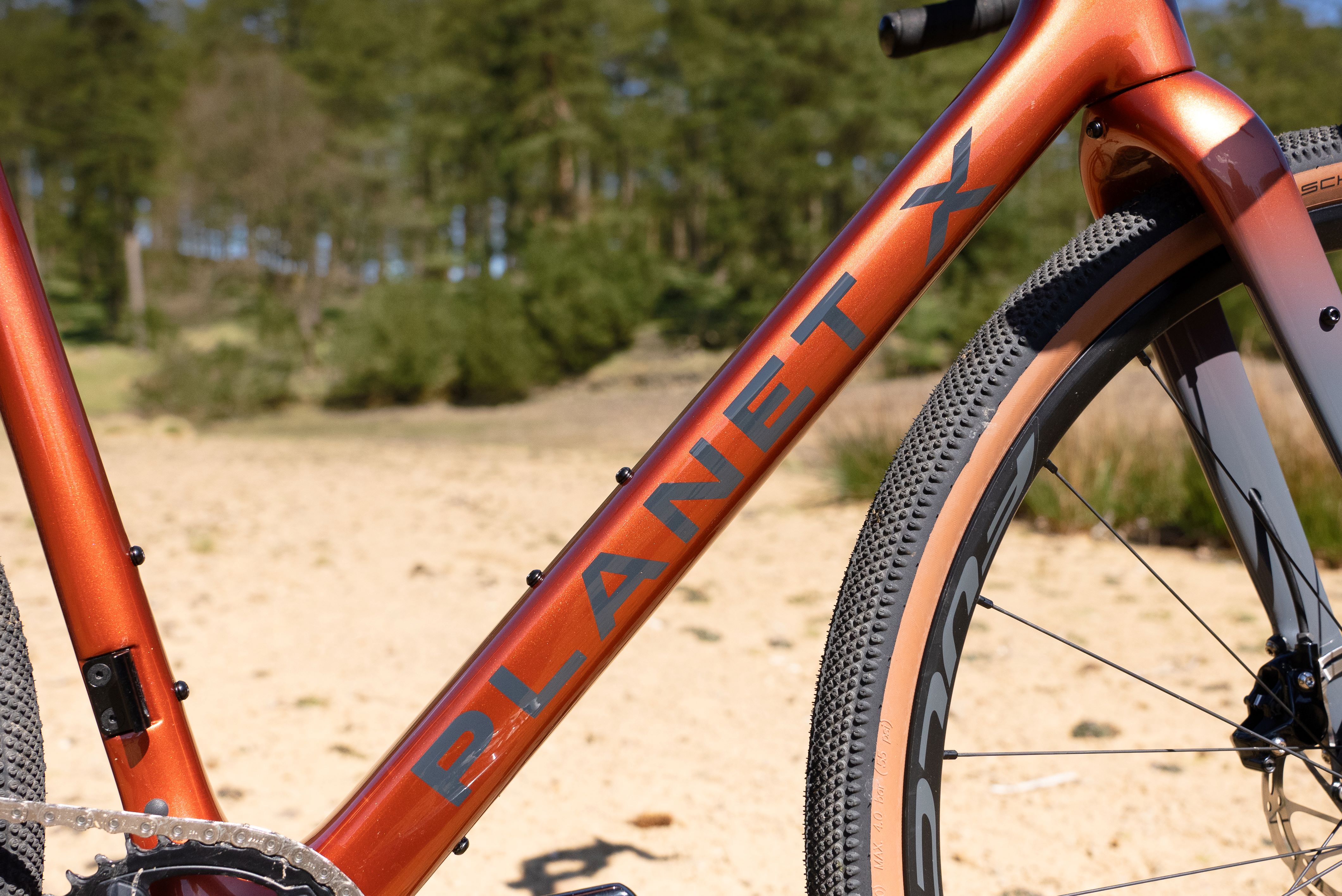

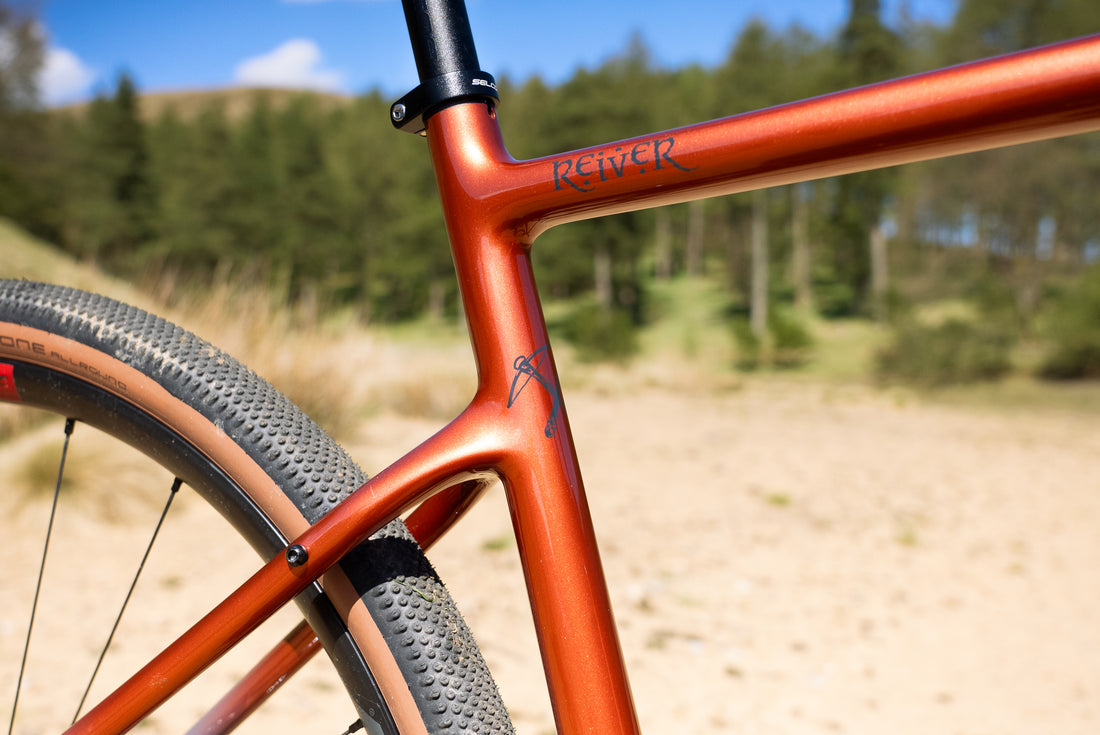

Lightweight Carbon Frame
Stiff where it counts, and just enough flex to keep you riding faster and further than ever before
Bikepacking Mounts
Go Fully loaded up with fork bags, or travel light with the rugged and lightweight full carbon fork,
Gravel Specific Groupsets
From SRAM XPLR to Shimano GRX, You'll be able to find your perfect ratio on the road or the trail.
Huge Tyre Clearance
Clearance for up to 48mm tyres to tame the road and the trail
Lightweight Carbon Frame
Stiff where it counts, and just enough flex to keep you riding faster and further than ever before
Bikepacking Mounts
Go Fully loaded up with fork bags, or travel light with the rugged and lightweight full carbon fork,
Gravel Specific Groupsets
From SRAM XPLR to Shimano GRX, You'll be able to find your perfect ratio on the road or the trail.
Huge Tyre Clearance
Clearance for up to 48mm tyres to tame the road and the trail

Reiver Geometry and Size Guide

Rider Height Suggested Frame Size
5′0″ to 5′5″ X-Small
5′5″ to 5′8″ Small
5′7″ to 5′10″  Medium
5′9″ to 6′0″ Large
6′0″ to 6′3″  X-Large




XS
S
M
 L
XL
A
 Head Angle (degrees)
70
71
71
71
71
B Head Tube (mm)
110
125
140
160
185
C Top Tube Effective(mm)
517
538
551
571
588
D Seat Tube Angle (degrees)
74
73
73
72.5
72.5
E Seat Tube C-T Actual (mm)
450
490
520
540
560
F Chainstays (mm)
435
435
435
435
435
G BB Drop (mm)
69
69
69
69
69
H Stack (mm)
530
548
562
581
604
I Reach (mm)
365
370
379
388
397
J Front Centre (mm)
596
597
611
626
643
K Wheelbase (mm)
1021
1023
1036
1052
1069
