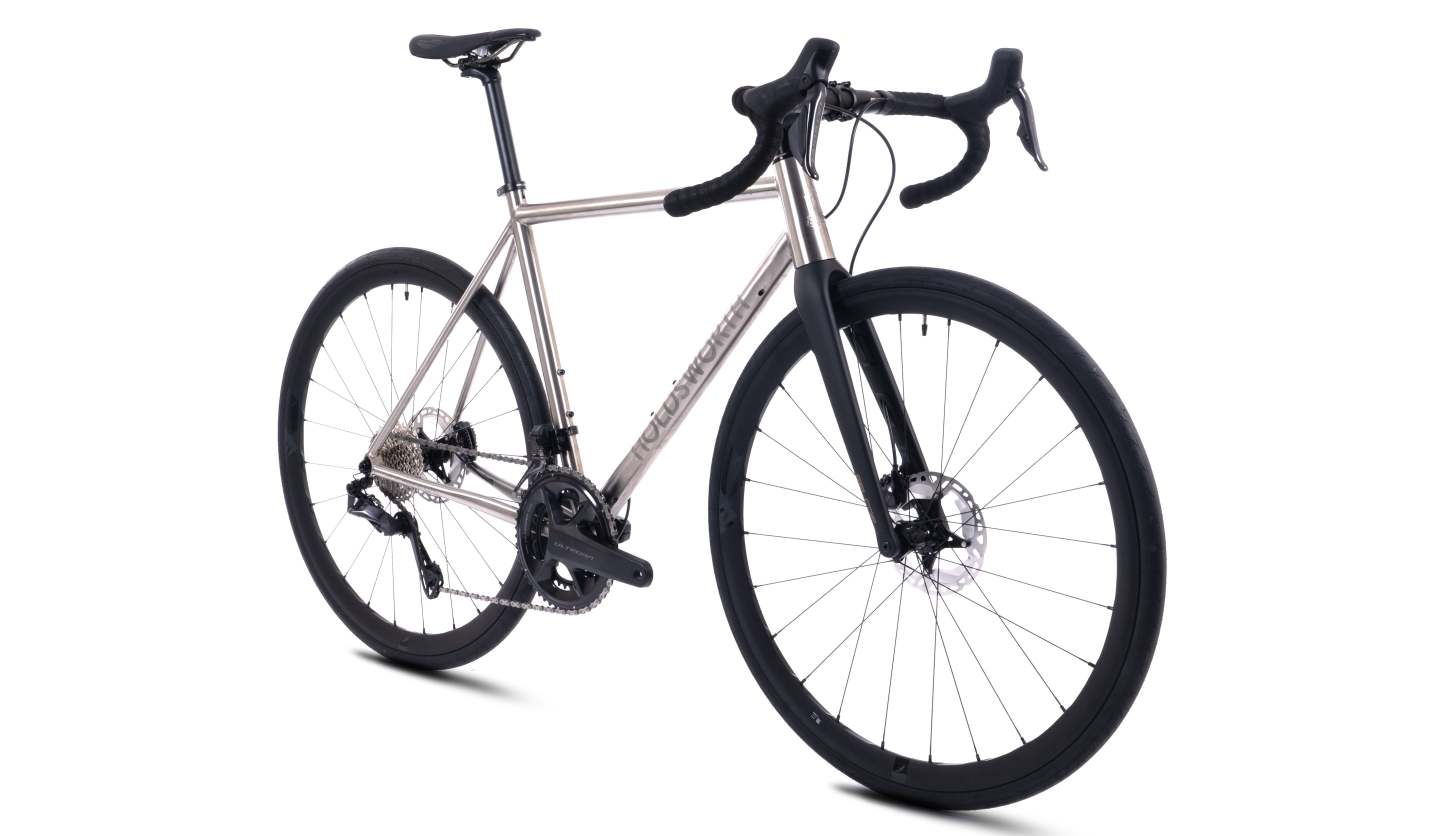

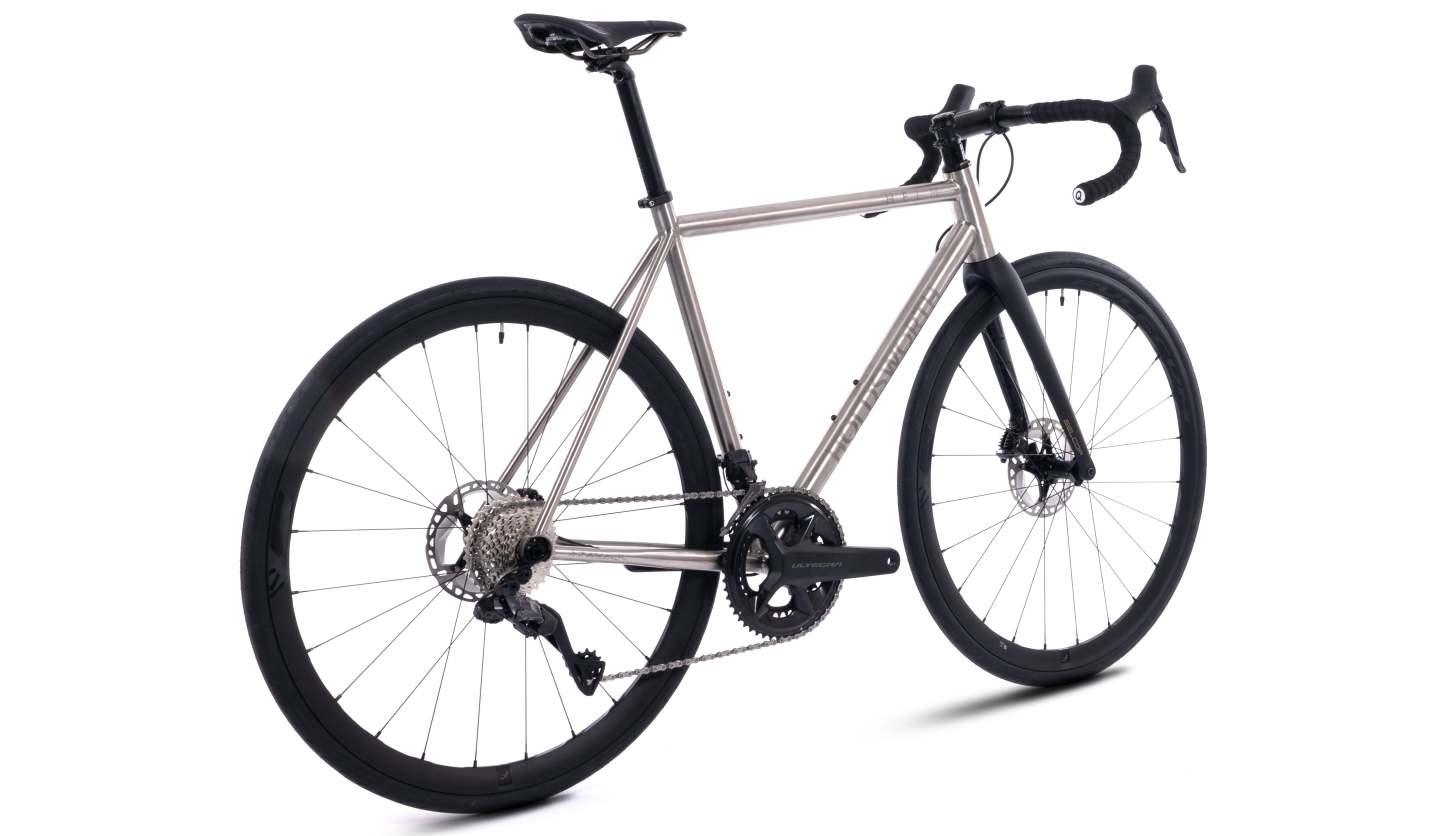

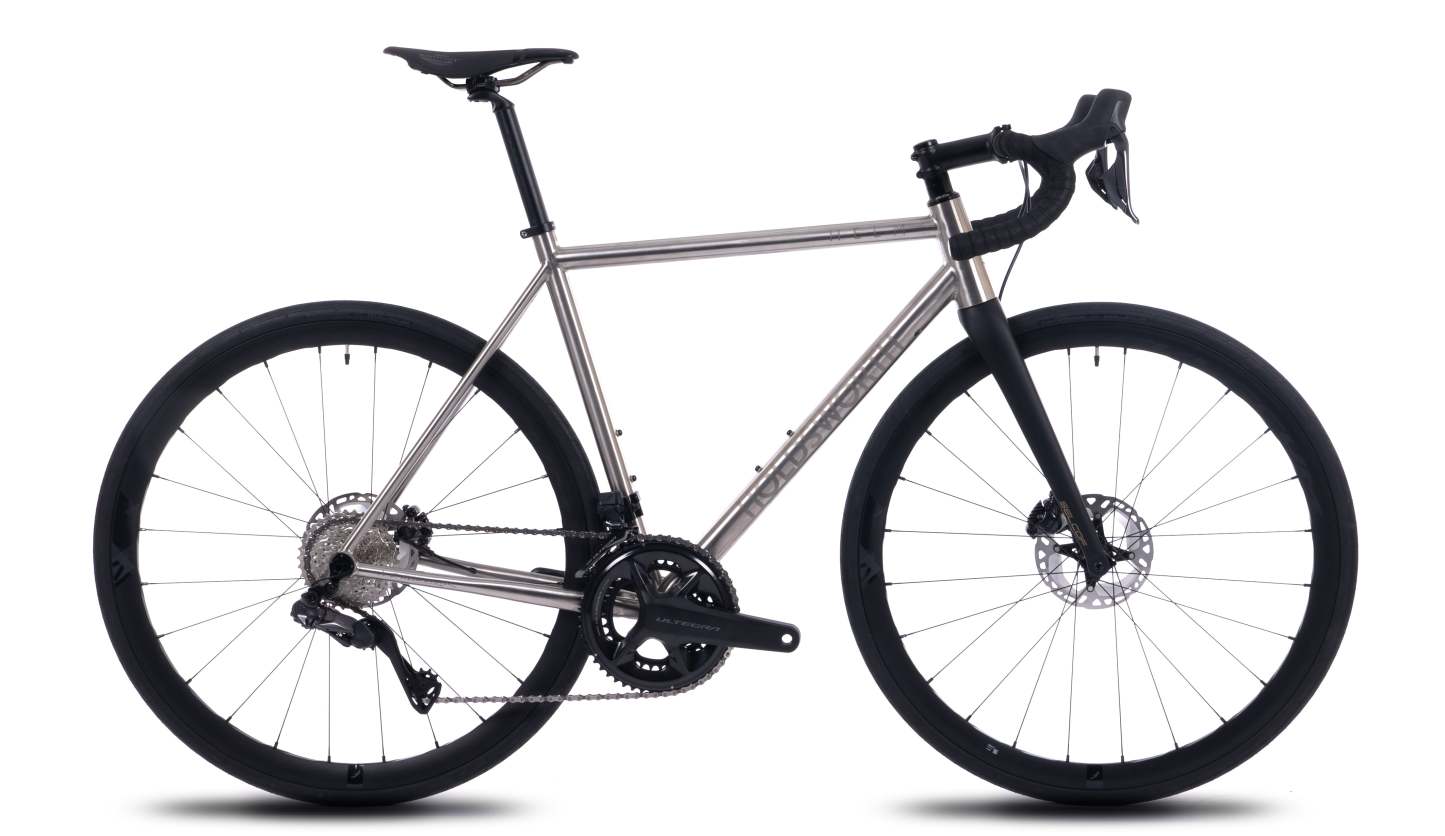

Holdsworth Helm Shimano Ultegra Di2 Titanium Road Bike
$4,184.00
Shipping calculated at checkout.
Rider Height | Suggested Frame Size |
---|---|
5′4″ to 5′7″ | XSM |
5′6″ to 5′8″ | SML |
5′7″ to 5′10″ | MED |
5′9″ to 6′1″ | LRG |
6′0″ to 6′4″ | XLG |
XSM | SML | MED | LRG | XLG | ||
A | Head Angle (degrees) | 71.5 | 72 | 72 | 72.5 | 72.5 |
B | Head Tube (mm) | 100 | 120 | 140 | 160 | 180 |
C | Top Tube Effective(mm) | 500 | 520 | 540 | 560 | 580 |
D | Seat Tube Angle (degrees) | 74 | 74 | 73.5 | 73.5 | 73 |
E | Seat Tube C-T (mm) | 485 | 515 | 535 | 555 | 575 |
F | Chainstays (mm) | 415 | 415 | 415 | 415 | 415 |
G | BB Drop (mm) | 74 | 74 | 72 | 72 | 70 |
H | Stack (mm) | 505 | 526 | 543 | 564 | 581 |
I | Reach (mm) | 355 | 369 | 379 | 393 | 402 |
J | Front Centre (mm) | 552 | 568 | 584 | 600 | 615 |
K | Wheelbase (mm) | 955 | 972 | 988 | 1004 | 1020 |
Shimano Ultegra Di2 ST-R8170 / BR-R8170 Left Hand Shifter Rear Brake |
Shimano Ultegra Di2 ST-R8170 / BR-R8170 Right Hand Shifter Front Brake |
Shimano SM-BBR60 BSA Bottom Bracket |
Shimano Ultegra FC-R8100 Chainset / 172.5mm / 52/36T |
Shimano CS-R8100 12-Speed 11-34 Cassette |
Shimano Ultegra Di2 RD-R8150 GS 12-Speed Rear Mech |
Shimano Ultegra Di2 FD-R8150 Braze On Front Mech |
Shimano CN-M8100-12 Speed Chain 120L |
Shimano RT-MT800 160mm Centrelock Rotor |
Viner Settanta Di2 Spares / Battery Holder |
Shimano SM-MA-R160D/D Mount Adapter |
Shimano BT-DN300 Battery |
Shimano EW-EC300 Charging Cable |
Shimano EW-SD300-I 1400mm |
Shimano EW-SD300-I 800mm |
🔧 Customise your bike
Quantity
CBBIKE-HLM-UDI-XSM-TIT
Frame
Groupset
1
/
2
📏 Sizing and Geometry
Rider Height | Suggested Frame Size |
---|---|
5′4″ to 5′7″ | XSM |
5′6″ to 5′8″ | SML |
5′7″ to 5′10″ | MED |
5′9″ to 6′1″ | LRG |
6′0″ to 6′4″ | XLG |
XSM | SML | MED | LRG | XLG | ||
A | Head Angle (degrees) | 71.5 | 72 | 72 | 72.5 | 72.5 |
B | Head Tube (mm) | 100 | 120 | 140 | 160 | 180 |
C | Top Tube Effective(mm) | 500 | 520 | 540 | 560 | 580 |
D | Seat Tube Angle (degrees) | 74 | 74 | 73.5 | 73.5 | 73 |
E | Seat Tube C-T (mm) | 485 | 515 | 535 | 555 | 575 |
F | Chainstays (mm) | 415 | 415 | 415 | 415 | 415 |
G | BB Drop (mm) | 74 | 74 | 72 | 72 | 70 |
H | Stack (mm) | 505 | 526 | 543 | 564 | 581 |
I | Reach (mm) | 355 | 369 | 379 | 393 | 402 |
J | Front Centre (mm) | 552 | 568 | 584 | 600 | 615 |
K | Wheelbase (mm) | 955 | 972 | 988 | 1004 | 1020 |
🔧 Build Kit
SRAM Flat Mount Disc Brake Mounting Hardware / 32mm / Single |
Selcof Road Disc Carbon Fork / Matt Black |
Selcof Carbon Steerer Fork Bung MK 4 / 23-24mm ID |
Selcof Forged Alloy Bolt Up Seatclamp V3 / 31.8mm / 12mm / Black |
Bike Build Packaging Rear Derailleur Protector |
Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black |
Token Omega Headset For Tapered 1" 1/8th – 1.5" Fork Steerer |
Front Mech Band On Clamp For SRAM YAW / 31.8mm / Black |
🔧 Groupset
Shimano Ultegra Di2 ST-R8170 / BR-R8170 Left Hand Shifter Rear Brake |
Shimano Ultegra Di2 ST-R8170 / BR-R8170 Right Hand Shifter Front Brake |
Shimano SM-BBR60 BSA Bottom Bracket |
Shimano Ultegra FC-R8100 Chainset / 172.5mm / 52/36T |
Shimano CS-R8100 12-Speed 11-34 Cassette |
Shimano Ultegra Di2 RD-R8150 GS 12-Speed Rear Mech |
Shimano Ultegra Di2 FD-R8150 Braze On Front Mech |
Shimano CN-M8100-12 Speed Chain 120L |
Shimano RT-MT800 160mm Centrelock Rotor |
Viner Settanta Di2 Spares / Battery Holder |
Shimano SM-MA-R160D/D Mount Adapter |
Shimano BT-DN300 Battery |
Shimano EW-EC300 Charging Cable |
Shimano EW-SD300-I 1400mm |
Shimano EW-SD300-I 800mm |
