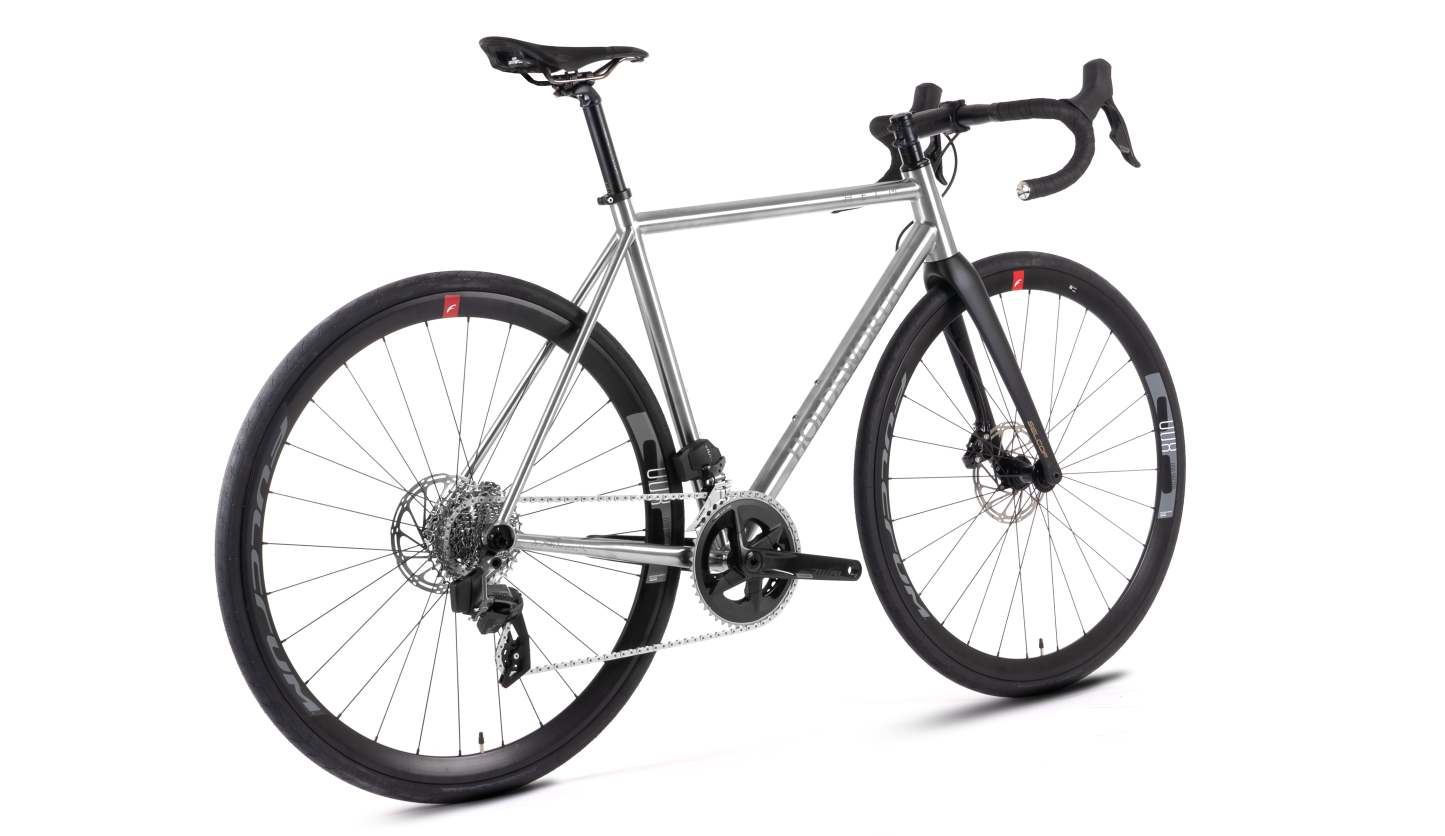

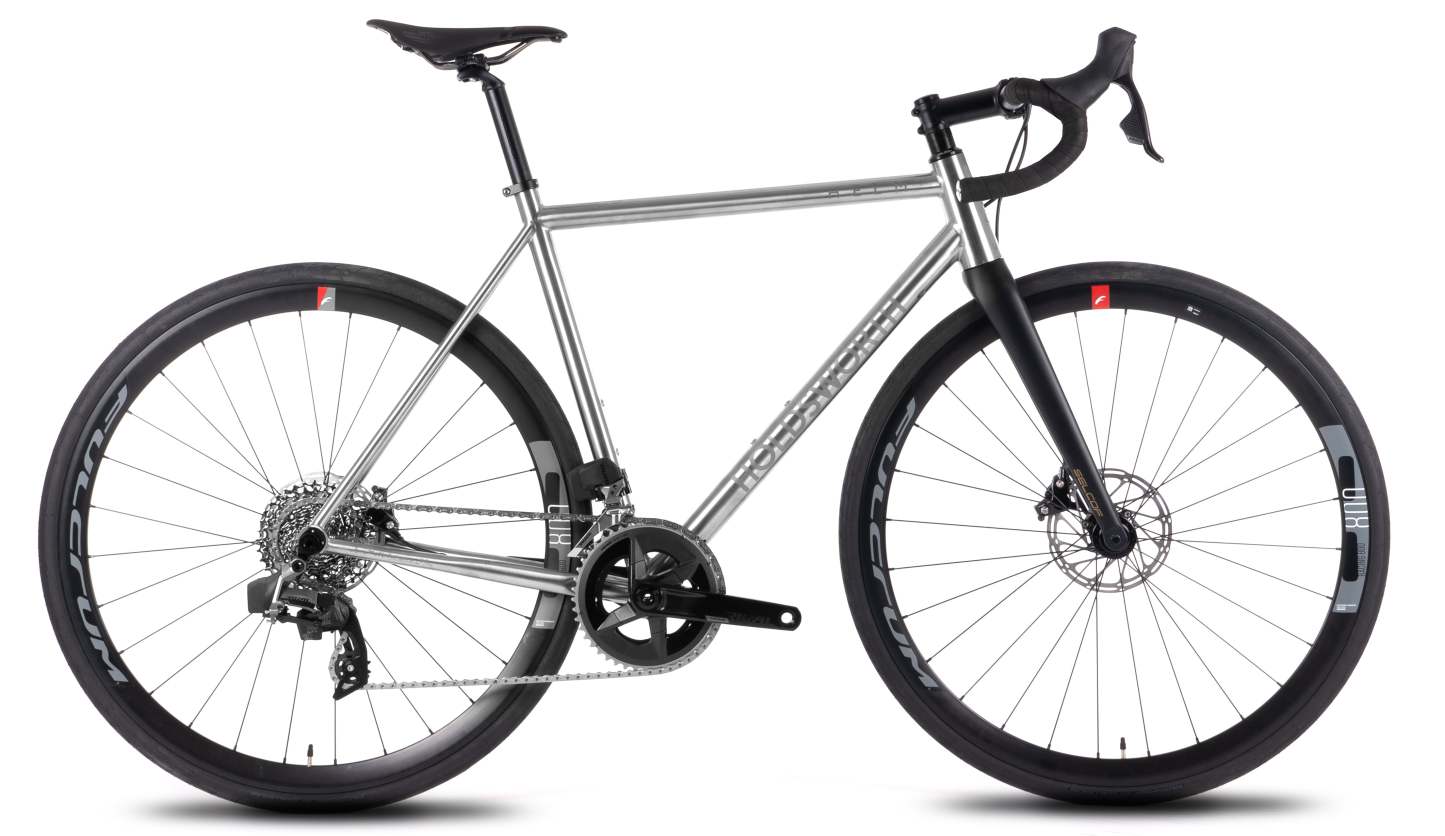

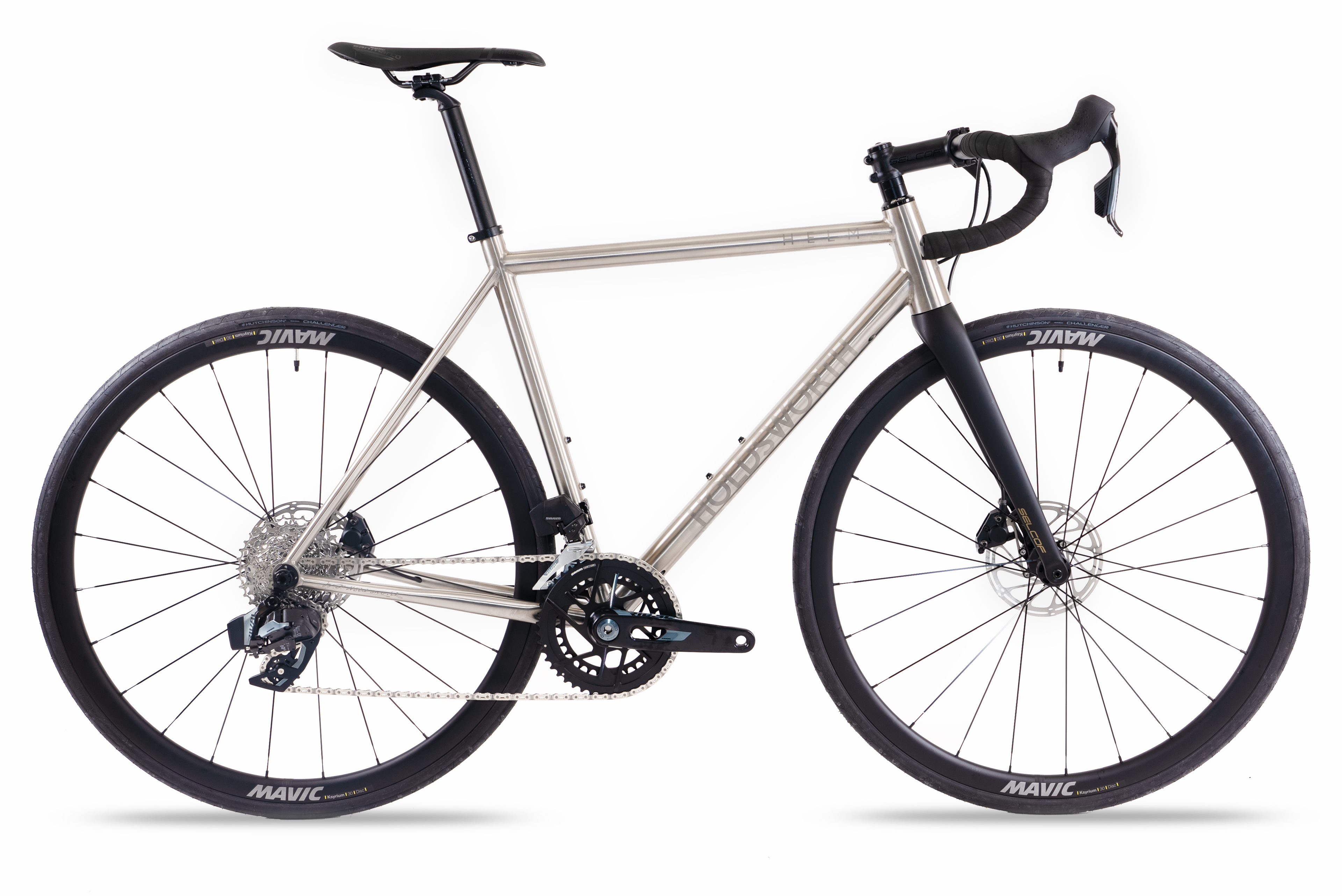

Holdsworth Helm SRAM Rival AXS Titanium Road Bike

Eponymous to the Helm, the foreboding wind that roars down the mountain side of Great Dun Fell, Britains highest paved road. The Holdsworth Helm is a contemporary titanium road bike. Built with Aerospace Grade 9 3AL-2.5V Titanium tubing, with precise handling and clearance for 32mm rubber. Light, strong, responsive, and comfortable. This is the purists road machine.

SRAM Rival AXS 2x12 Drivetrain
Aerospace Grade 9 3AL-2.5V Titanium Frame
Fulcrum Racing 800 Tubeless Ready Wheels
High Modulus Carbon Fork
Weight - Medium 9.4kg

View less

$3,138.00

Shipping calculated at checkout.

Expect dispatch in 5 days

Available on Cycle to work

X-Small Small Medium Large X-Large

Rider Height	Suggested Frame Size
5′4″ to 5′7″	XSM
5′6″ to 5′8″	SML
5′7″ to 5′10″	MED
5′9″ to 6′1″	LRG
6′0″ to 6′4″	XLG

		XSM	SML	MED	LRG	XLG
A	Head Angle (degrees)	71.5	72	72	72.5	72.5
B	Head Tube (mm)	100	120	140	160	180
C	Top Tube Effective(mm)	500	520	540	560	580
D	Seat Tube Angle (degrees)	74	74	73.5	73.5	73
E	Seat Tube C-T (mm)	485	515	535	555	575
F	Chainstays (mm)	415	415	415	415	415
G	BB Drop (mm)	74	74	72	72	70
H	Stack (mm)	505	526	543	564	581
I	Reach (mm)	355	369	379	393	402
J	Front Centre (mm)	552	568	584	600	615
K	Wheelbase (mm)	955	972	988	1004	1020

🔧 Customise your bike

Quantity

CBBIKE-HLM-RAX-XSM-TIT

Frame

Clean lines, rounded tubes, uncluttered and unphased, The Holdsworth Helm has been meticulously designed and constructed using Aerospace Grade 9 3AL-2.5V Titanium, for unparalleled lightness and strength. With geometry that retains the high-speed pedigree of a pure road bike, but with modern touches that make it perfect for ultra-endurance expeditions also. This is a bike made for long, fast days in the saddle.

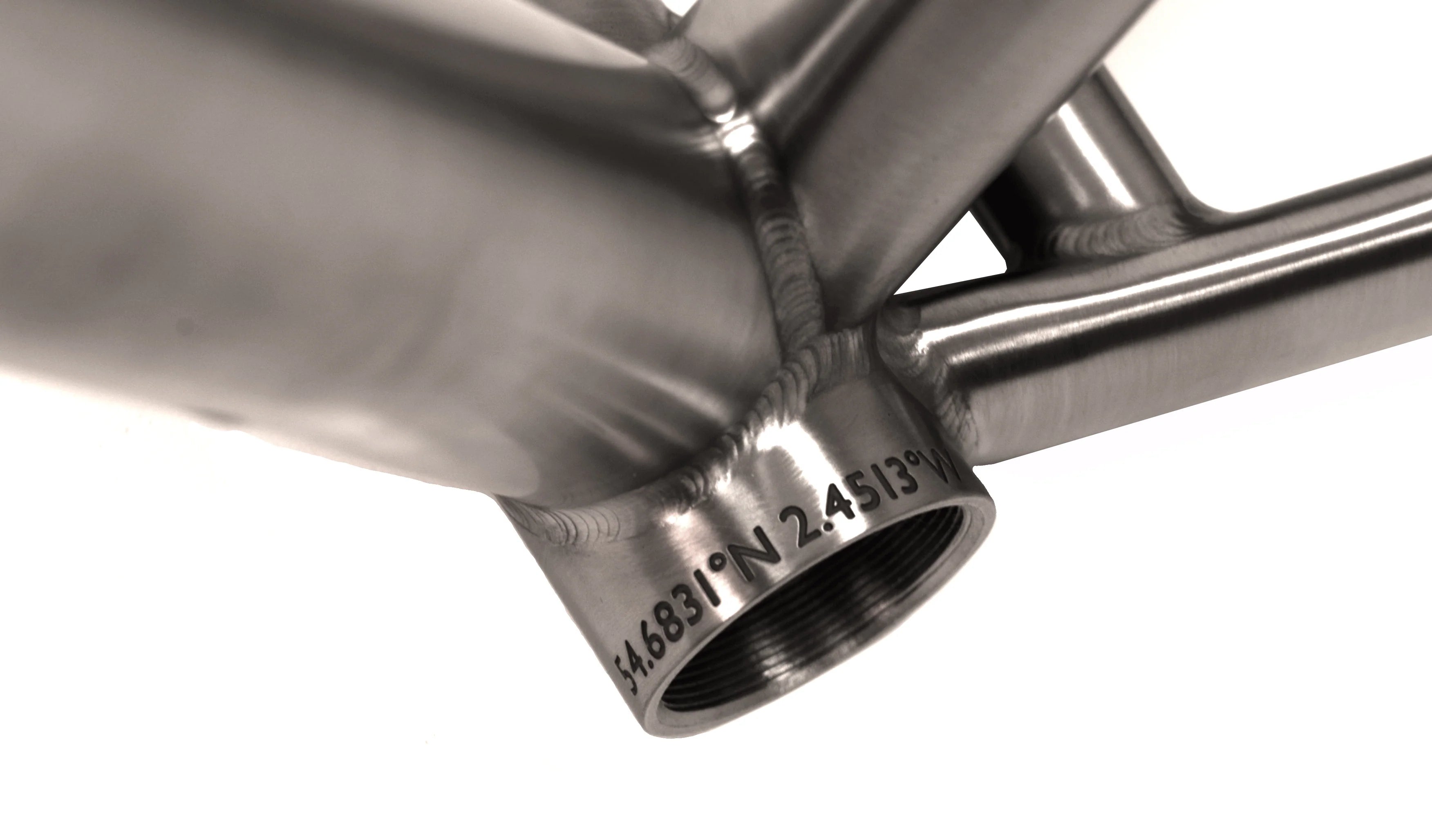

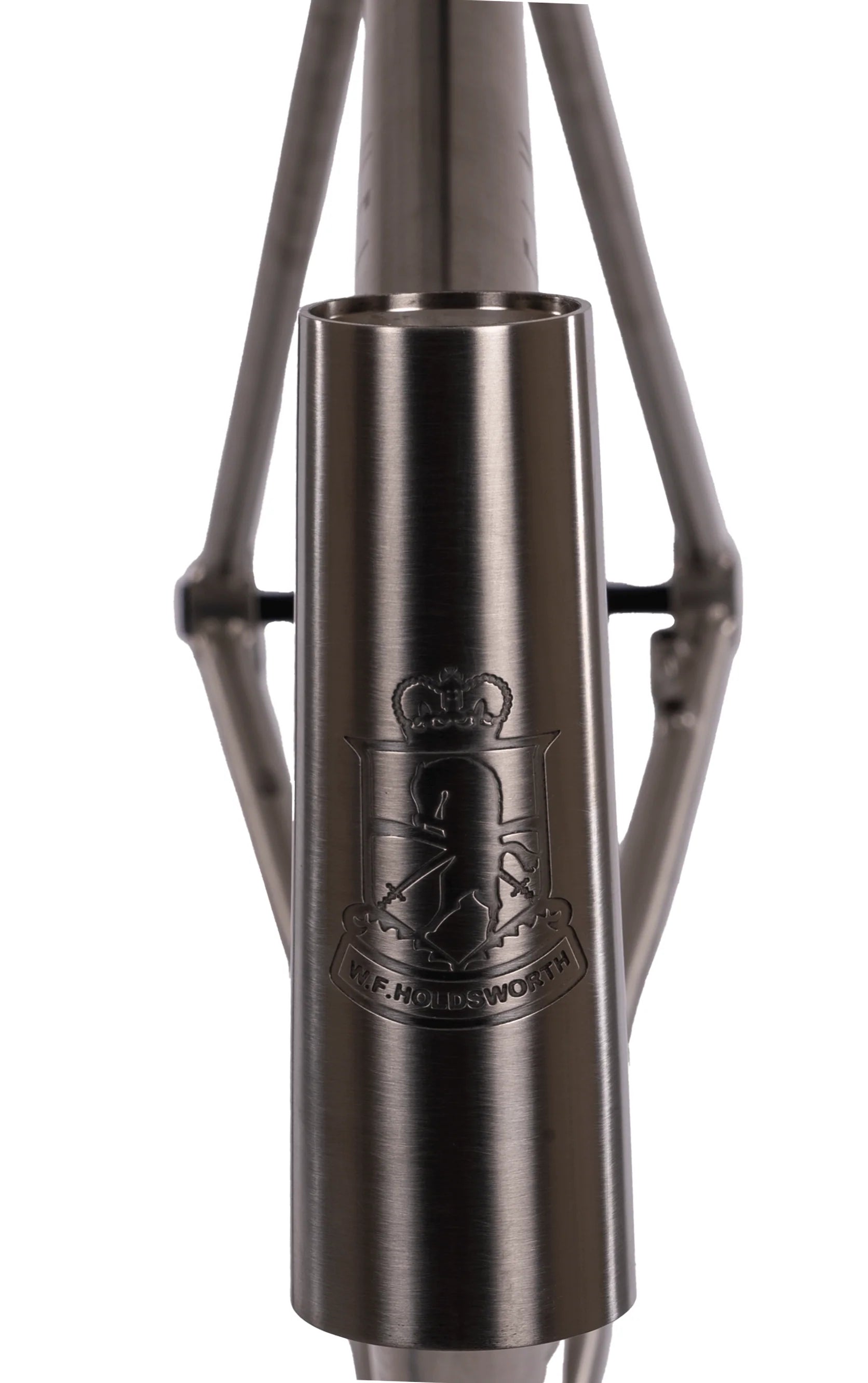

A CNC detailed tapered head tube allows for a large weld platform and bigger bearings. Resulting in a stronger, less flexible, and better handling front end. Hourglass profile chain stays and a 27.2mm seat post give comfort and spring. The bridgeless seat tubes offer sprightliness, whilst offering a clean aesthetic. Power is transferred directly though the creak free BSA threaded bottom bracket, which has been CNC engraved with the coordinates of the radar station at the peak of Great Dun Fell.
Versatile Road Geometry
Lightweight and High Strength Aerospace Grade 9 3AL-2.5V Titanium
Capable 700c x 32mm Tyre Clearance
Premium CNC Machined Detailing
Lifetime Frame Warranty

Groupset

Featuring ultra-reliable wireless shifting, innovative gearing, AXS App connectivity, and refined hydraulic disc brakes. It’s everything you could ask for in a modern groupset.
Wireless Shifting
Clean, safe, and reliable. SRAM Rival AXS wireless gear shifting is simple and intuitive. One button to go easier, one to go harder. Simple. A 60-minute battery charge lasts 60 hours, that potentially weeks and weeks of rides. It’s 100% waterproof and proven in the hardest racers on earth. No cables to stretch or get clogged with dirt. SRAM Rival AXS just works.
Efficient and Capable Gearing
Innovative 12-speed gearing provides huge range and tight jumps. Meaning you’ll always be able to find the right gear. Whether climbing the steepest hills or sprinting to the line. We’ve paired a 48/35 tooth front chainset to a 10-36 tooth rear cassette. For top end speed, this gives you a harder gear than a traditional compact groupset. And for the hills, the 35-tooth inner front chainring and 36-tooth cassette gives you the climbing potential other groupsets could only dream of.
AXS Mobile App
Control, personalisation, and monitoring are at your fingertips with the AXS mobile app. See how much time you spend in each cog, customise your shifting configuration, check battery charge status, and update firmware as needed right from your phone.
Disc Brakes for ultimate control
SRAM Rival AXS provides the best braking experience for all riders. Powerful hydraulic disc braking to inspire confidence, whatever the weather. No more achy hands after long descents. Reach adjustability for different hand sizes mean suitability for everyone.

Frame

Clean lines, rounded tubes, uncluttered and unphased, The Holdsworth Helm has been meticulously designed and constructed using Aerospace Grade 9 3AL-2.5V Titanium, for unparalleled lightness and strength. With geometry that retains the high-speed pedigree of a pure road bike, but with modern touches that make it perfect for ultra-endurance expeditions also. This is a bike made for long, fast days in the saddle.
A CNC detailed tapered head tube allows for a large weld platform and bigger bearings. Resulting in a stronger, less flexible, and better handling front end. Hourglass profile chain stays and a 27.2mm seat post give comfort and spring. The bridgeless seat tubes offer sprightliness, whilst offering a clean aesthetic. Power is transferred directly though the creak free BSA threaded bottom bracket, which has been CNC engraved with the coordinates of the radar station at the peak of Great Dun Fell.
Versatile Road Geometry
Lightweight and High Strength Aerospace Grade 9 3AL-2.5V Titanium
Capable 700c x 32mm Tyre Clearance
Premium CNC Machined Detailing
Lifetime Frame Warranty

Groupset

Featuring ultra-reliable wireless shifting, innovative gearing, AXS App connectivity, and refined hydraulic disc brakes. It’s everything you could ask for in a modern groupset.
Wireless Shifting
Clean, safe, and reliable. SRAM Rival AXS wireless gear shifting is simple and intuitive. One button to go easier, one to go harder. Simple. A 60-minute battery charge lasts 60 hours, that potentially weeks and weeks of rides. It’s 100% waterproof and proven in the hardest racers on earth. No cables to stretch or get clogged with dirt. SRAM Rival AXS just works.
Efficient and Capable Gearing
Innovative 12-speed gearing provides huge range and tight jumps. Meaning you’ll always be able to find the right gear. Whether climbing the steepest hills or sprinting to the line. We’ve paired a 48/35 tooth front chainset to a 10-36 tooth rear cassette. For top end speed, this gives you a harder gear than a traditional compact groupset. And for the hills, the 35-tooth inner front chainring and 36-tooth cassette gives you the climbing potential other groupsets could only dream of.
AXS Mobile App
Control, personalisation, and monitoring are at your fingertips with the AXS mobile app. See how much time you spend in each cog, customise your shifting configuration, check battery charge status, and update firmware as needed right from your phone.
Disc Brakes for ultimate control
SRAM Rival AXS provides the best braking experience for all riders. Powerful hydraulic disc braking to inspire confidence, whatever the weather. No more achy hands after long descents. Reach adjustability for different hand sizes mean suitability for everyone.

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′4″ to 5′7″	XSM
5′6″ to 5′8″	SML
5′7″ to 5′10″	MED
5′9″ to 6′1″	LRG
6′0″ to 6′4″	XLG

		XSM	SML	MED	LRG	XLG
A	Head Angle (degrees)	71.5	72	72	72.5	72.5
B	Head Tube (mm)	100	120	140	160	180
C	Top Tube Effective(mm)	500	520	540	560	580
D	Seat Tube Angle (degrees)	74	74	73.5	73.5	73
E	Seat Tube C-T (mm)	485	515	535	555	575
F	Chainstays (mm)	415	415	415	415	415
G	BB Drop (mm)	74	74	72	72	70
H	Stack (mm)	505	526	543	564	581
I	Reach (mm)	355	369	379	393	402
J	Front Centre (mm)	552	568	584	600	615
K	Wheelbase (mm)	955	972	988	1004	1020

🔧 Build Kit

SRAM Flat Mount Disc Brake Mounting Hardware / 32mm / Single

Selcof Road Disc Carbon Fork / Matt Black

Selcof Carbon Steerer Fork Bung MK 4 / 23-24mm ID

Selcof Forged Alloy Bolt Up Seatclamp V3 / 31.8mm / 12mm / Black

Bike Build Packaging Rear Derailleur Protector

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

Token Omega Headset For Tapered 1" 1/8th – 1.5" Fork Steerer

Front Mech Band On Clamp For SRAM YAW / 31.8mm / Black

🔧 Groupset

SRAM Rival AXS HRD Hydraulic Disc Brake Lever With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / FM 20mm Offset

SRAM Rival AXS HRD Hydraulic Disc Brake Lever With Flat Mount Caliper / Right Lever / Front Brake / 1000mm / FM 20mm Offset

SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide

SRAM Rival XG-1250 12 Speed Cassette / 10-36 Tooth

SRAM Rival AXS 12 Speed Rear Mech / Max 36T

SRAM Rival AXS Front Mech / Braze On

SRAM Rival AXS 12 Speed Chain / 120 Link

SRAM Flat Mount Disc Brake Mounting Hardware / 15mm / Single

Avid Centreline Disc Brake Rotor / 160mm Centrelock

Ashima Flat Mount Adapter - Direct To 20mm

SRAM Powerpack For AXS / 2 Battery

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive
