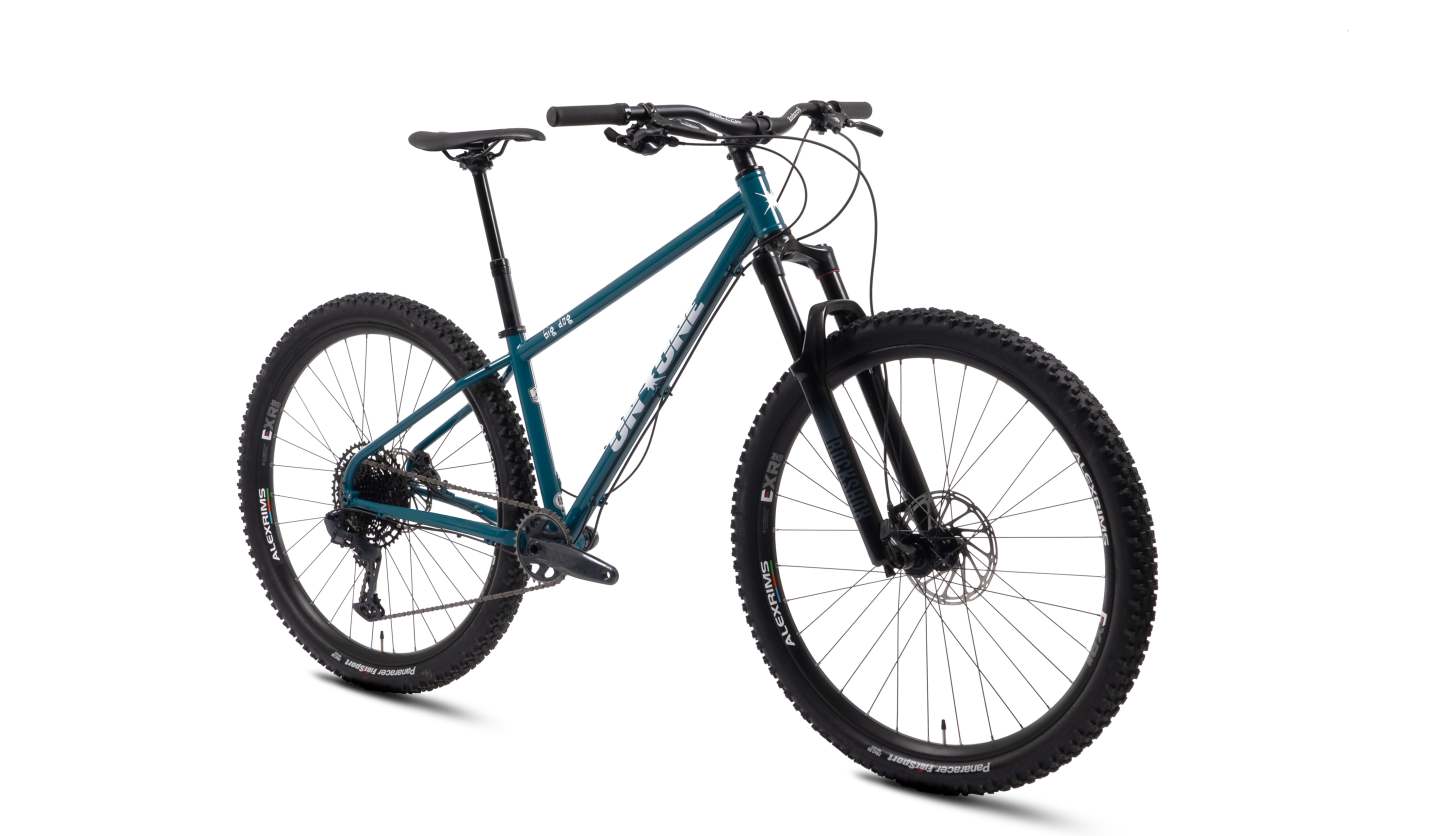

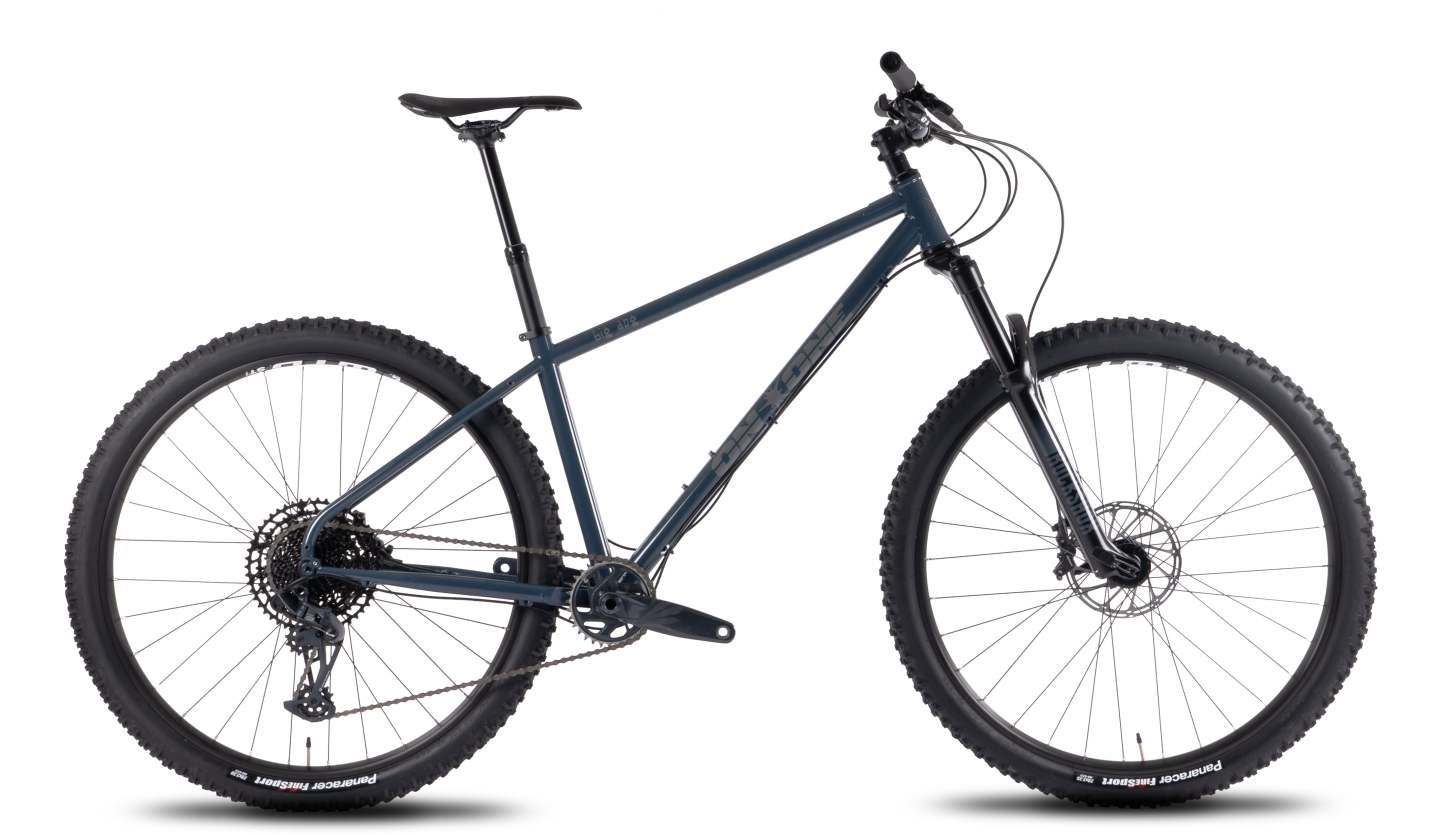

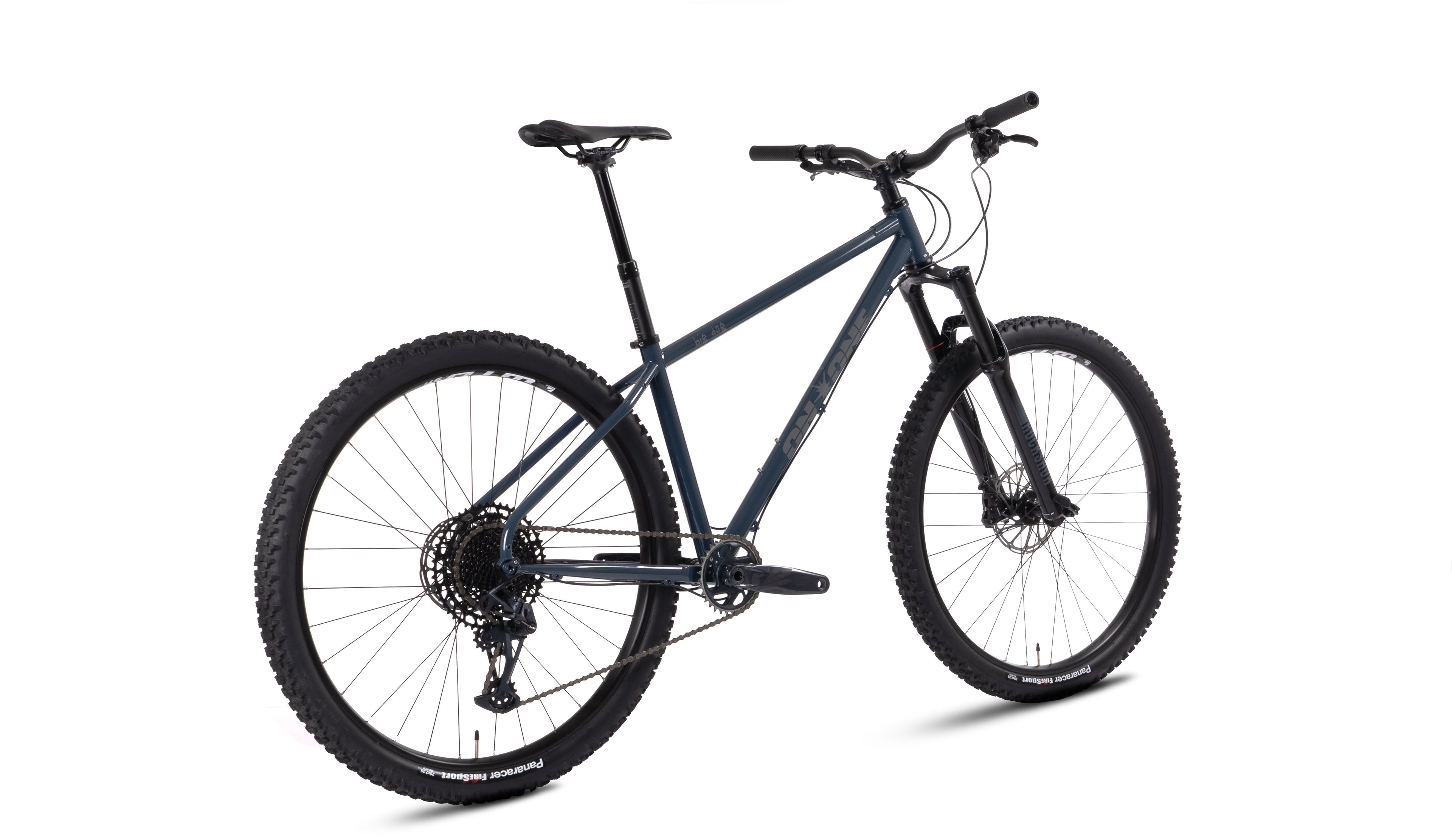

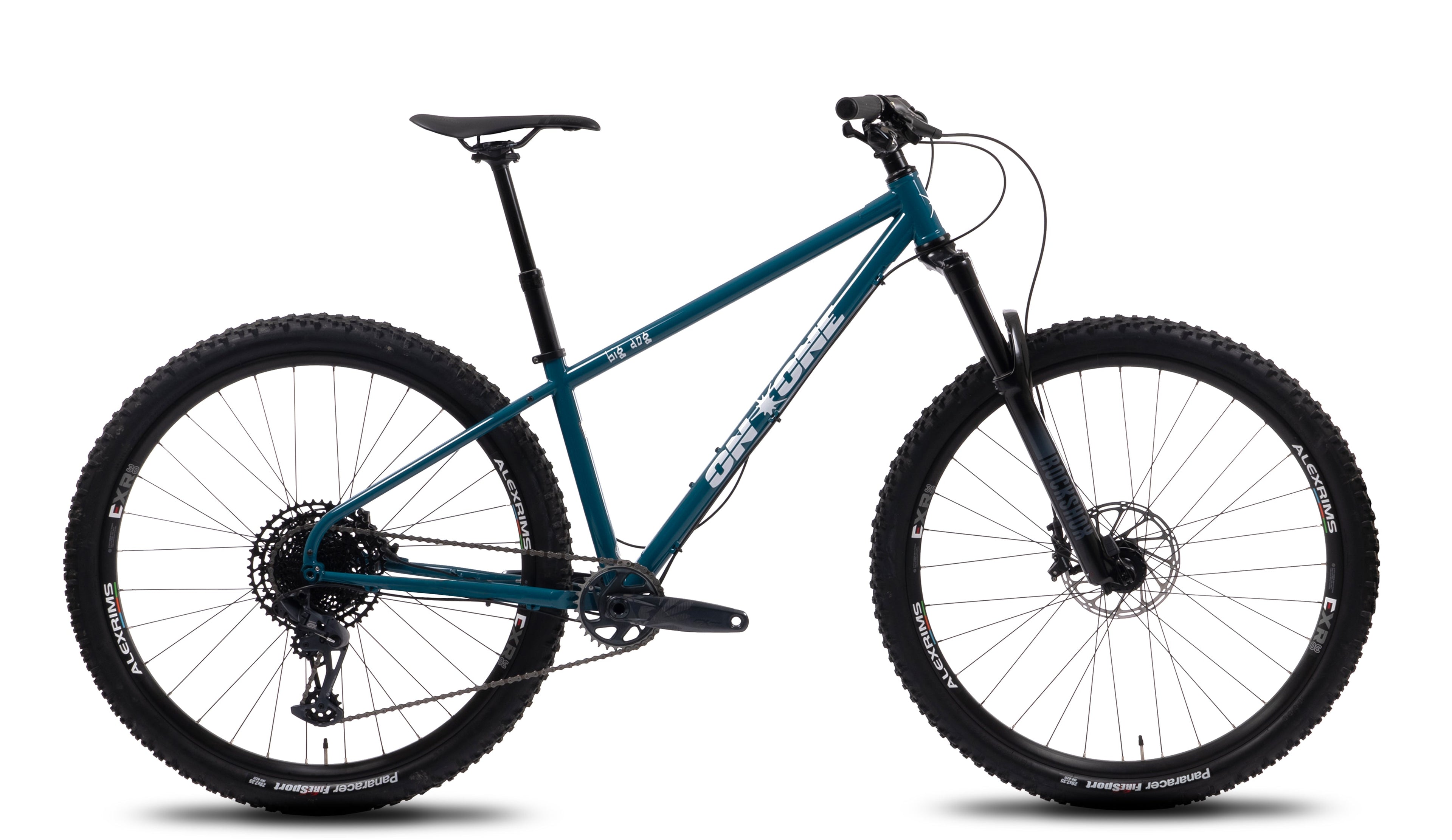

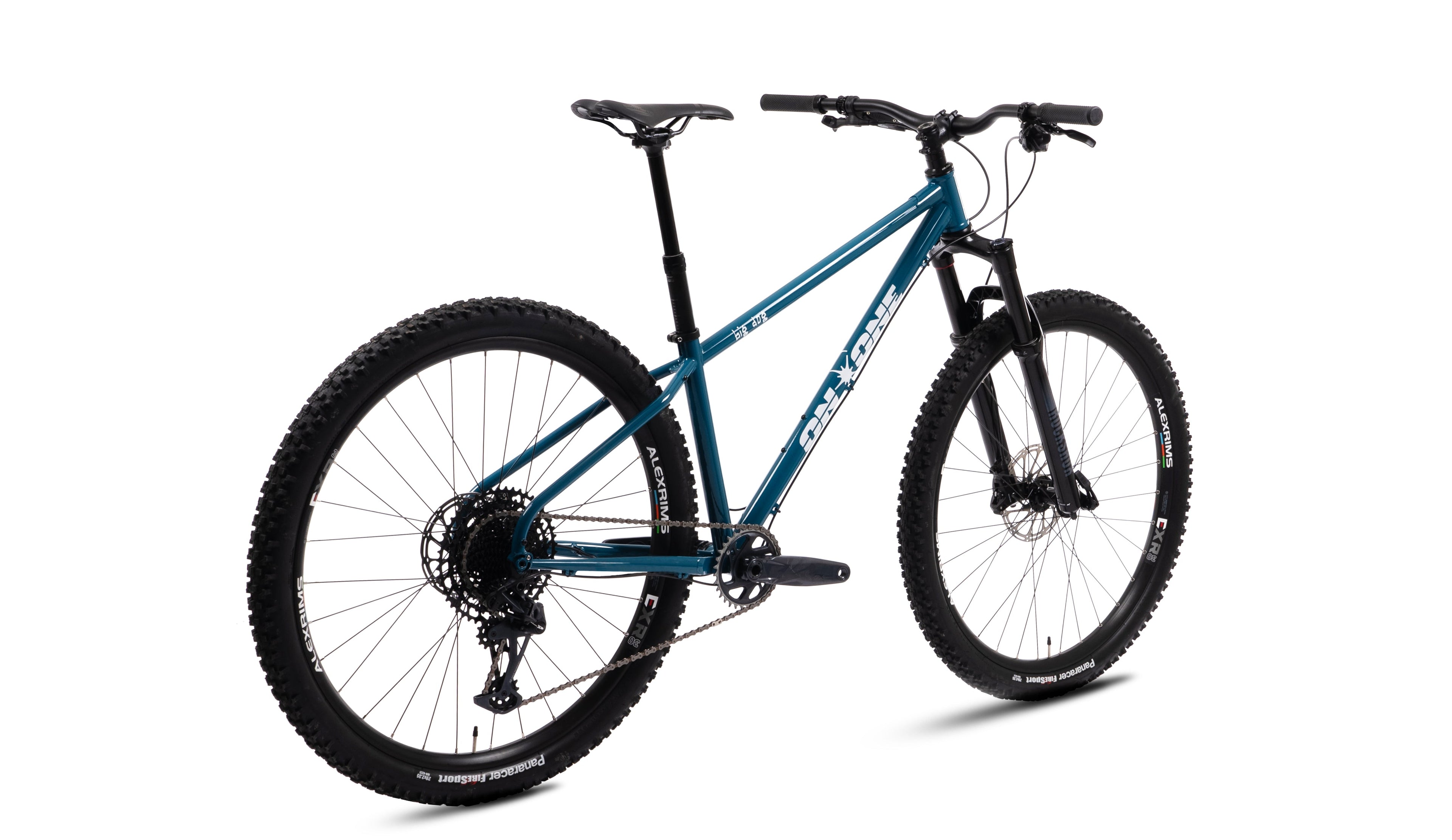

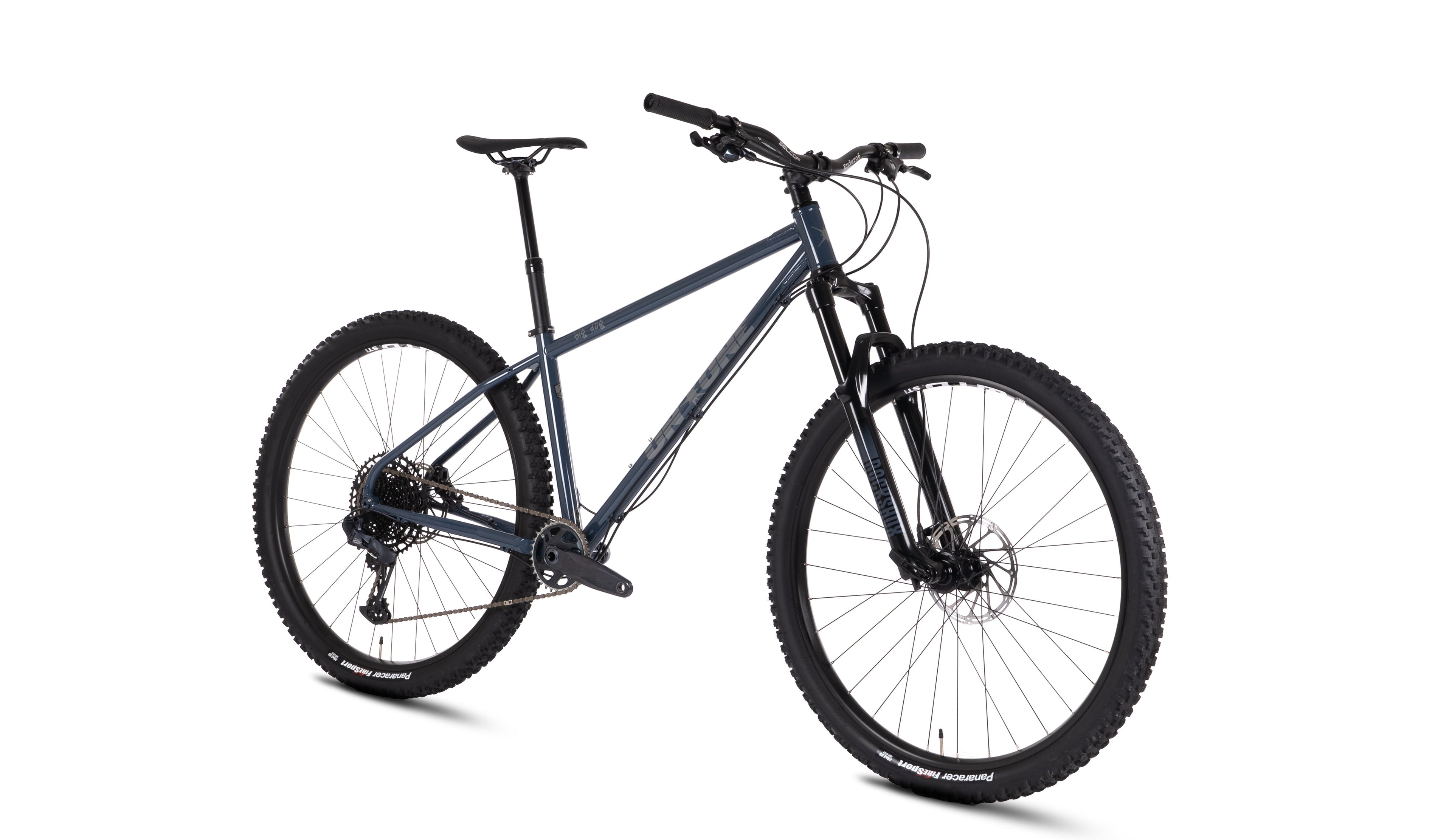

On-One Big Dog SRAM GX Mountain Bike

Name: On-One Big Dog SRAM GX Mountain Bike
Brand: On-One
Price: 1214 USD
Availability: OutOfStock

A great handling bike with a compliant steel frame, The Big Dog provides an intuitive ride for any trail. Equipped with 29er wheels and a 130mm fork, itll handle the rough while offering a lively character on smoother trails too. With plenty of clearance for wide tyres also, the Big Dog will be your perfect companion for any type of ride, whatever the terrain or conditions.

Rockshox 130mm 35 Gold Forks

SRAM GX 12 speed drivetrain

SRAM G2 R Hydraulic Brakes

WTB I30 29er Wheels

Approx Bike Weight (MED) 14.7KG

View less

$1,214.00

Shipping calculated at checkout.

Expect dispatch in 21 days

Available on Cycle to work

Part-ex with Planet X-Change

Colour

Cobalt Green Slate Grey

Size

Small Medium Large X-Large

Rider Height	Suggested Frame Size
5′4″ to 5′7″	Small
5′7″ to 5′10″	Medium
5′10″ to 6′1″	Large
6′1″ to 6′3″	X-Large

		SMALL	MED	LRG	XLG
A	Head Angle (degrees)	65.0	65.0	65.0	65.0
B	Head Tube (mm)	100	110	120	135
C	Top Tube Effective(mm)	580	615	630	655
D	Seat Tube Angle (degrees)	75	75	75	75
E	Seat Tube C-T Actual (mm)	380	420	460	500
F	Chainstays (mm)	444	444	444	444
G	BB Drop (mm)	58	58	58	58
H	Stack (mm)	609	619	628	641
I	Reach (mm)	415	446	460	480
J	Front Centre (mm)	725	762	779	807
K	Wheelbase (mm)	1169	1206	1223	1251

Please note that our bikes are not supplied with pedals - these must be purchased separately

🔧 Customise your bike

Quantity

30 Day ride guarantee

Shop with confidence.

Rated Excellent

By over 10,000 customers

Frame

Massively adaptable, The Big Dog will instil fun, agility, and confidence to your ride. From the trial centre, to technical singletrack, and on to multi day bikepacking epics, The Big Dog is at home on all. The 65 degree head angle gives confidence on steep chutes. 444mm chainstays for technical stability. The 58mm BB drop keeps rider planted whilst ensuring ground clearance. Balanced stack and slightly longer reach figures offer versatility, from endurance adventures to hardcore hardtail territory. The 75-degree seat tube angle puts you above the crank for better climbing efficiency.

Groupset

GX Eagle
This GX groupset offers impressive performance with plenty of gears. Sharing many features with the higher end of the Eagle Ecosystem like the proven SRAM 1x-specific X-HORIZON™ body design, it can accommodate up to 10-52T cassettes. Eagle is a lighter, simpler, more durable, and easier to use drivetrain.
Reliable wide range 1x gearing
An 11-50 cassette provides a huge gearing range with SRAM’s top of the range aluminium 32 tooth crankset utilising DUB technology. Enough range to ensure you can fly downhill or comfortably spin up the steepest climbs.
G2 hydraulic brakes
The SRAM G2 delivers premium value braking without compromise. Powerful 4 piston callipers provide awesome single finger stopping power and reach adjust makes it easy to adjust your lever for maximum control. Think consistency, reliability and trust.

Frame

Massively adaptable, The Big Dog will instil fun, agility, and confidence to your ride. From the trial centre, to technical singletrack, and on to multi day bikepacking epics, The Big Dog is at home on all. The 65 degree head angle gives confidence on steep chutes. 444mm chainstays for technical stability. The 58mm BB drop keeps rider planted whilst ensuring ground clearance. Balanced stack and slightly longer reach figures offer versatility, from endurance adventures to hardcore hardtail territory. The 75-degree seat tube angle puts you above the crank for better climbing efficiency.

Groupset

GX Eagle
This GX groupset offers impressive performance with plenty of gears. Sharing many features with the higher end of the Eagle Ecosystem like the proven SRAM 1x-specific X-HORIZON™ body design, it can accommodate up to 10-52T cassettes. Eagle is a lighter, simpler, more durable, and easier to use drivetrain.
Reliable wide range 1x gearing
An 11-50 cassette provides a huge gearing range with SRAM’s top of the range aluminium 32 tooth crankset utilising DUB technology. Enough range to ensure you can fly downhill or comfortably spin up the steepest climbs.
G2 hydraulic brakes
The SRAM G2 delivers premium value braking without compromise. Powerful 4 piston callipers provide awesome single finger stopping power and reach adjust makes it easy to adjust your lever for maximum control. Think consistency, reliability and trust.

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′4″ to 5′7″	Small
5′7″ to 5′10″	Medium
5′10″ to 6′1″	Large
6′1″ to 6′3″	X-Large

		SMALL	MED	LRG	XLG
A	Head Angle (degrees)	65.0	65.0	65.0	65.0
B	Head Tube (mm)	100	110	120	135
C	Top Tube Effective(mm)	580	615	630	655
D	Seat Tube Angle (degrees)	75	75	75	75
E	Seat Tube C-T Actual (mm)	380	420	460	500
F	Chainstays (mm)	444	444	444	444
G	BB Drop (mm)	58	58	58	58
H	Stack (mm)	609	619	628	641
I	Reach (mm)	415	446	460	480
J	Front Centre (mm)	725	762	779	807
K	Wheelbase (mm)	1169	1206	1223	1251

🔧 Build Kit

Selcof Forged Alloy Bolt Up Seatclamp V3 / 35mm / 12mm / Black

Bike Build Packaging Rear Derailleur Protector

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

Selcof Semi-Integrated Cup Cartridge Bearing Headset

🔧 Groupset

SRAM Guide G2 R Hydraulic Disc Brake / Rear / 1800 / 20 Post to IS

SRAM Guide G2 R Hydraulic Disc Brake / Front / 900mm / Post mount (20mm bracket) 20P

SRAM GX Eagle Trigger Shifter (Lunar Colourway) / 12 Speed / Right Hand

SRAM DUB BSA Bottom Bracket / 73mm

SRAM GX Eagle DUB Crankset (Lunar Colourway) / 170mm / 32T / BOOST

SRAM PG-1210 Eagle 12 Speed Cassette / 11-50

SRAM GX Eagle Rear Mech (Lunar Colourway) / 1 x 12 Speed

SRAM Chain PC NX Eagle / 126 Links / 12 Speed

SRAM Centreline Disc Brake Rotor / 160mm 6 Bolt

Avid Centreline Disc Brake Rotor / 180mm 6 Bolt

Avid MMX Matchmaker Clamp Black / Left

Avid MMX Matchmaker Clamp Black / Right

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive
