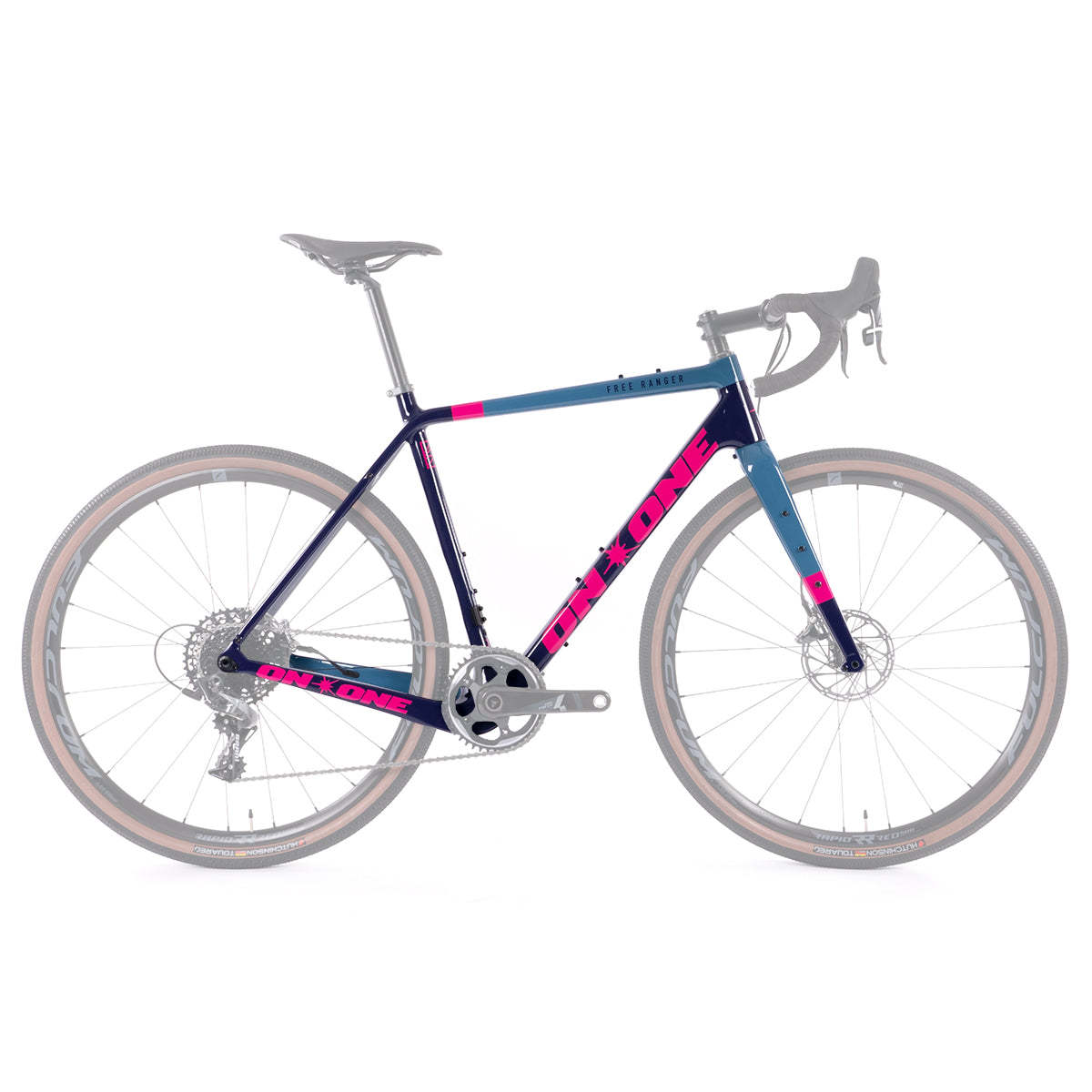

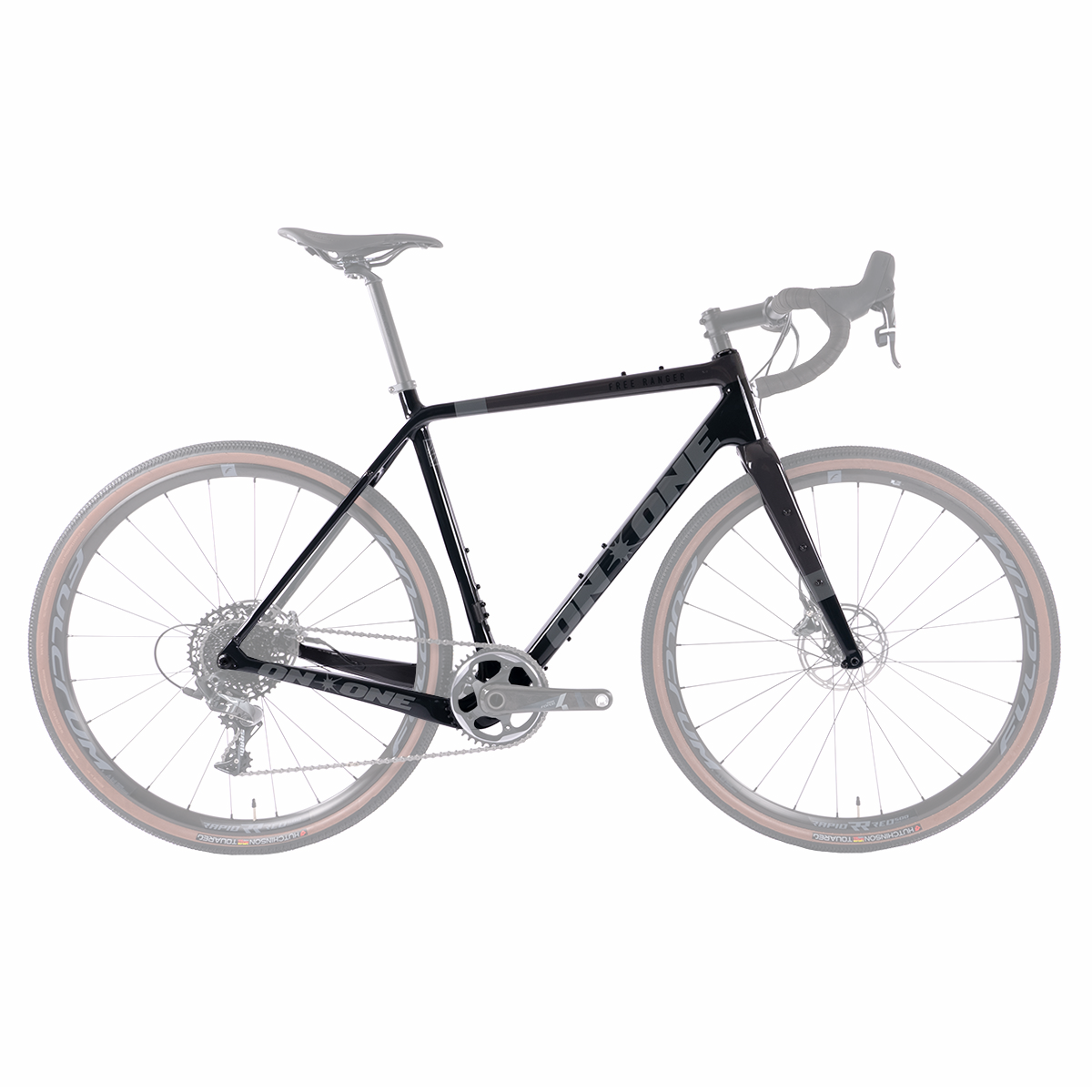

On-One Free Ranger Frameset
Sizing and Geometry
| RIDER HEIGHT | SUGGESTED FRAME SIZE |
|---|---|
| 5′3″ to 5′8″ (162cm-172cm) | X-Small |
| 5′7″ to 5′10″ (170cm-178cm) | Small |
| 5′9″ to 6′2″ (175cm -188cm) | Medium |
| 6′1″ to 6′4″ (185cm-193cm) | Large |
| 6′4 < (193cm+) | X-Large |
|
XS
|
S
|
M
|
L |
XL
|
||
|---|---|---|---|---|---|---|
|
A
|
Head Angle (degrees) |
70.5
|
71.0
|
71.5
|
72.0
|
72.0
|
| B | Head Tube (mm) |
120
|
140
|
150
|
170
|
190
|
| C | Top Tube Effective(mm) |
520
|
535
|
550
|
565
|
580
|
| D | Seat Tube Angle (degrees) |
74.5
|
74.0
|
73.0
|
73.0
|
73.0
|
| E | Seat Tube C-T Actual (mm) |
490
|
520
|
540
|
560
|
580
|
| F | Chainstays (mm) |
435
|
435
|
435
|
435
|
435
|
| G | BB Drop (mm) |
67
|
67
|
67
|
67
|
67
|
| H | Stack (mm) |
536
|
557
|
568
|
589
|
608
|
| I | Reach (mm) |
371
|
374
|
376
|
384
|
393
|
| J | Front Centre (mm) |
595
|
595
|
600
|
610
|
626
|
| K | Wheelbase (mm) |
1020
|
1021
|
1025
|
1036
|
1052
|
$1,360.00
Shipping calculated at checkout.
Quantity
FROOFRFO-ELN-LRG
