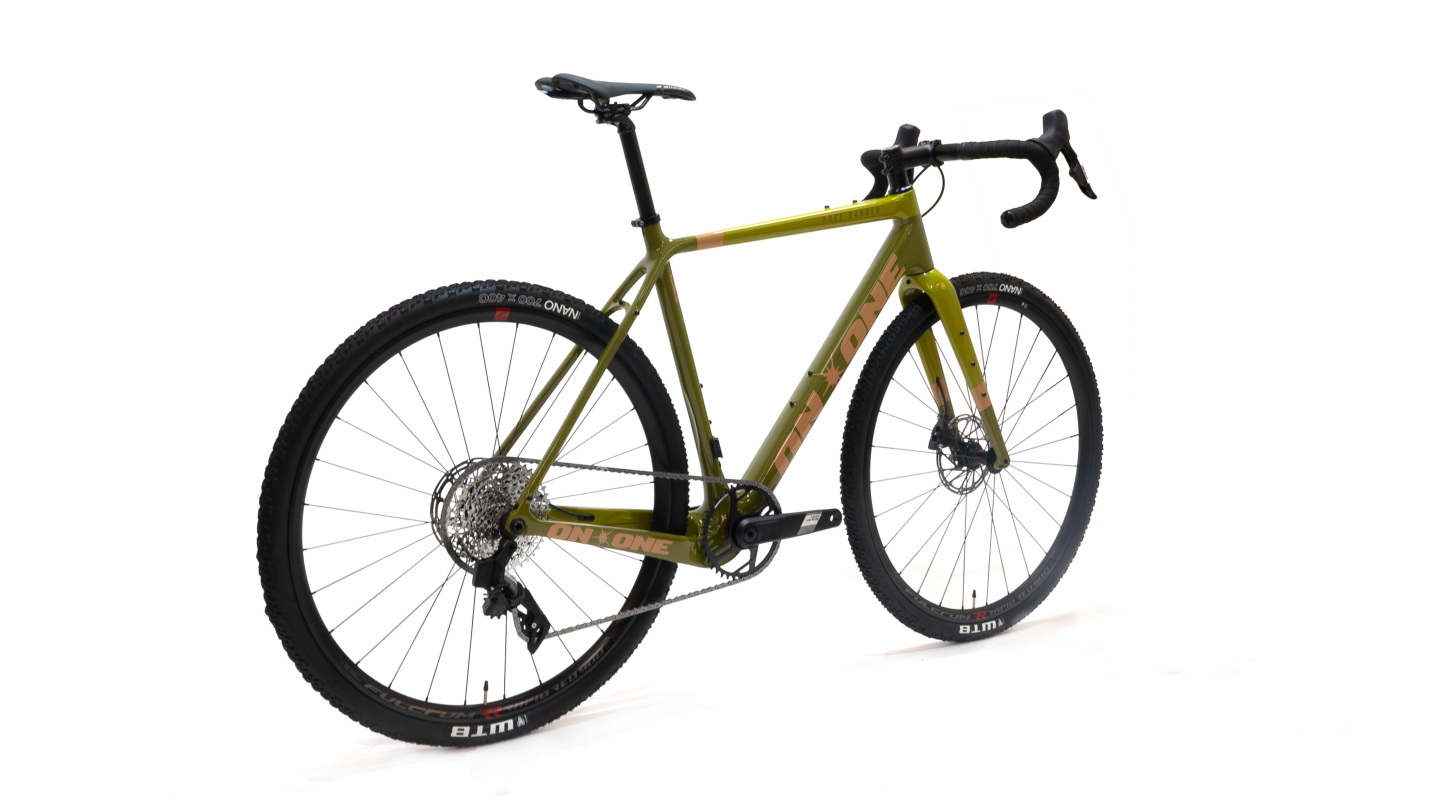

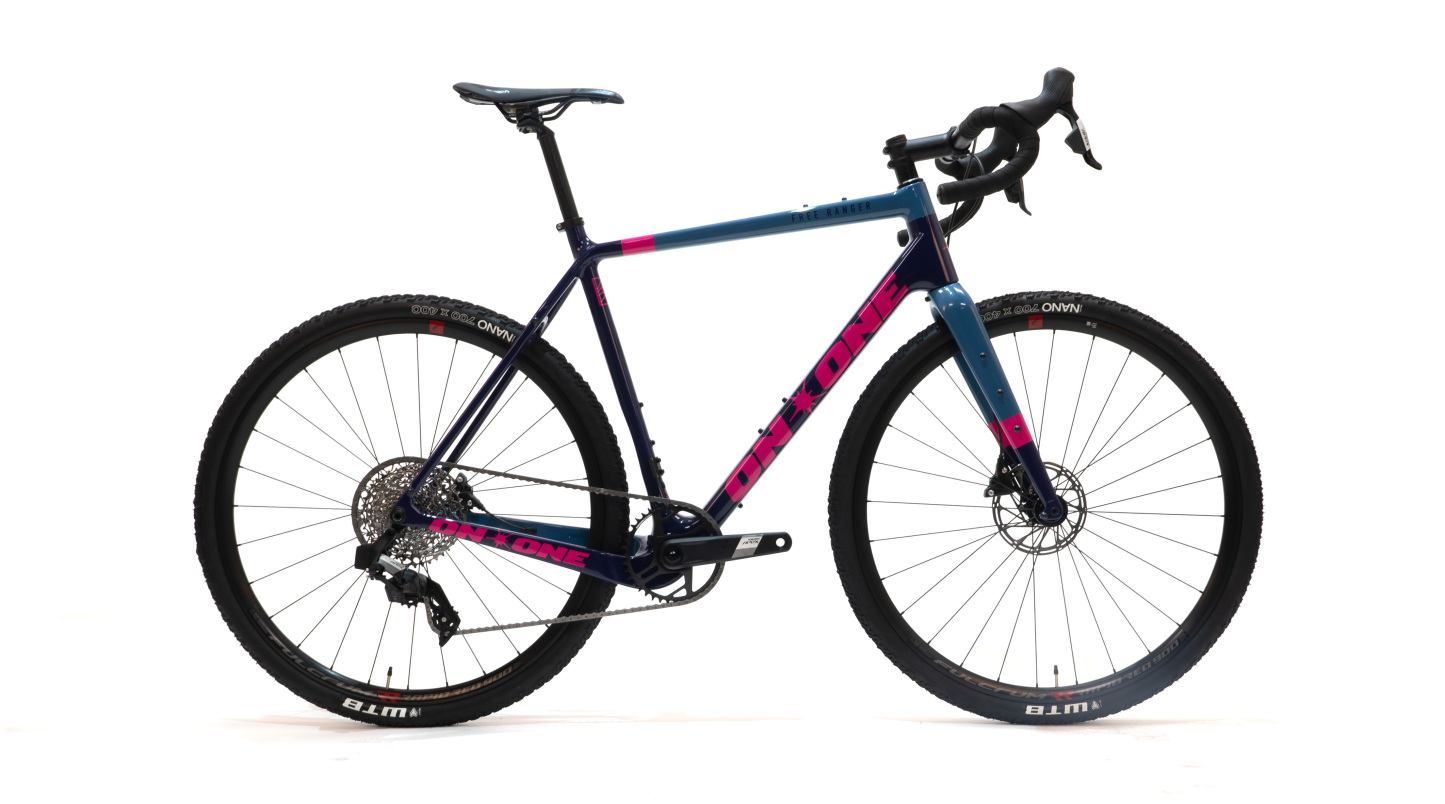

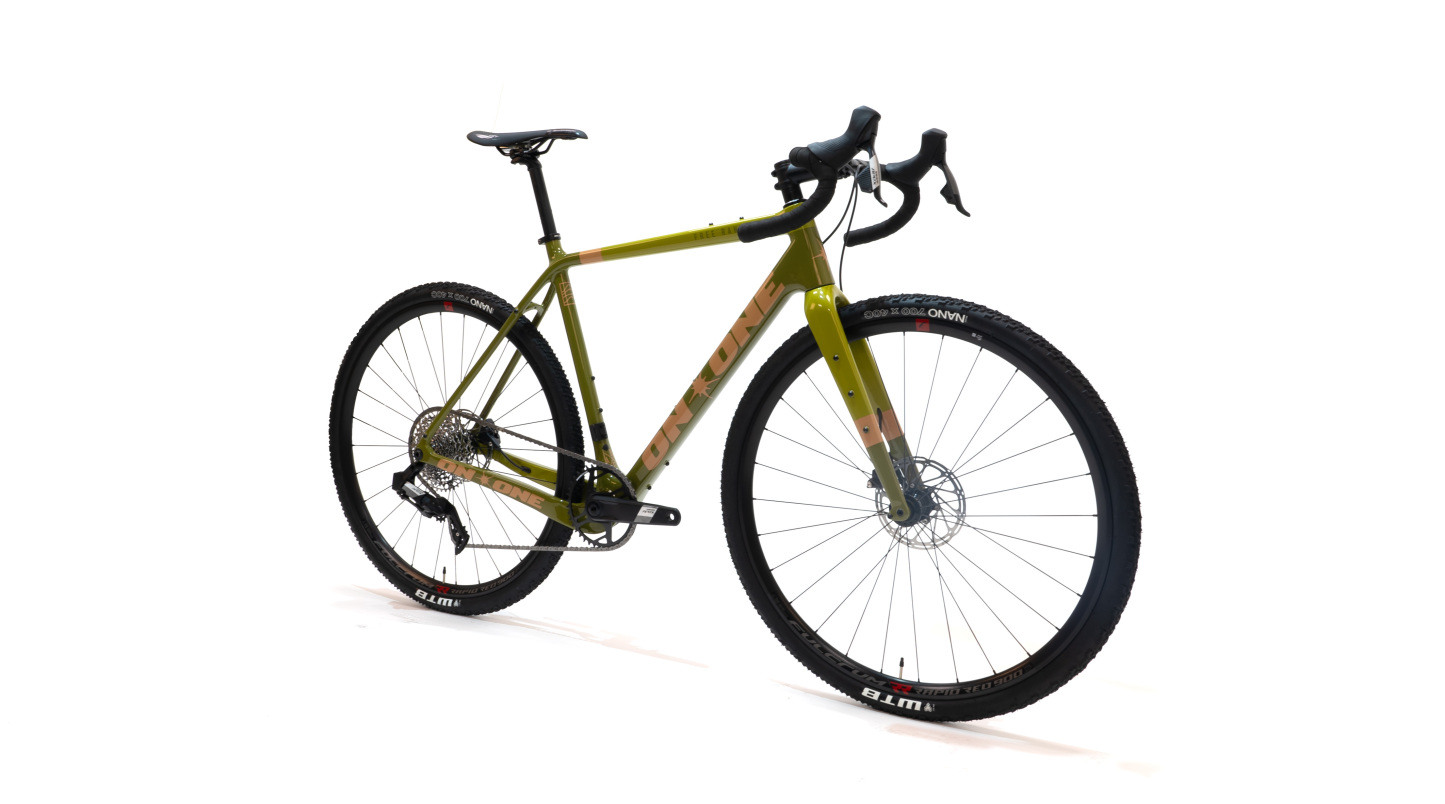

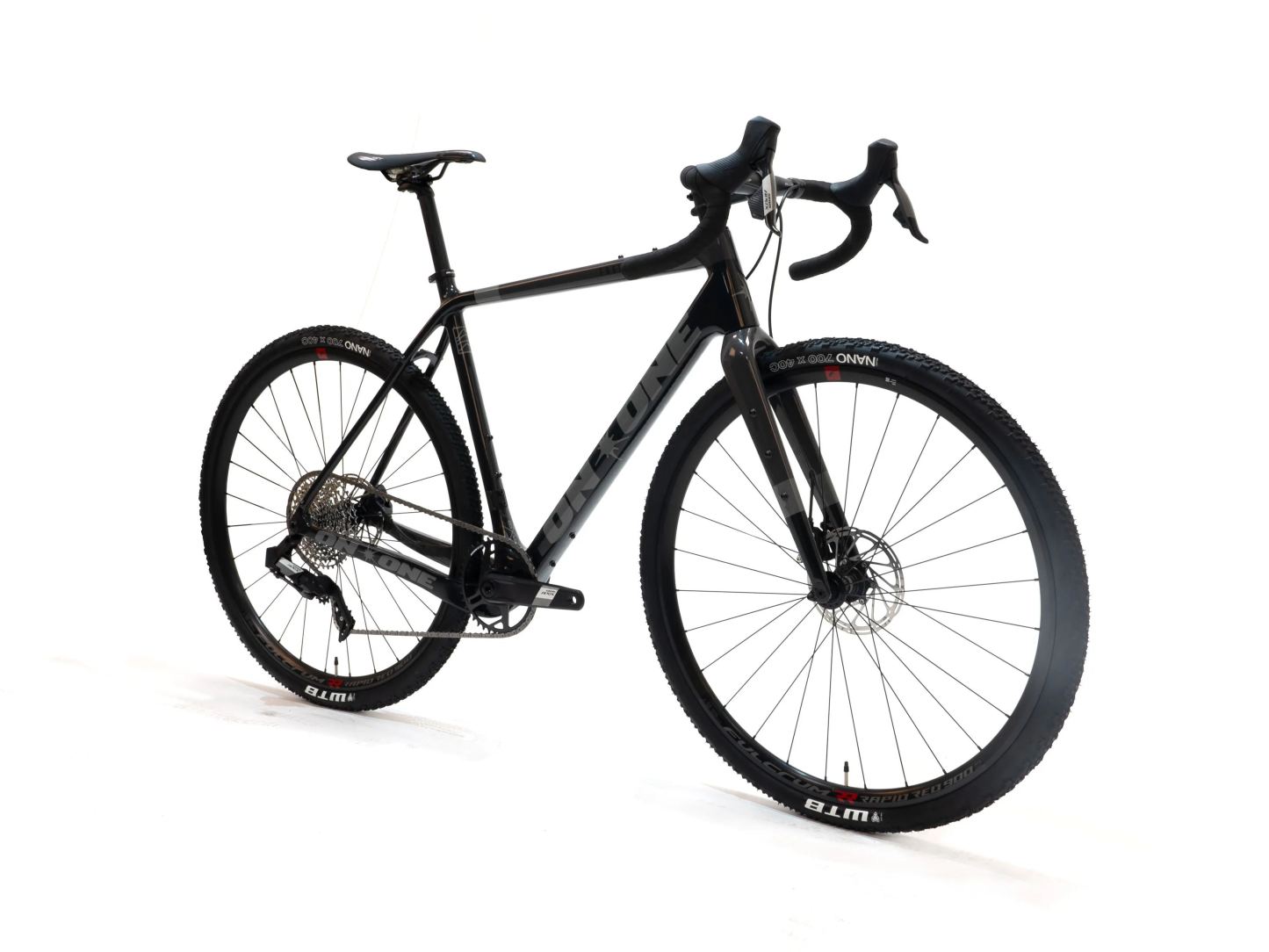

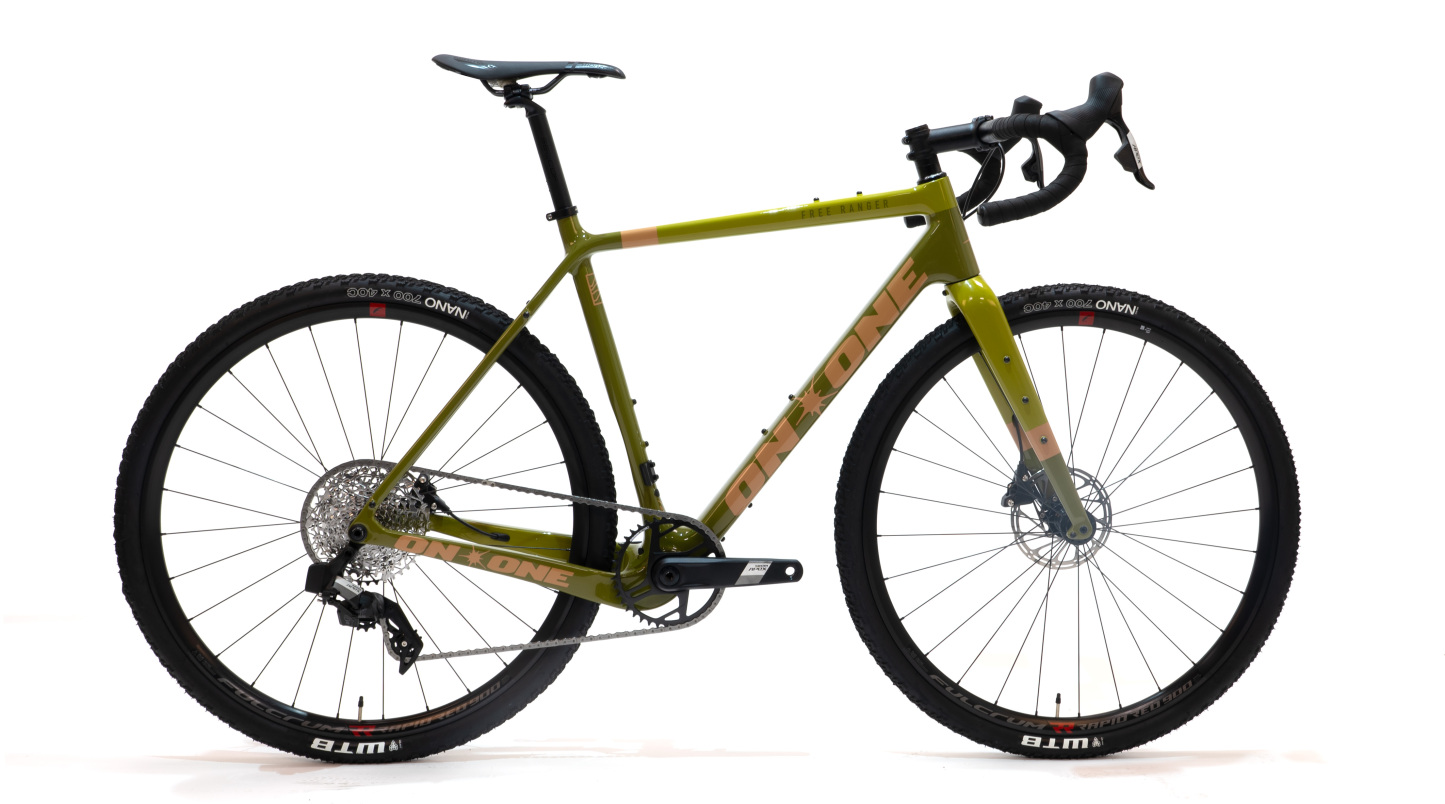

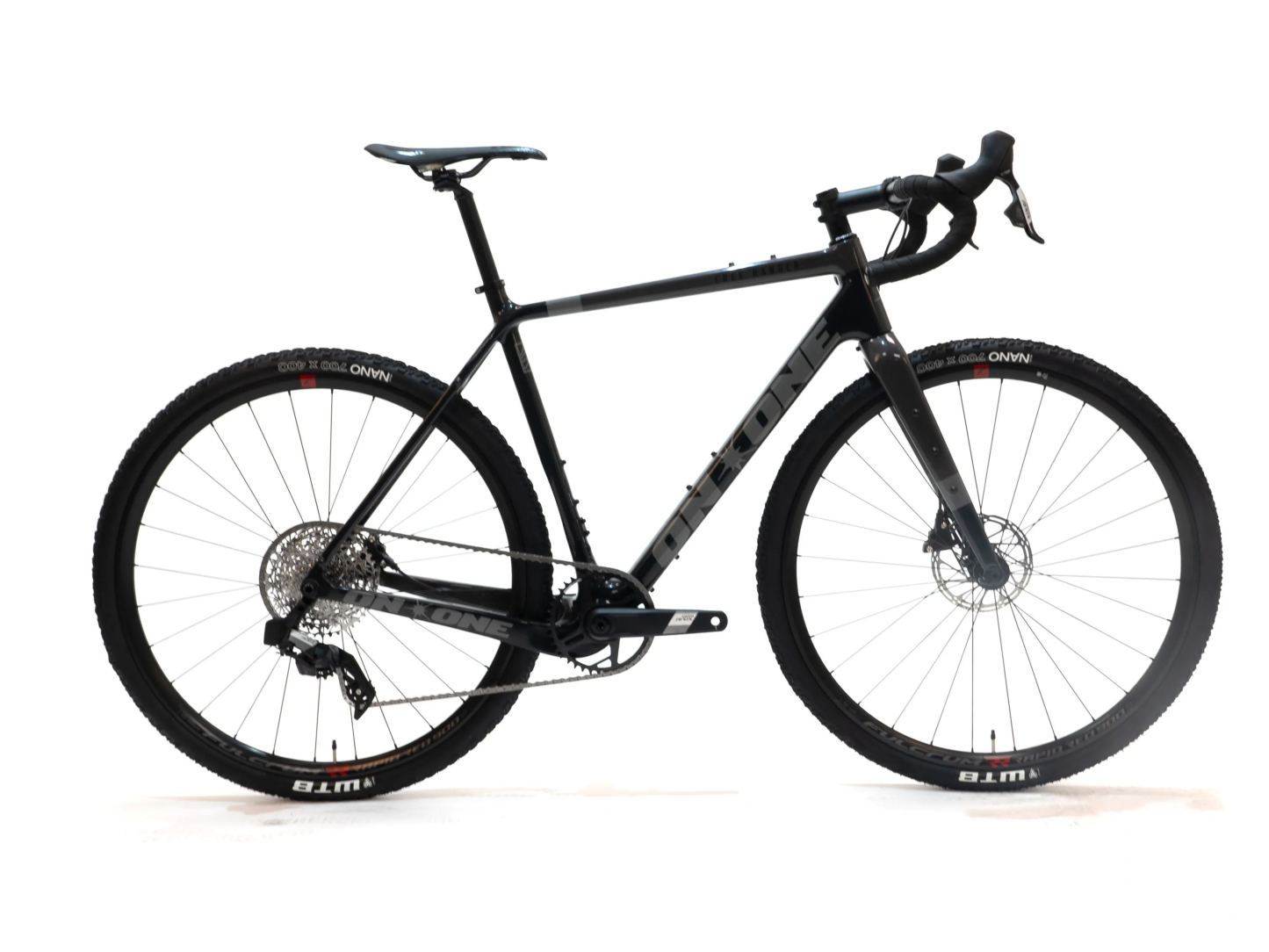

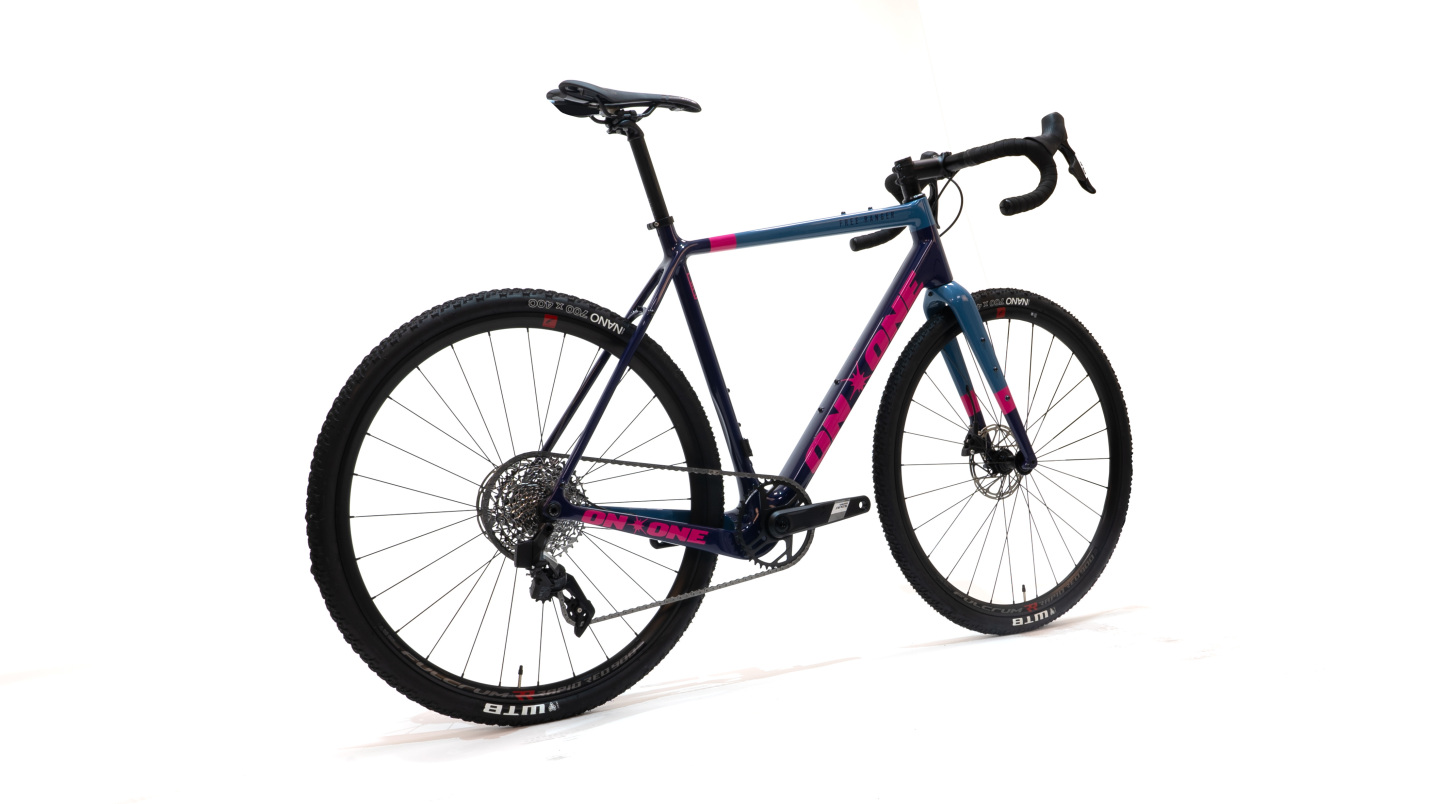

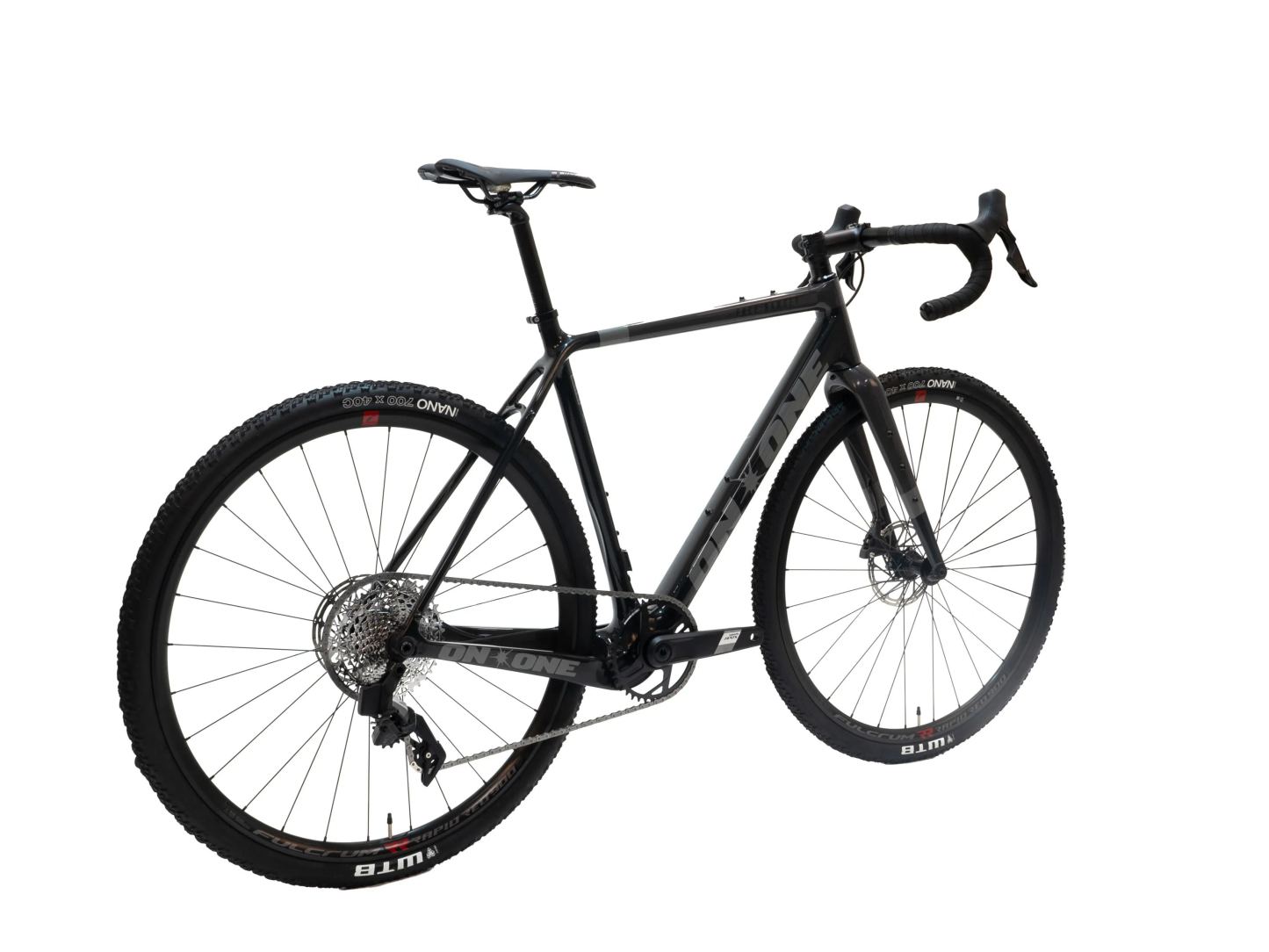

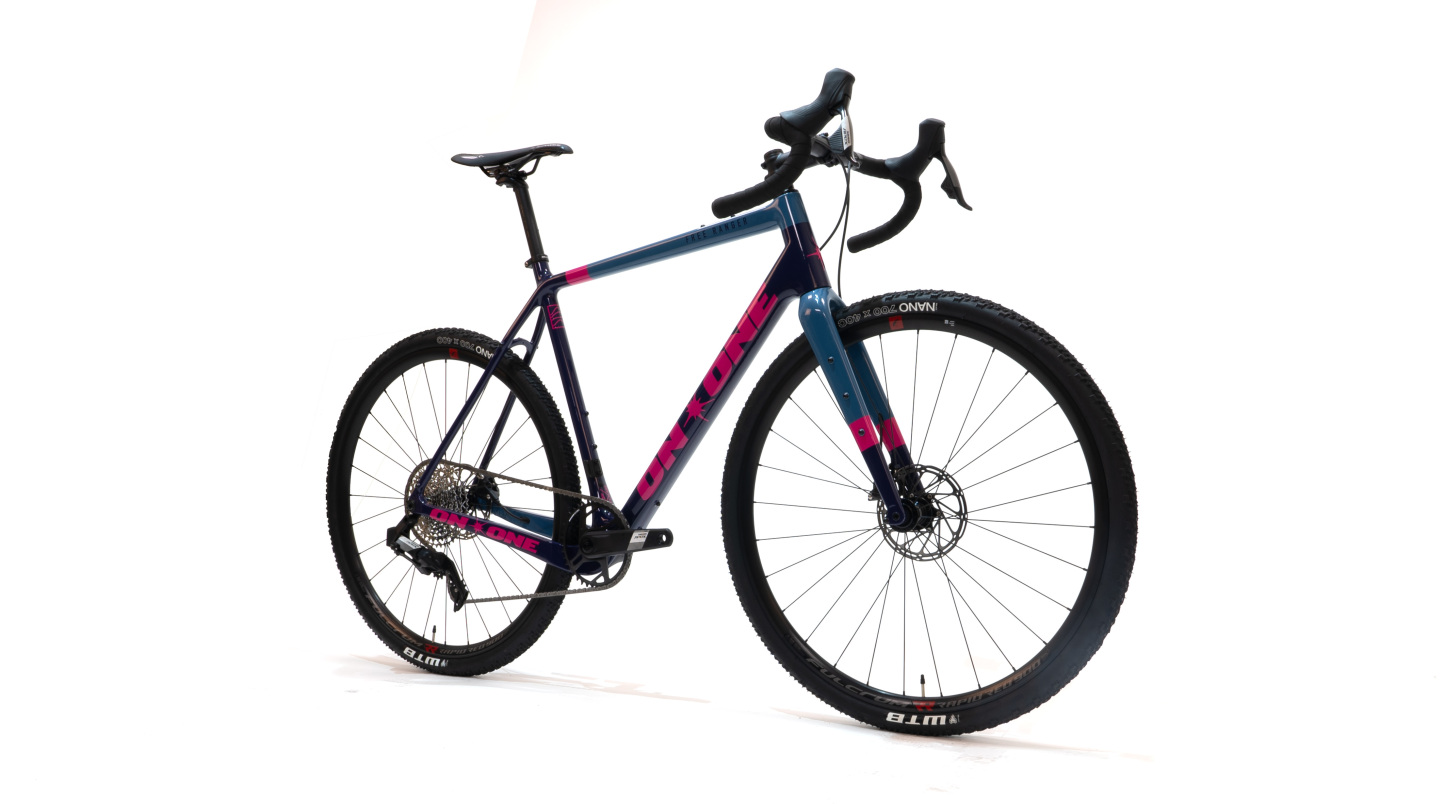

On-One Free Ranger SRAM Apex AXS Carbon Gravel Bike
$2,001.00
Shipping calculated at checkout.
_375x.svg?w=1024&h=1024)
-(13).png?w=500&h=500)
| RIDER HEIGHT | SUGGESTED FRAME SIZE |
|---|---|
| 5′3″ to 5′8″ (162cm-172cm) | X-Small |
| 5′7″ to 5′10″ (170cm-178cm) | Small |
| 5′9″ to 6′2″ (175cm -188cm) | Medium |
| 6′1″ to 6′4″ (185cm-193cm) | Large |
| 6′4 < (193cm+) | X-Large |
|
XS
|
S
|
M
|
L |
XL
|
||
|---|---|---|---|---|---|---|
|
A
|
Head Angle (degrees) |
70.5
|
71.0
|
71.5
|
72.0
|
72.0
|
| B | Head Tube (mm) |
120
|
140
|
150
|
170
|
190
|
| C | Top Tube Effective(mm) |
520
|
535
|
550
|
565
|
580
|
| D | Seat Tube Angle (degrees) |
74.5
|
74.0
|
73.0
|
73.0
|
73.0
|
| E | Seat Tube C-T Actual (mm) |
490
|
520
|
540
|
560
|
580
|
| F | Chainstays (mm) |
435
|
435
|
435
|
435
|
435
|
| G | BB Drop (mm) |
67
|
67
|
67
|
67
|
67
|
| H | Stack (mm) |
536
|
557
|
568
|
589
|
608
|
| I | Reach (mm) |
371
|
374
|
376
|
384
|
393
|
| J | Front Centre (mm) |
595
|
595
|
600
|
610
|
626
|
| K | Wheelbase (mm) |
1020
|
1021
|
1025
|
1036
|
1052
|
| SRAM Apex 12 Speed Chain / 120 Link |
| SRAM XPLR PG-1231 12 Speed Cassette / 11-44 Tooth |
| SRAM Apex AXS Shift Brake System With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / Flat Mount 20mm Offset |
| SRAM Apex AXS Shift Brake System With Flat Mount Caliper / Right Lever / Front Brake / 1300mm / Flat Mount 20mm Offset |
| SRAM Apex 1 Wide Chainset / 172.5mm / 40 Tooth |
| SRAM Apex XPLR AXS 1x12 Speed Rear Mech / Max 44 Tooth |
| SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb |
| SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive |
| Avid Centreline Disc Brake Rotor / 160mm Centrelock |
| SRAM Flat Mount Disc Brake Mounting Hardware / 15mm / Single |
| SRAM Powerpack For AXS / 1 Battery |
| SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide |
🔧 Customise your bike
Quantity
CBBIKE-FRE-APA-LRG-BLU
.png?w=155&h=155)
Frame
Groupset
Frame
Groupset
1
/
2
📏 Sizing and Geometry
| RIDER HEIGHT | SUGGESTED FRAME SIZE |
|---|---|
| 5′3″ to 5′8″ (162cm-172cm) | X-Small |
| 5′7″ to 5′10″ (170cm-178cm) | Small |
| 5′9″ to 6′2″ (175cm -188cm) | Medium |
| 6′1″ to 6′4″ (185cm-193cm) | Large |
| 6′4 < (193cm+) | X-Large |
|
XS
|
S
|
M
|
L |
XL
|
||
|---|---|---|---|---|---|---|
|
A
|
Head Angle (degrees) |
70.5
|
71.0
|
71.5
|
72.0
|
72.0
|
| B | Head Tube (mm) |
120
|
140
|
150
|
170
|
190
|
| C | Top Tube Effective(mm) |
520
|
535
|
550
|
565
|
580
|
| D | Seat Tube Angle (degrees) |
74.5
|
74.0
|
73.0
|
73.0
|
73.0
|
| E | Seat Tube C-T Actual (mm) |
490
|
520
|
540
|
560
|
580
|
| F | Chainstays (mm) |
435
|
435
|
435
|
435
|
435
|
| G | BB Drop (mm) |
67
|
67
|
67
|
67
|
67
|
| H | Stack (mm) |
536
|
557
|
568
|
589
|
608
|
| I | Reach (mm) |
371
|
374
|
376
|
384
|
393
|
| J | Front Centre (mm) |
595
|
595
|
600
|
610
|
626
|
| K | Wheelbase (mm) |
1020
|
1021
|
1025
|
1036
|
1052
|
🔧 Build Kit
| Stainless Steel M5 Bolt 22mm Thread Locking Individual |
| Selcof Carbon Steerer Fork Bung MK 4 / 23-24mm ID |
| Selcof Alloy Bolt Up Seatclamp / 29.8mm |
| Bike Build Packaging Rear Derailleur Protector |
| Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black |
| Token Omega Headset For Tapered 1" 1/8th – 1.5" Fork Steerer |
| Planet X EC-130E Di2 Gear Cable Blanking Rubbers |
🔧 Groupset
| SRAM Apex 12 Speed Chain / 120 Link |
| SRAM XPLR PG-1231 12 Speed Cassette / 11-44 Tooth |

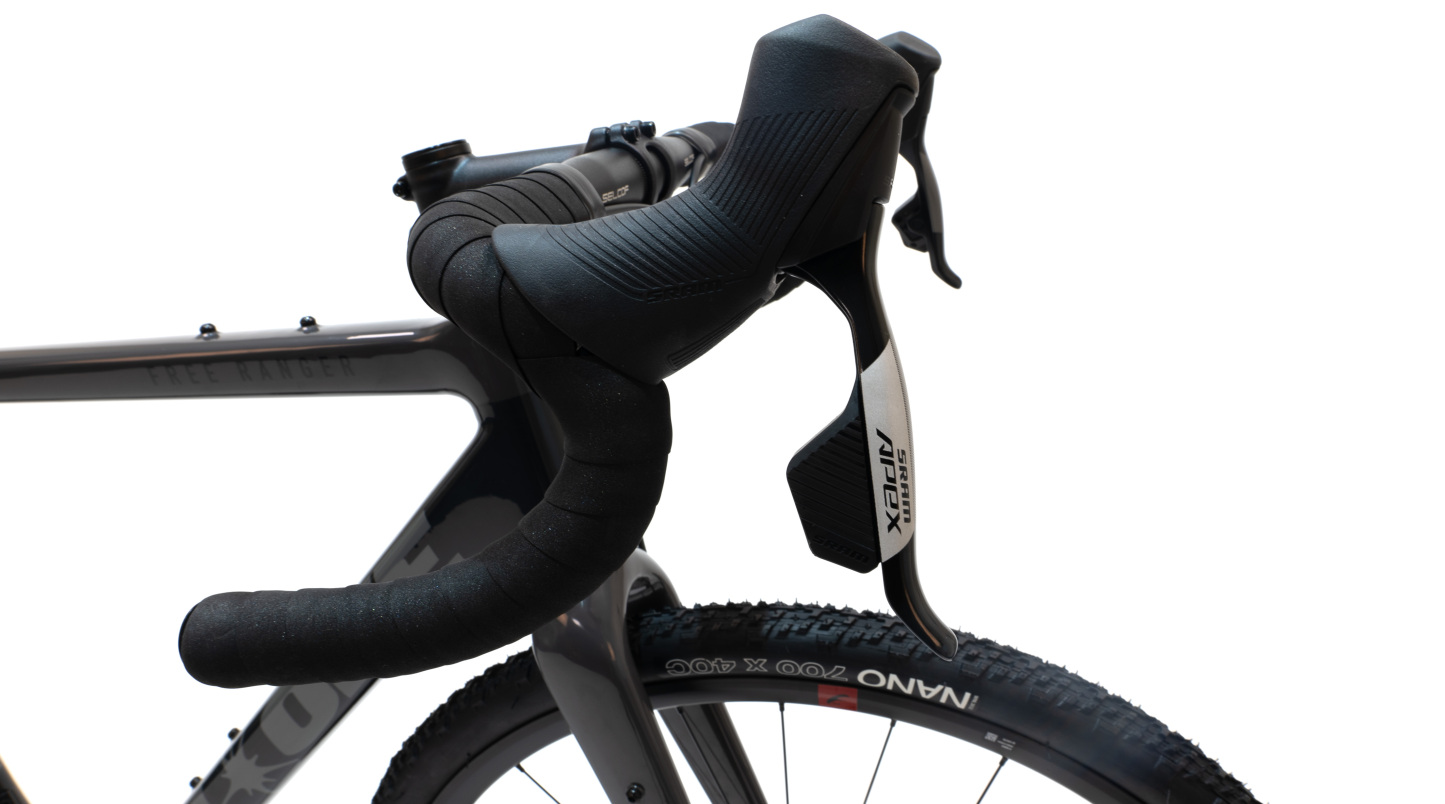

| SRAM Apex AXS Shift Brake System With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / Flat Mount 20mm Offset |
| SRAM Apex AXS Shift Brake System With Flat Mount Caliper / Right Lever / Front Brake / 1300mm / Flat Mount 20mm Offset |
| SRAM Apex 1 Wide Chainset / 172.5mm / 40 Tooth |
| SRAM Apex XPLR AXS 1x12 Speed Rear Mech / Max 44 Tooth |
| SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb |
| SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive |
| Avid Centreline Disc Brake Rotor / 160mm Centrelock |
| SRAM Flat Mount Disc Brake Mounting Hardware / 15mm / Single |
| SRAM Powerpack For AXS / 1 Battery |
| SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide |
