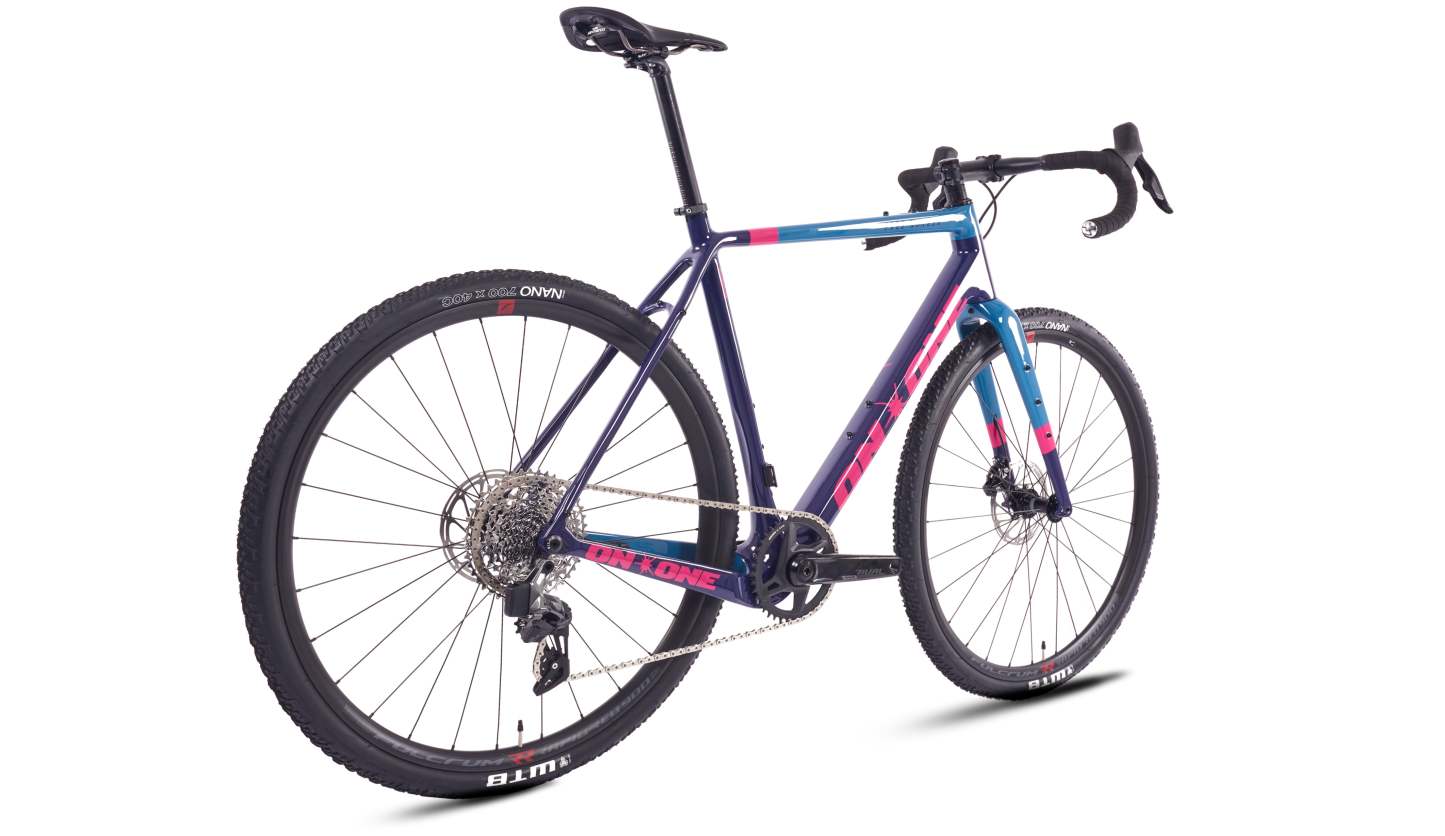

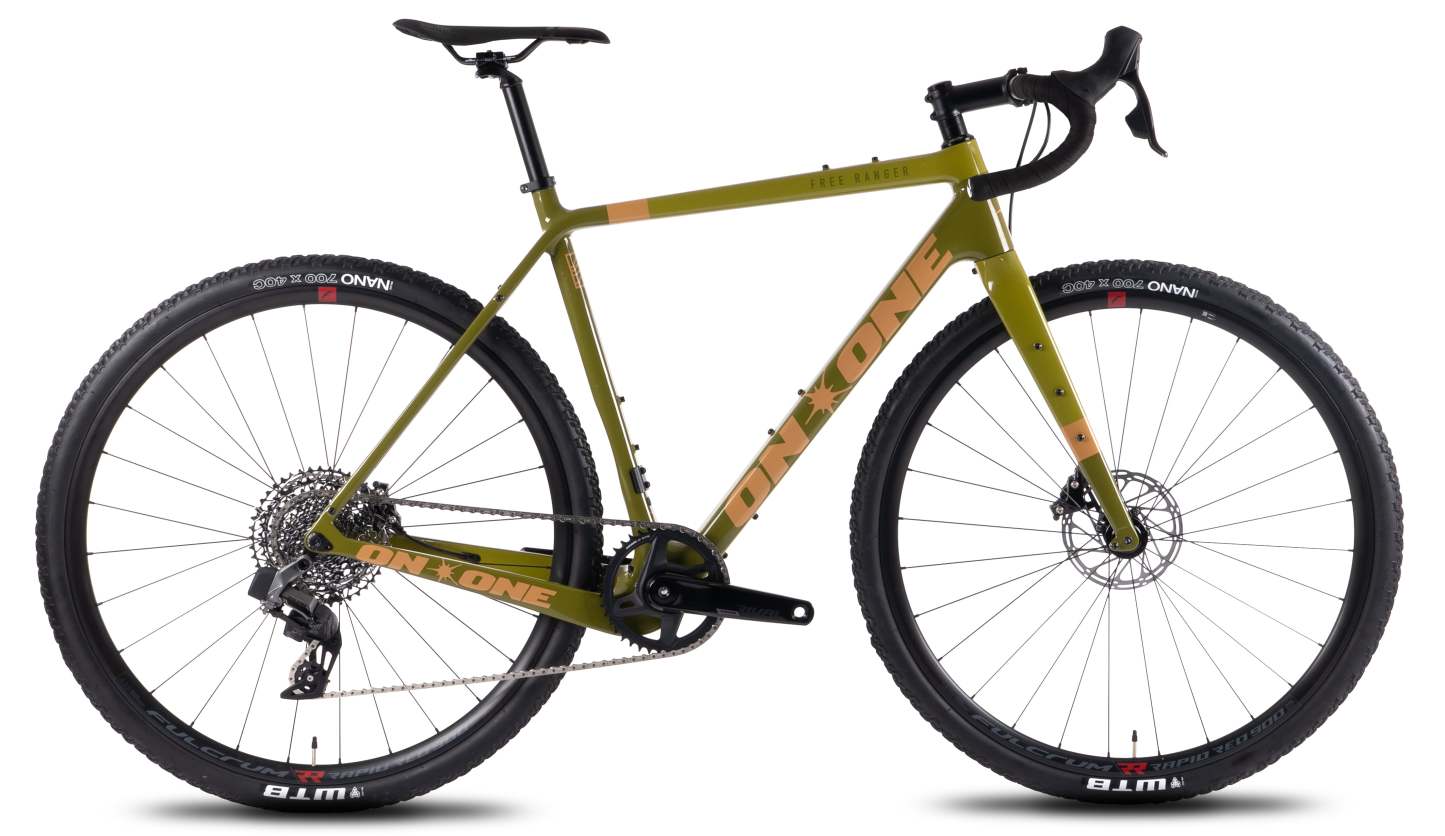

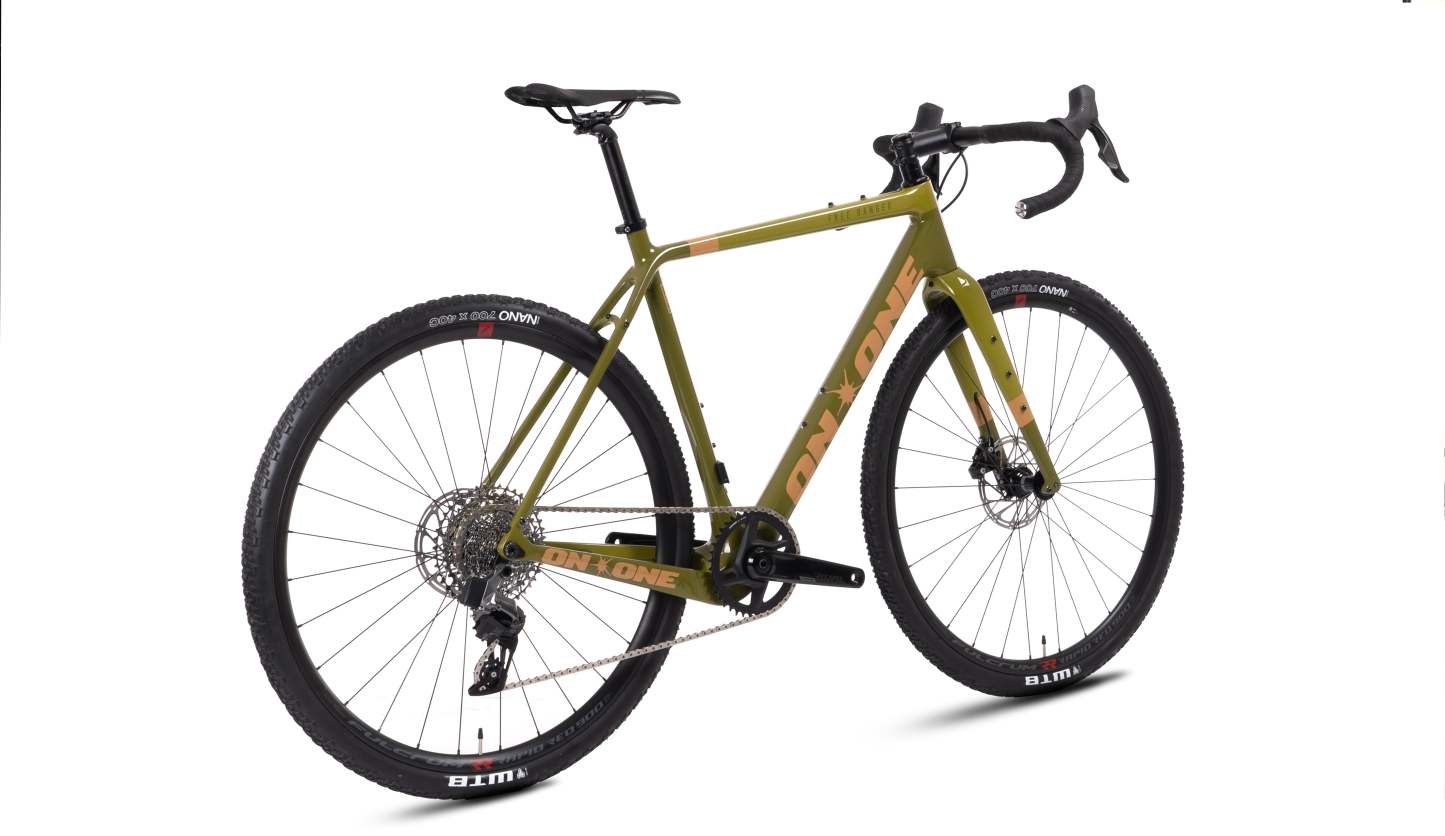

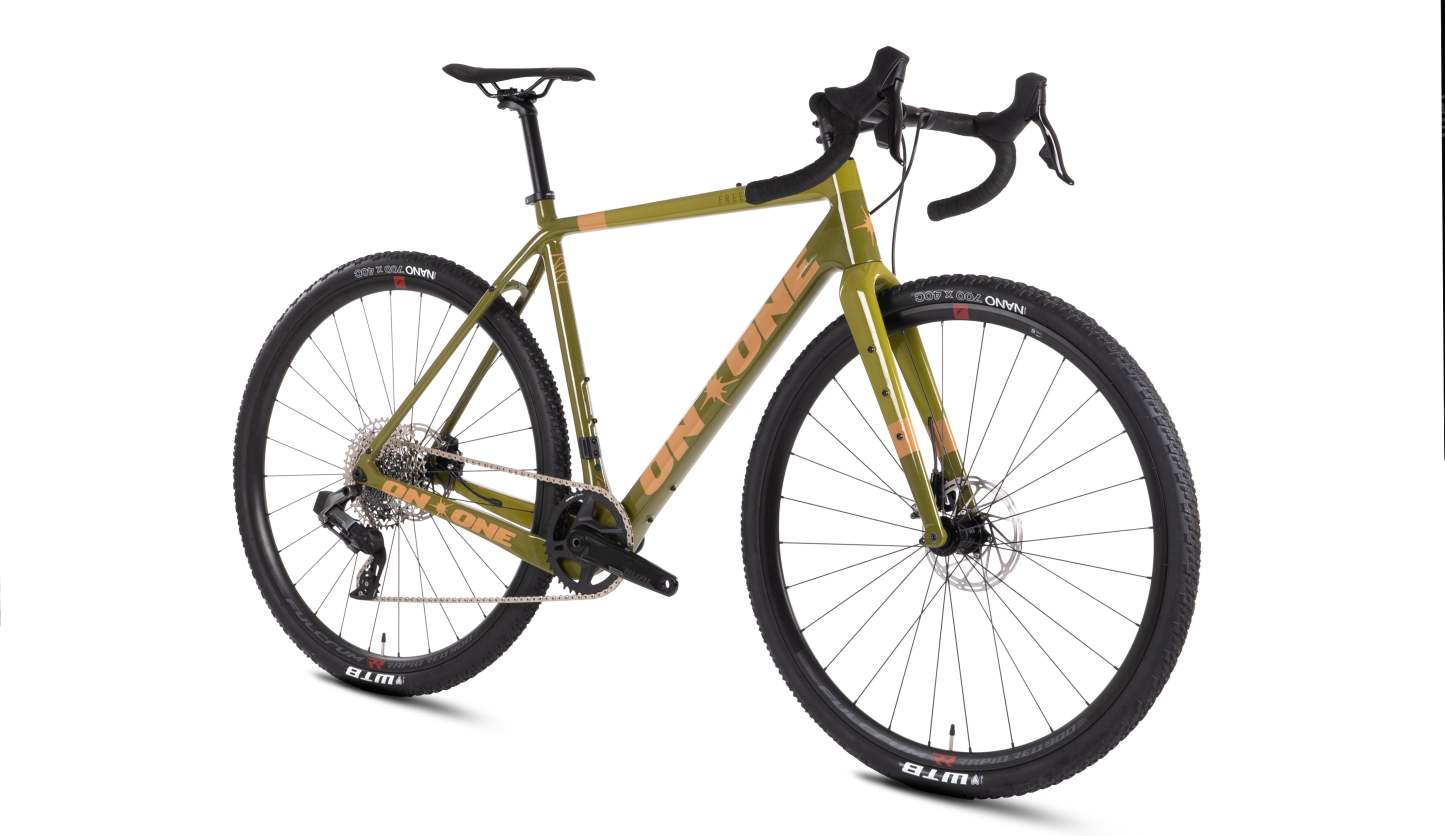

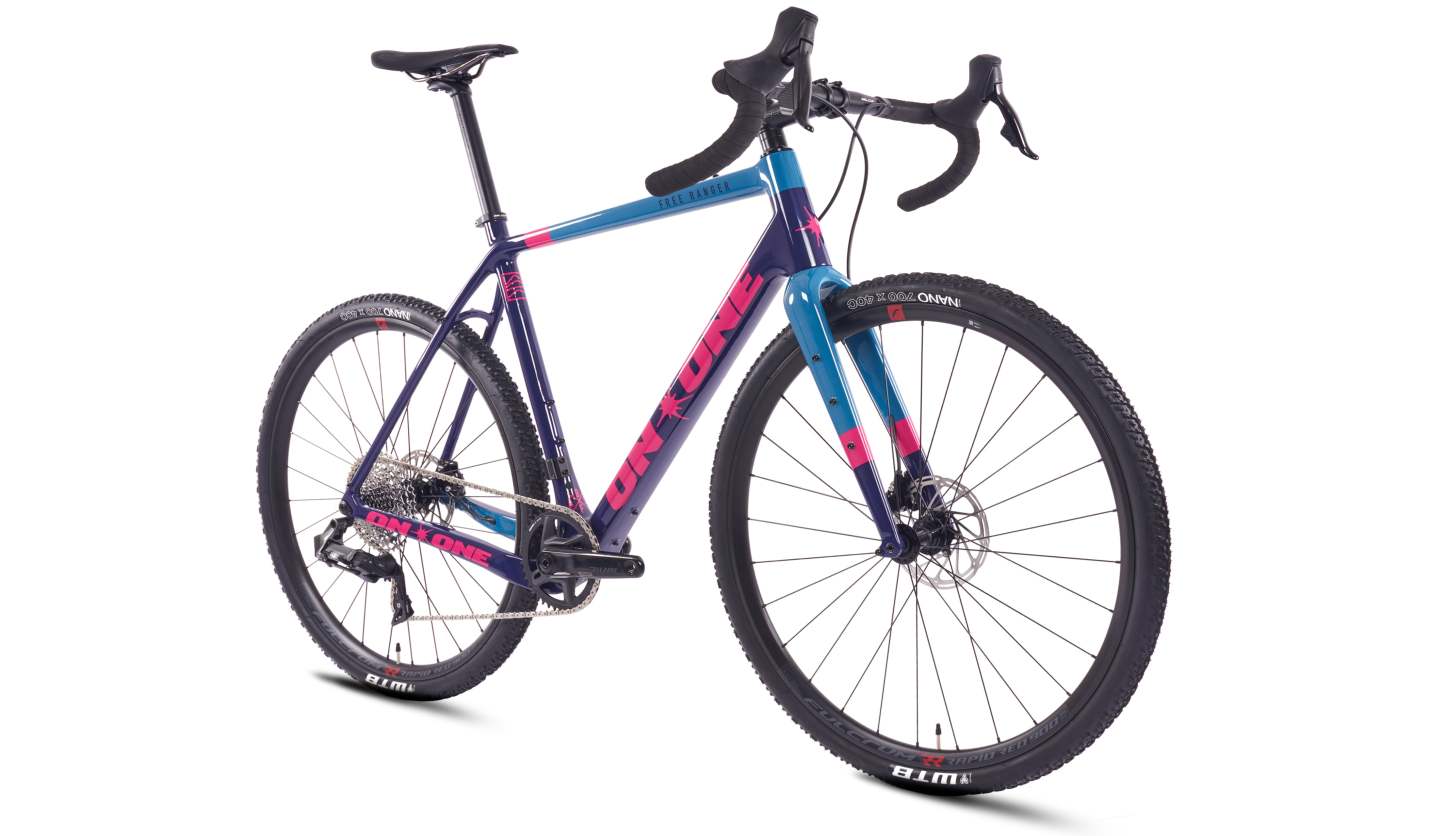

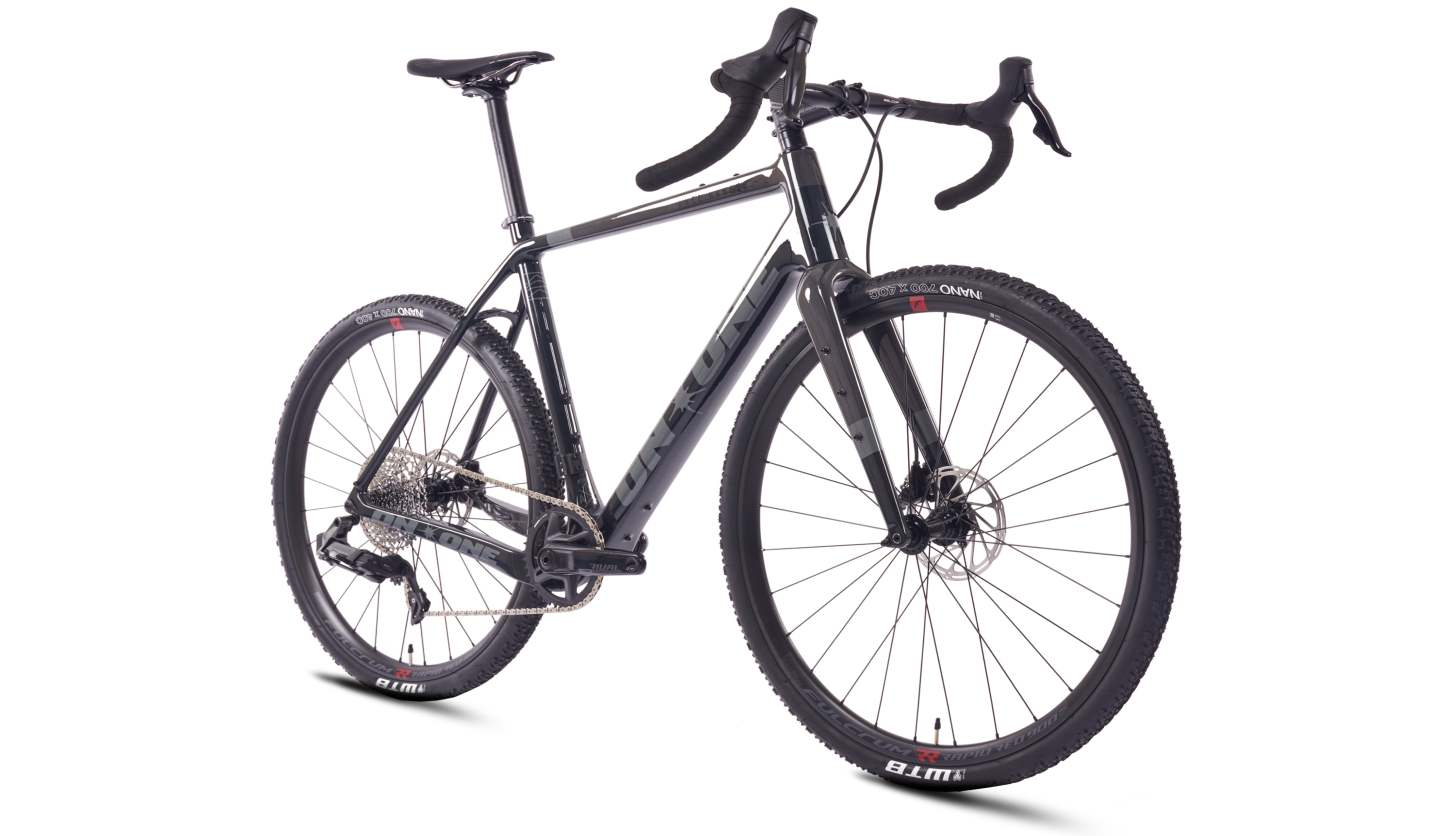

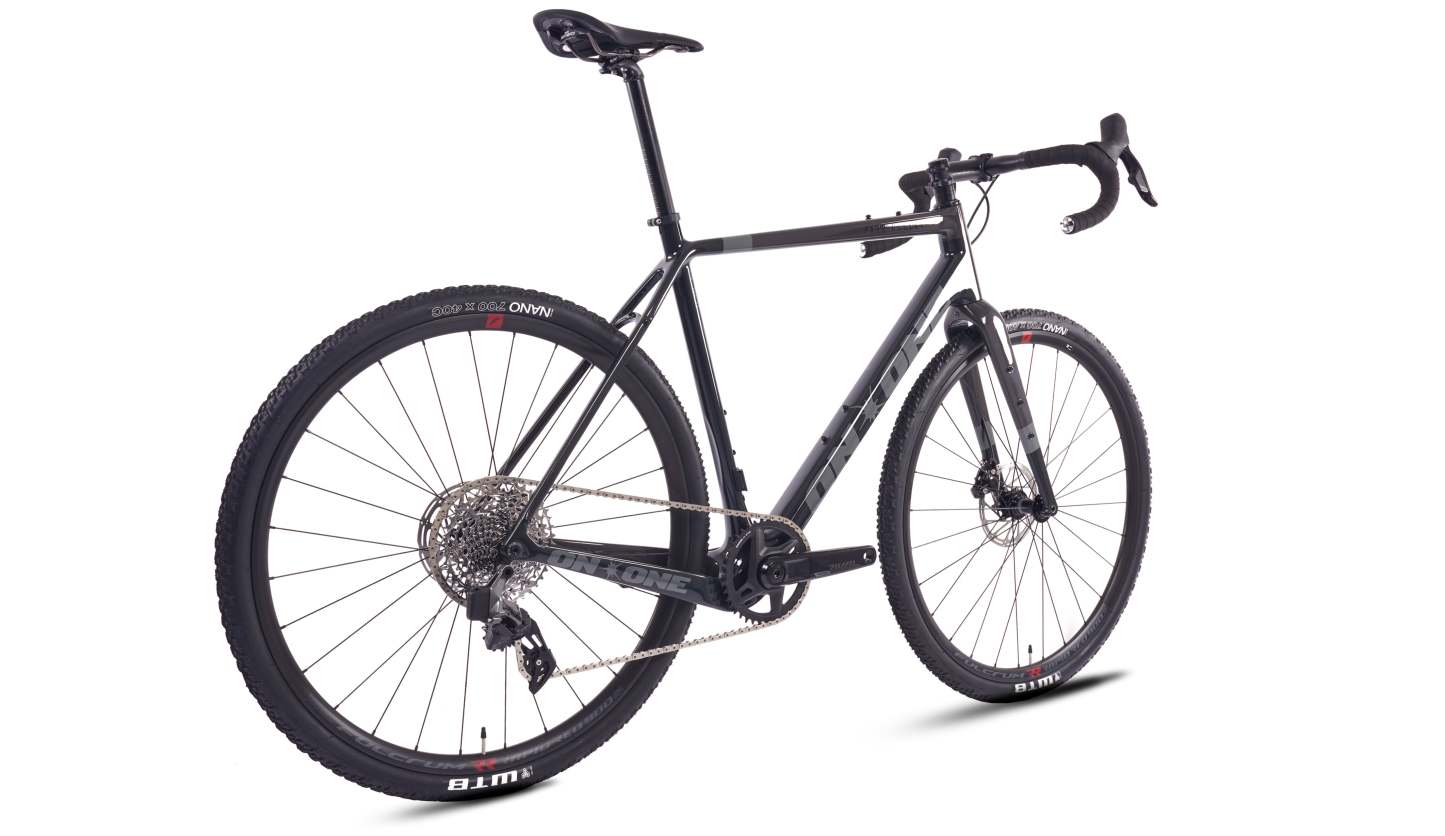

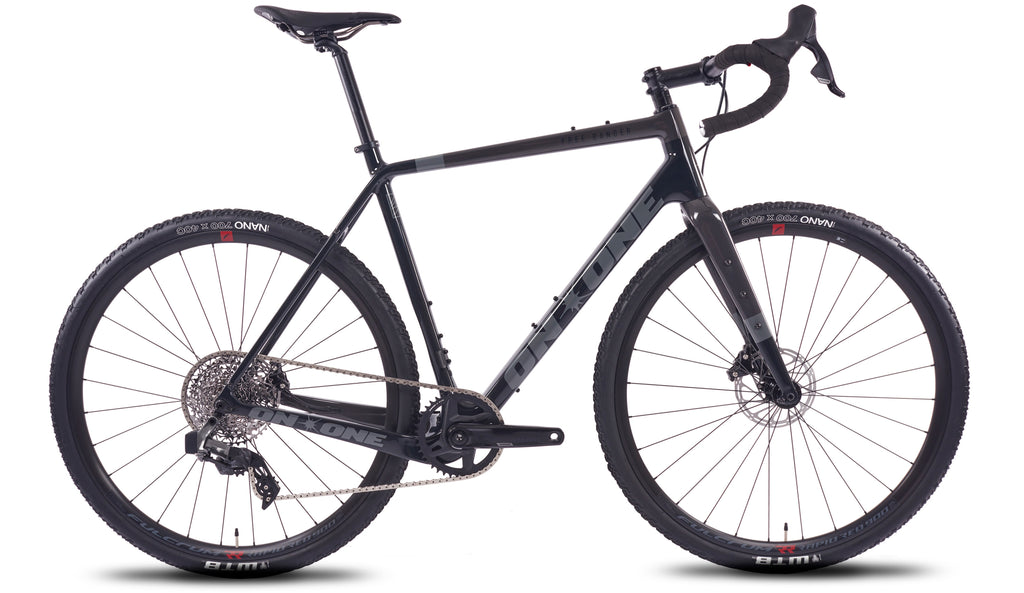

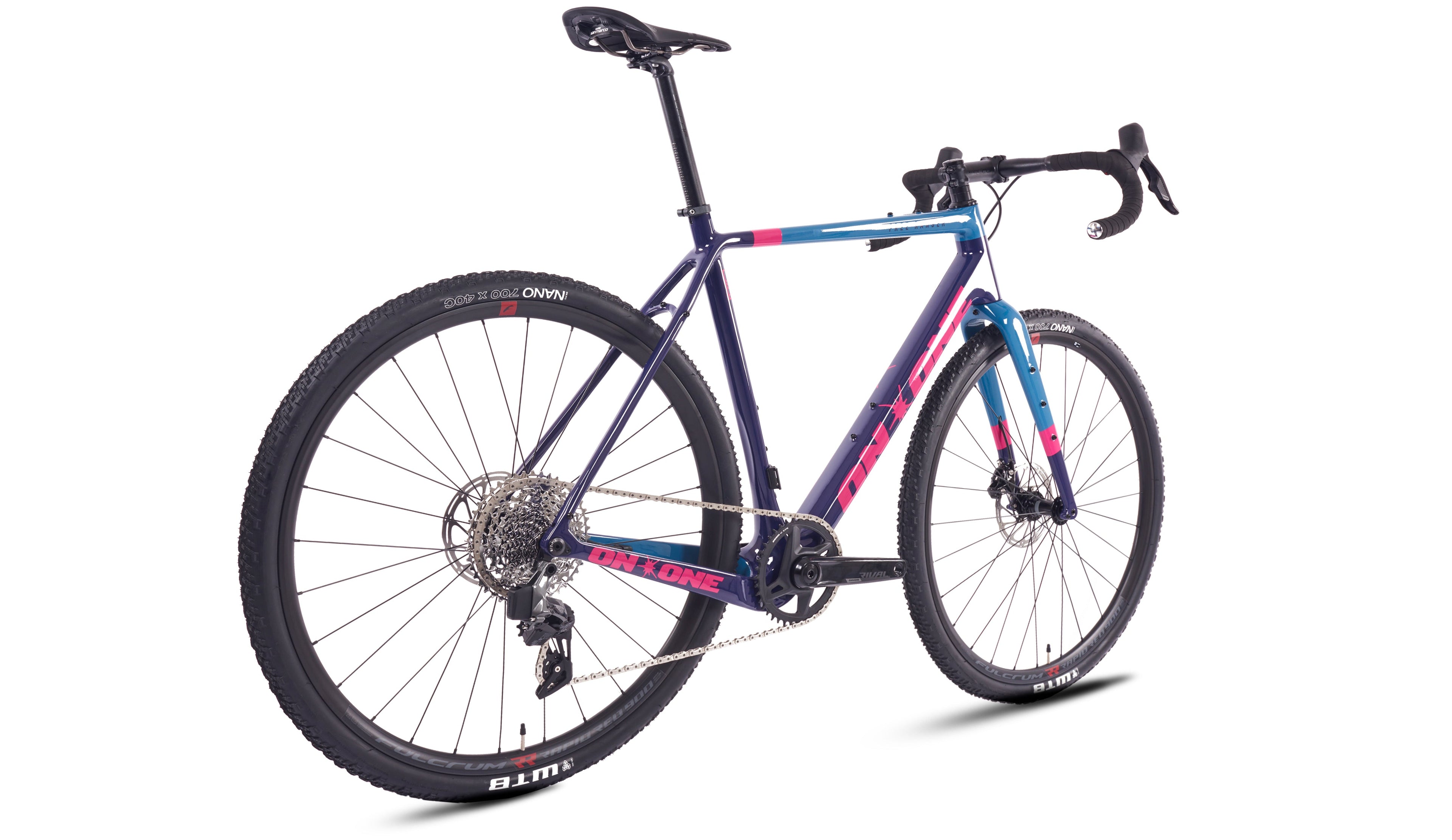

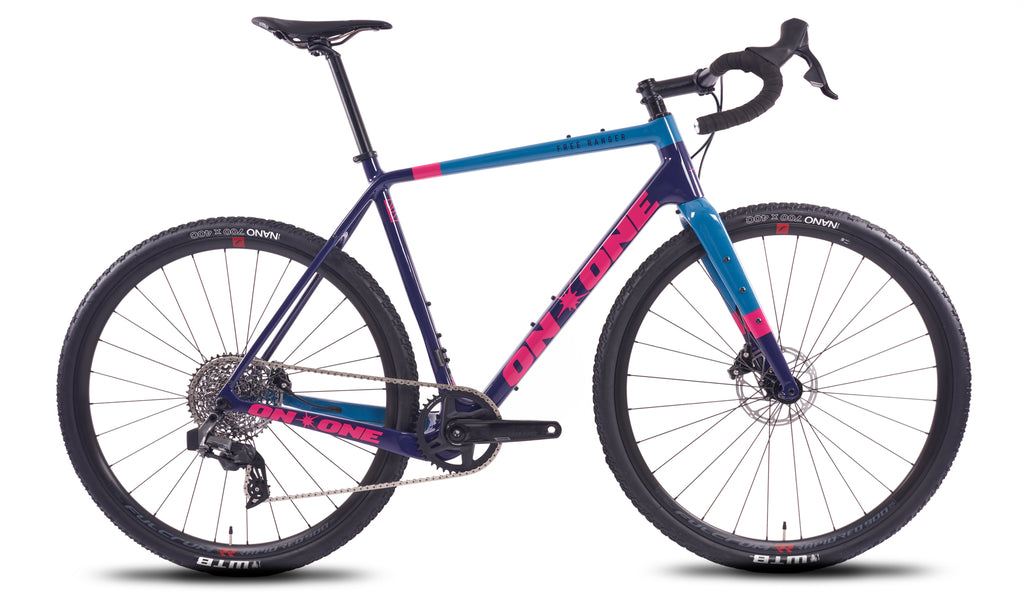

On-One Free Ranger SRAM Rival AXS XPLR Gravel Bike

Built around a lightweight carbon frameset and a wireless drivetrain, the Free Ranger favours both gravel adventures and high speed. A full set of luggage, bottle and mudguard mounts make it the perfect bikepacking or touring rig also.

SRAM Rival AXS Wireless drivetrain
SRAM Rival hydraulic brakes
Vision Team AGX Disc Gravel Wheels
Full Carbon Frameset - UDH Compatible
Full Luggage Mounts (Including Fork)
Tyre Clearance up to 48mm (700c)

View less

$2,504.00

Shipping calculated at checkout.

Expect dispatch in 5 days

Available on Cycle to work

Colour

Electric Night Forest Green Monochrome Black

X-Small Small Medium Large X-Large

RIDER HEIGHT	SUGGESTED FRAME SIZE
5′3″ to 5′8″ (162cm-172cm)	X-Small
5′7″ to 5′10″ (170cm-178cm)	Small
5′9″ to 6′2″ (175cm -188cm)	Medium
6′1″ to 6′4″ (185cm-193cm)	Large
6′4 < (193cm+)	X-Large

		XS	S	M	L	XL
A	Head Angle (degrees)	70.5	71.0	71.5	72.0	72.0
B	Head Tube (mm)	120	140	150	170	190
C	Top Tube Effective(mm)	520	535	550	565	580
D	Seat Tube Angle (degrees)	74.5	74.0	73.0	73.0	73.0
E	Seat Tube C-T Actual (mm)	490	520	540	560	580
F	Chainstays (mm)	435	435	435	435	435
G	BB Drop (mm)	67	67	67	67	67
H	Stack (mm)	536	557	568	589	608
I	Reach (mm)	371	374	376	384	393
J	Front Centre (mm)	595	595	600	610	626
K	Wheelbase (mm)	1020	1021	1025	1036	1052

🔧 Customise your bike

Quantity

CBBIKE-FRE-RAX-LRG-BLU

Frame

Featuring a lightweight T800 Carbon Fibre layup and responsive and agile gravel geometry, the Free Ranger is a gravel bike designed to excel off road but remain fast and capable on the tarmac. With clearance for 48mm tyres and 650B compatibility, the Free Ranger handles any terrain with direct control and plush comfort. EPS technology ensures strictly controlled tube thickness and shapes. Specifically considered layup to ensure stiffness and compliance where required in different areas of the frame.

Groupset

SRAM Rival AXS XPLR
Featuring ultra-reliable wireless shifting, intuitive gearing, AXS App connectivity, and refined hydraulic disc brakes. It’s everything you could ask for in a modern gravel groupset.
Wireless Shifting
Clean, safe, and reliable. SRAM Rival AXS XPLR wireless gear shifting is simple and intuitive. One button to go easier, one to go harder. Simple. A 60-minute battery charge can offer weeks and weeks of rides, it’s 100% waterproof and proven in the hardest conditions on earth. No cables to stretch or get clogged with dirt. SRAM Rival AXS XPLR just works.
Efficient and Capable Gearing
12-speed gearing provides huge range but keeps jumps tight where needed. Meaning you’ll always be able to find the right gear. Combining an incredible 440% gear range. Whether spinning up the steepest gravel singletrack or rolling fast on the road. We’ve paired the 40-tooth chainset to the XPLR XG-1251 10-44 tooth rear cassette. The dedicated XPLR rear mech is lightning fast and reliable.
AXS Mobile App
Control, personalisation, and monitoring are at your fingertips with the AXS mobile app. See how much time you spend in each cog, customise your shifting configuration, check battery charge status, and update firmware as needed right from your phone.
Disc Brakes for ultimate control
SRAM Rival AXS XPLR provides the best braking experience for all riders. Powerful hydraulic disc braking to inspire confidence, whatever the terrain or weather. No more achy hands after long descents. Reach adjustability for different hand sizes mean suitability for everyone.

Frame

Featuring a lightweight T800 Carbon Fibre layup and responsive and agile gravel geometry, the Free Ranger is a gravel bike designed to excel off road but remain fast and capable on the tarmac. With clearance for 48mm tyres and 650B compatibility, the Free Ranger handles any terrain with direct control and plush comfort. EPS technology ensures strictly controlled tube thickness and shapes. Specifically considered layup to ensure stiffness and compliance where required in different areas of the frame.

Groupset

SRAM Rival AXS XPLR
Featuring ultra-reliable wireless shifting, intuitive gearing, AXS App connectivity, and refined hydraulic disc brakes. It’s everything you could ask for in a modern gravel groupset.
Wireless Shifting
Clean, safe, and reliable. SRAM Rival AXS XPLR wireless gear shifting is simple and intuitive. One button to go easier, one to go harder. Simple. A 60-minute battery charge can offer weeks and weeks of rides, it’s 100% waterproof and proven in the hardest conditions on earth. No cables to stretch or get clogged with dirt. SRAM Rival AXS XPLR just works.
Efficient and Capable Gearing
12-speed gearing provides huge range but keeps jumps tight where needed. Meaning you’ll always be able to find the right gear. Combining an incredible 440% gear range. Whether spinning up the steepest gravel singletrack or rolling fast on the road. We’ve paired the 40-tooth chainset to the XPLR XG-1251 10-44 tooth rear cassette. The dedicated XPLR rear mech is lightning fast and reliable.
AXS Mobile App
Control, personalisation, and monitoring are at your fingertips with the AXS mobile app. See how much time you spend in each cog, customise your shifting configuration, check battery charge status, and update firmware as needed right from your phone.
Disc Brakes for ultimate control
SRAM Rival AXS XPLR provides the best braking experience for all riders. Powerful hydraulic disc braking to inspire confidence, whatever the terrain or weather. No more achy hands after long descents. Reach adjustability for different hand sizes mean suitability for everyone.

1 / 2

📏 Sizing and Geometry

RIDER HEIGHT	SUGGESTED FRAME SIZE
5′3″ to 5′8″ (162cm-172cm)	X-Small
5′7″ to 5′10″ (170cm-178cm)	Small
5′9″ to 6′2″ (175cm -188cm)	Medium
6′1″ to 6′4″ (185cm-193cm)	Large
6′4 < (193cm+)	X-Large

		XS	S	M	L	XL
A	Head Angle (degrees)	70.5	71.0	71.5	72.0	72.0
B	Head Tube (mm)	120	140	150	170	190
C	Top Tube Effective(mm)	520	535	550	565	580
D	Seat Tube Angle (degrees)	74.5	74.0	73.0	73.0	73.0
E	Seat Tube C-T Actual (mm)	490	520	540	560	580
F	Chainstays (mm)	435	435	435	435	435
G	BB Drop (mm)	67	67	67	67	67
H	Stack (mm)	536	557	568	589	608
I	Reach (mm)	371	374	376	384	393
J	Front Centre (mm)	595	595	600	610	626
K	Wheelbase (mm)	1020	1021	1025	1036	1052

🔧 Build Kit

Stainless Steel M5 Bolt 22mm Thread Locking Individual

Selcof Carbon Steerer Fork Bung MK 4 / 23-24mm ID

Selcof Alloy Bolt Up Seatclamp / 29.8mm

Bike Build Packaging Rear Derailleur Protector

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

Token Omega Headset For Tapered 1" 1/8th – 1.5" Fork Steerer

Planet X EC-130E Di2 Gear Cable Blanking Rubbers

🔧 Groupset

SRAM Rival AXS HRD Hydraulic Disc Brake Lever With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / FM 20mm Offset

SRAM Rival AXS HRD Hydraulic Disc Brake Lever With Flat Mount Caliper / Right Lever / Front Brake / 1000mm / FM 20mm Offset

SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide

SRAM XPLR XG-1271 12 Speed Cassette / 10-44 Tooth

SRAM Rival XPLR AXS 1x12 Speed Rear Mech / Max 44 Tooth

SRAM Rival AXS 12 Speed Chain / 120 Link

SRAM Flat Mount Disc Brake Mounting Hardware / 15mm / Single

Avid Centreline Disc Brake Rotor / 160mm Centrelock

Ashima Flat Mount Adapter - Direct To 20mm

SRAM GXP Bottom Bracket Spacer 2.5mm Single / Matt Black

SRAM Powerpack For AXS / 1 Battery

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive
