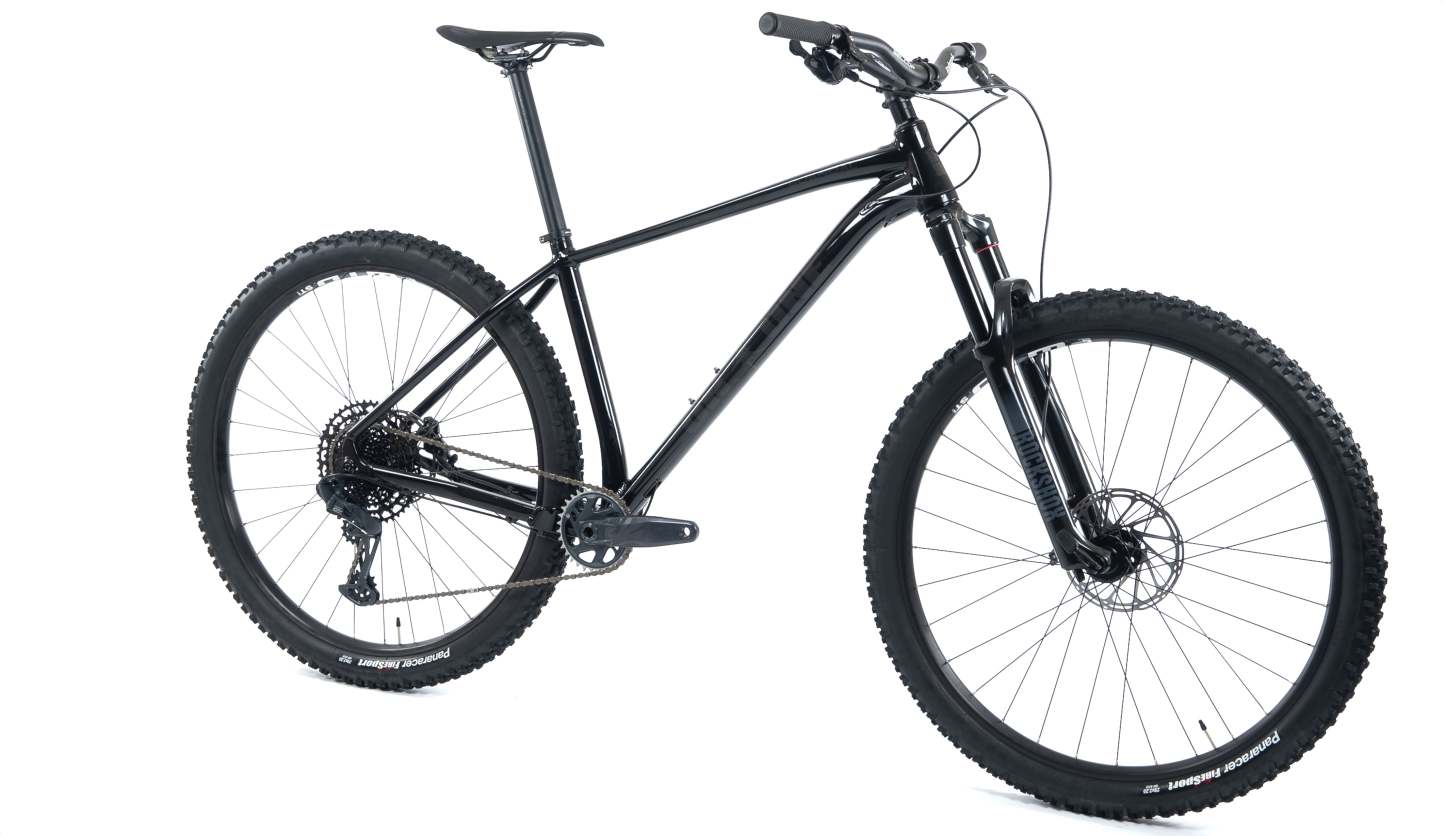

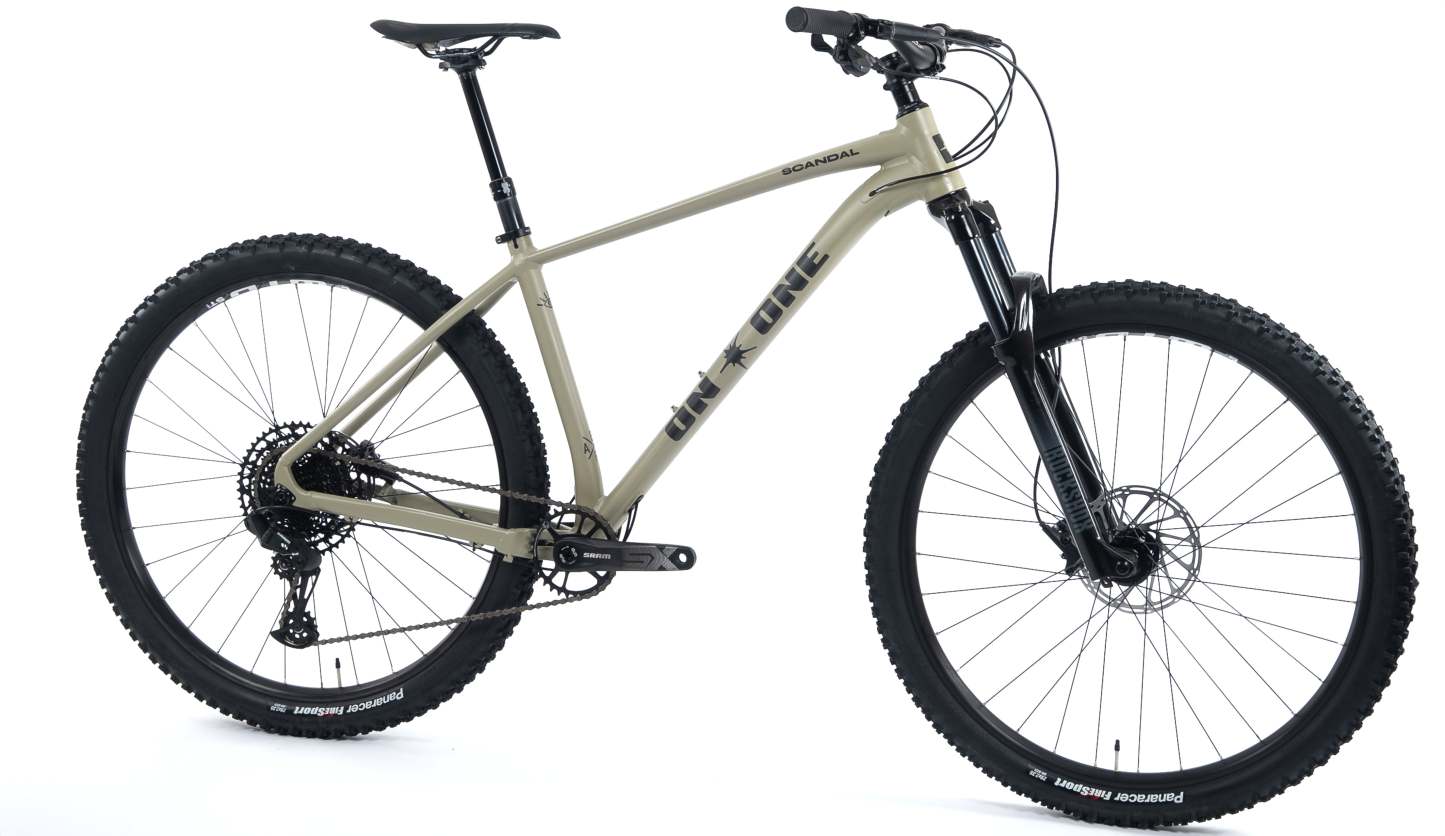

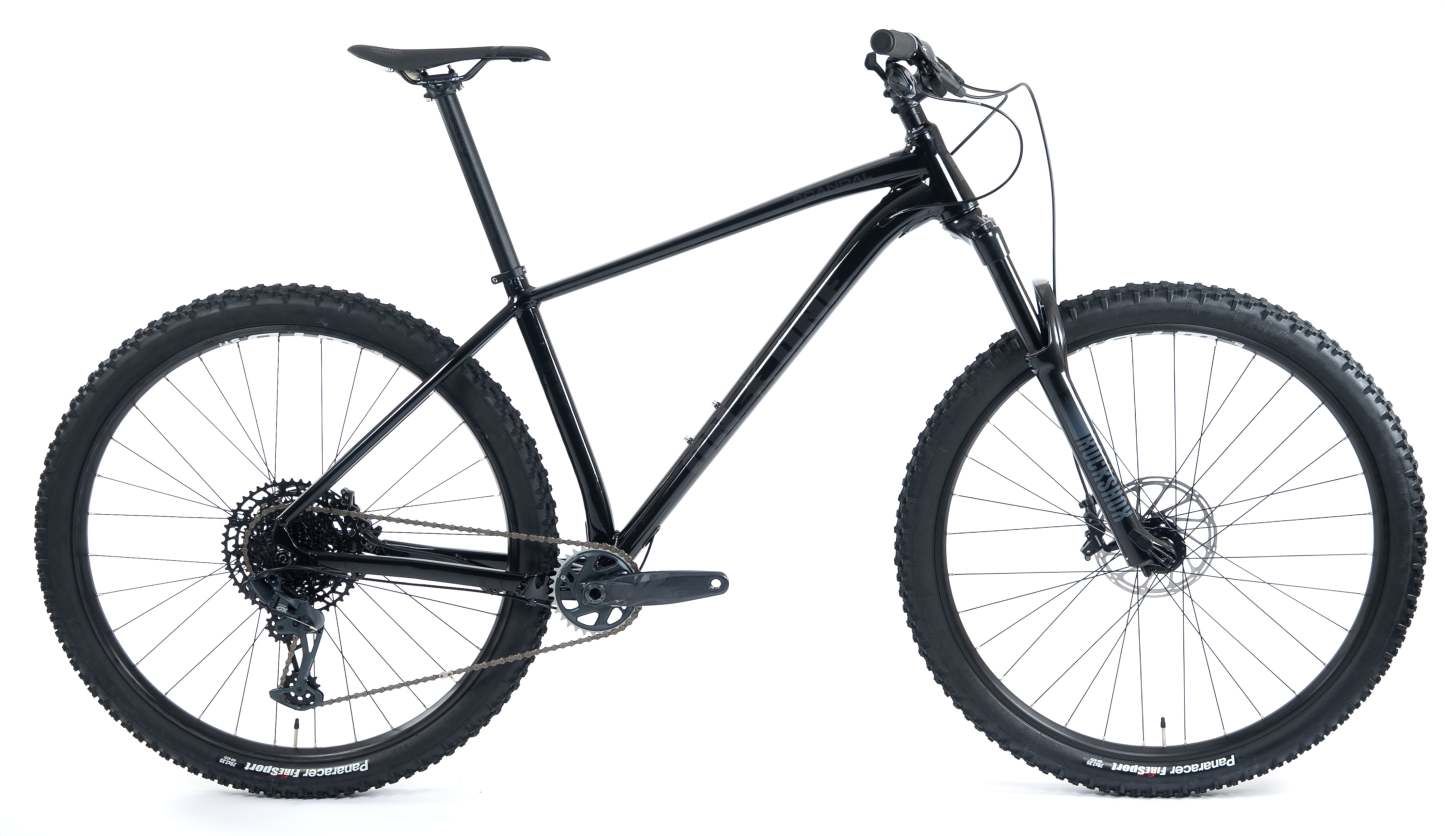

On-One Scandal SRAM GX Mountain Bike

The On-One SCANDAL Trail Hardtail is a rapid riding, aggressive, agile and balanced 29er designed for all-terrain efficiency. Big tyre clearance, 65 degree head angle and 130mm of suspension travel. Super playful geometry lets you tackle anything the trail throws at you.

SRAM GX with Guide G2R Brakes
WTB I30 29er Wheels
Aerospace 6061 T6 Heat Treated Aluminium Frame with Rockshox 35 Gold Fork
Panaracer FireSport 29" Tyres
Weight - Medium 13.0kg

View less

$886.00 $1,181.00 Save $295.00

Shipping calculated at checkout.

Expect dispatch in 21 days

Available on Cycle to work

Colour

Gloss Black Foreshore Sand

Small Medium Large X-Large

Rider Height	Suggested Frame Size
5′3″ to 5′7″ (160cm-170cm)	Small / 15"
5′6″ to 5′10″ (168cm-178cm)	Medium / 16.5"
5′9″ to 6′2″ (175cm- 188cm)	Large /18"
6′1″ to 6′4″ (185cm- 193cm)	X-Large / 19.5"

		SML/15"	MED/16.5"	LRG/18"	XLG/19.5"
A	Head Angle (degrees)	65.0	65.0	65.0	65.0
B	Head Tube (mm)	100	100	120	135
C	Top Tube Effective(mm)	601	623	639	657
D	Seat Tube Angle (degrees)	73.0	73.0	74.0	74.5
E	Seat Tube C-T Actual (mm)	380	420	460	500
F	Chainstays (mm)	435	435	435	435
G	BB Drop (mm)	58	58	58	58
H	Stack (mm)	609	609	629	644
I	Reach (mm)	415	437	460	480
J	Front Centre (mm)	730	752	783	809
K	Wheelbase (mm)	1159	1181	1212	1237

Please note that our bikes are not supplied with pedals - these must be purchased separately

🔧 Customise your bike

Quantity

CBBIKE-SCN-GXE-MED-BLK

Frame

Scandal takes our years of experience from originating and evolving the sweetest handling 29er trail bikes and joins those delicious dots with a super light multi shaped and wall thickness alloy frame. Light, lively, and punchy without ever being punishing. Agile down the woods but totally sorted flat out in the mountains. Proper fork, big tyre space, dropper routing and killer value kit complete this classic fast, far, fun trail all-rounder.

Groupset

GX Eagle
This GX groupset offers impressive performance with plenty of gears. Sharing many features with the higher end of the Eagle Ecosystem like the proven SRAM 1x-specific X-HORIZON™ body design, it can accommodate up to 10-52T cassettes. Eagle is a lighter, simpler, more durable, and easier to use drivetrain.
Reliable wide range 1x gearing
An 11-50 cassette provides a huge gearing range with SRAM’s top of the range aluminium 32 tooth crankset utilising DUB technology. Enough range to ensure you can fly downhill or comfortably spin up the steepest climbs.
G2 hydraulic brakes
The SRAM G2 delivers premium value braking without compromise. Powerful 4 piston callipers provide awesome single finger stopping power and reach adjust makes it easy to adjust your lever for maximum control. Think consistency, reliability and trust.

Frame

Scandal takes our years of experience from originating and evolving the sweetest handling 29er trail bikes and joins those delicious dots with a super light multi shaped and wall thickness alloy frame. Light, lively, and punchy without ever being punishing. Agile down the woods but totally sorted flat out in the mountains. Proper fork, big tyre space, dropper routing and killer value kit complete this classic fast, far, fun trail all-rounder.

Groupset

GX Eagle
This GX groupset offers impressive performance with plenty of gears. Sharing many features with the higher end of the Eagle Ecosystem like the proven SRAM 1x-specific X-HORIZON™ body design, it can accommodate up to 10-52T cassettes. Eagle is a lighter, simpler, more durable, and easier to use drivetrain.
Reliable wide range 1x gearing
An 11-50 cassette provides a huge gearing range with SRAM’s top of the range aluminium 32 tooth crankset utilising DUB technology. Enough range to ensure you can fly downhill or comfortably spin up the steepest climbs.
G2 hydraulic brakes
The SRAM G2 delivers premium value braking without compromise. Powerful 4 piston callipers provide awesome single finger stopping power and reach adjust makes it easy to adjust your lever for maximum control. Think consistency, reliability and trust.

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′3″ to 5′7″ (160cm-170cm)	Small / 15"
5′6″ to 5′10″ (168cm-178cm)	Medium / 16.5"
5′9″ to 6′2″ (175cm- 188cm)	Large /18"
6′1″ to 6′4″ (185cm- 193cm)	X-Large / 19.5"

		SML/15"	MED/16.5"	LRG/18"	XLG/19.5"
A	Head Angle (degrees)	65.0	65.0	65.0	65.0
B	Head Tube (mm)	100	100	120	135
C	Top Tube Effective(mm)	601	623	639	657
D	Seat Tube Angle (degrees)	73.0	73.0	74.0	74.5
E	Seat Tube C-T Actual (mm)	380	420	460	500
F	Chainstays (mm)	435	435	435	435
G	BB Drop (mm)	58	58	58	58
H	Stack (mm)	609	609	629	644
I	Reach (mm)	415	437	460	480
J	Front Centre (mm)	730	752	783	809
K	Wheelbase (mm)	1159	1181	1212	1237

🔧 Build Kit

Selcof Forged Alloy Bolt Up Seatclamp V3 / 35mm / 12mm / Black

Bike Build Packaging Rear Derailleur Protector

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

Selcof Zero Stack / Semi-Integrated Cup Cartridge Bearing Headset For Tapered 1” 1/8th – 1.5” Fork Steerer

🔧 Groupset

SRAM Guide G2 R Hydraulic Disc Brake / Rear / 1800 / 20 Post to IS

SRAM Guide G2 R Hydraulic Disc Brake / Front / 900mm / Post mount (20mm bracket) 20P

SRAM GX Eagle Trigger Shifter (Lunar Colourway) / 12 Speed / Right Hand

SRAM DUB BSA Bottom Bracket / 73mm

SRAM GX Eagle DUB Crankset (Lunar Colourway) / 170mm / 32T / BOOST

SRAM PG-1210 Eagle 12 Speed Cassette / 11-50

SRAM GX Eagle Rear Mech (Lunar Colourway) / 1 x 12 Speed

SRAM Chain PC NX Eagle / 126 Links / 12 Speed

SRAM Centreline Disc Brake Rotor / 160mm 6 Bolt

Avid Centreline Disc Brake Rotor / 180mm 6 Bolt

Avid MMX Matchmaker Clamp Black / Left

Avid MMX Matchmaker Clamp Black / Right

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive
