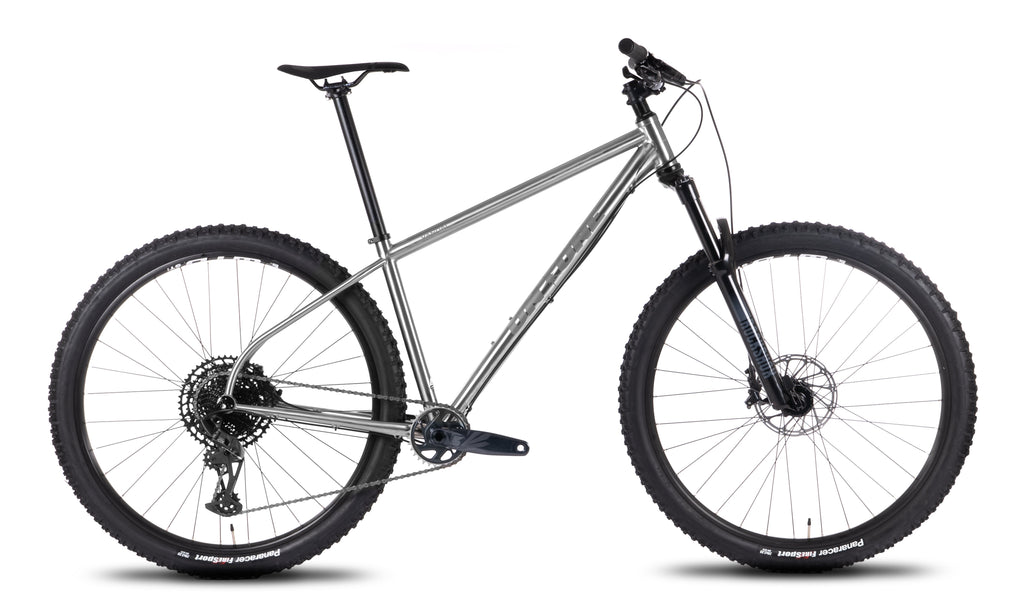

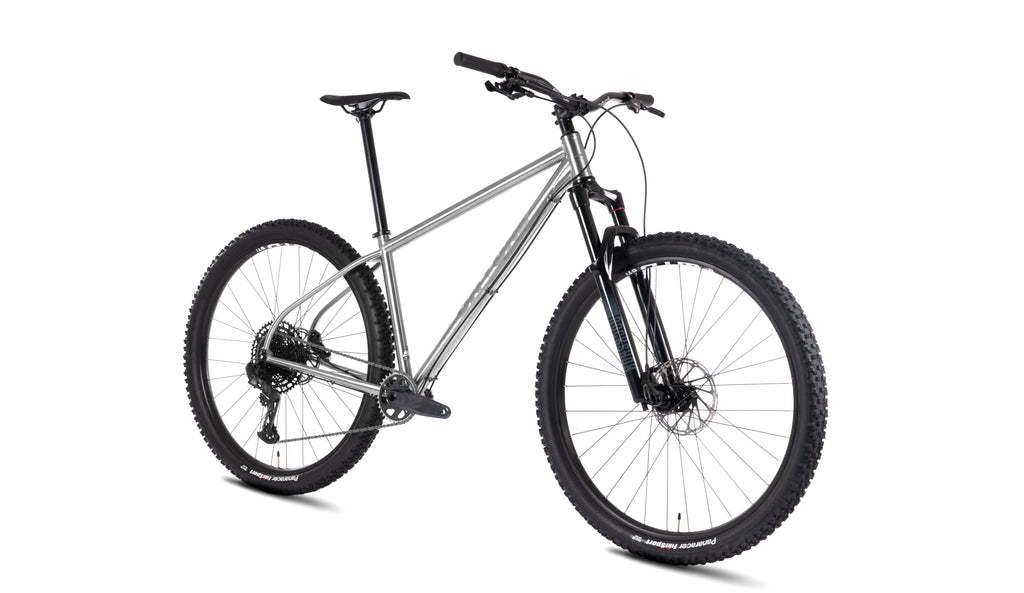

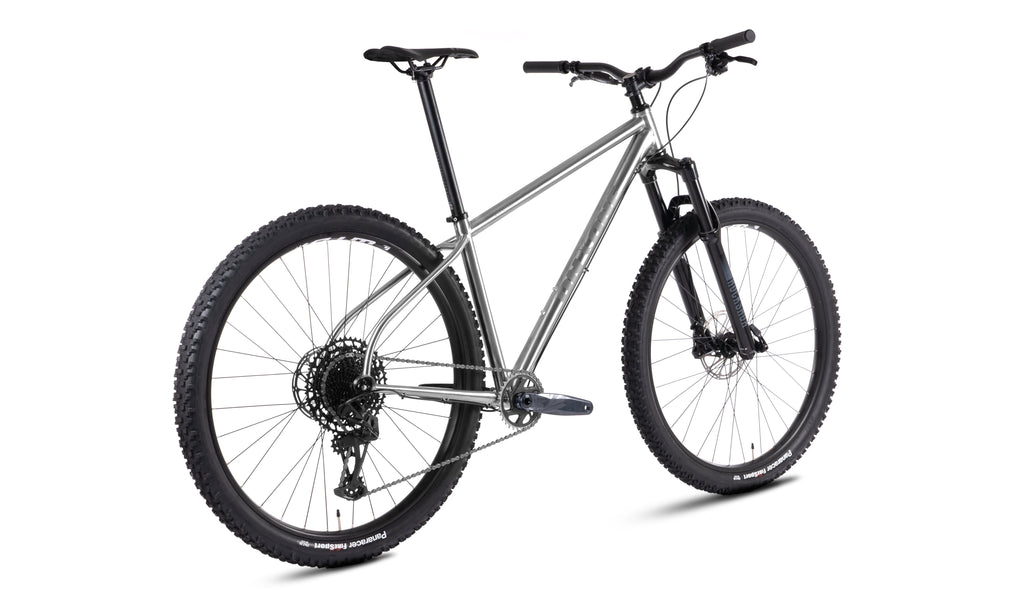

On-One Vandal SRAM GX Titanium Mountain Bike

The Vandal is On-Ones titanium-tough trail 29er. Based on the Scandal, we've have taken all that sweet handling geometry knowledge, and translated it onto a premium titanium chassis.

Rockshox 35 Gold 130mm suspension fork
SRAM GX 12 Speed drivetrain
SRAM G2 R hydraulic brakes
WTB I30 wheelset
Approx Bike Weight (Medium) - 13.4kg

View less

$1,619.00

Shipping calculated at checkout.

Expect dispatch in 21 days

Available on Cycle to work

Small Medium Large X-Large

Rider Height	Suggested Frame Size
5′3″ to 5′7″ (160cm-170cm)	SML/415mm
5′6″ to 5′10″ (168cm-178cm)	MED/430mm
5′9″ to 6′2″ (175cm- 188cm)	LRG/460mm
6′1″ to 6′5″ (185cm- 196cm)	XL/485mm

		SML 415mm	MED 430mm	LRG 460mm	XL 485mm
A	Head Angle (degrees)	65.0	65.0	65.0	65.0
B	Head Tube (mm)	105	110	120	130
C	Top Tube Effective(mm)	602	624	635	678
D	Seat Tube Angle (degrees)	74	74	74.5	74.5
E	Seat Tube C-T Actual (mm)	415	430	460	485
F	Chainstays (mm)	445	445	445	445
G	BB Drop (mm)	65	65	65	65
H	Stack (mm)	637	642	651	660
I	Reach (mm)	417	437	455	495
J	Front Centre (mm)	748	770	788	833
K	Wheelbase (mm)	1185.3	1207.4	1225.2	1271

Please note that our bikes are not supplied with pedals - these must be purchased separately

🔧 Customise your bike

Quantity

CBBIKE-VAN-GXE-SML-TIT

Frame

The Vandal takes our years of experience from originating and evolving the sweetest handling 29er trail bikes, culminating in a super-premium Aerospace Grade 9 3AL-2.5V Titanium ride. The 65 degree head angle is suited for multiple ride styles. From trial centres to all day epics. 445mm chainstays offer good balance of stability and back wheel agility. The 65mm BB drop keeps you extremely planted whilst ensuring ground clearance. Balanced stack and reach figures offer versatility, from trail centres to endurance adventures to technical singletrack

Groupset

GX Eagle
This GX groupset offers impressive performance with plenty of gears. Sharing many features with the higher end of the Eagle Ecosystem like the proven SRAM 1x-specific X-HORIZON™ body design, it can accommodate up to 10-52T cassettes. Eagle is a lighter, simpler, more durable, and easier to use drivetrain.
Reliable wide range 1x gearing
An 11-50 cassette provides a huge gearing range with SRAM’s top of the range aluminium 32 tooth crankset utilising DUB technology. Enough range to ensure you can fly downhill or comfortably spin up the steepest climbs.
G2 hydraulic brakes
The SRAM G2 delivers premium value braking without compromise. Powerful 4 piston callipers provide awesome single finger stopping power and reach adjust makes it easy to adjust your lever for maximum control. Think consistency, reliability and trust.

Frame

The Vandal takes our years of experience from originating and evolving the sweetest handling 29er trail bikes, culminating in a super-premium Aerospace Grade 9 3AL-2.5V Titanium ride. The 65 degree head angle is suited for multiple ride styles. From trial centres to all day epics. 445mm chainstays offer good balance of stability and back wheel agility. The 65mm BB drop keeps you extremely planted whilst ensuring ground clearance. Balanced stack and reach figures offer versatility, from trail centres to endurance adventures to technical singletrack

Groupset

GX Eagle
This GX groupset offers impressive performance with plenty of gears. Sharing many features with the higher end of the Eagle Ecosystem like the proven SRAM 1x-specific X-HORIZON™ body design, it can accommodate up to 10-52T cassettes. Eagle is a lighter, simpler, more durable, and easier to use drivetrain.
Reliable wide range 1x gearing
An 11-50 cassette provides a huge gearing range with SRAM’s top of the range aluminium 32 tooth crankset utilising DUB technology. Enough range to ensure you can fly downhill or comfortably spin up the steepest climbs.
G2 hydraulic brakes
The SRAM G2 delivers premium value braking without compromise. Powerful 4 piston callipers provide awesome single finger stopping power and reach adjust makes it easy to adjust your lever for maximum control. Think consistency, reliability and trust.

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′3″ to 5′7″ (160cm-170cm)	SML/415mm
5′6″ to 5′10″ (168cm-178cm)	MED/430mm
5′9″ to 6′2″ (175cm- 188cm)	LRG/460mm
6′1″ to 6′5″ (185cm- 196cm)	XL/485mm

		SML 415mm	MED 430mm	LRG 460mm	XL 485mm
A	Head Angle (degrees)	65.0	65.0	65.0	65.0
B	Head Tube (mm)	105	110	120	130
C	Top Tube Effective(mm)	602	624	635	678
D	Seat Tube Angle (degrees)	74	74	74.5	74.5
E	Seat Tube C-T Actual (mm)	415	430	460	485
F	Chainstays (mm)	445	445	445	445
G	BB Drop (mm)	65	65	65	65
H	Stack (mm)	637	642	651	660
I	Reach (mm)	417	437	455	495
J	Front Centre (mm)	748	770	788	833
K	Wheelbase (mm)	1185.3	1207.4	1225.2	1271

🔧 Build Kit

Selcof Forged Alloy Bolt Up Seatclamp V3 / 35mm / 12mm / Black

Bike Build Packaging Rear Derailleur Protector

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

Selcof Semi-Integrated Cup Cartridge Bearing Headset

🔧 Groupset

SRAM Guide G2 R Hydraulic Disc Brake / Rear / 1800 / 20 Post to IS

SRAM Guide G2 R Hydraulic Disc Brake / Front / 900mm / Post mount (20mm bracket) 20P

SRAM GX Eagle Trigger Shifter (Lunar Colourway) / 12 Speed / Right Hand

SRAM DUB BSA Bottom Bracket / 73mm

SRAM GX Eagle DUB Crankset (Lunar Colourway) / 170mm / 32T / BOOST

SRAM PG-1210 Eagle 12 Speed Cassette / 11-50

SRAM GX Eagle Rear Mech (Lunar Colourway) / 1 x 12 Speed

SRAM Chain PC NX Eagle / 126 Links / 12 Speed

SRAM Centreline Disc Brake Rotor / 160mm 6 Bolt

Avid Centreline Disc Brake Rotor / 180mm 6 Bolt

Avid MMX Matchmaker Clamp Black / Left

Avid MMX Matchmaker Clamp Black / Right

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive
