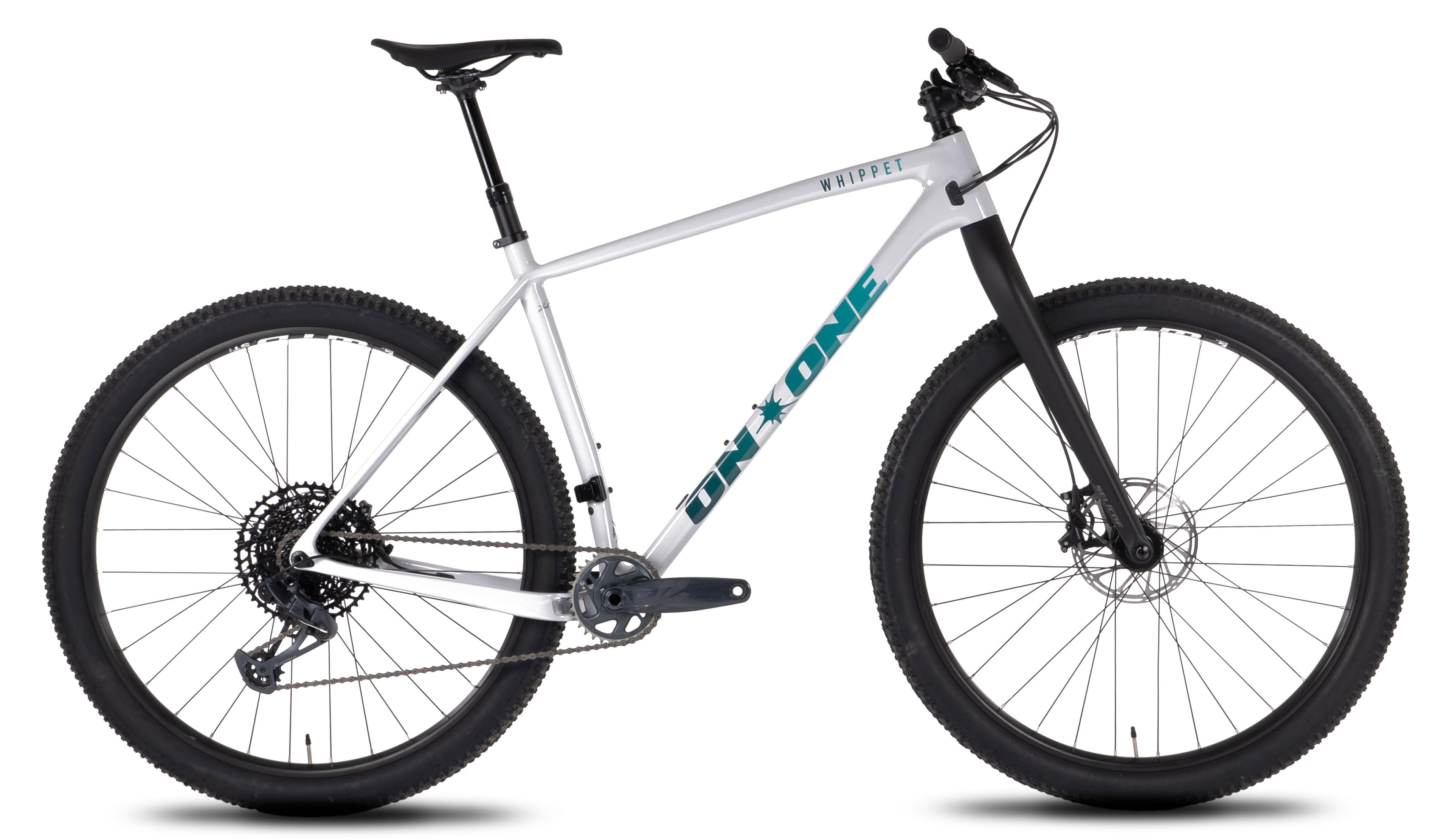

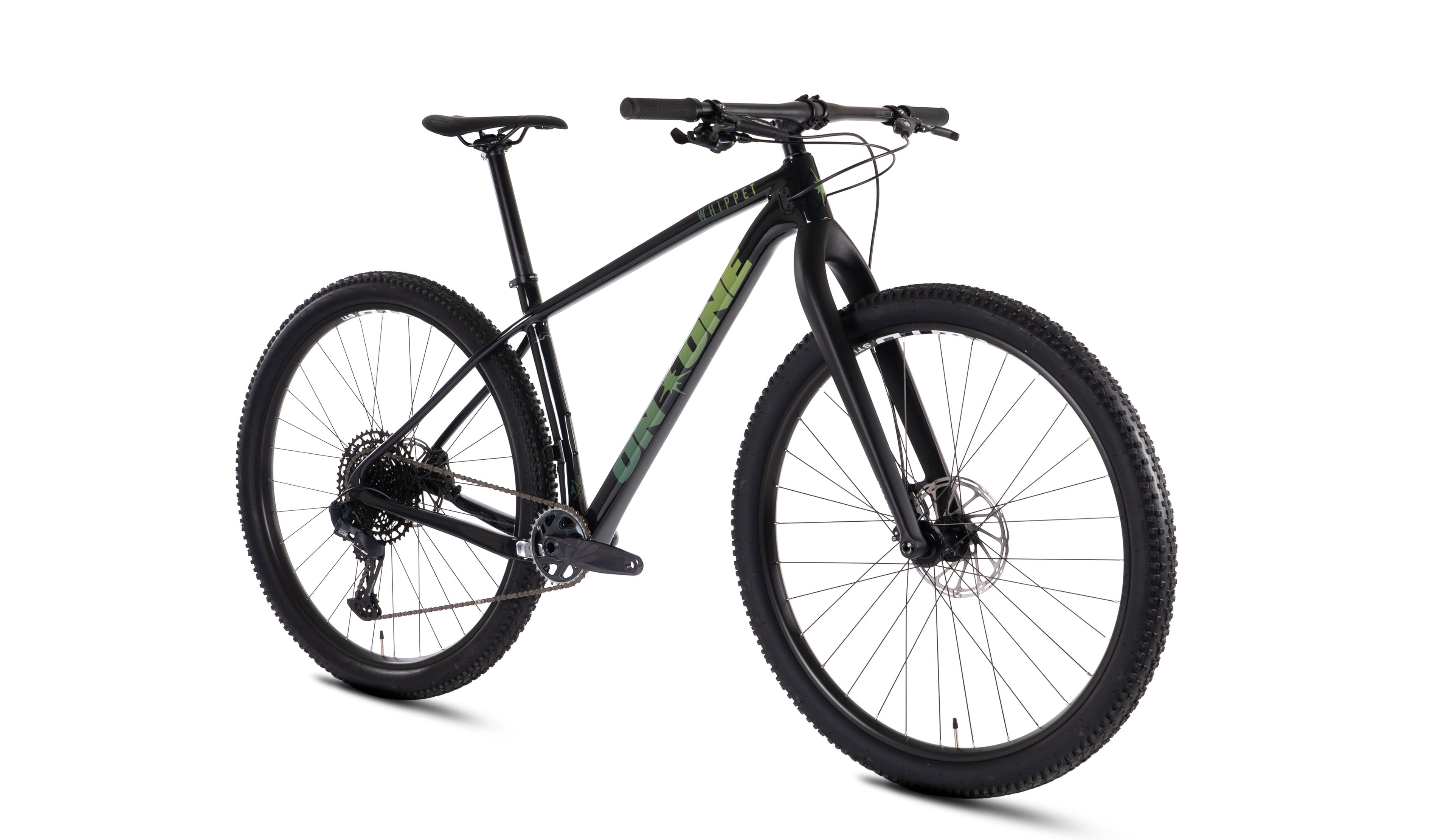

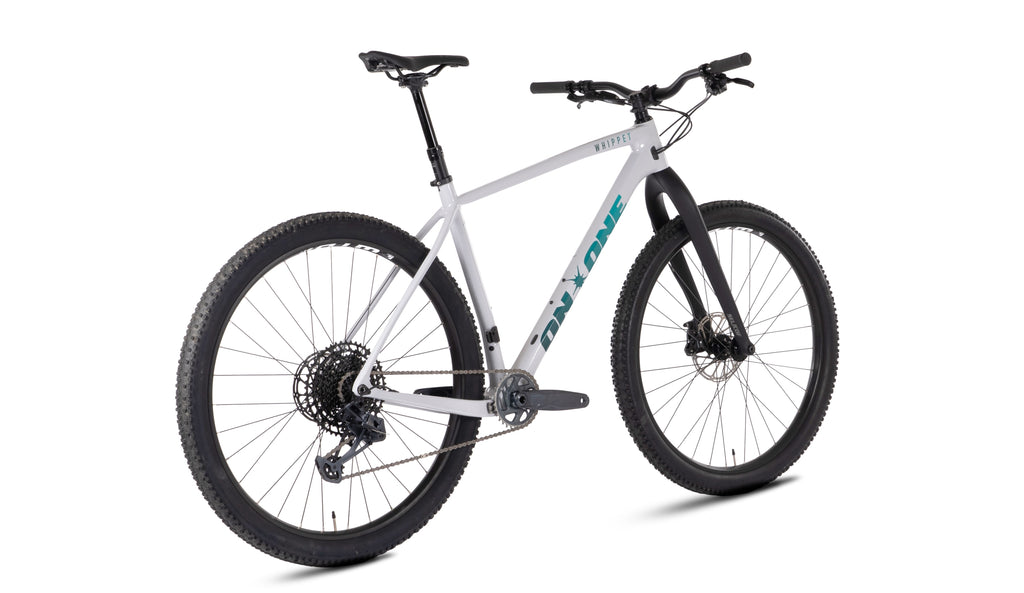

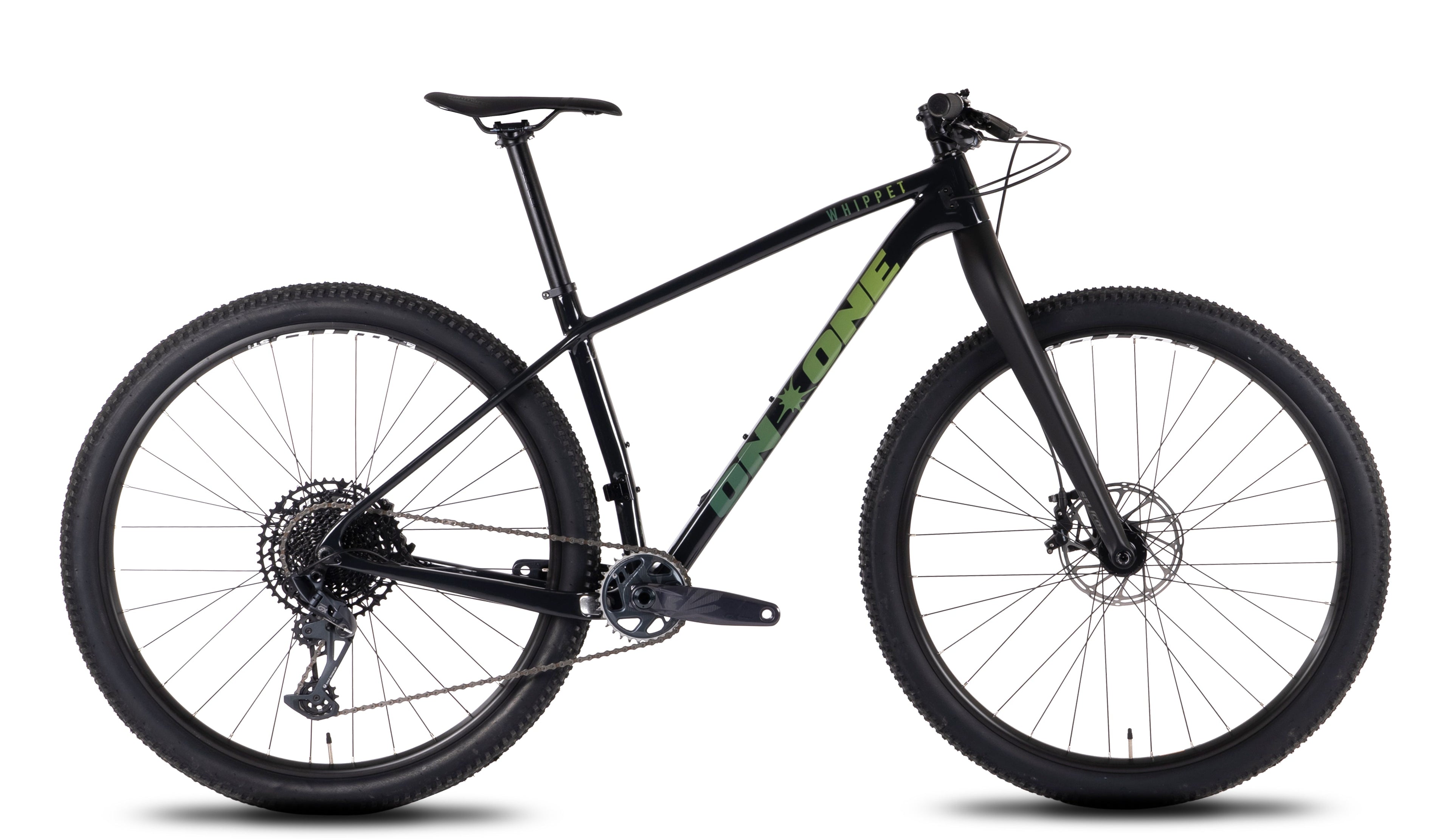

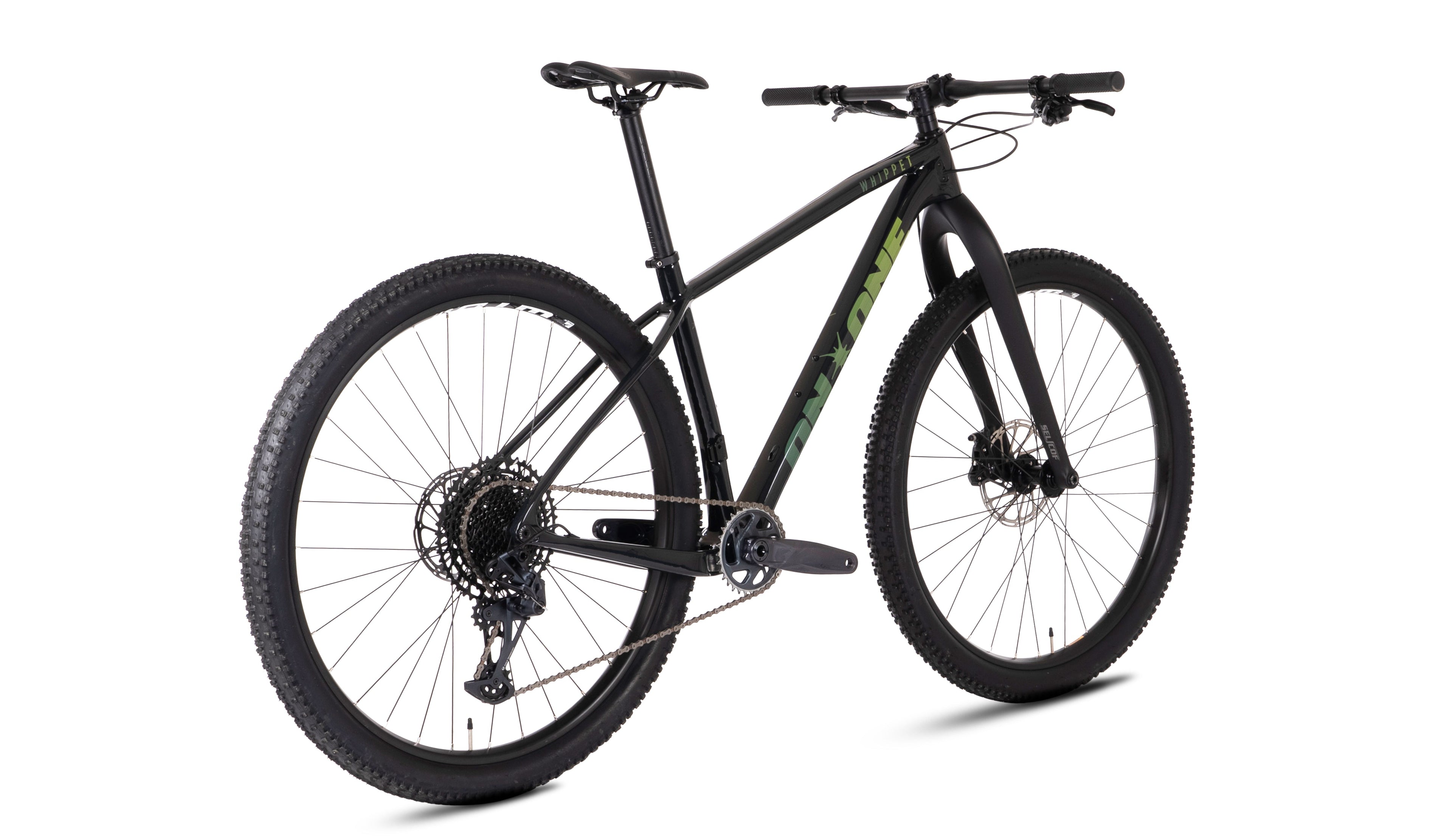

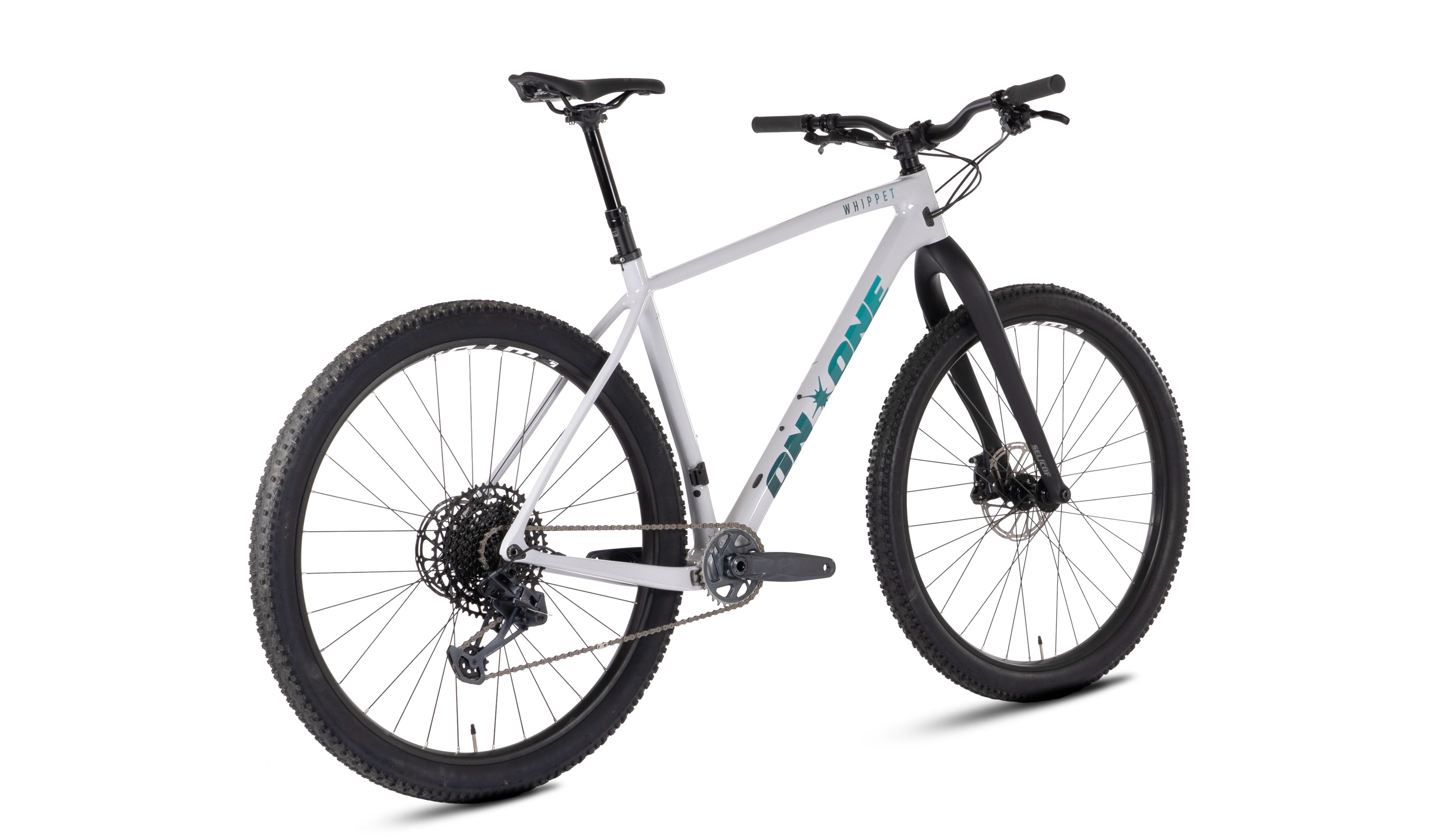

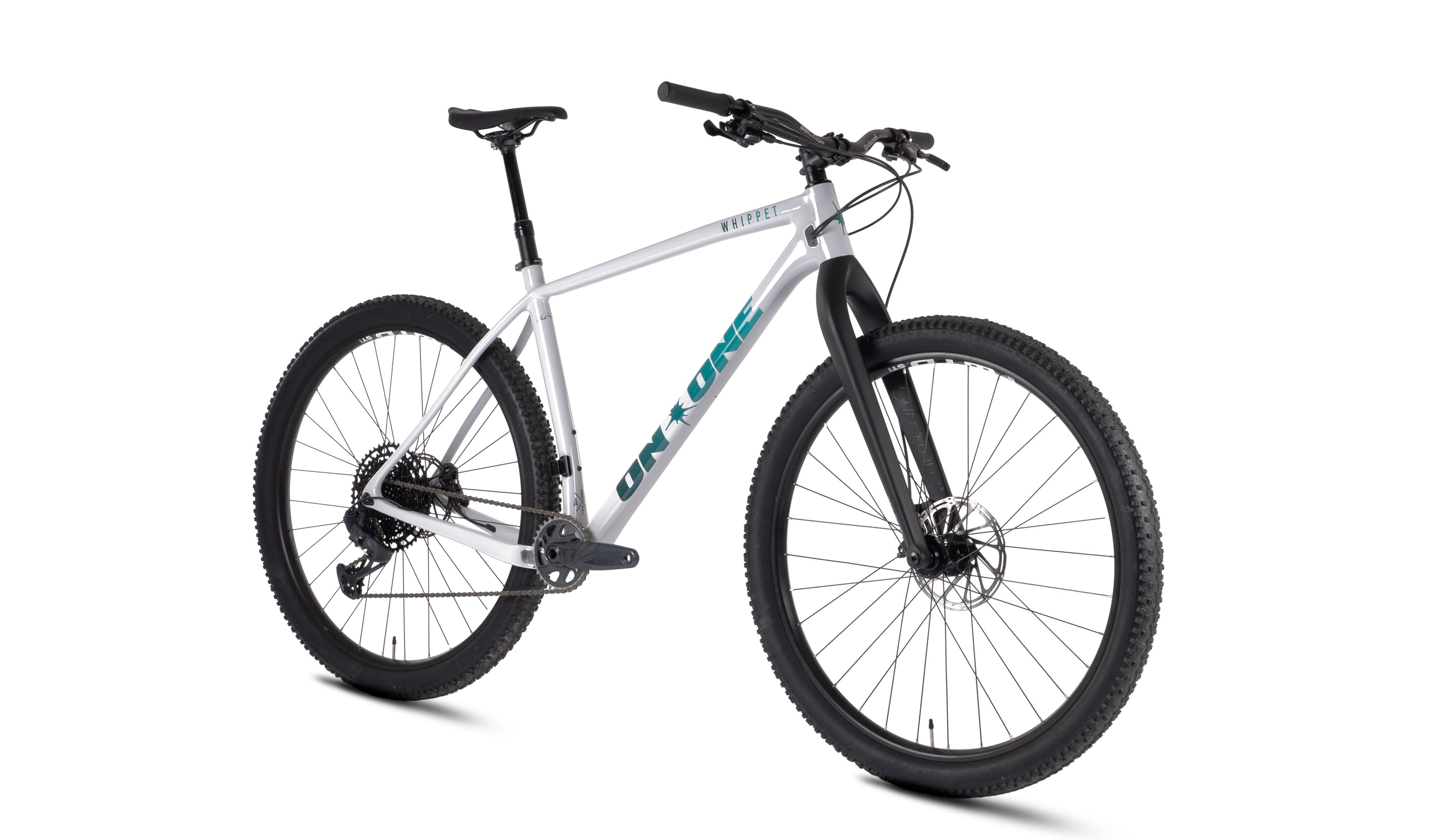

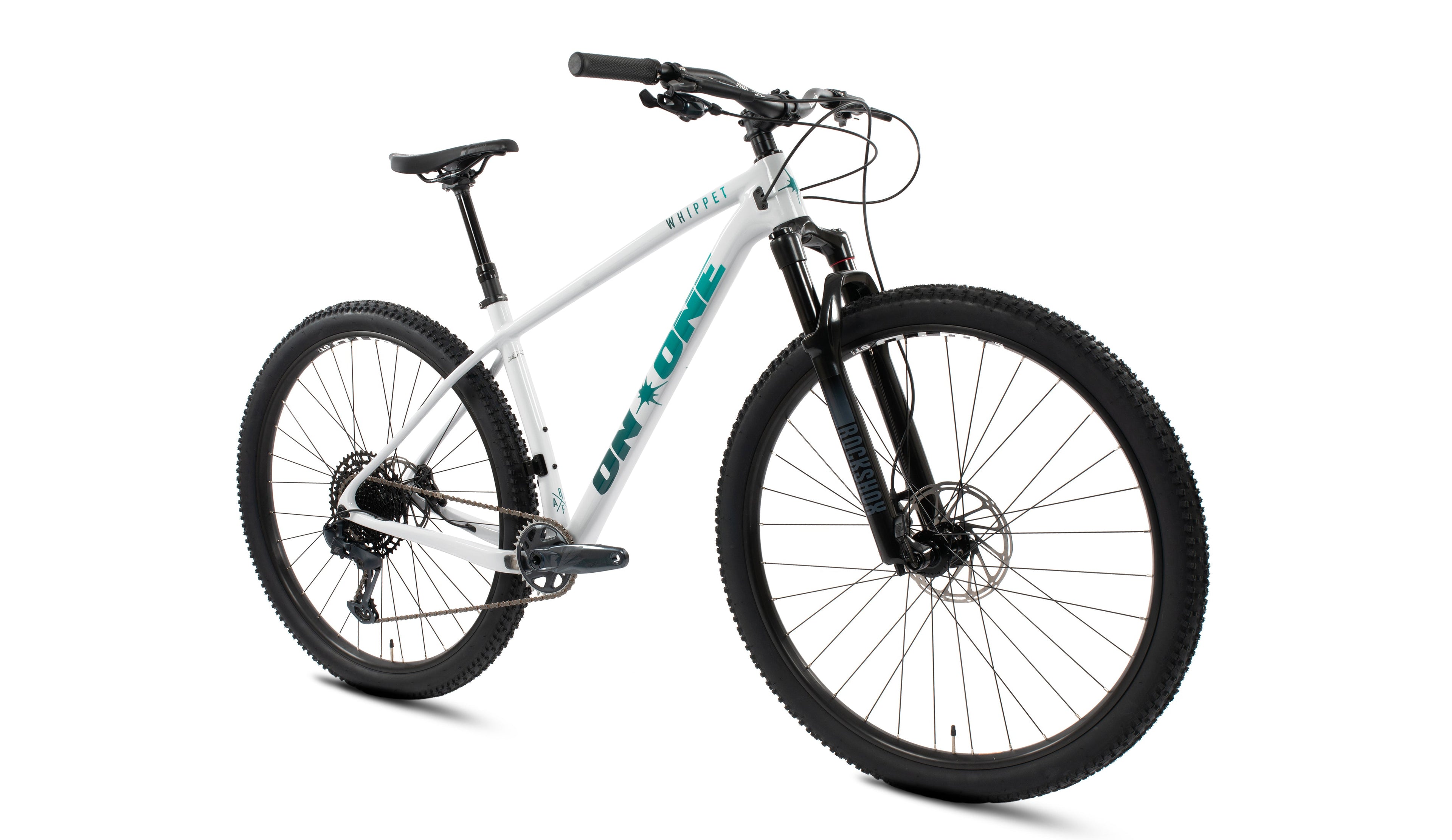

On-One Whippet SRAM GX Mountain Bike

The On-One Whippet is our flagship carbon XC hardtail. With a focus on lightness and speed, the Whippet is for those who ride fast and ride far! At home on the race circuit, but capable and composed for all day expedition.

SRAM GX Eagle 12-speed drivetrain
SRAM Guide G2 R Hydraulic Disc Brakes
Toray T800 Carbon Frame

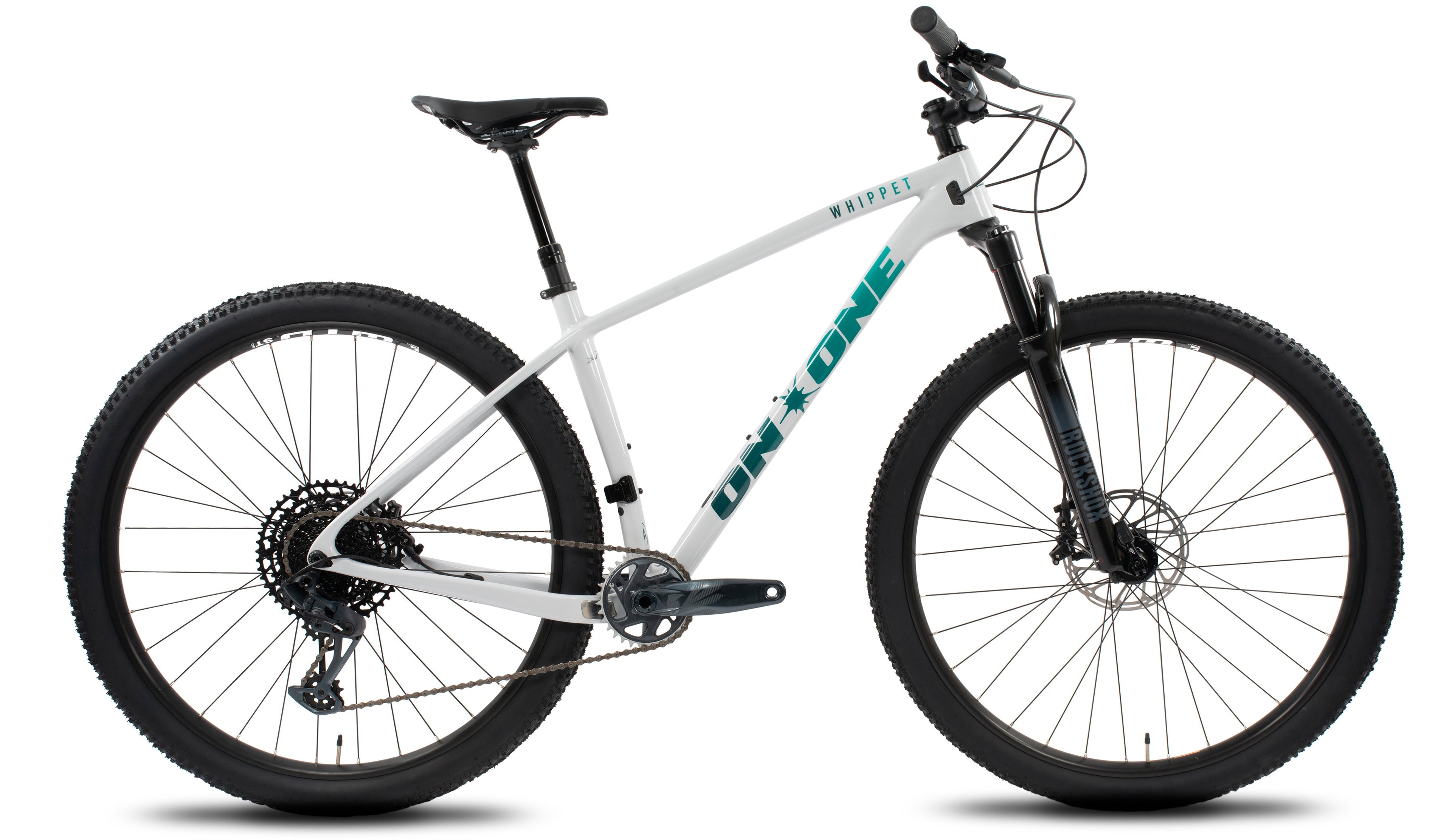

Carbon Fork (Optional Suspension Upgrade Available)
WTB i30 29er Wheelset
Bike Weight: 11.2KG

View less

$1,465.00

Shipping calculated at checkout.

Expect dispatch in 5 days

Available on Cycle to work

Colour

Black & Jade Cool Grey

Small Medium Large X-Large

Rider Height	Suggested Frame Size
5′3″ to 5′7″ (160cm-170cm)	Small / 15.5"
5′6″ to 5′10″ (168cm-178cm)	Medium / 17.5"
5′9″ to 6′2″ (175cm- 188cm)	Large /19"
6′1″ to 6′4″ (185cm- 193cm)	X-Large / 20.5"

		SMALL/15.5"	MED/17.5"	LRG/19"	XLG/20.5"
A	Head Angle (degrees)	69.5	69.5	69.5	69.5
B	Head Tube (mm)	95	100	115	125
C	Top Tube Effective(mm)	575	600	625	650
D	Seat Tube Angle (degrees)	73.7	73.7	73.7	73.7
E	Seat Tube C-T Actual (mm)	395	440	480	520
F	Chainstays (mm)	435	435	435	435
G	BB Drop (mm)	60	60	60	60
H	Stack (mm)	607	610	625	635
I	Reach (mm)	412	425	445	465
J	Front Centre (mm)	659	684	710	736
K	Wheelbase (mm)	1087	1112	1138	1164

🔧 Customise your bike

Quantity

CBBIKE-WHP-GXE-LRG-BLK

Frame

Built using lightweight and trail tough T800 Carbon Fibre, around a 100-120mm travel fork, or, with a Selcof suspension adjusted full carbon rigid fork, that will give you maximum efficiency and weight saving. The Whippet is as fast and sleek as its namesake. Though it’s not just for the pinned race day. Stealth routing for a dropper allows you take on technical descents, and modern XC geometry is suited for both backcountry exploits and endurance adventures.

Groupset

GX Eagle
This GX groupset offers impressive performance with plenty of gears. Sharing many features with the higher end of the Eagle Ecosystem like the proven SRAM 1x-specific X-HORIZON™ body design, it can accommodate up to 10-52T cassettes. Eagle is a lighter, simpler, more durable, and easier to use drivetrain.
Reliable wide range 1x gearing
An 11-50 cassette provides a huge gearing range with SRAM’s top of the range aluminium 32 tooth crankset utilising DUB technology. Enough range to ensure you can fly downhill or comfortably spin up the steepest climbs.
G2 hydraulic brakes
The SRAM G2 delivers premium value braking without compromise. Powerful 4 piston callipers provide awesome single finger stopping power and reach adjust makes it easy to adjust your lever for maximum control. Think consistency, reliability and trust.

Frame

Built using lightweight and trail tough T800 Carbon Fibre, around a 100-120mm travel fork, or, with a Selcof suspension adjusted full carbon rigid fork, that will give you maximum efficiency and weight saving. The Whippet is as fast and sleek as its namesake. Though it’s not just for the pinned race day. Stealth routing for a dropper allows you take on technical descents, and modern XC geometry is suited for both backcountry exploits and endurance adventures.

Groupset

GX Eagle
This GX groupset offers impressive performance with plenty of gears. Sharing many features with the higher end of the Eagle Ecosystem like the proven SRAM 1x-specific X-HORIZON™ body design, it can accommodate up to 10-52T cassettes. Eagle is a lighter, simpler, more durable, and easier to use drivetrain.
Reliable wide range 1x gearing
An 11-50 cassette provides a huge gearing range with SRAM’s top of the range aluminium 32 tooth crankset utilising DUB technology. Enough range to ensure you can fly downhill or comfortably spin up the steepest climbs.
G2 hydraulic brakes
The SRAM G2 delivers premium value braking without compromise. Powerful 4 piston callipers provide awesome single finger stopping power and reach adjust makes it easy to adjust your lever for maximum control. Think consistency, reliability and trust.

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′3″ to 5′7″ (160cm-170cm)	Small / 15.5"
5′6″ to 5′10″ (168cm-178cm)	Medium / 17.5"
5′9″ to 6′2″ (175cm- 188cm)	Large /19"
6′1″ to 6′4″ (185cm- 193cm)	X-Large / 20.5"

		SMALL/15.5"	MED/17.5"	LRG/19"	XLG/20.5"
A	Head Angle (degrees)	69.5	69.5	69.5	69.5
B	Head Tube (mm)	95	100	115	125
C	Top Tube Effective(mm)	575	600	625	650
D	Seat Tube Angle (degrees)	73.7	73.7	73.7	73.7
E	Seat Tube C-T Actual (mm)	395	440	480	520
F	Chainstays (mm)	435	435	435	435
G	BB Drop (mm)	60	60	60	60
H	Stack (mm)	607	610	625	635
I	Reach (mm)	412	425	445	465
J	Front Centre (mm)	659	684	710	736
K	Wheelbase (mm)	1087	1112	1138	1164

🔧 Build Kit

Selcof Forged Alloy Bolt Up Seatclamp V2 / 35mm / 12MM / Black

Bike Build Packaging Rear Derailleur Protector

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

Token Omega Headset For Tapered 1" 1/8th – 1.5" Fork Steerer

🔧 Groupset

SRAM Guide G2 R Hydraulic Disc Brake / Rear / 1800 / 20 Post to IS

SRAM Guide G2 R Hydraulic Disc Brake / Front / 900mm / Post mount (20mm bracket) 20P

SRAM GX Eagle Trigger Shifter (Lunar Colourway) / 12 Speed / Right Hand

SRAM DUB BSA Bottom Bracket / 73mm

SRAM GX Eagle DUB Crankset (Lunar Colourway) / 170mm / 32T / BOOST

SRAM PG-1210 Eagle 12 Speed Cassette / 11-50

SRAM GX Eagle Rear Mech (Lunar Colourway) / 1 x 12 Speed

SRAM Chain PC NX Eagle / 126 Links / 12 Speed

SRAM Centreline Disc Brake Rotor / 160mm 6 Bolt

Avid Centreline Disc Brake Rotor / 180mm 6 Bolt

Avid MMX Matchmaker Clamp Black / Left

Avid MMX Matchmaker Clamp Black / Right

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive
