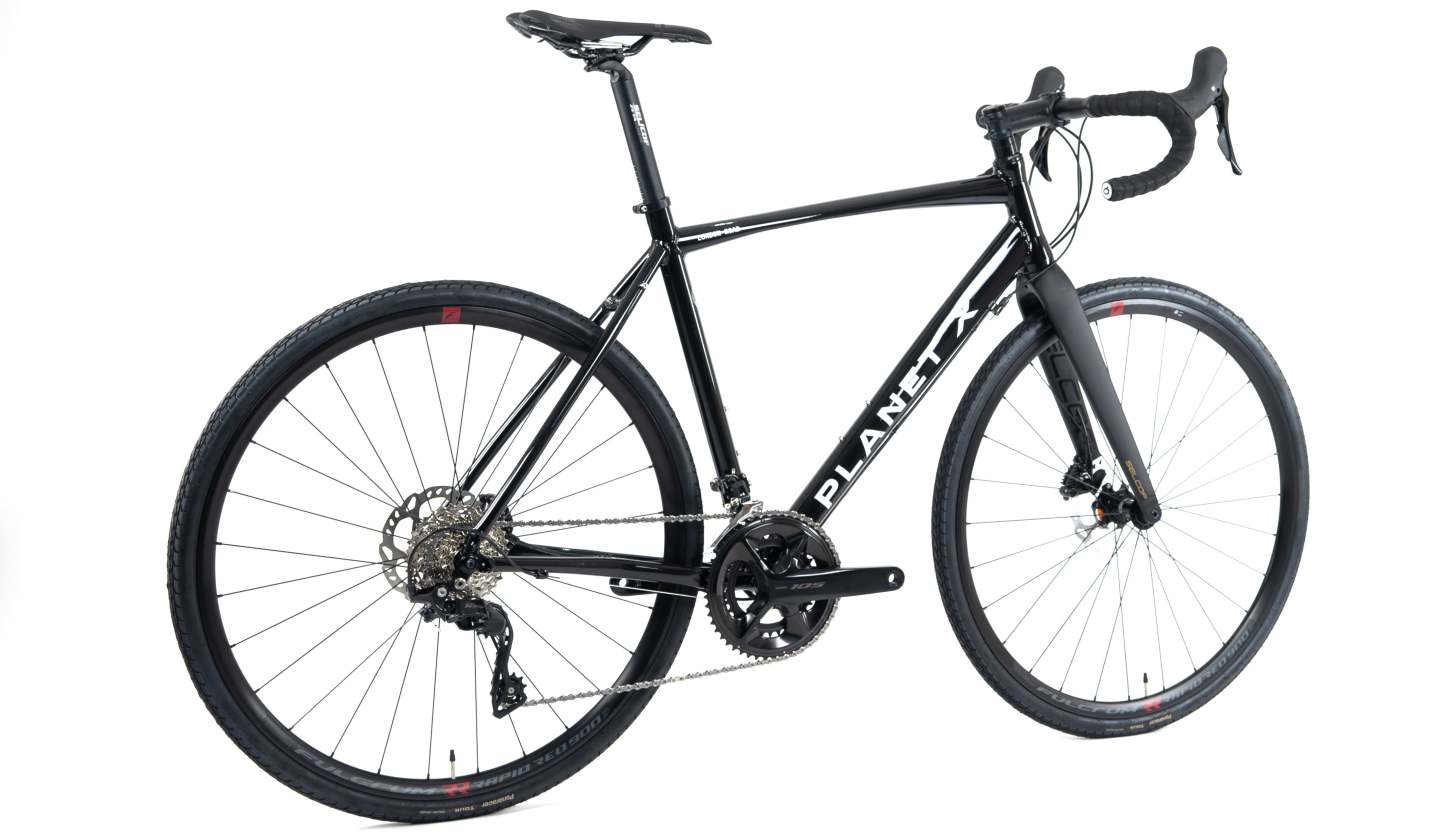

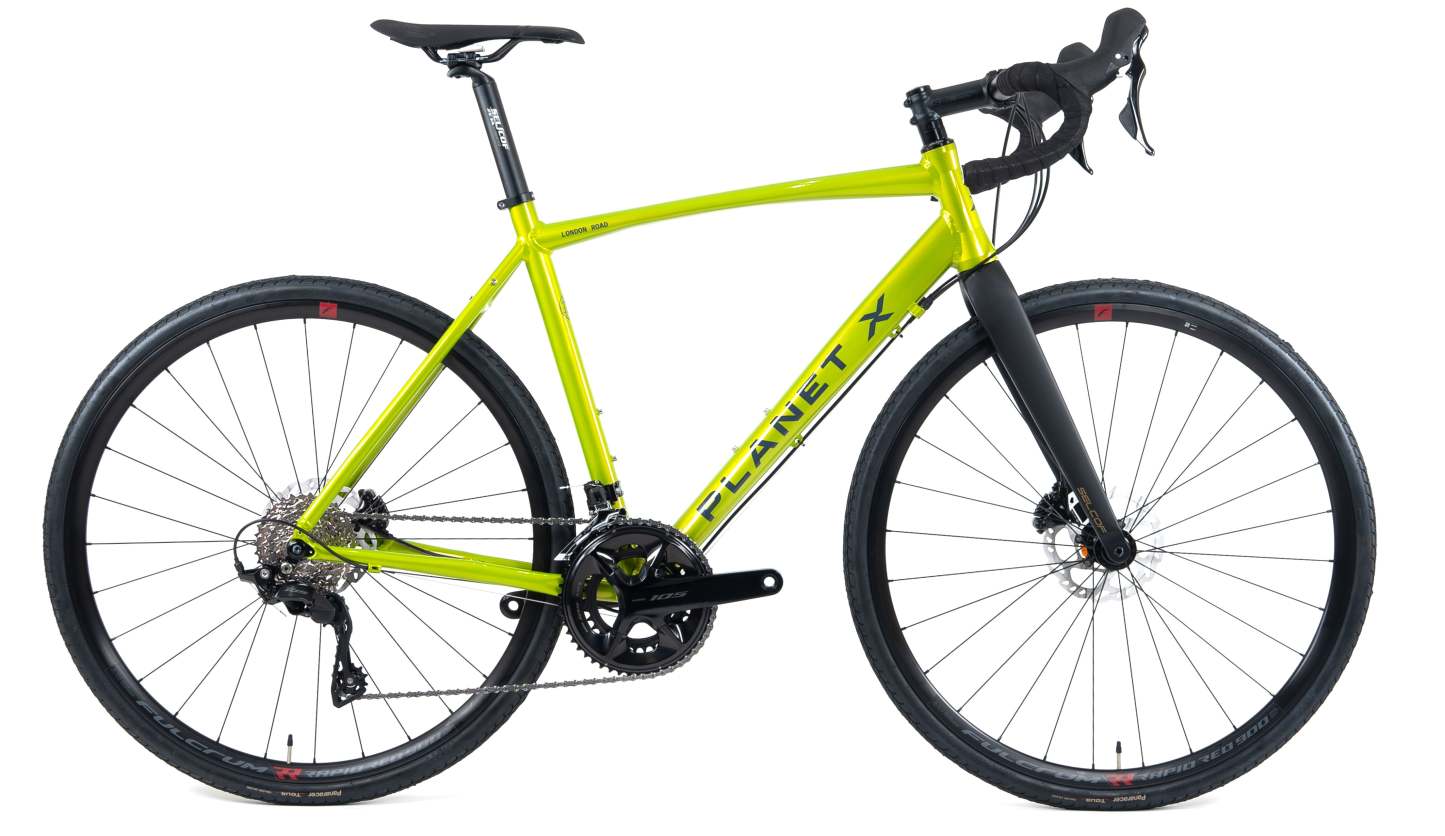

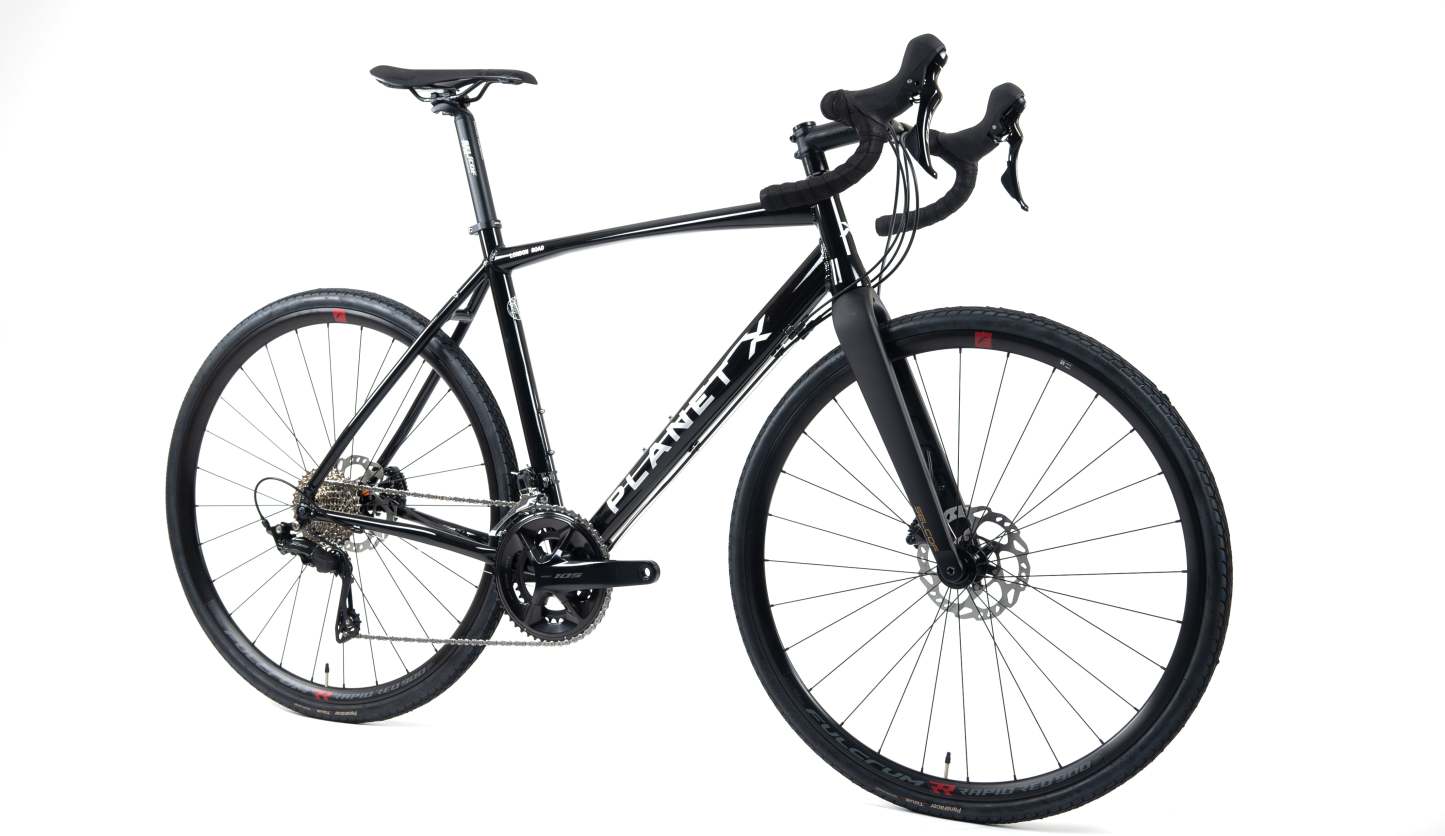

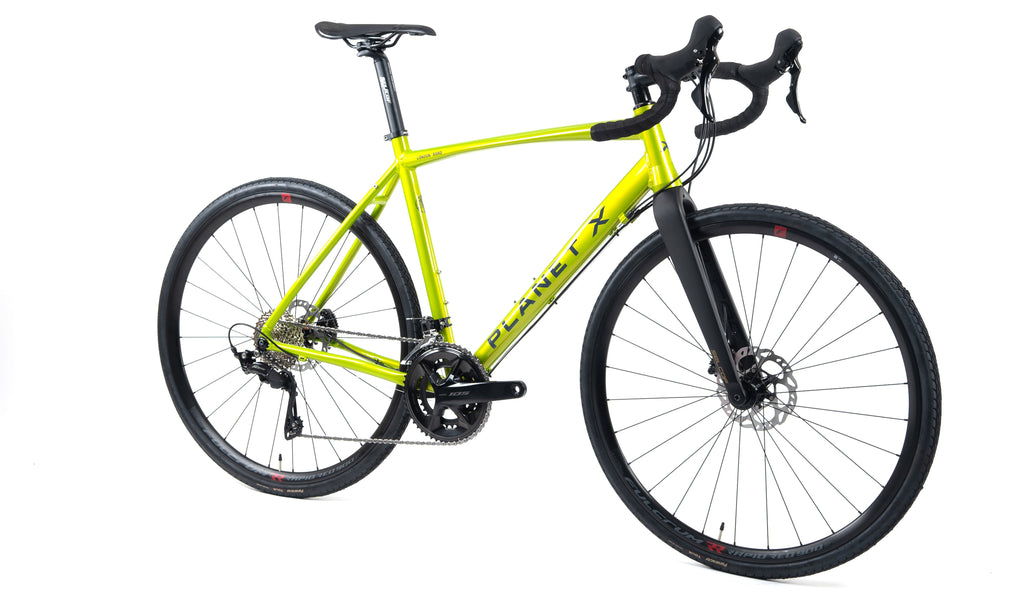

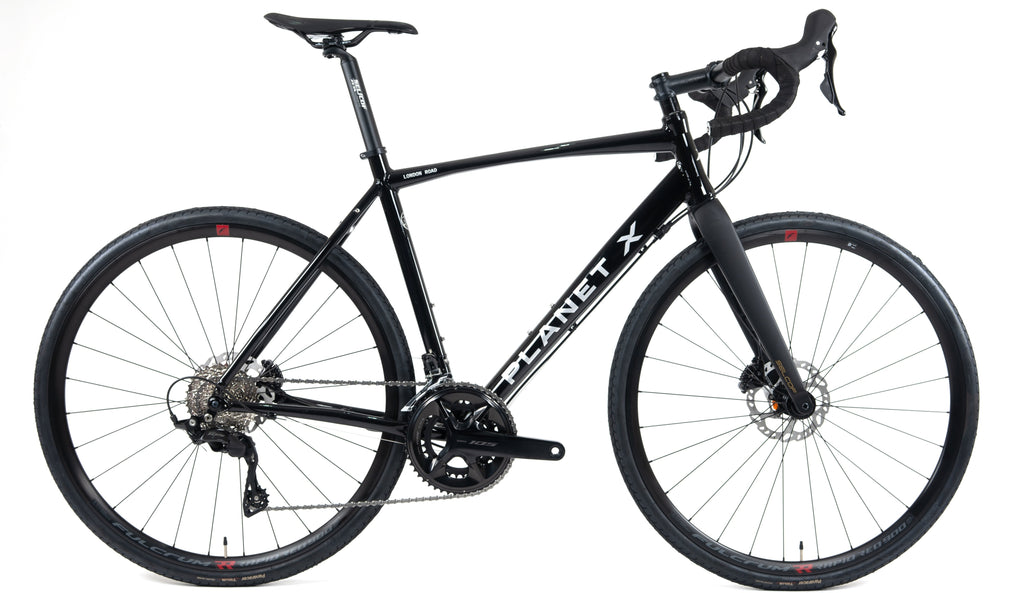

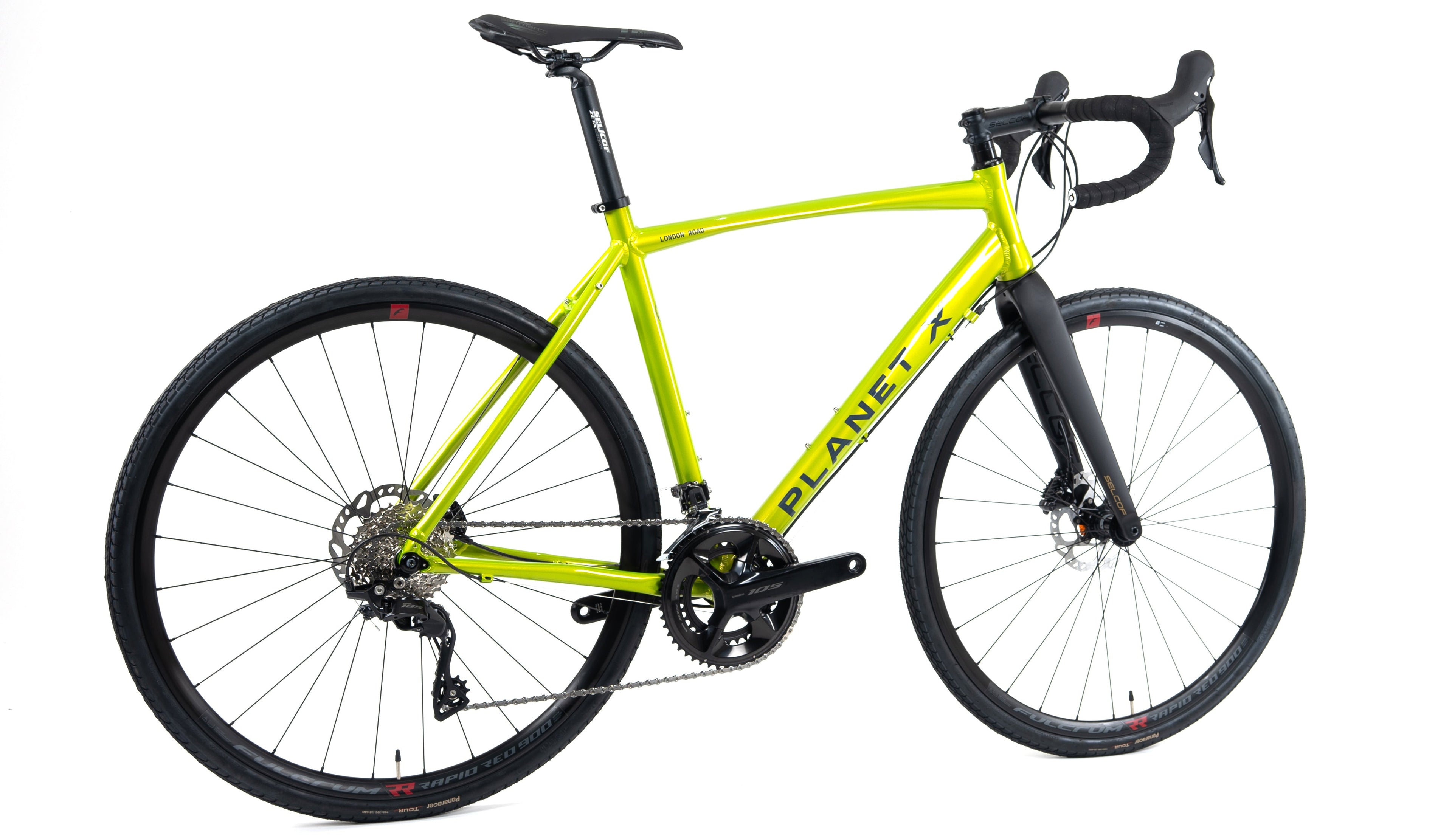

Planet X London Road Shimano 105 R7100 Road Bike

The London Road is a multi-discipline blurring all-rounder. From the daily commute to gravel adventures and all-road expedition, this bike is ready to take you there.

Aerospace grade 6061 T6 Heat Treated Aluminium Frame
Full Carbon Fork
Shimano 105 R7100 2x12 Speed Drivetrain
Powerful Hydraulic Disc Brakes
Fulcrum Rapid Red 900
Tyre clearance up to 38mm (35mm with mudguards)
Approx Bike Weight (Medium) - 9.9kg

View less

$1,369.00

Shipping calculated at checkout.

Expect dispatch in 5 days

Available on Cycle to work

Small Medium Large X Large

Colour

Gloss Black Zesty Lime

Rider Height	Suggested Frame Size
5′4″ to 5′7″ (163cm-170cm)	Small / 480mm
5′6″ to 5′10″ (168cm-178cm)	Medium / 510mm
5′9″ to 6′2″ (175cm- 188cm)	Large /540mm
6′1″ to 6′4″ (185cm- 193cm)	X-Large / 570mm

		SML	MED	LRG	XLG
A	Head Angle (degrees)	70.0	71.0	71.0	71.0
B	Head Tube (mm)	120	140	160	180
C	Top Tube Effective(mm)	520	540	560	590
D	Seat Tube Angle (degrees)	74.0	74.0	74.0	73.0
E	Seat Tube C-T Actual (mm)	480	510	540	570
F	Chainstays (mm)	435	435	435	435
G	BB Drop (mm)	70	70	70	70
H	Stack (mm)	529	552	571	592
I	Reach (mm)	368	382	396	410
K	Wheelbase (mm)	1023	1035	1056	1071

🔧 Customise your bike

Quantity

CBBIKE-LRD-105-SML-BLK

Frame

The core geometry of an endurance road bike, combined with that of a gravel adventurer. Resulting in a true all road capable machine. Featuring an Aerospace grade 6061 T6 Heat Treated Aluminium Frame. Hydroformed profiles allow the tubing to be shaped depending on the exact needs of each area. Creating a bike that is stable through corners, quick to accelerate, and supremely comfortable. The geometry is all-road focused, allowing for a comfortable ride while offering control and stability

Groupset

Shimano’s 105 series has been designed for ultra reliable road performance, with a wide gear range, and precise shifting. 105 represents the top tier of 12 speed mechanical shifting. Hydraulic brakes levers incorporate SERVO WAVE technology for unrivalled stopping power

Frame

The core geometry of an endurance road bike, combined with that of a gravel adventurer. Resulting in a true all road capable machine. Featuring an Aerospace grade 6061 T6 Heat Treated Aluminium Frame. Hydroformed profiles allow the tubing to be shaped depending on the exact needs of each area. Creating a bike that is stable through corners, quick to accelerate, and supremely comfortable. The geometry is all-road focused, allowing for a comfortable ride while offering control and stability

Groupset

Shimano’s 105 series has been designed for ultra reliable road performance, with a wide gear range, and precise shifting. 105 represents the top tier of 12 speed mechanical shifting. Hydraulic brakes levers incorporate SERVO WAVE technology for unrivalled stopping power

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′4″ to 5′7″ (163cm-170cm)	Small / 480mm
5′6″ to 5′10″ (168cm-178cm)	Medium / 510mm
5′9″ to 6′2″ (175cm- 188cm)	Large /540mm
6′1″ to 6′4″ (185cm- 193cm)	X-Large / 570mm

		SML	MED	LRG	XLG
A	Head Angle (degrees)	70.0	71.0	71.0	71.0
B	Head Tube (mm)	120	140	160	180
C	Top Tube Effective(mm)	520	540	560	590
D	Seat Tube Angle (degrees)	74.0	74.0	74.0	73.0
E	Seat Tube C-T Actual (mm)	480	510	540	570
F	Chainstays (mm)	435	435	435	435
G	BB Drop (mm)	70	70	70	70
H	Stack (mm)	529	552	571	592
I	Reach (mm)	368	382	396	410
K	Wheelbase (mm)	1023	1035	1056	1071

🔧 Build Kit

Rever Flat Mount Disc Brake Mounting Hardware / 27mm / Single

Selcof Carbon Steerer Fork Bung MK 4 / 23-24mm ID

Selcof Forged Alloy Bolt Up Seatclamp V3 / 35mm / 12mm / Black

Bike Build Packaging Rear Derailleur Protector

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

Token Omega Headset For Tapered 1" 1/8th – 1.5" Fork Steerer

Front Mech Band On Clamp (Non SRAM Yaw) / 34.9mm / Black

Selcof High Rise UnderBB Cable Guide

Selcof Gear Cable Barrel Adjuster For Road Bikes

🔧 Groupset

Shimano 105 ST-R7120 / BR-R7170 Left Hand Shifter

Shimano 105 ST-R7120 / BR-R7170 Right Hand Shifter

Token 878 GXP 68mm BSA Bottom Bracket / Black

Shimano 105 FC-R7100 Chainset / 172.5mm / 50/34T

Shimano CS-R7100-12 Speed 11-34 Cassette

Shimano 105 RD-R7100 GS 12-Speed Rear Mech

Shimano 105 FD-R7100 Braze On Front Mech

Shimano CN-M6100 12 Speed Chain 114L

Shimano SM-RT70 160mm Centrelock Rotor

Shimano SM-MA-R160D/D Mount Adapter

Shimano SM-BH90 Olive And Connector Insert
