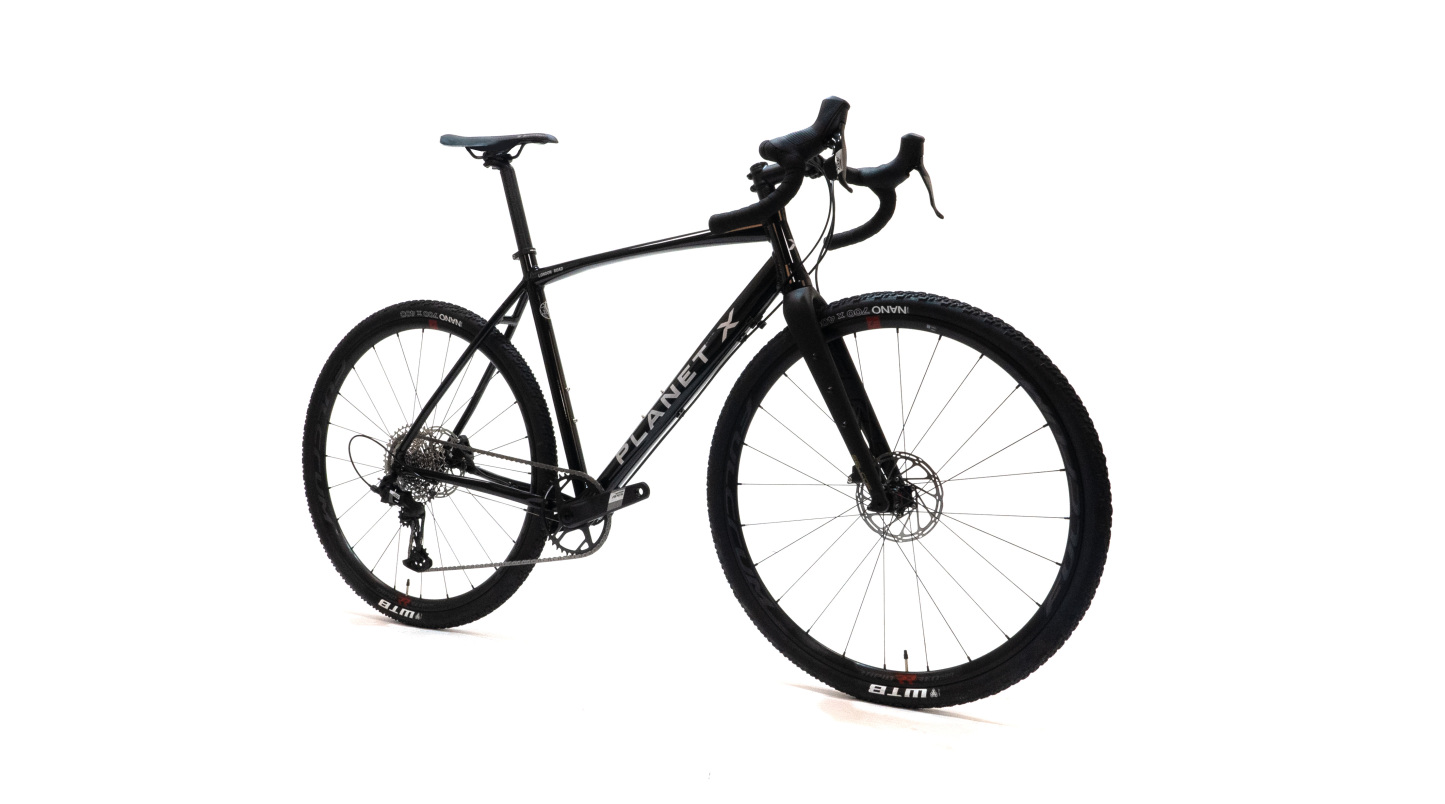

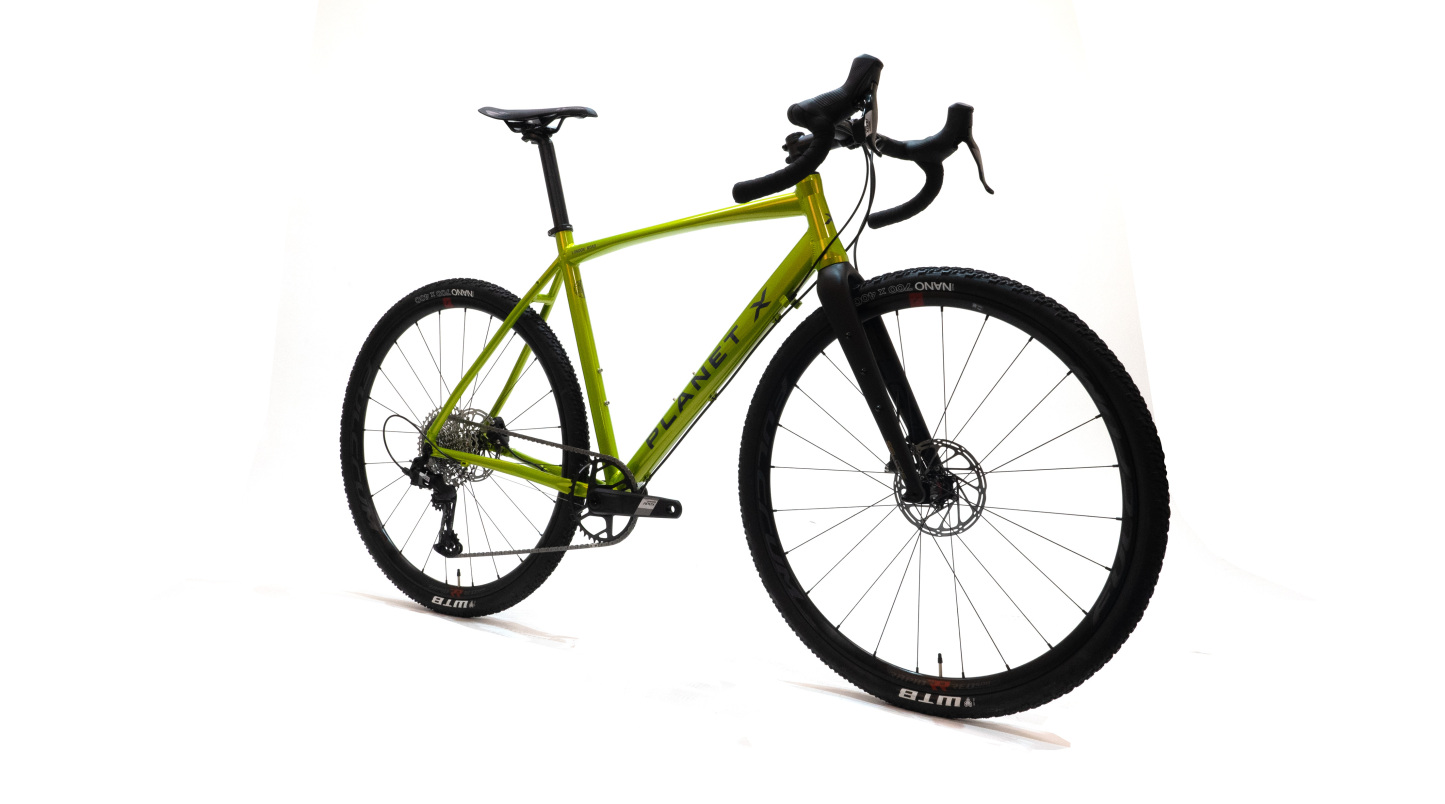

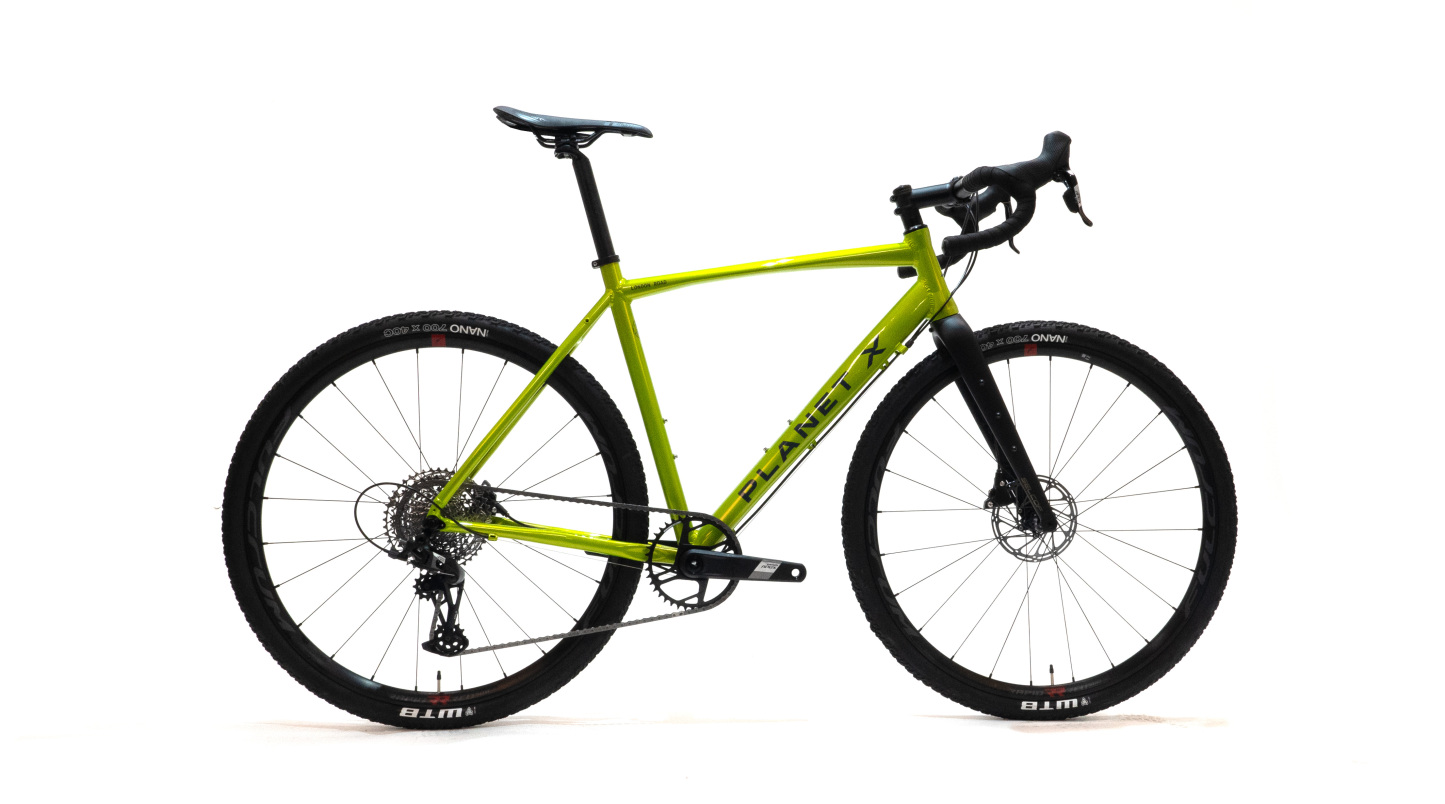

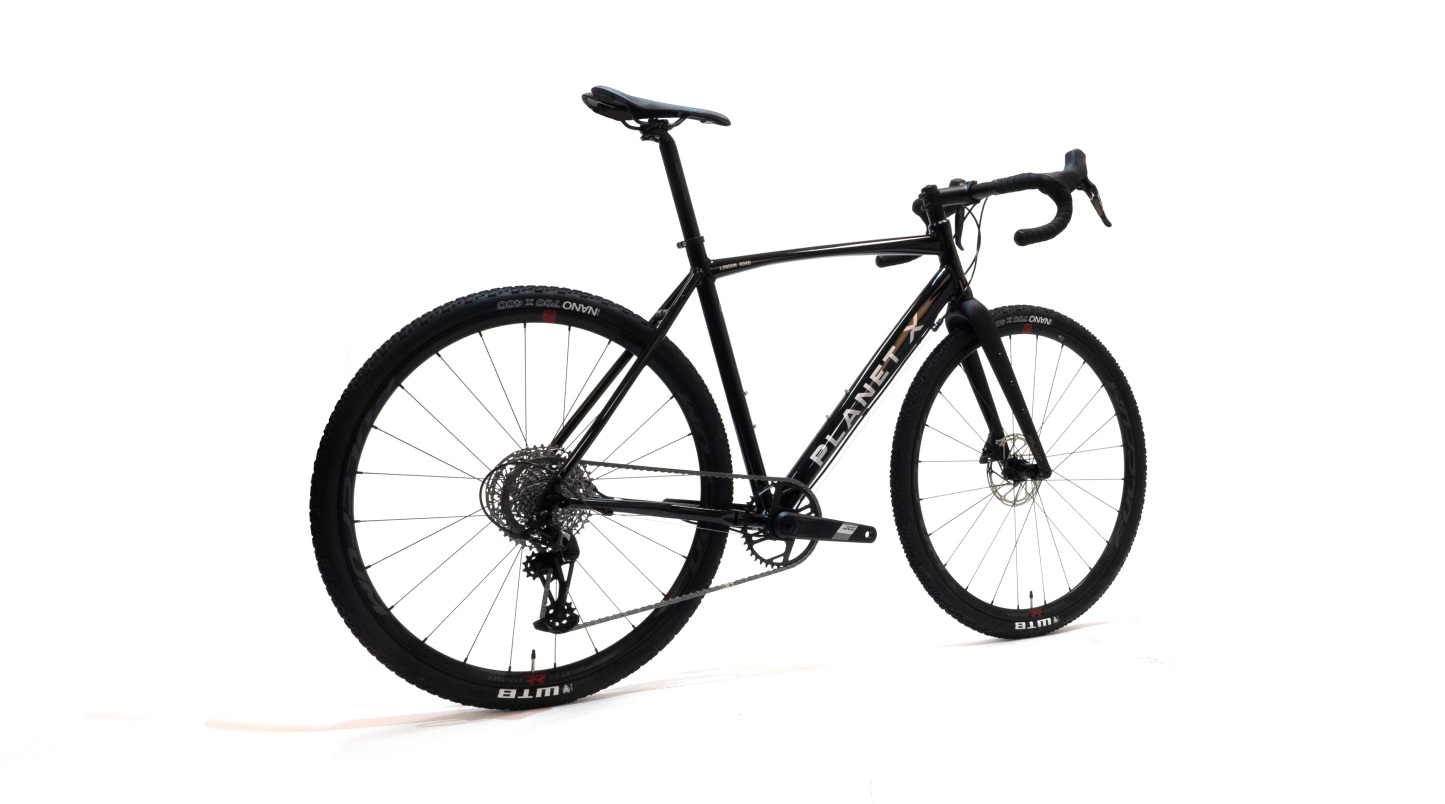

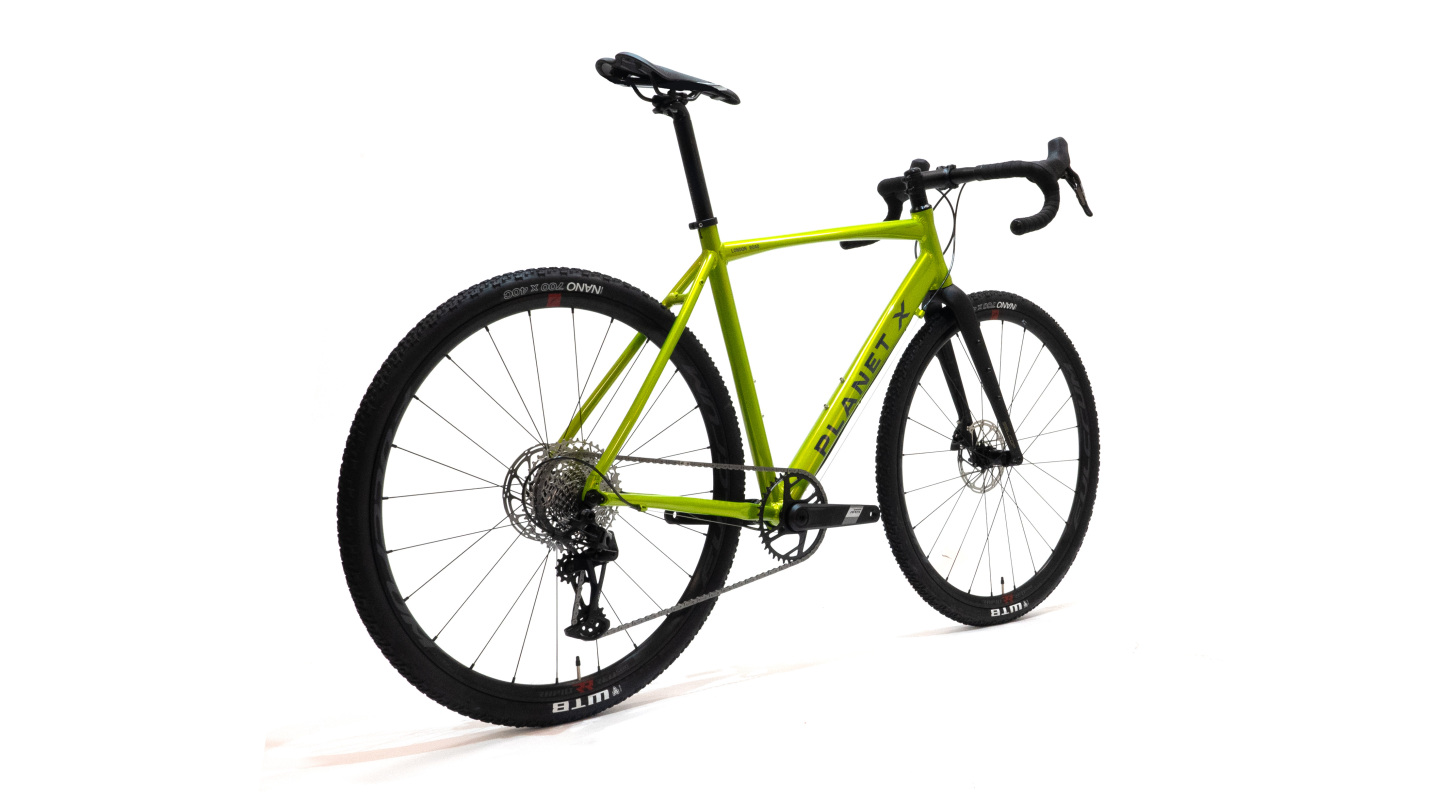

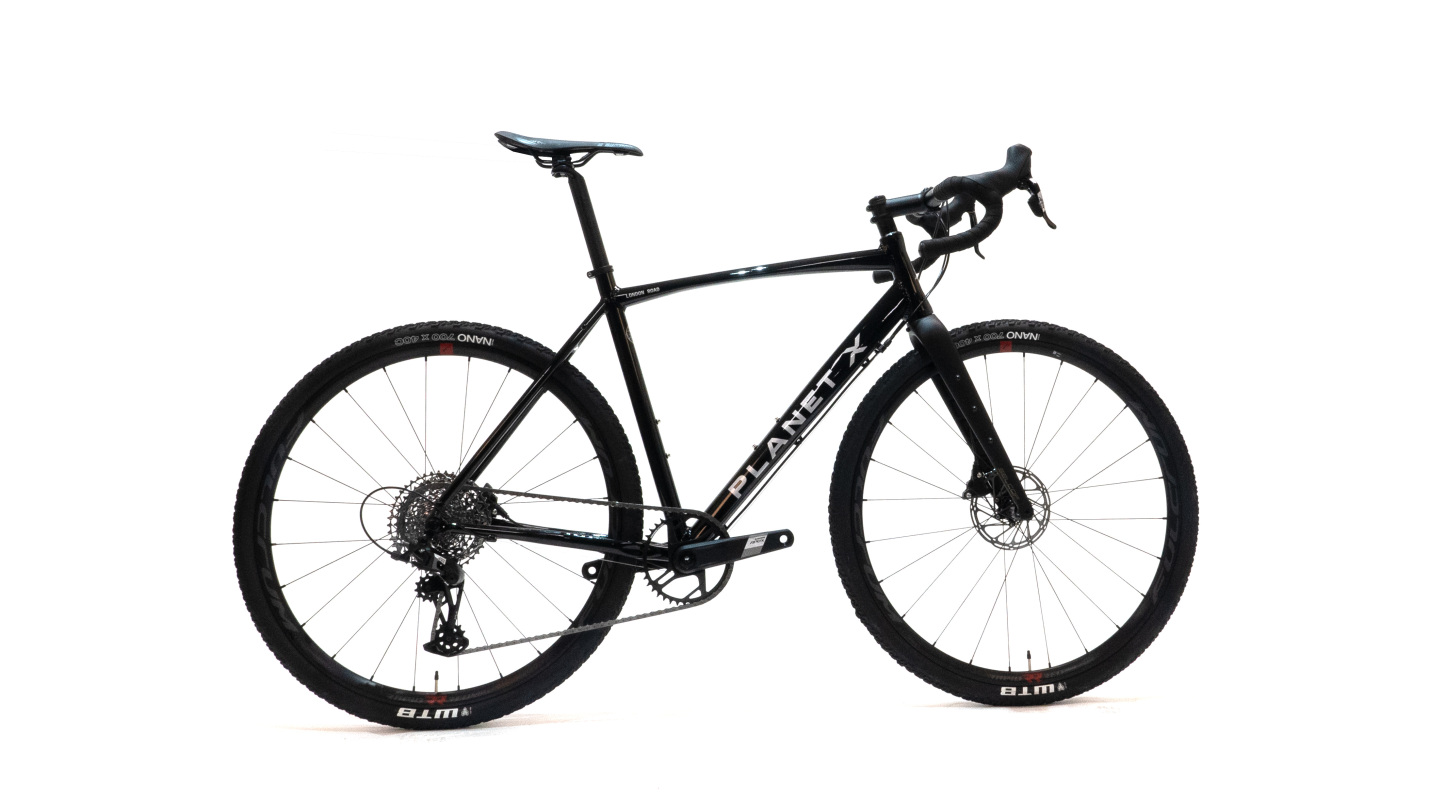

Planet X London Road SRAM Apex XPLR Allroad Bike
$1,064.00
$1,383.00
Save $319.00
Shipping calculated at checkout.
_375x.svg?w=1024&h=1024)
-(13).png?w=500&h=500)
| Rider Height | Suggested Frame Size |
|---|---|
| 5′4″ to 5′7″ (163cm-170cm) | Small / 480mm |
| 5′6″ to 5′10″ (168cm-178cm) | Medium / 510mm |
| 5′9″ to 6′2″ (175cm- 188cm) | Large /540mm |
| 6′1″ to 6′4″ (185cm- 193cm) | X-Large / 570mm |
| SML | MED | LRG | XLG | ||
| A | Head Angle (degrees) | 70.0 | 71.0 | 71.0 | 71.0 |
| B | Head Tube (mm) | 120 | 140 | 160 | 180 |
| C | Top Tube Effective(mm) | 520 | 540 | 560 | 590 |
| D | Seat Tube Angle (degrees) | 74.0 | 74.0 | 74.0 | 73.0 |
| E | Seat Tube C-T Actual (mm) | 480 | 510 | 540 | 570 |
| F | Chainstays (mm) | 435 | 435 | 435 | 435 |
| G | BB Drop (mm) | 70 | 70 | 70 | 70 |
| H | Stack (mm) | 529 | 552 | 571 | 592 |
| I | Reach (mm) | 368 | 382 | 396 | 410 |
| K | Wheelbase (mm) | 1023 | 1035 | 1056 | 1071 |
| SRAM Apex 12 Speed Chain / 120 Link |
| SRAM XPLR PG-1231 12 Speed Cassette / 11-44 Tooth |
| SRAM Apex 1 Wide Chainset / 172.5mm / 40 Tooth |
| SRAM Apex XPLR 1x12 Speed Rear Mech / Max 44 Tooth |
| SRAM Apex Shift Brake System With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / Flat Mount 20mm Offset |
| SRAM Apex Shift Brake System With Flat Mount Caliper / Right Lever / Front Brake / 1300mm / Flat Mount 20mm Offset |
| SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb |
| SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive |
| Avid Centreline Disc Brake Rotor / 160mm Centrelock |
| SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide |
Please note that our bikes are not supplied with pedals - these must be purchased separately
🔧 Customise your bike
Quantity
CBBIKE-LRD-A12-SML-BLK
Frame
Groupset
1
/
2
.png?w=155&h=155)
📏 Sizing and Geometry
| Rider Height | Suggested Frame Size |
|---|---|
| 5′4″ to 5′7″ (163cm-170cm) | Small / 480mm |
| 5′6″ to 5′10″ (168cm-178cm) | Medium / 510mm |
| 5′9″ to 6′2″ (175cm- 188cm) | Large /540mm |
| 6′1″ to 6′4″ (185cm- 193cm) | X-Large / 570mm |
| SML | MED | LRG | XLG | ||
| A | Head Angle (degrees) | 70.0 | 71.0 | 71.0 | 71.0 |
| B | Head Tube (mm) | 120 | 140 | 160 | 180 |
| C | Top Tube Effective(mm) | 520 | 540 | 560 | 590 |
| D | Seat Tube Angle (degrees) | 74.0 | 74.0 | 74.0 | 73.0 |
| E | Seat Tube C-T Actual (mm) | 480 | 510 | 540 | 570 |
| F | Chainstays (mm) | 435 | 435 | 435 | 435 |
| G | BB Drop (mm) | 70 | 70 | 70 | 70 |
| H | Stack (mm) | 529 | 552 | 571 | 592 |
| I | Reach (mm) | 368 | 382 | 396 | 410 |
| K | Wheelbase (mm) | 1023 | 1035 | 1056 | 1071 |
🔧 Build Kit
| Selcof Carbon Bike Packing Fork / Matt Black |
| Rever Flat Mount Disc Brake Mounting Hardware / 27mm / Single |
| Selcof Carbon Steerer Fork Bung MK 4 / 23-24mm ID |
| Selcof Forged Alloy Bolt Up Seatclamp V3 / 35mm / 12mm / Black |
| Bike Build Packaging Rear Derailleur Protector |
| Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black |
| Selcof SPORT Integrated Cup Angular Contact Cartridge Bearing V2 Headset For Tapered 1" 1/8th 1.5" Fork Steerer |
| Front Mech Band On Clamp (Non SRAM Yaw) / 34.9mm / Black |
| Selcof High Rise UnderBB Cable Guide |
| Selcof Gear Cable Barrel Adjuster For Road Bikes |

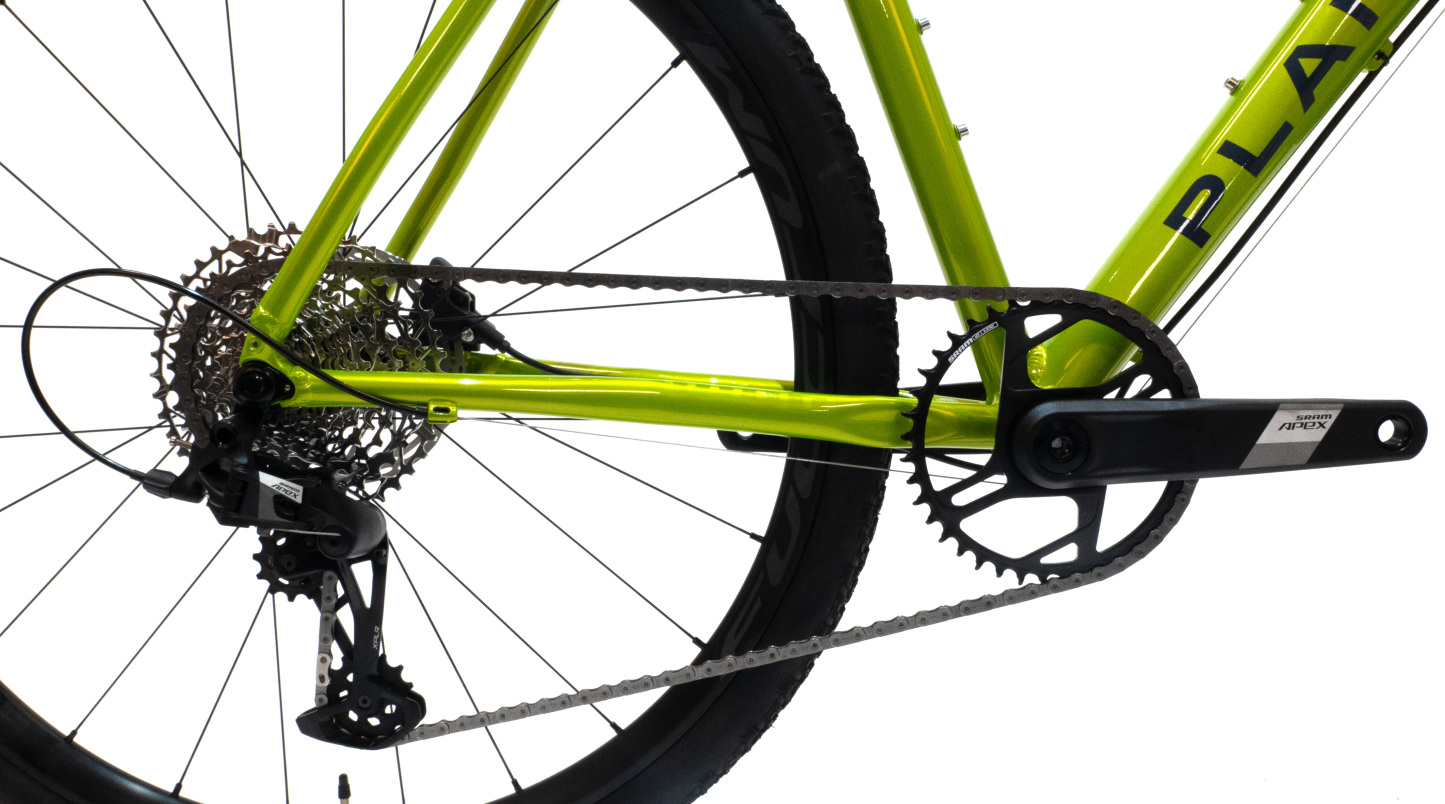

🔧 Groupset

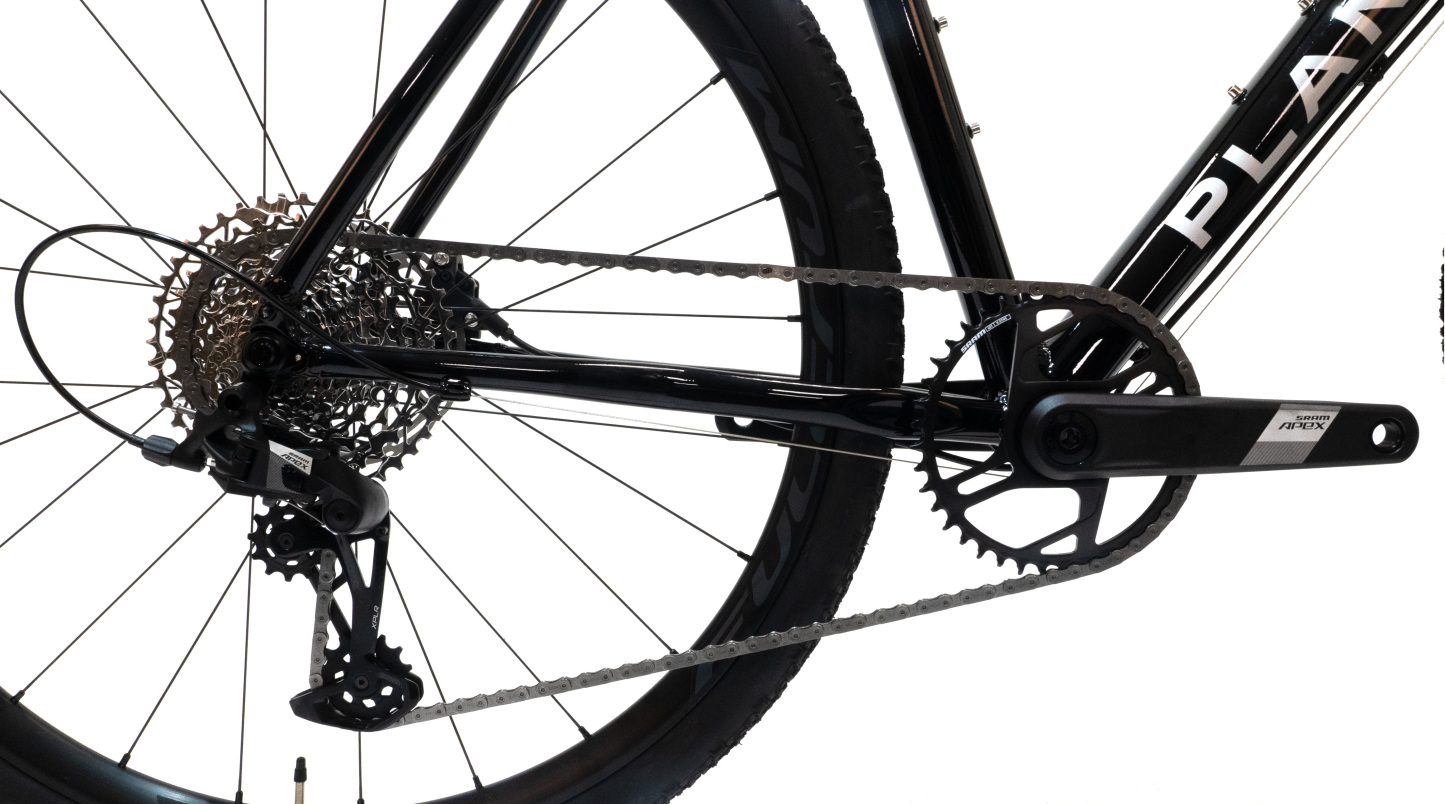

| SRAM Apex 12 Speed Chain / 120 Link |
| SRAM XPLR PG-1231 12 Speed Cassette / 11-44 Tooth |
| SRAM Apex 1 Wide Chainset / 172.5mm / 40 Tooth |
| SRAM Apex XPLR 1x12 Speed Rear Mech / Max 44 Tooth |

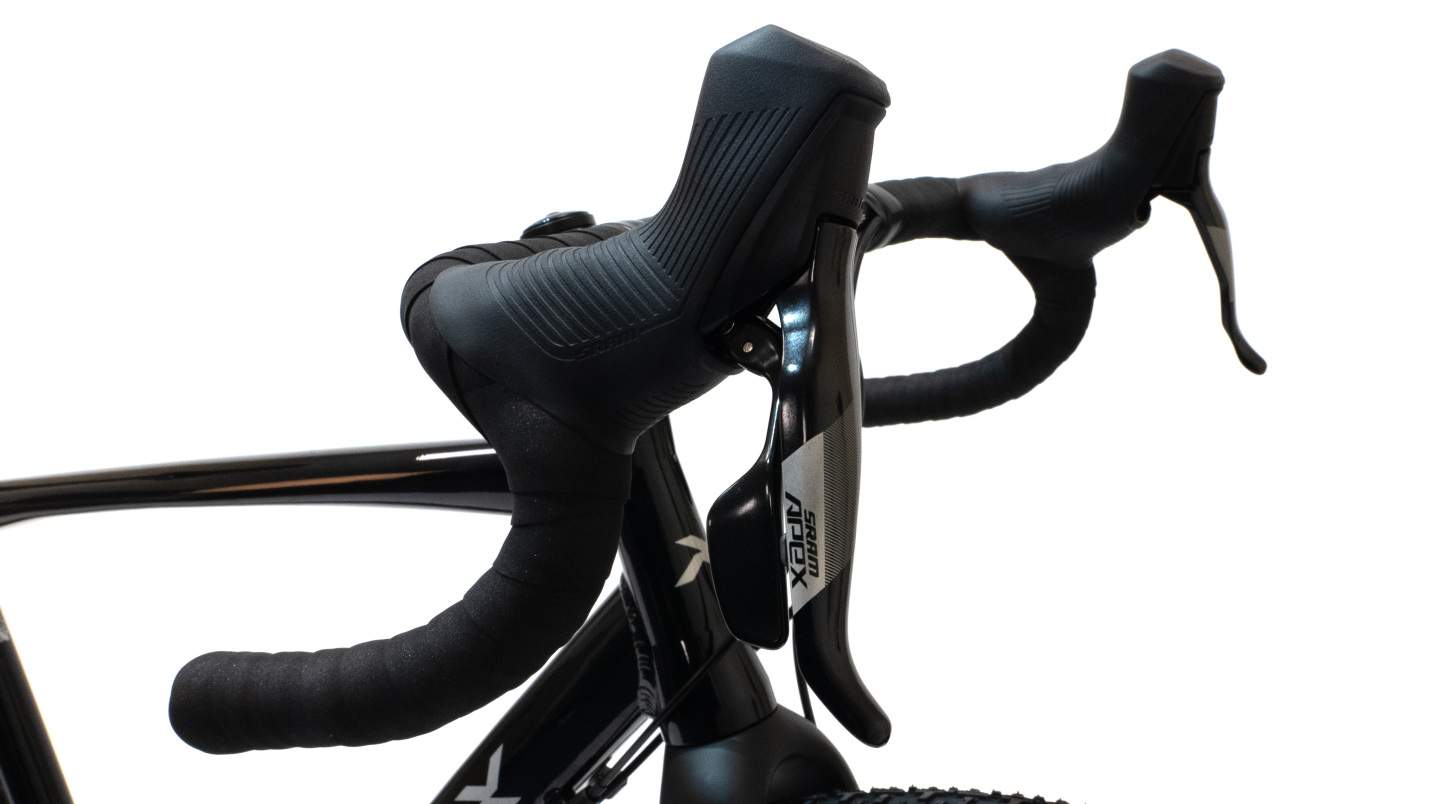

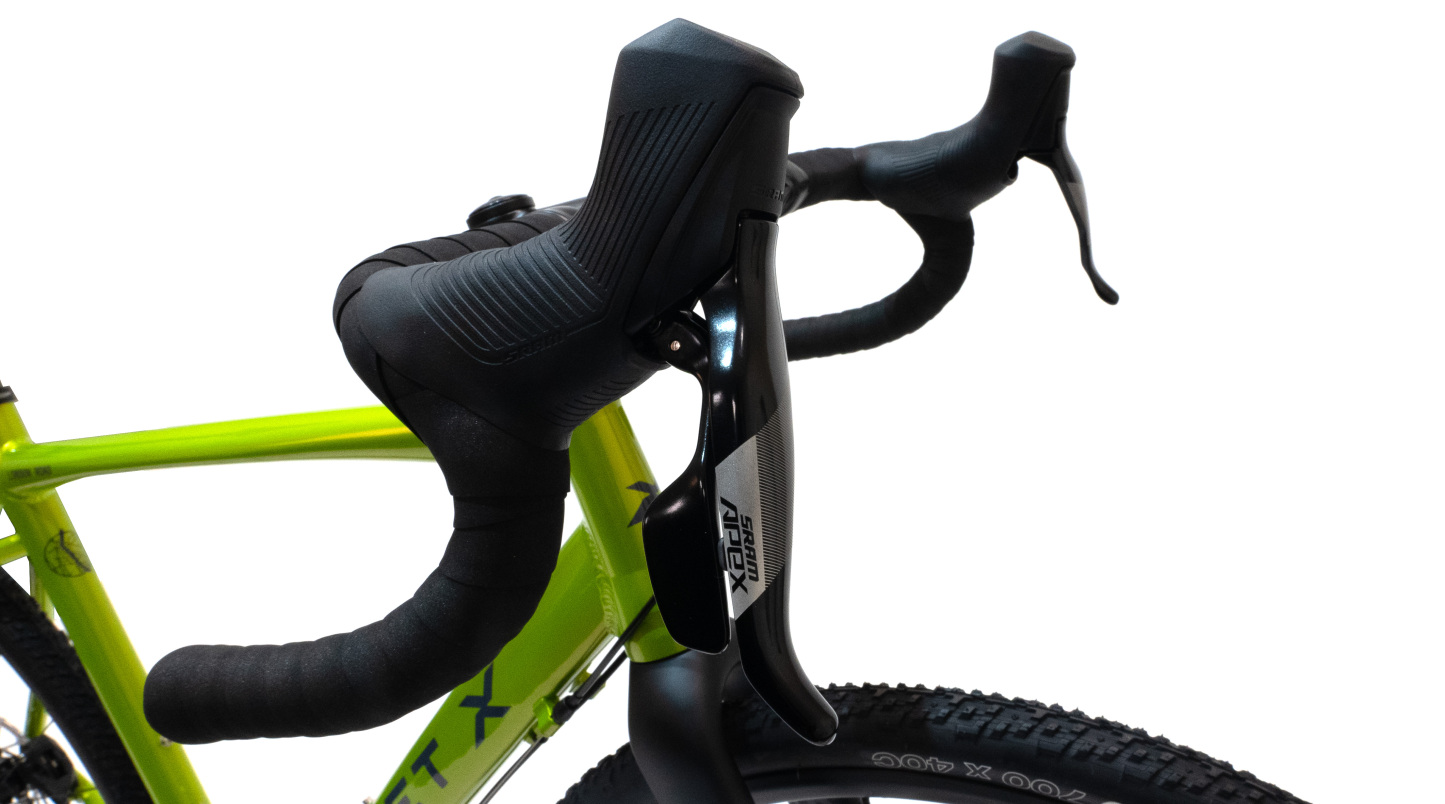

| SRAM Apex Shift Brake System With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / Flat Mount 20mm Offset |
| SRAM Apex Shift Brake System With Flat Mount Caliper / Right Lever / Front Brake / 1300mm / Flat Mount 20mm Offset |
| SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb |
| SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive |
| Avid Centreline Disc Brake Rotor / 160mm Centrelock |
| SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide |
You could enjoy a credit limit of up to £5000, and once you’ve bought something, you can choose a payment plan to suit you. It’s super-easy to apply and we’ll even do a no-risk check first to see if you're eligible
Easy Assembly
Assembling your new bike couldn't be easier. Every bike comes expertly packed at least 95% pre assembled, with step by step instructions to get the bike ready to roll.
So you can get out on that first ride without delay!
So you can get out on that first ride without delay!
.png?w=2000&h=1024)
Get fitted to your bike at Planet X Headquarters by one of our trained fitters.
With our Mini Bike Fit, we can advise on sizing, optimise your ride for maximum comfort and efficiency and help you make the right component choices. all for a refundable deposit of £25.
With our Mini Bike Fit, we can advise on sizing, optimise your ride for maximum comfort and efficiency and help you make the right component choices. all for a refundable deposit of £25.
