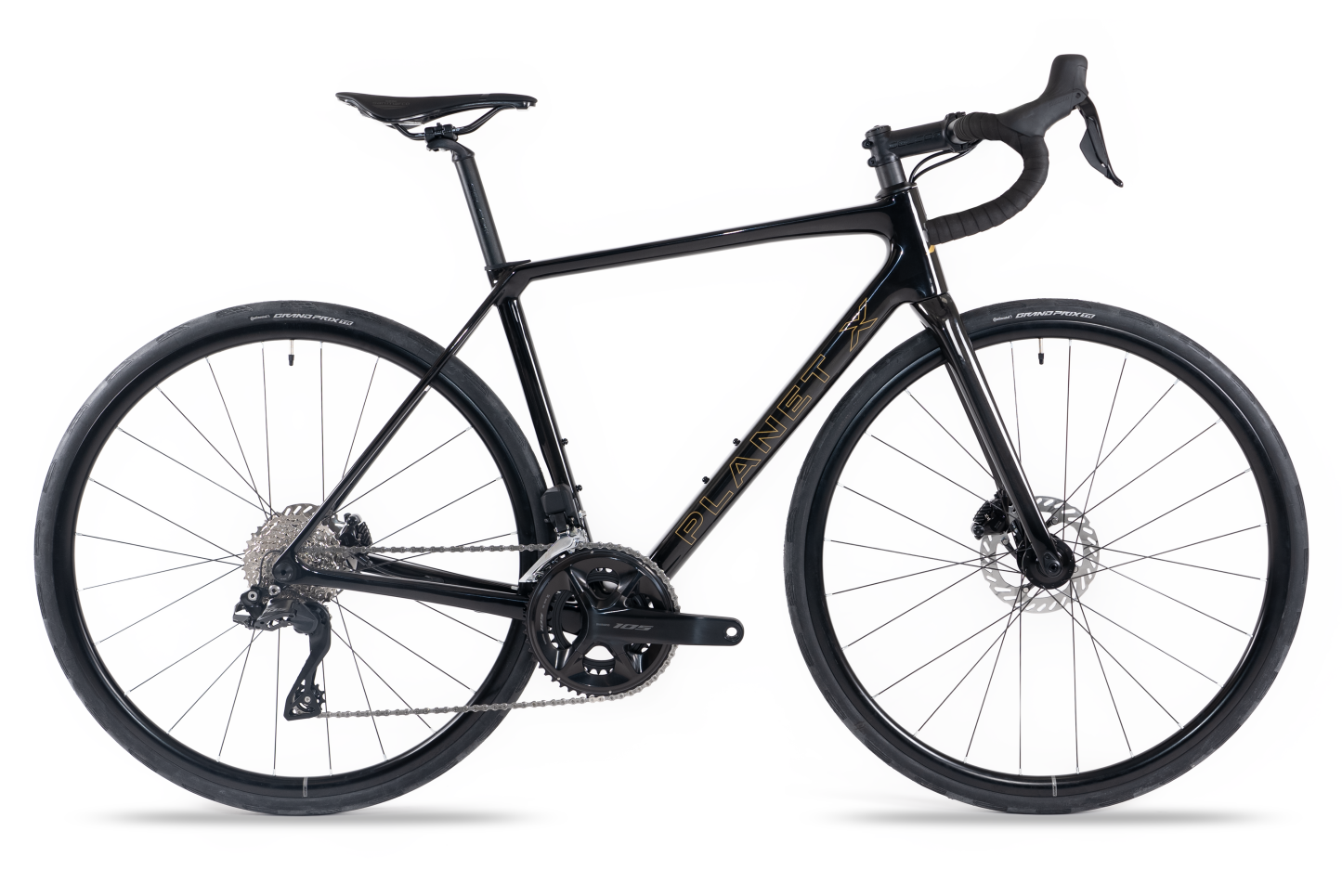

Planet X Pro Carbon XV Shimano 105 Di2 Road Bike

The Pro Carbon offers all the right things to produce a road bike with no compromise. Utilising endurance geometry and aero profiled tubing with compliance in the right places, youll be able to push higher speeds on the flats while staying in comfort on the climbs.

Shimano 105 di2 Drivetrain
Shimano 105 Hydraulic Brakes
Full Carbon Frameset

View less

$2,070.00

Shipping calculated at checkout.

Introductory Price - Will go up to £2499.99

Expect dispatch in 14 days

Available on Cycle to work

Part-ex with Planet X-Change

Colour

Black Blue Green

Size

Small Medium Large X-Large X-Small

Rider Height	Suggested Frame Size
5′6″ to 5′8″	SML
5′7″ to 5′10″	MED
5′9″ to 6′1″	LRG
6′0″ to 6′4″	XLG

Size	A Head Angle	B Head Tube	C Top Tube	D Seat Angle	E Seat Tube (C-T)	F Chainstay Length	G BB Drop	H Stack	I Reach	J Front Centre	K Offset	Wheelbase
SML	72°	120	532	74°	440	410	72	530	380	581	45	980
MED	72.5°	140	542	74°	475	410	72	551	384	587	45	986
LRG	73°	160	564	73.5°	500	410	72	571	395	599	45	988
XLG	73°	180	577	73.5°	520	410	72	591	402	612	45	1011

Please note that our bikes are not supplied with pedals - these must be purchased separately

🔧 Customise your bike

Quantity

CBBIKE-PCX-1DI-SML-BLK

Frame

With classic road endurance geometry, The Pro Carbon features stable yet responsive steering and a proven reach figure to result in an agile ride. A taller headtube allows for heightened stack, ensuring endurance comfort. The lightweight, comfortable, and durable T700 carbon construction, a 27.2mm seatpost, and tyre clearance of 30mm means you’ll be comfortable however long you spend in the saddle. While the aerodynamic frame profile won’t hold you back at high speed.

Groupset

SHIMANO 105 Di2 utilizes a hybrid system with a wireless cockpit and a subtle, wired connection between a single, seat-tube-stored battery and mechanized front and rear derailleurs. The Di2 setup shifts crisply and precisely, making it a reliable companion on your journey.

Frame

With classic road endurance geometry, The Pro Carbon features stable yet responsive steering and a proven reach figure to result in an agile ride. A taller headtube allows for heightened stack, ensuring endurance comfort. The lightweight, comfortable, and durable T700 carbon construction, a 27.2mm seatpost, and tyre clearance of 30mm means you’ll be comfortable however long you spend in the saddle. While the aerodynamic frame profile won’t hold you back at high speed.

Groupset

SHIMANO 105 Di2 utilizes a hybrid system with a wireless cockpit and a subtle, wired connection between a single, seat-tube-stored battery and mechanized front and rear derailleurs. The Di2 setup shifts crisply and precisely, making it a reliable companion on your journey.

1 / 2

30 Day ride guarantee

Shop with confidence.

Rated Excellent

By over 10,000 customers

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′6″ to 5′8″	SML
5′7″ to 5′10″	MED
5′9″ to 6′1″	LRG
6′0″ to 6′4″	XLG

Size	A Head Angle	B Head Tube	C Top Tube	D Seat Angle	E Seat Tube (C-T)	F Chainstay Length	G BB Drop	H Stack	I Reach	J Front Centre	K Offset	Wheelbase
SML	72°	120	532	74°	440	410	72	530	380	581	45	980
MED	72.5°	140	542	74°	475	410	72	551	384	587	45	986
LRG	73°	160	564	73.5°	500	410	72	571	395	599	45	988
XLG	73°	180	577	73.5°	520	410	72	591	402	612	45	1011

🔧 Build Kit

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

SRAM Flat Mount Disc Brake Mounting Hardware / 32mm / Single

🔧 Groupset

KR7170DLRDSX170E	1	STR7170L BRR7170R 25MM MNTRes1700MM
KR7170DRF6SX100E	1	STR7170R BRR7170F 160MM Res 1000MM
KFDR7150F	1	FD-R7150 Di2 Brazed-On 12-SPD
KRDR7150E	1	RDR7150 Di2 12 SPD
KCSR710112134	1	CS-R7100 12 Speed 11-34
KFCR7100CX04	1	FCR7100 12-SPD 170MM 50-34T
KCNM6100114Q	1	CN-M6100 12spd 114L inc Quicklink
KBTDN3001	1	BTDN3001 Battery 3 Port
KEWSD300L070	1	EW-SD300 Di2 wire 700mm
KEWSD300L140	1	EW-SD300 Di2 wire 1400mm
KEWEC300A	1	EW-EC300 Charge Cable USB
ARTCL700SI	1	RT-CL700 Rotor 160mm inc int lockring
ARTCL700SSI	1	RT-CL700 Rotor 140mm inc int. lockring
KSMBHD1030	2	SM-BH90 Olive and Insert
