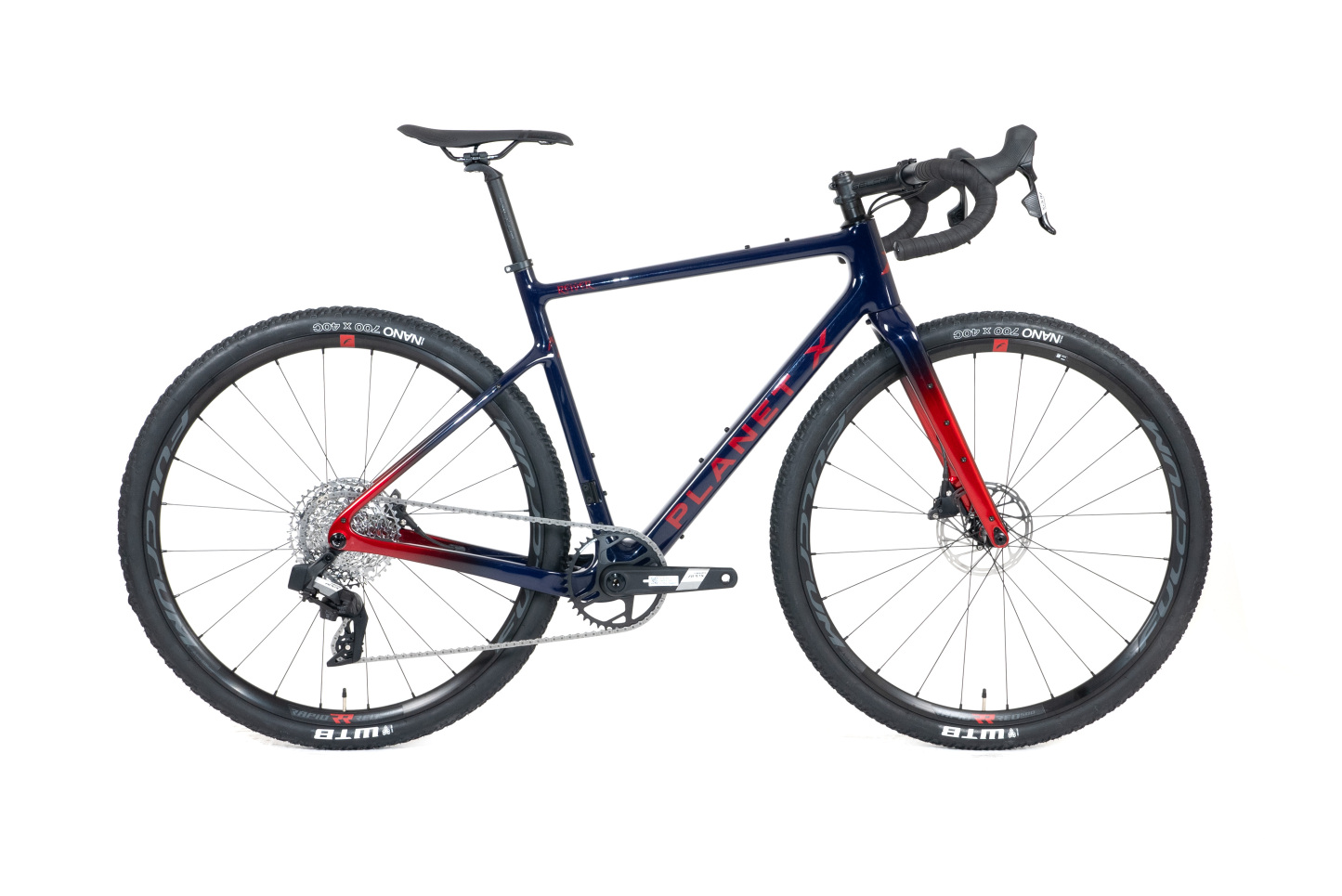

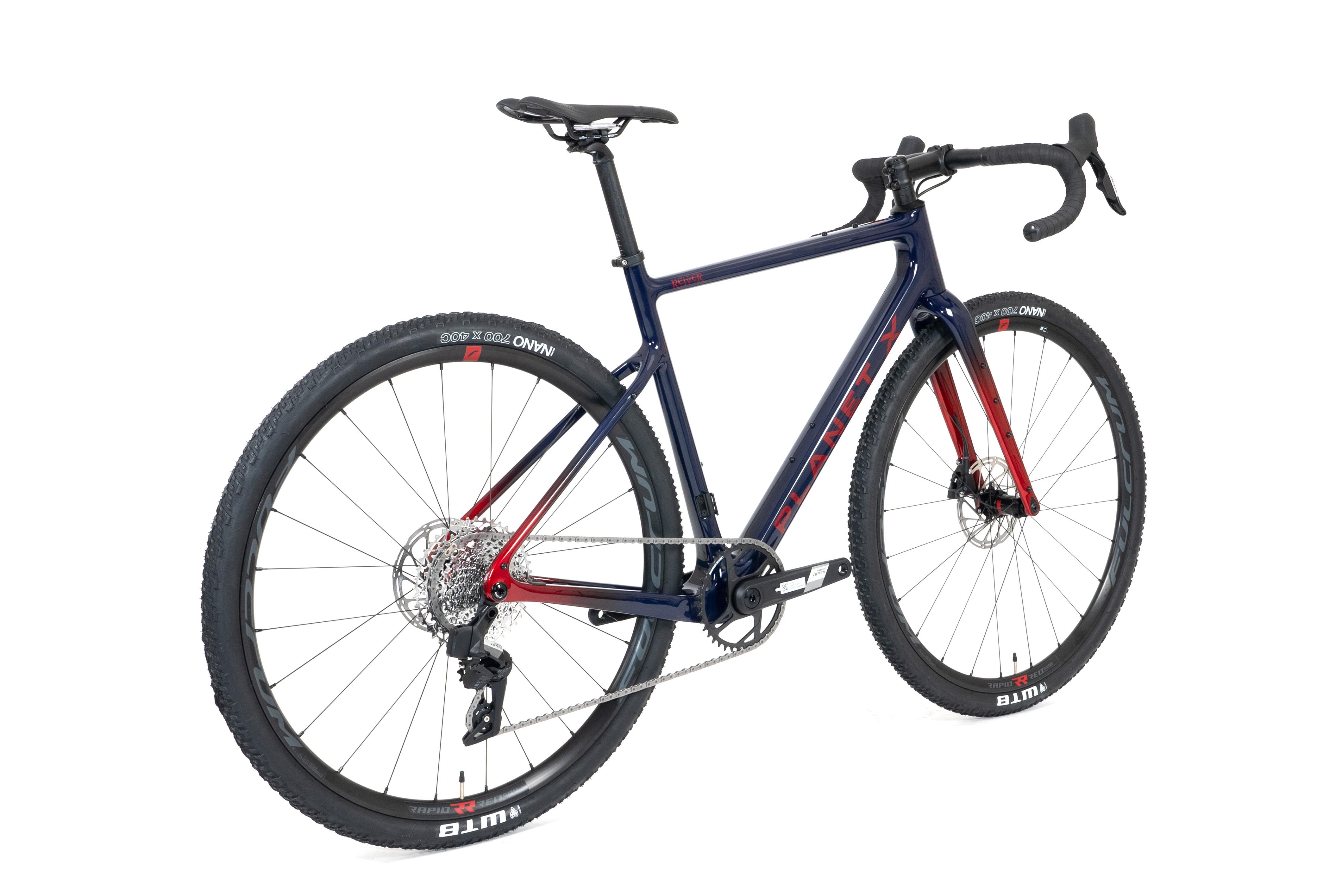

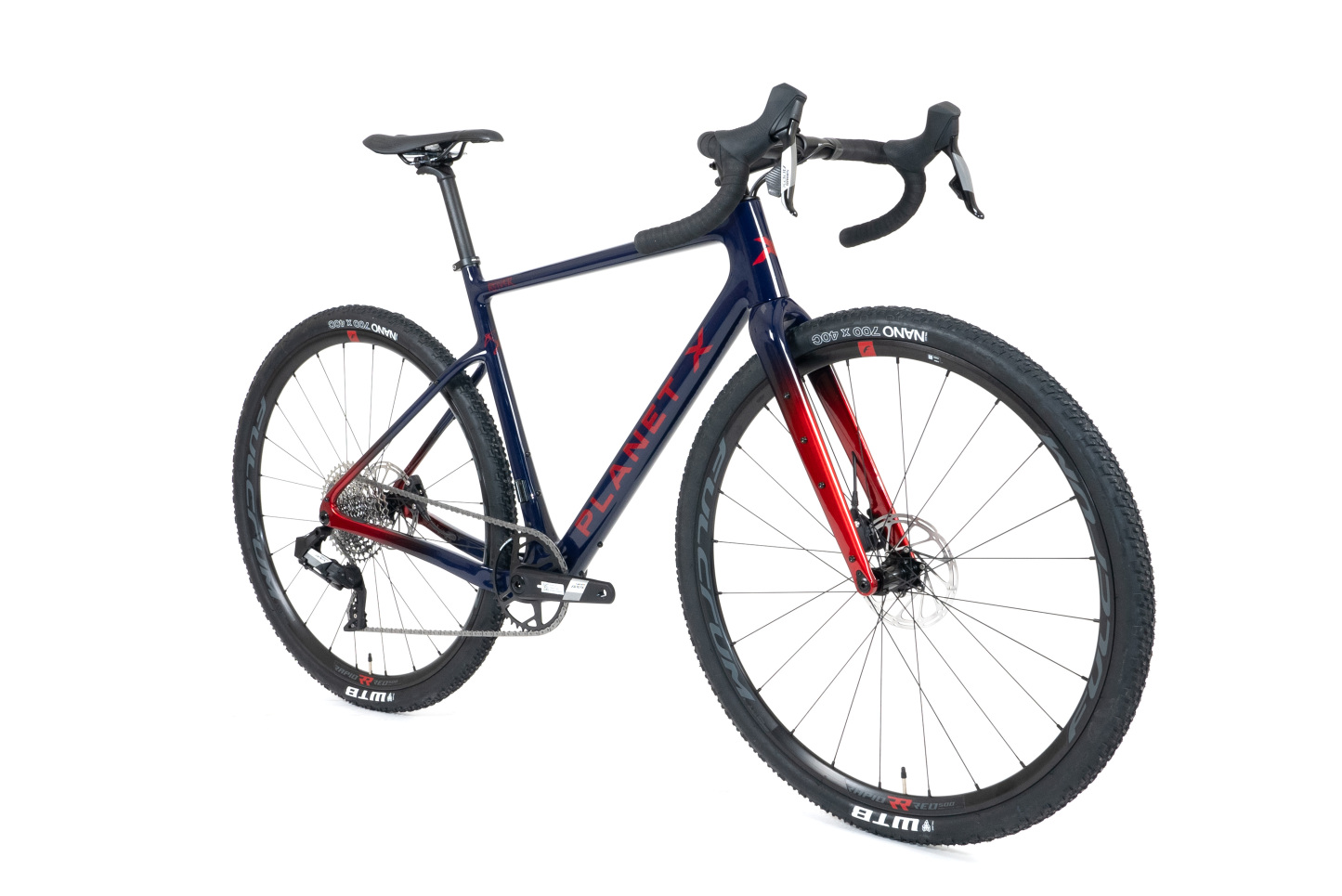

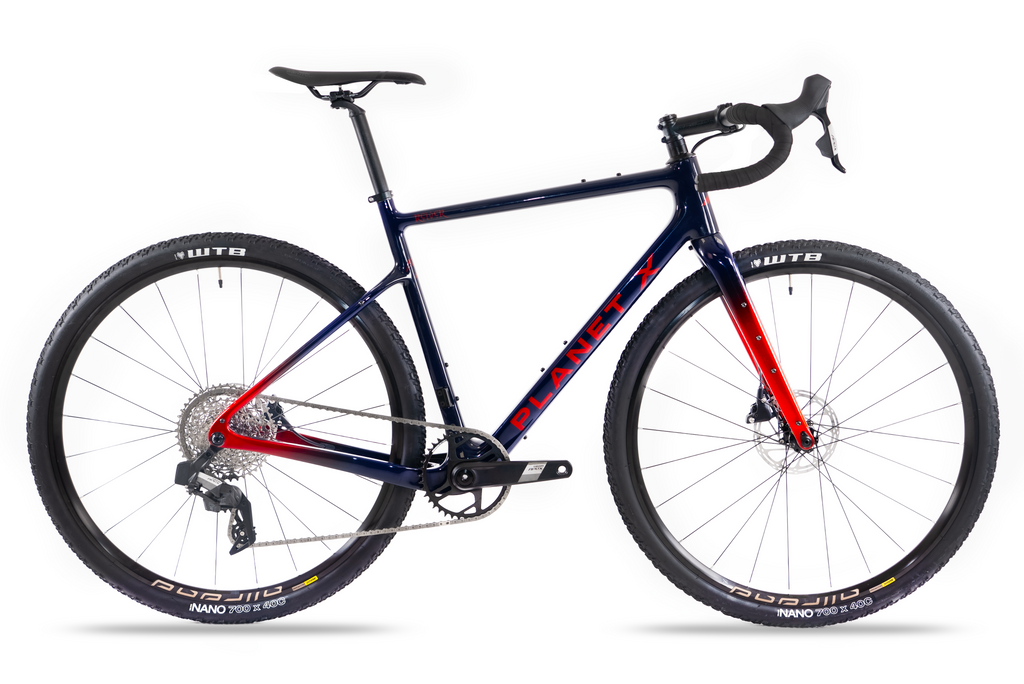

Planet X Reiver SRAM Apex AXS Gravel Bike

The Reiver is our Multi terrain speed machine a true gravel racer, if you are looking for a fast, forgiving and fun gravel bike then look no further. Whether picking your way through single track, attacking a technical climb or blasting linking tarmac sections the Reiver does it all – and fast. With all day comfort, multiple mounts for luggage, bottles, full mudguards and pannier racks the Reiver is also suitable for multi day adventures, commuting and everything in between.

Sram Apex AXS XPLR Wireless Groupset
Semi Integrated Cockpit
Sram UDH Mech Hanger.

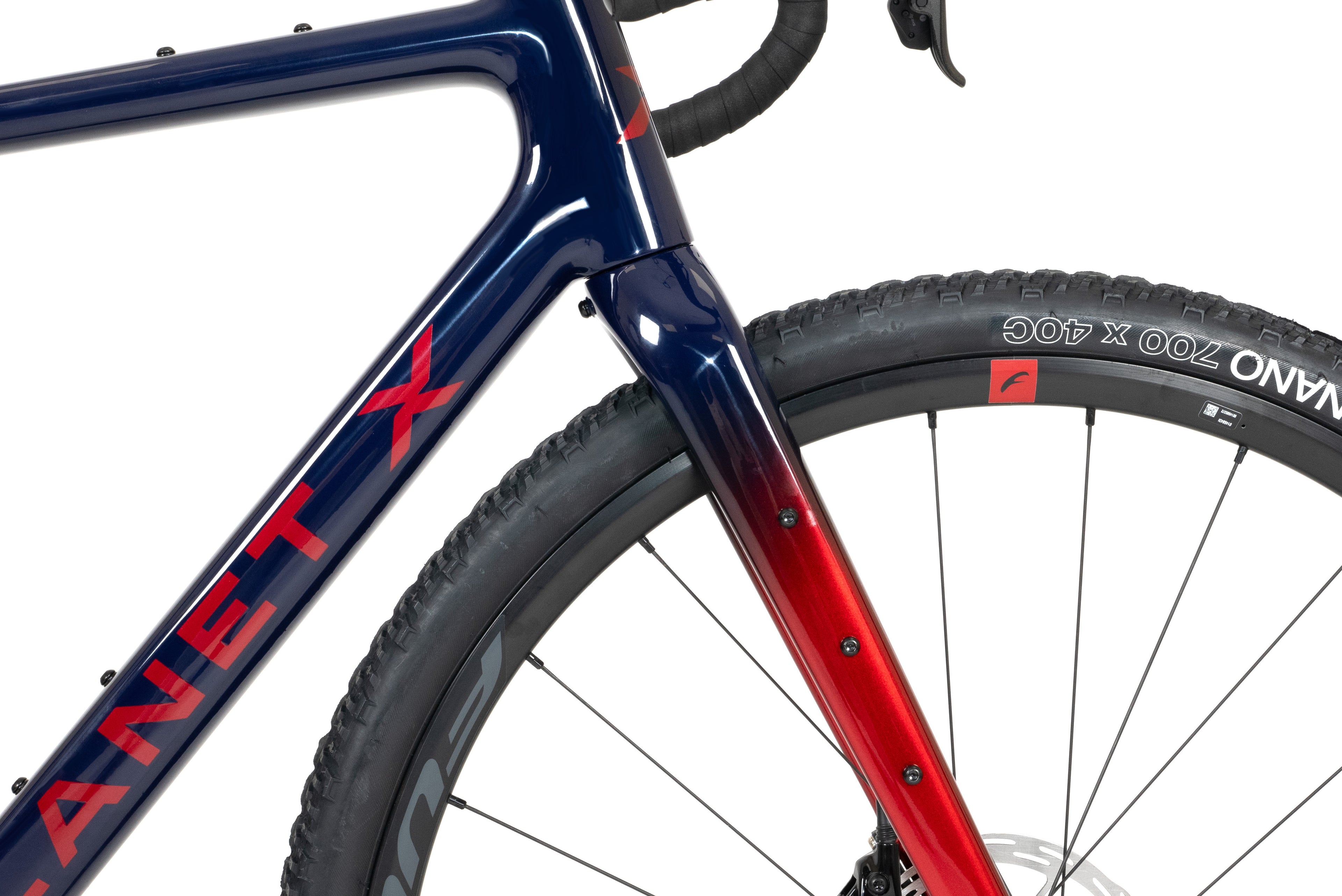

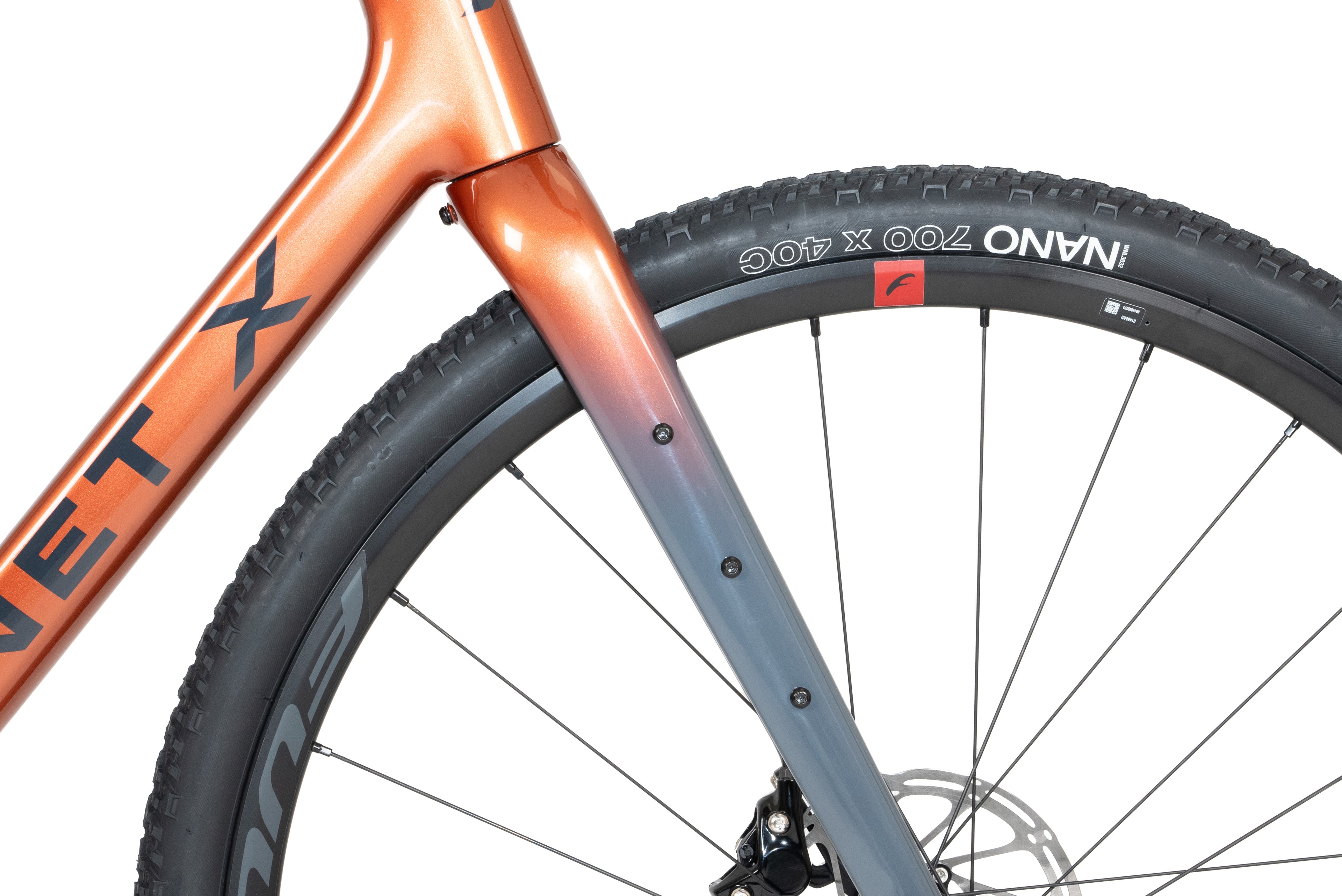

Full Luggage Mounts (Including Fork).
Tyre Clearance up to 50mm (700c gravel/road tyre only) or 50c (650b).

View less

$2,128.00

Shipping calculated at checkout.

Expect dispatch in 21 days

Available on Cycle to work

Colour

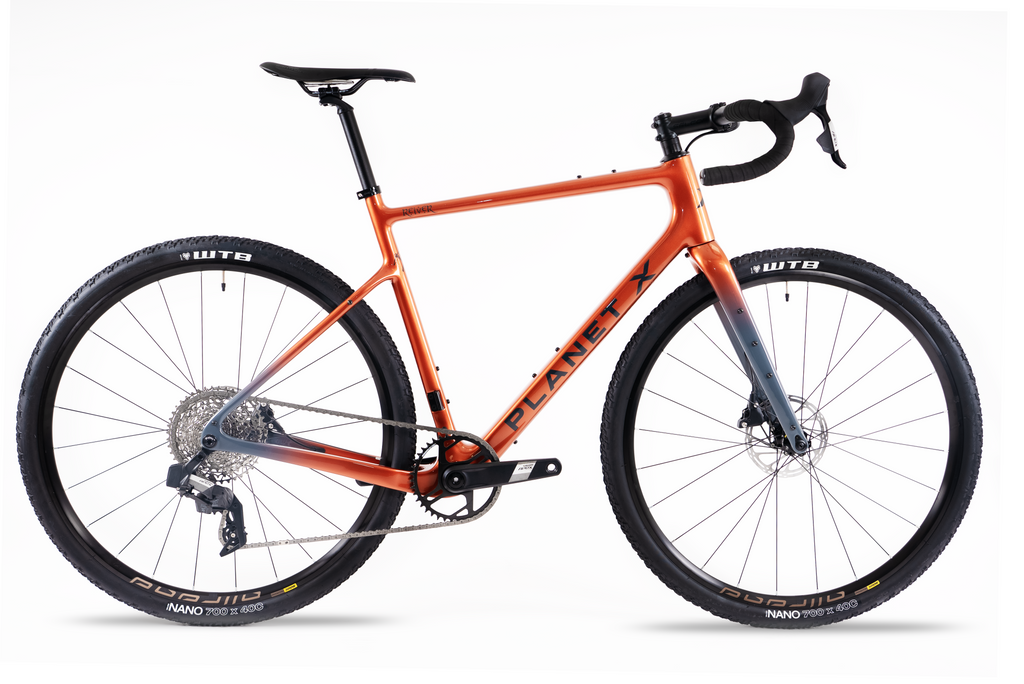

Midnight Marauder Bronze Raider

X-Small Small Medium Large X-Large

Rider Height	Suggested Frame Size
5′0″ to 5′5″	X-Small
5′5″ to 5′8″	Small
5′7″ to 5′10″	Medium
5′9″ to 6′0″	Large
5′11″ to 6′3″	X-Large

		XS	S	M	L	XL
A	Head Angle (degrees)	70	71	71	71	71
B	Head Tube (mm)	110	125	140	160	185
C	Top Tube Effective(mm)	517	538	551	571	588
D	Seat Tube Angle (degrees)	74	73	73	72.5	72.5
E	Seat Tube C-T Actual (mm)	450	490	520	540	560
F	Chainstays (mm)	435	435	435	435	435
G	BB Drop (mm)	69	69	69	69	69
H	Stack (mm)	530	548	562	581	604
I	Reach (mm)	365	370	379	388	397
J	Front Centre (mm)	596	597	611	626	643
K	Wheelbase (mm)	1021	1023	1036	1052	1069

Please note that our bikes are not supplied with pedals - these must be purchased separately

🔧 Customise your bike

Quantity

CBBIKE-REI-APA-XSM-BLU

Frame

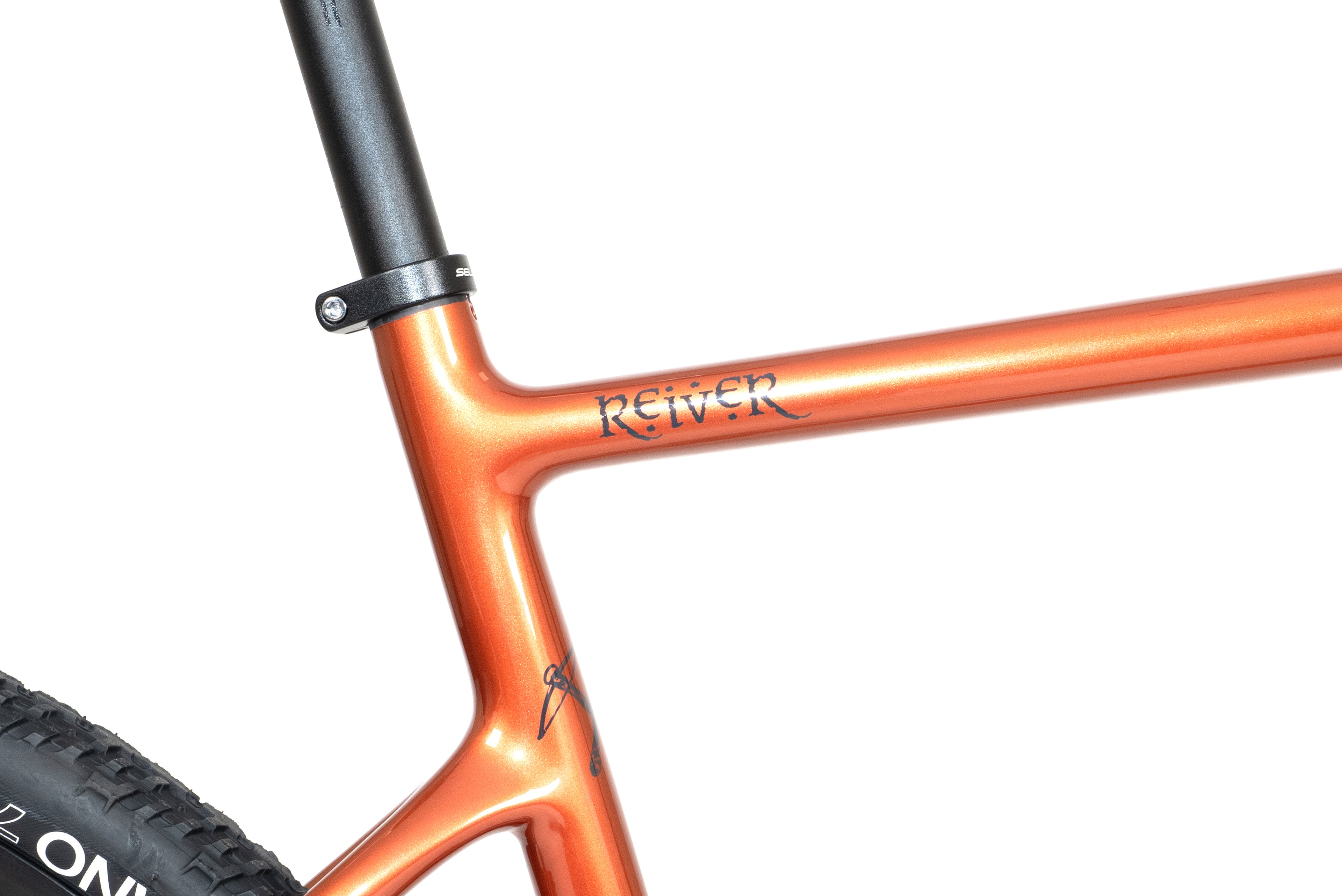

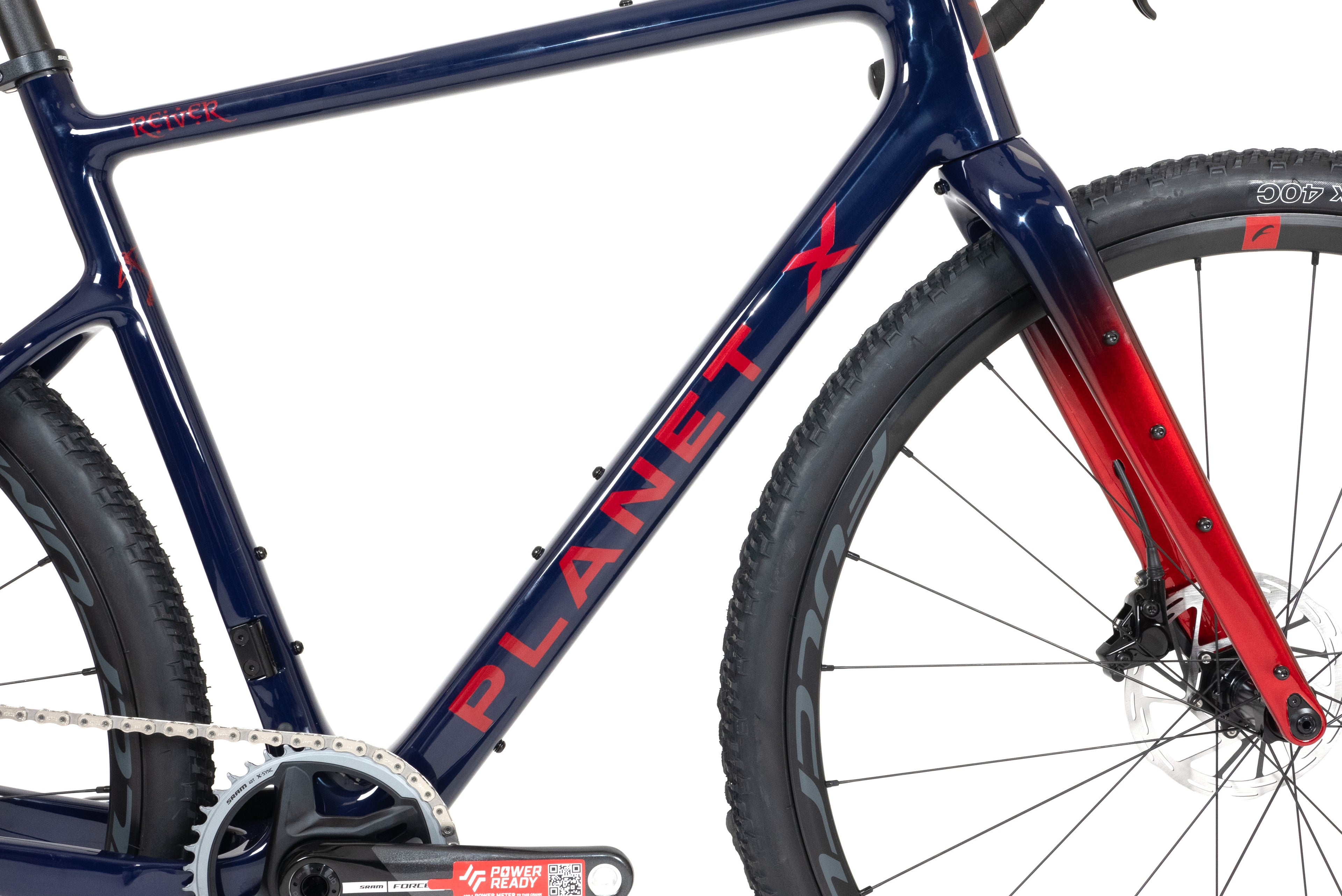

Taking inspiration from multi day endurance gravel racing we set out to develop our own bike, eager to conquer this exciting form of offroad riding where speed and comfort are essential. Each tube profile has been designed to create a stiff yet forgiving ride, the dropped rear stays aid comfort while also giving an aerodynamic gain minimising watt loss to the rear wheel. The up-to-date geometry strikes a perfect balance between speed, handling and comfort. The semi-integrated cockpit gives a clean aesthetic, while the use of a conventional stem and handlebars allows freedom to upgrade and experiment with stem lengths and bar widths without unnecessary cost and complication. The use of a simple creak fee BSA threaded bottom bracket, and UDH hanger means easy maintenance wherever you are. Smaller riders will benefit from the slacker head angle and increased fork offset, minimising wheel toe overlap. Four bottle cage mounts, triple fork mounts, pannier rack and full mudguard mounts make the Reiver easy to live with on long days in the saddle in all but the worst conditions.

Groupset

Apex is the group that knows how to have a good time. Wide-range 1x12 gearing for gravel, bikepacking, adventure, casual cruises, and everything in between. With wireless AXS shifting, Apex connects you to your bike with smooth and reliable shifting, chain retention, and controlled and powerful hydraulic braking. Apex is simple to understand and easy to use, keeping the focus on what matters most – finding the fun

Frame

Taking inspiration from multi day endurance gravel racing we set out to develop our own bike, eager to conquer this exciting form of offroad riding where speed and comfort are essential. Each tube profile has been designed to create a stiff yet forgiving ride, the dropped rear stays aid comfort while also giving an aerodynamic gain minimising watt loss to the rear wheel. The up-to-date geometry strikes a perfect balance between speed, handling and comfort. The semi-integrated cockpit gives a clean aesthetic, while the use of a conventional stem and handlebars allows freedom to upgrade and experiment with stem lengths and bar widths without unnecessary cost and complication. The use of a simple creak fee BSA threaded bottom bracket, and UDH hanger means easy maintenance wherever you are. Smaller riders will benefit from the slacker head angle and increased fork offset, minimising wheel toe overlap. Four bottle cage mounts, triple fork mounts, pannier rack and full mudguard mounts make the Reiver easy to live with on long days in the saddle in all but the worst conditions.

Groupset

Apex is the group that knows how to have a good time. Wide-range 1x12 gearing for gravel, bikepacking, adventure, casual cruises, and everything in between. With wireless AXS shifting, Apex connects you to your bike with smooth and reliable shifting, chain retention, and controlled and powerful hydraulic braking. Apex is simple to understand and easy to use, keeping the focus on what matters most – finding the fun

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′0″ to 5′5″	X-Small
5′5″ to 5′8″	Small
5′7″ to 5′10″	Medium
5′9″ to 6′0″	Large
5′11″ to 6′3″	X-Large

		XS	S	M	L	XL
A	Head Angle (degrees)	70	71	71	71	71
B	Head Tube (mm)	110	125	140	160	185
C	Top Tube Effective(mm)	517	538	551	571	588
D	Seat Tube Angle (degrees)	74	73	73	72.5	72.5
E	Seat Tube C-T Actual (mm)	450	490	520	540	560
F	Chainstays (mm)	435	435	435	435	435
G	BB Drop (mm)	69	69	69	69	69
H	Stack (mm)	530	548	562	581	604
I	Reach (mm)	365	370	379	388	397
J	Front Centre (mm)	596	597	611	626	643
K	Wheelbase (mm)	1021	1023	1036	1052	1069

🔧 Build Kit

🔧 Groupset

SRAM Apex 12 Speed Chain / 120 Link

SRAM XPLR PG-1231 12 Speed Cassette / 11-44 Tooth

SRAM Apex AXS Shift Brake System With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / Flat Mount 20mm Offset

SRAM Apex AXS Shift Brake System With Flat Mount Caliper / Right Lever / Front Brake / 1300mm / Flat Mount 20mm Offset

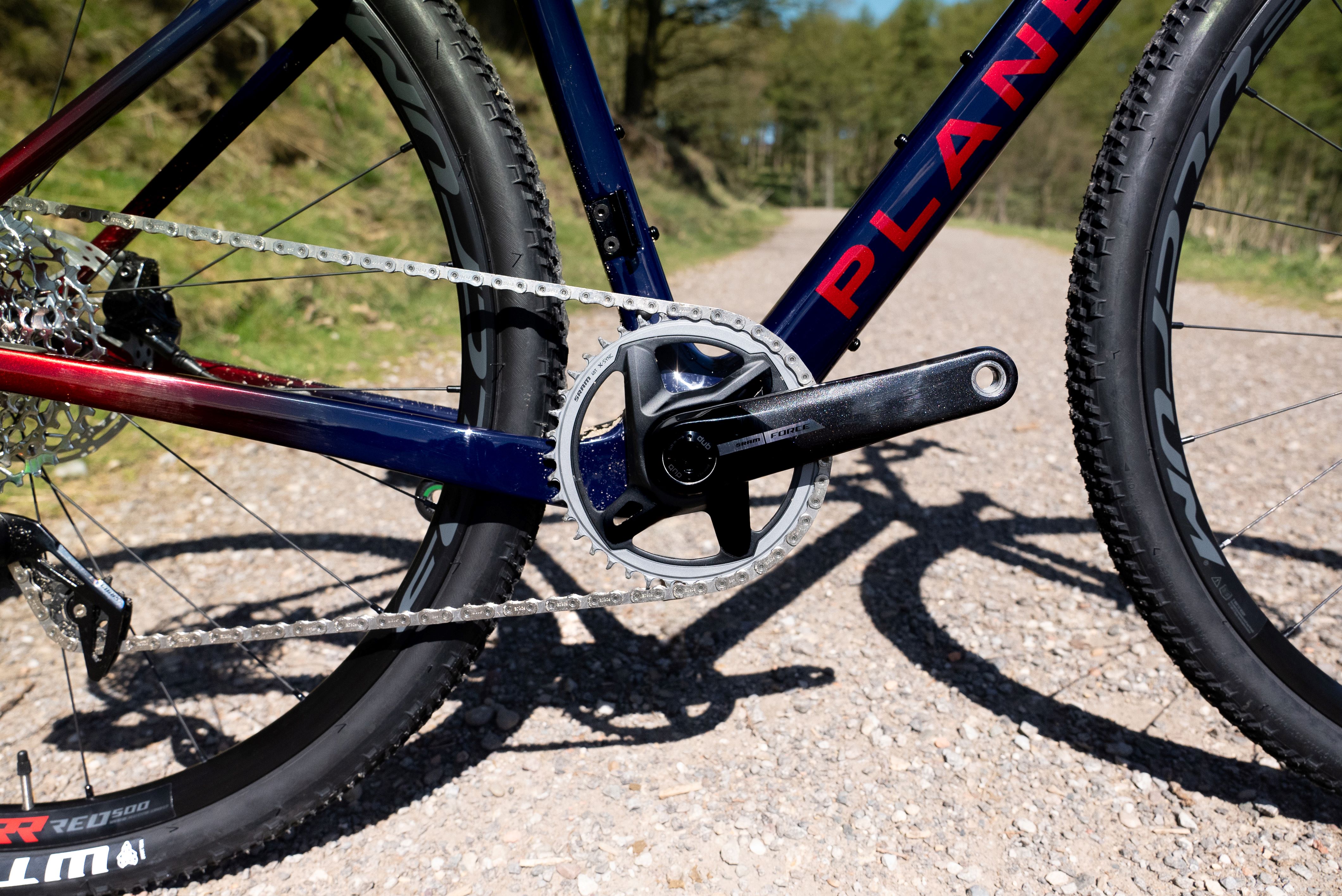

SRAM Apex 1 Wide Chainset / 172.5mm / 40 Tooth

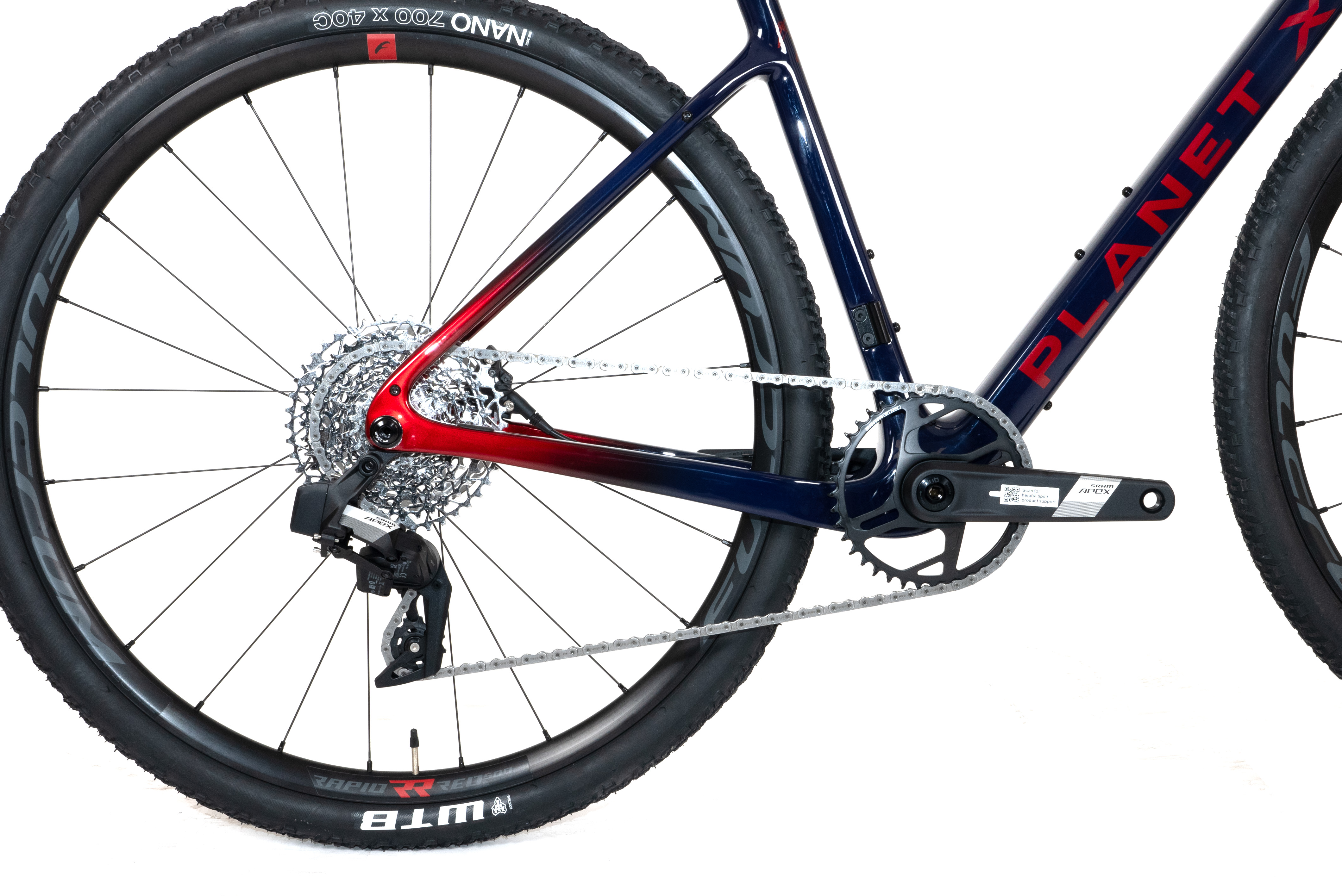

SRAM Apex XPLR AXS 1x12 Speed Rear Mech / Max 44 Tooth

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive

Avid Centreline Disc Brake Rotor / 160mm Centrelock

SRAM Flat Mount Disc Brake Mounting Hardware / 15mm / Single

SRAM Powerpack For AXS / 1 Battery

SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide
