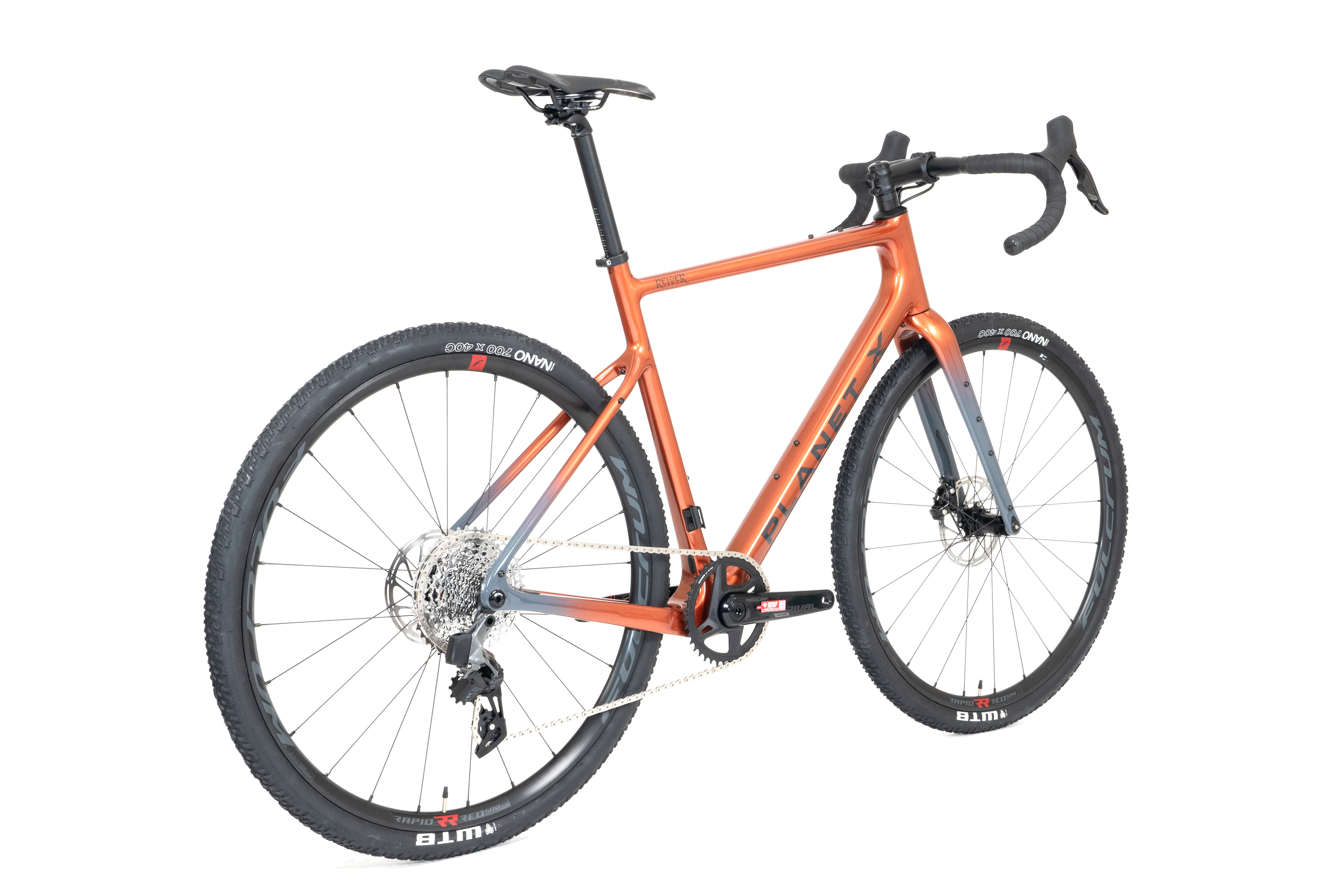

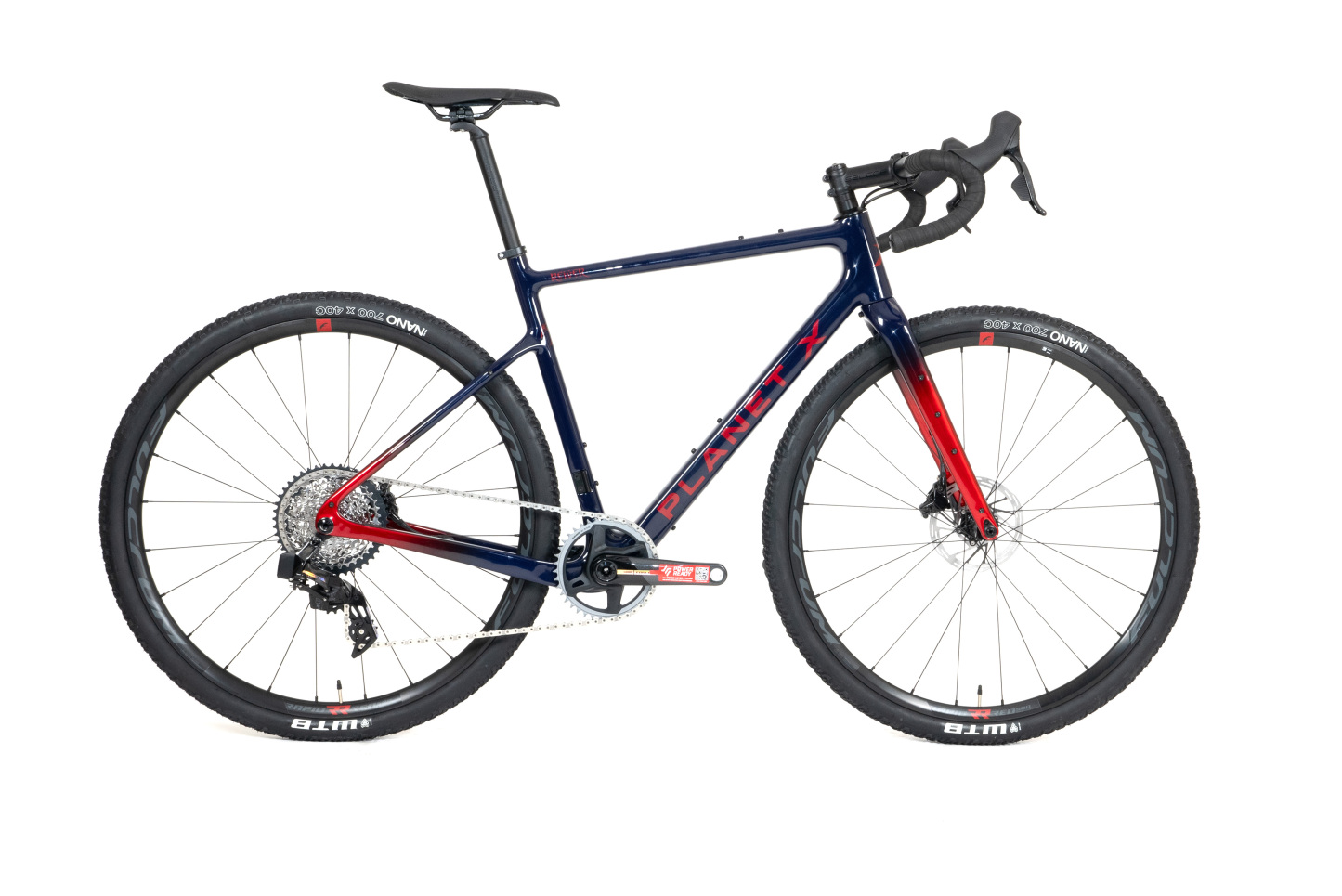

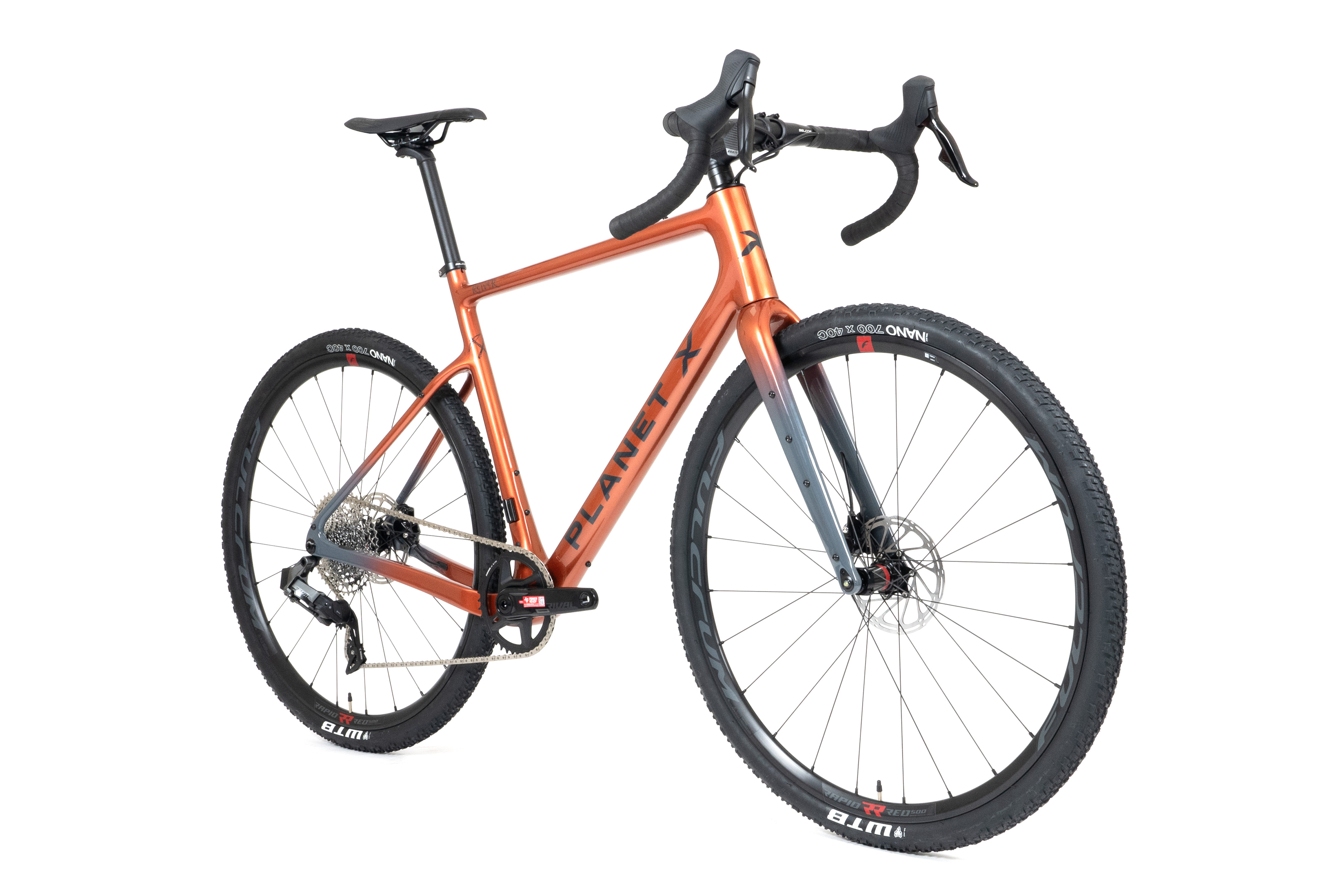

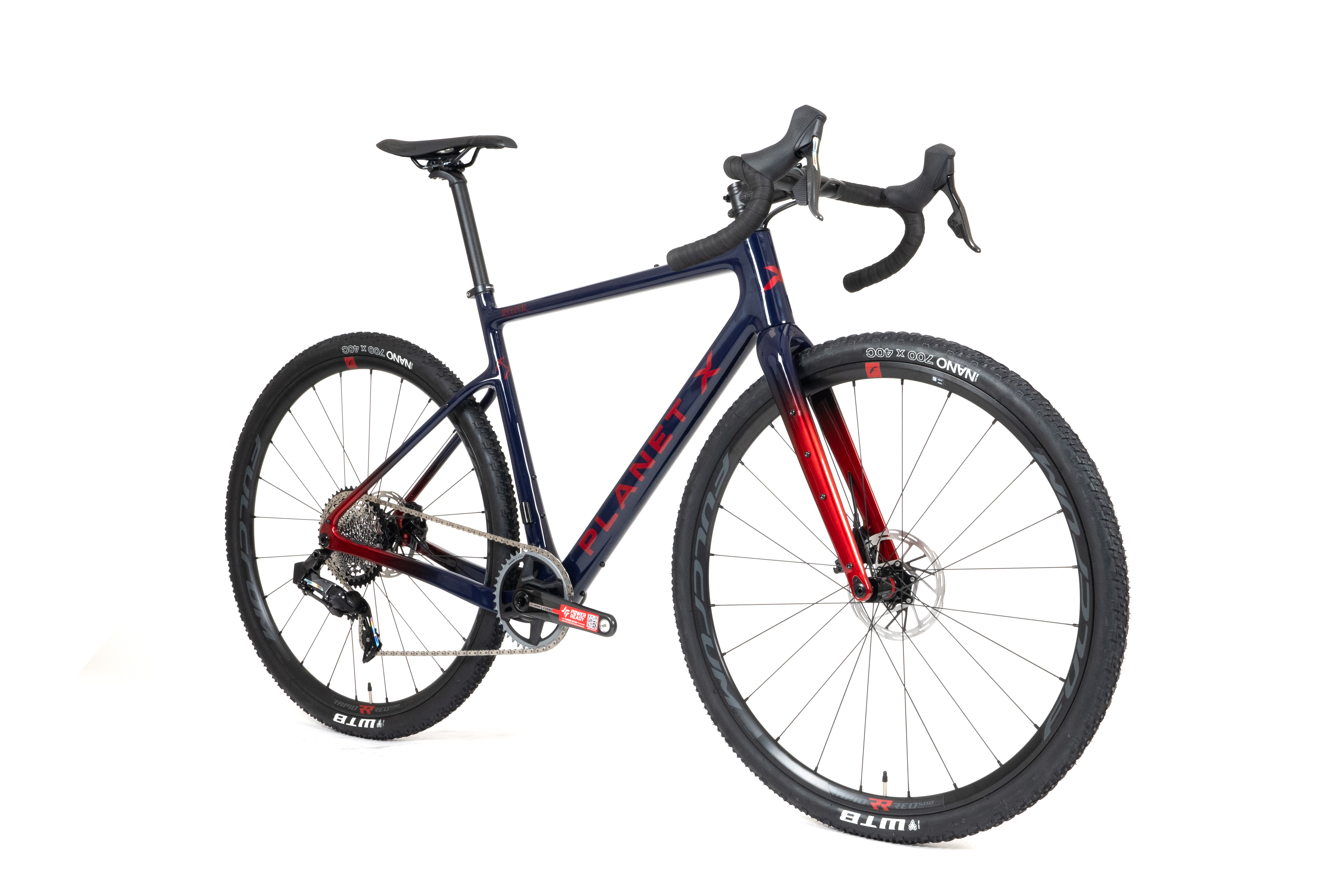

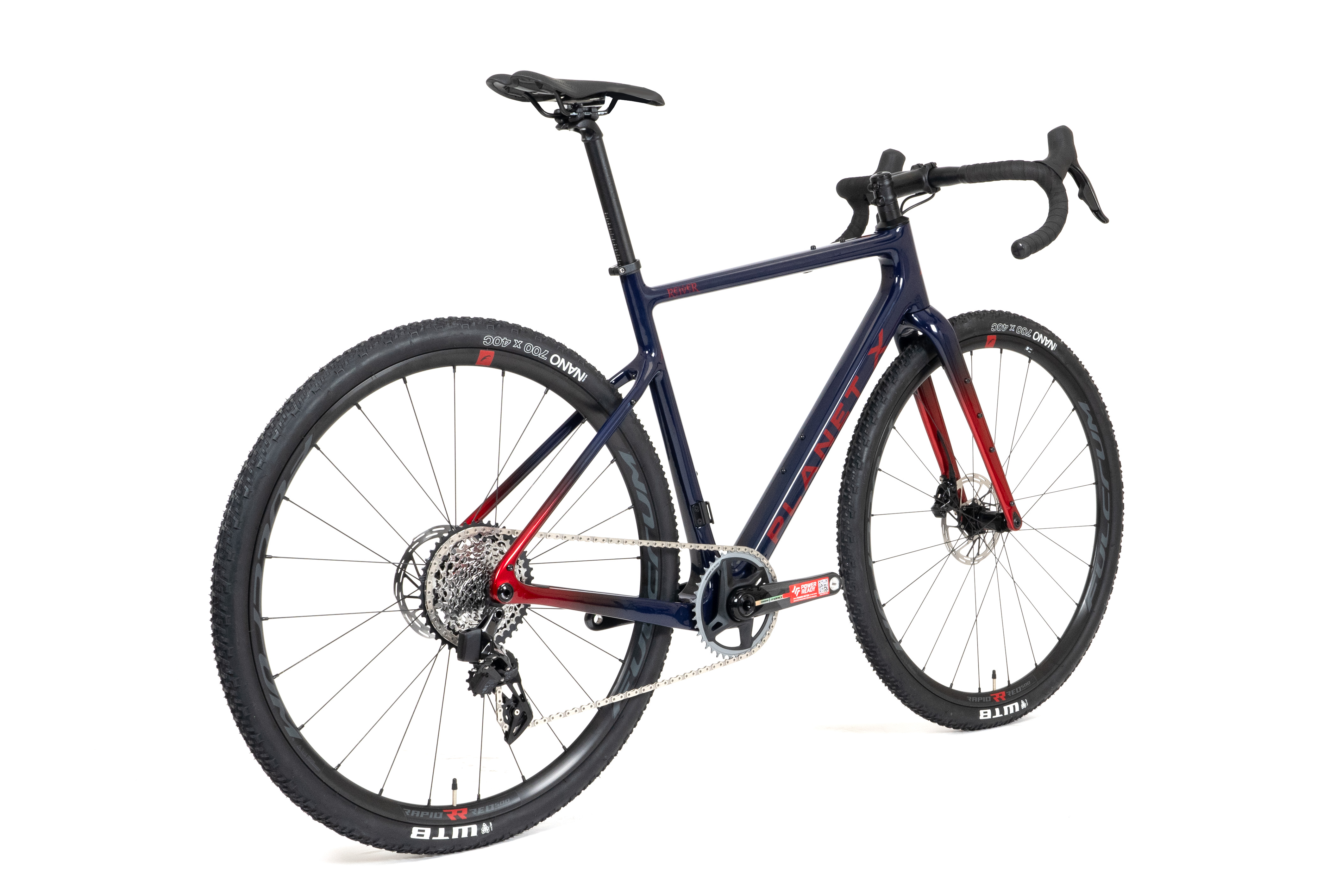

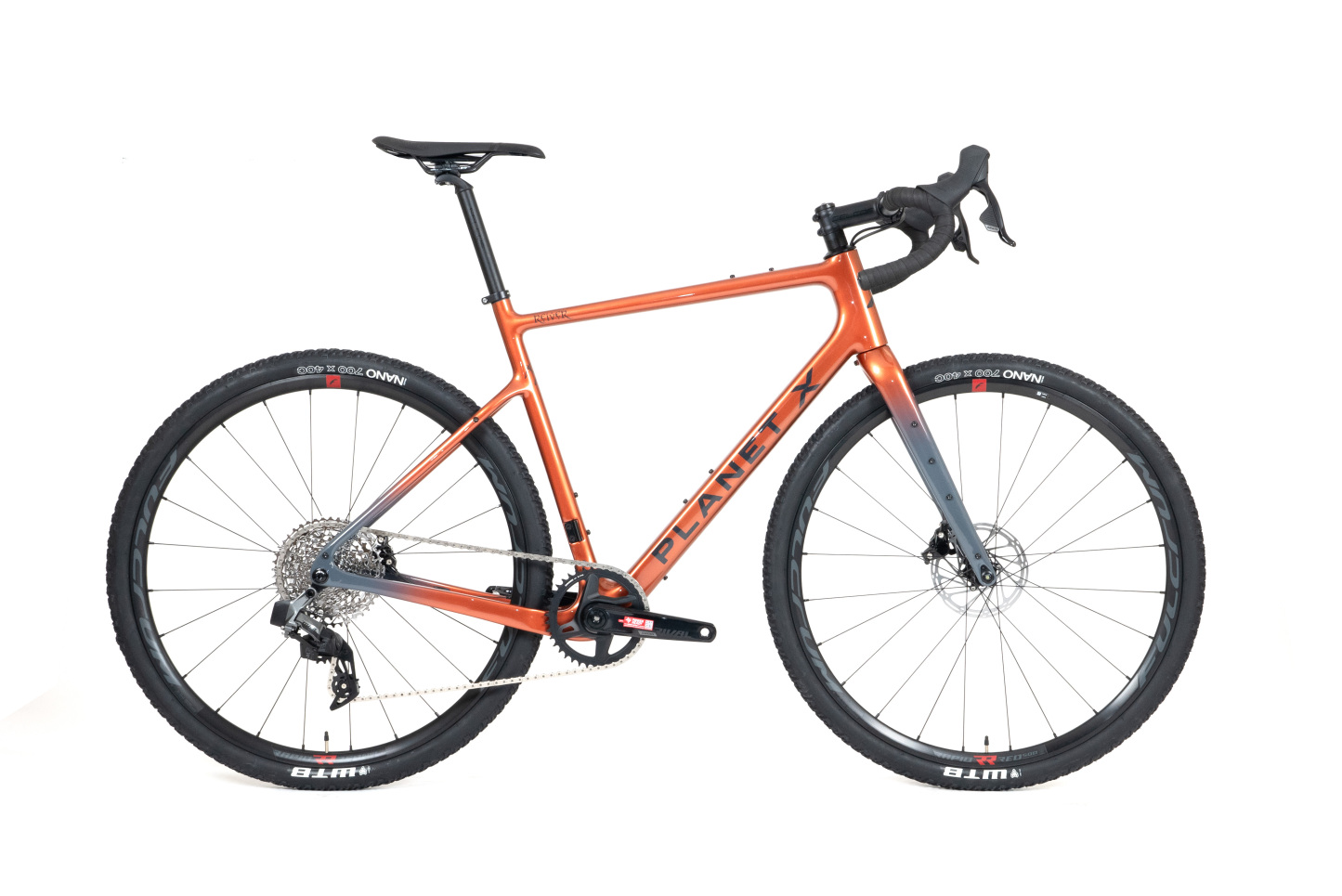

Planet X Reiver SRAM Force AXS XPLR E1 Gravel Bike

The Reiver is our Multi terrain speed machine. A true gravel racer, if you are looking for a fast, forgiving and fun gravel bike then look no further. Whether picking your way through single track, attacking a technical climb or blasting linking tarmac sections the Reiver does it all – and fast. With all day comfort, multiple mounts for luggage, bottles, full mudguards and pannier racks the Reiver is also suitable for multi day adventures, commuting and everything in between.

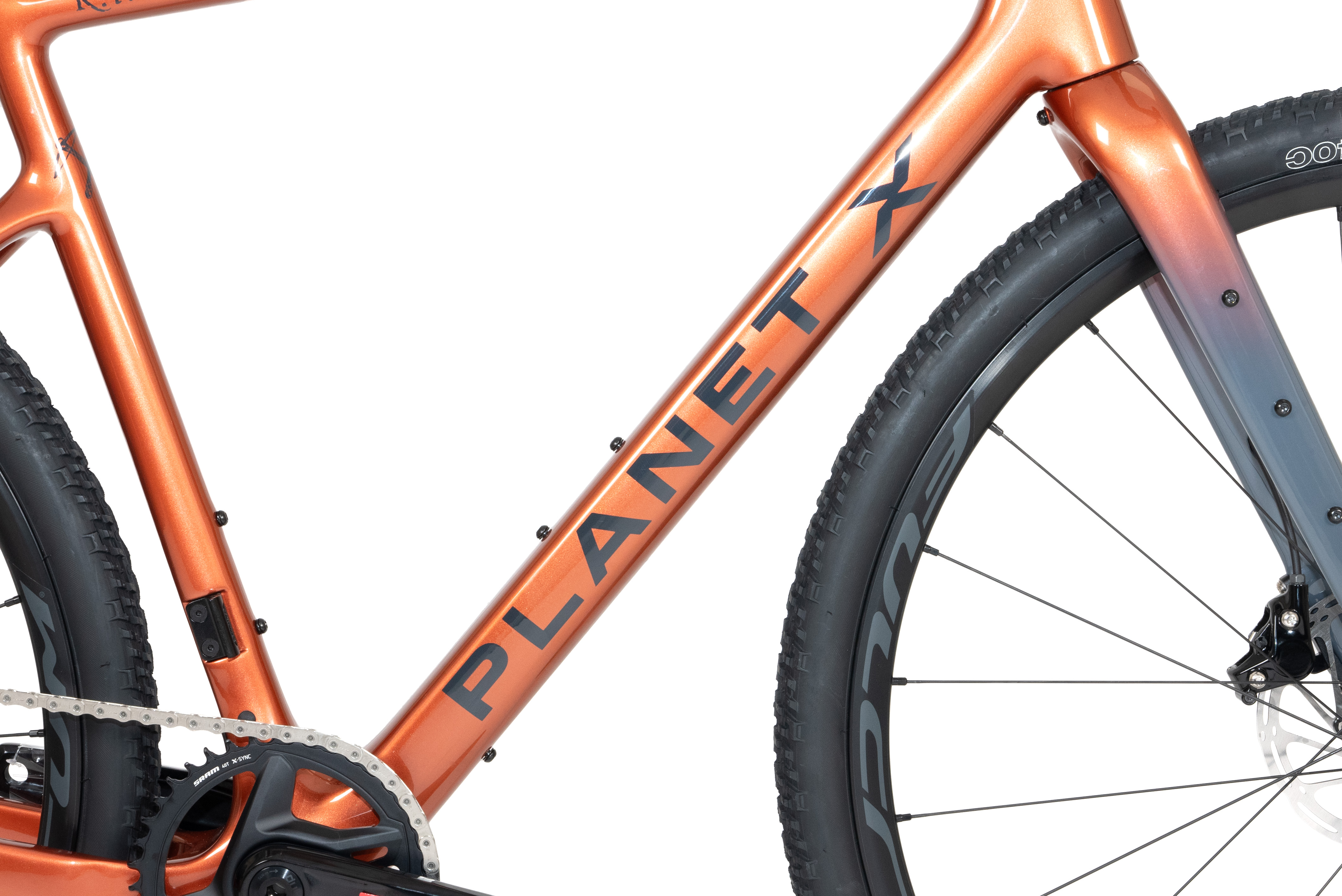

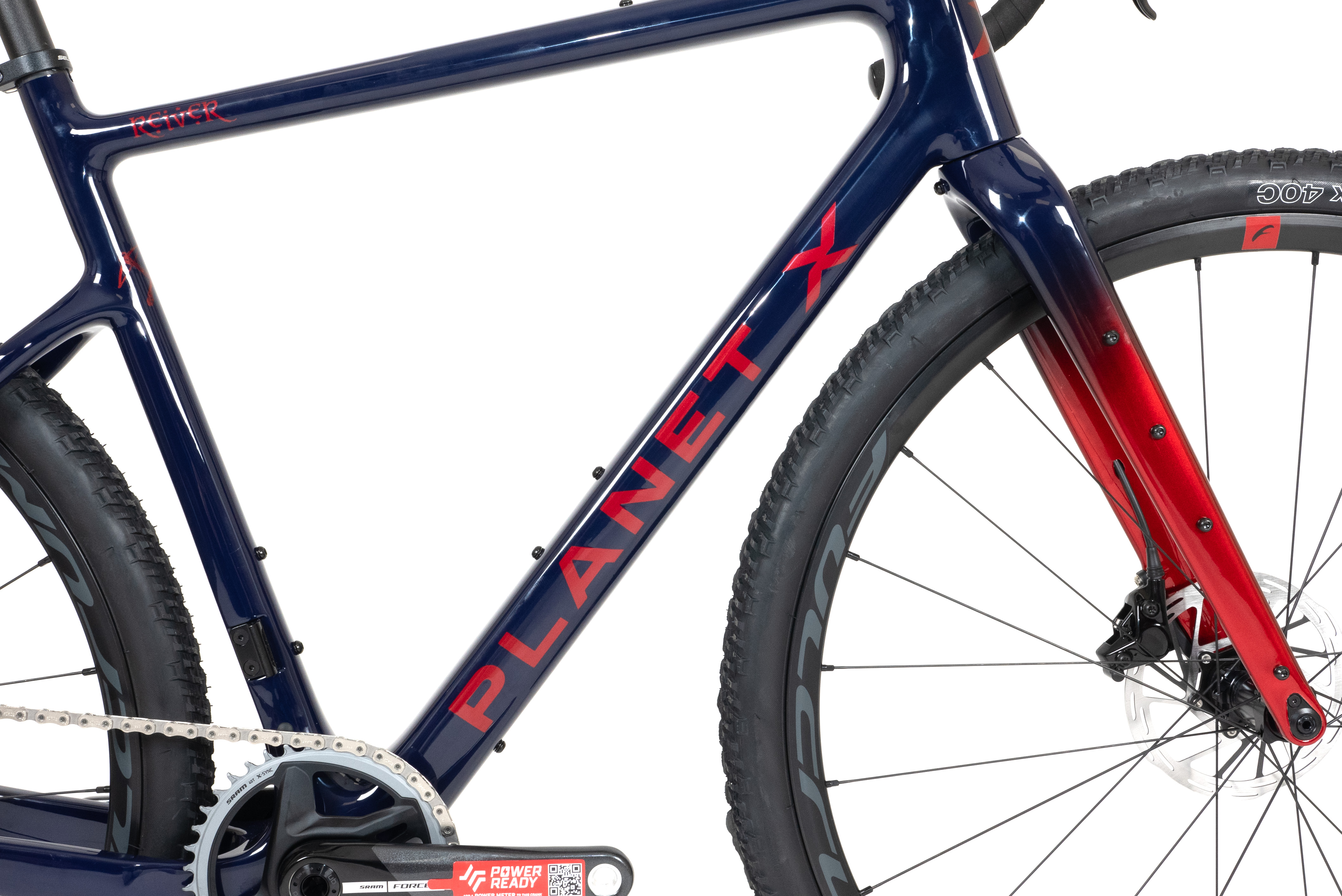

Toray Carbon Frameset
Mavic Allroad Disc Wheelset 700c Disc Wheelset

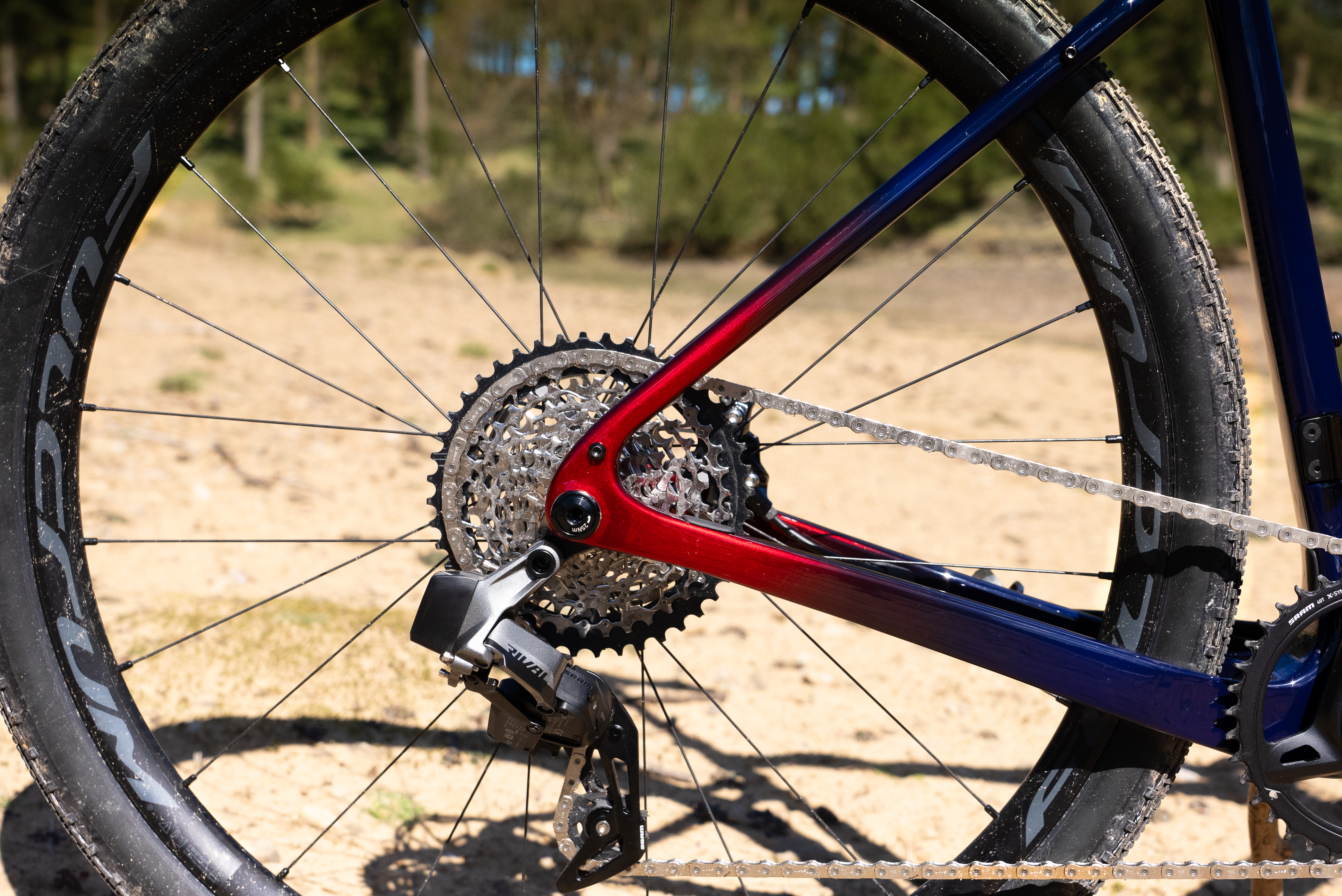

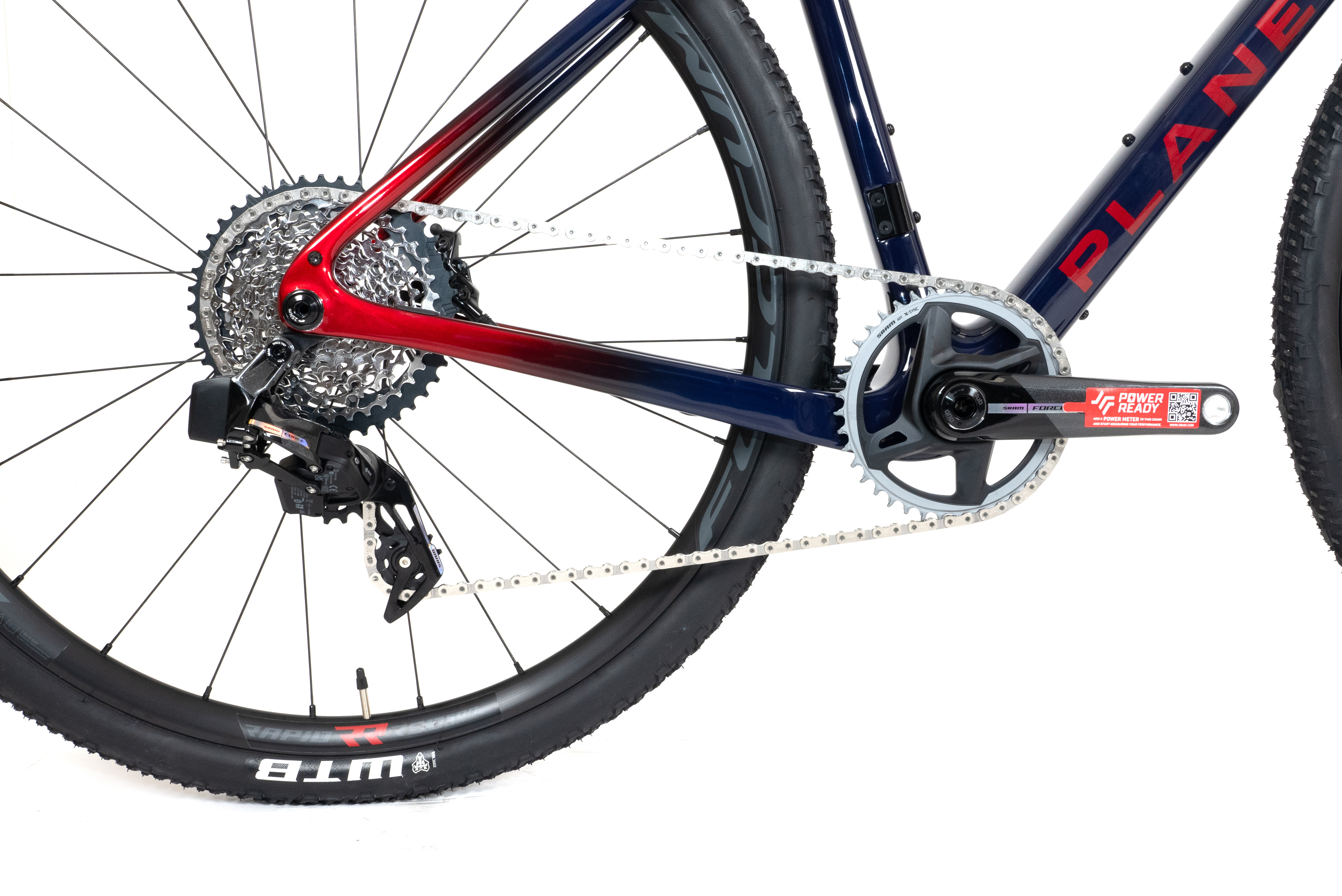

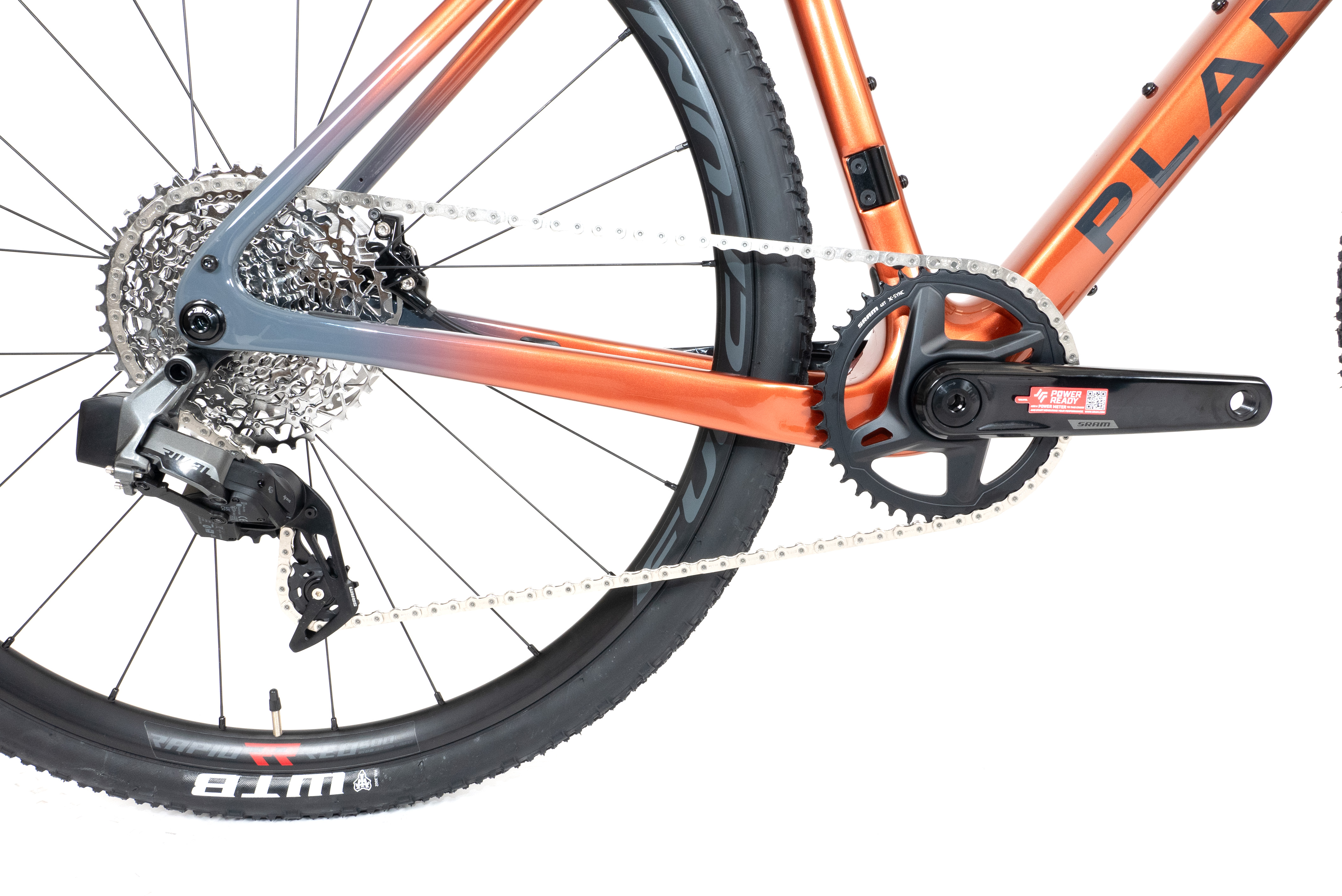

13 Speed Sram Force AXS E1 Wireless Groupset

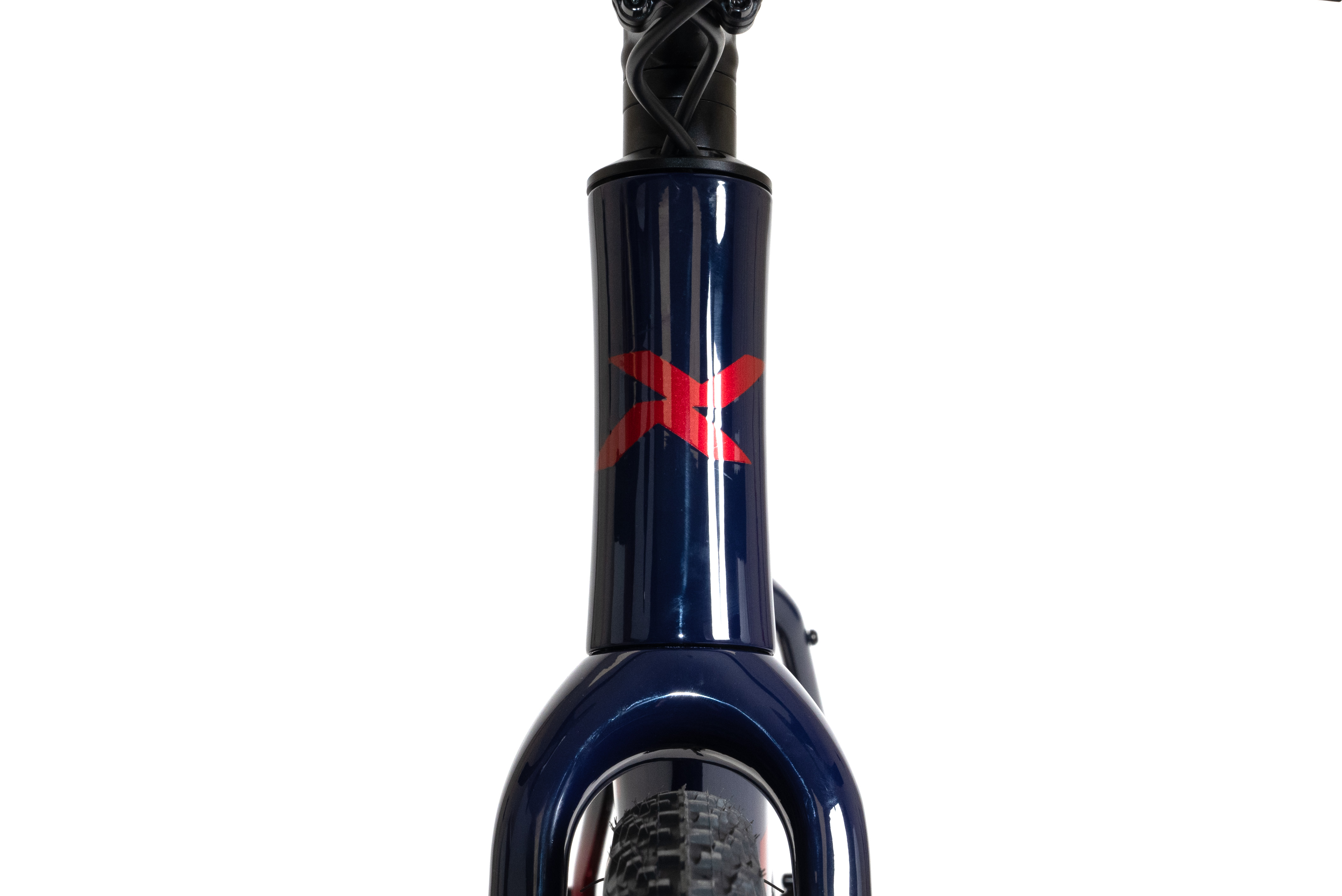

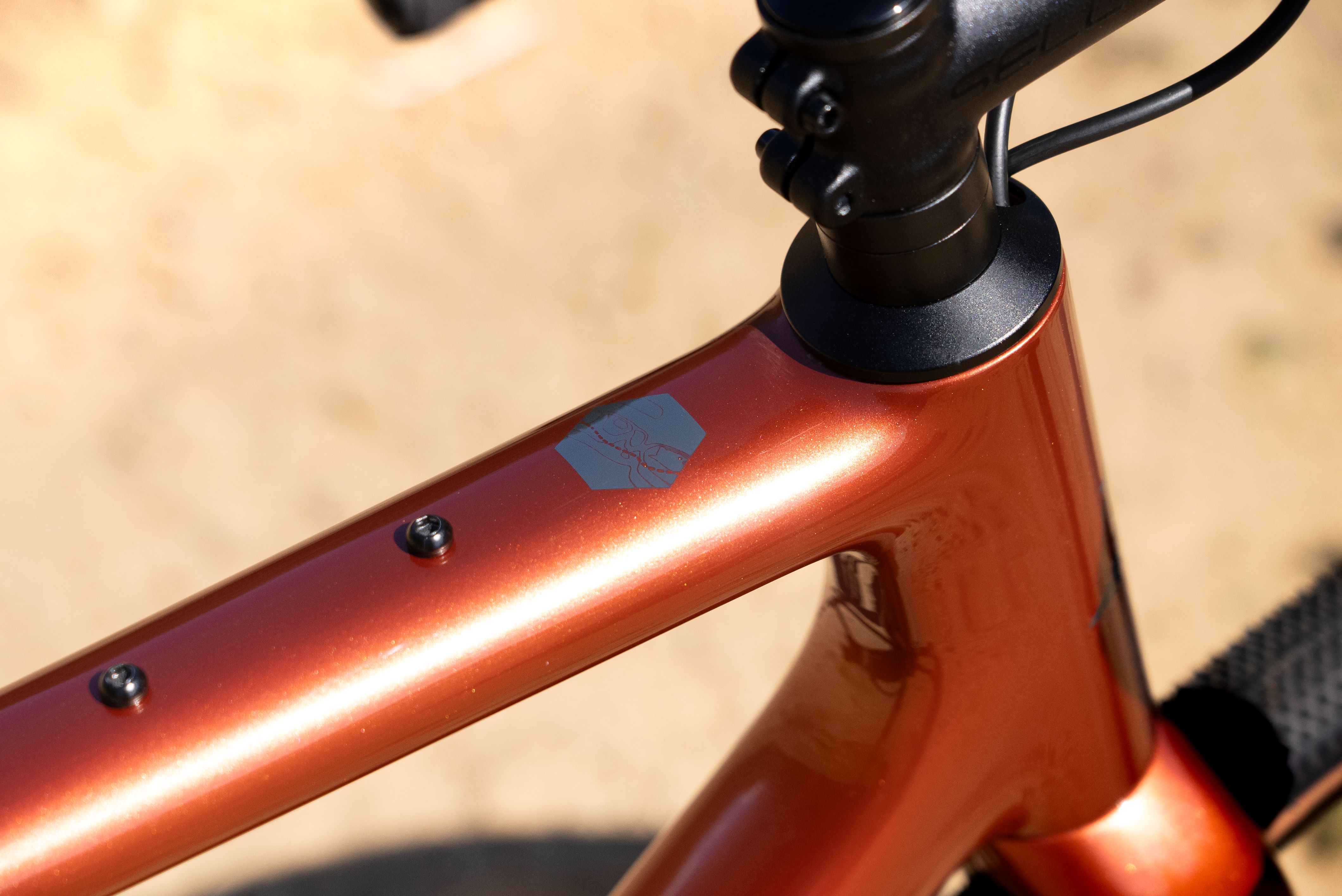

Semi Integrated Cockpit
Sram UDH Mech Hanger.

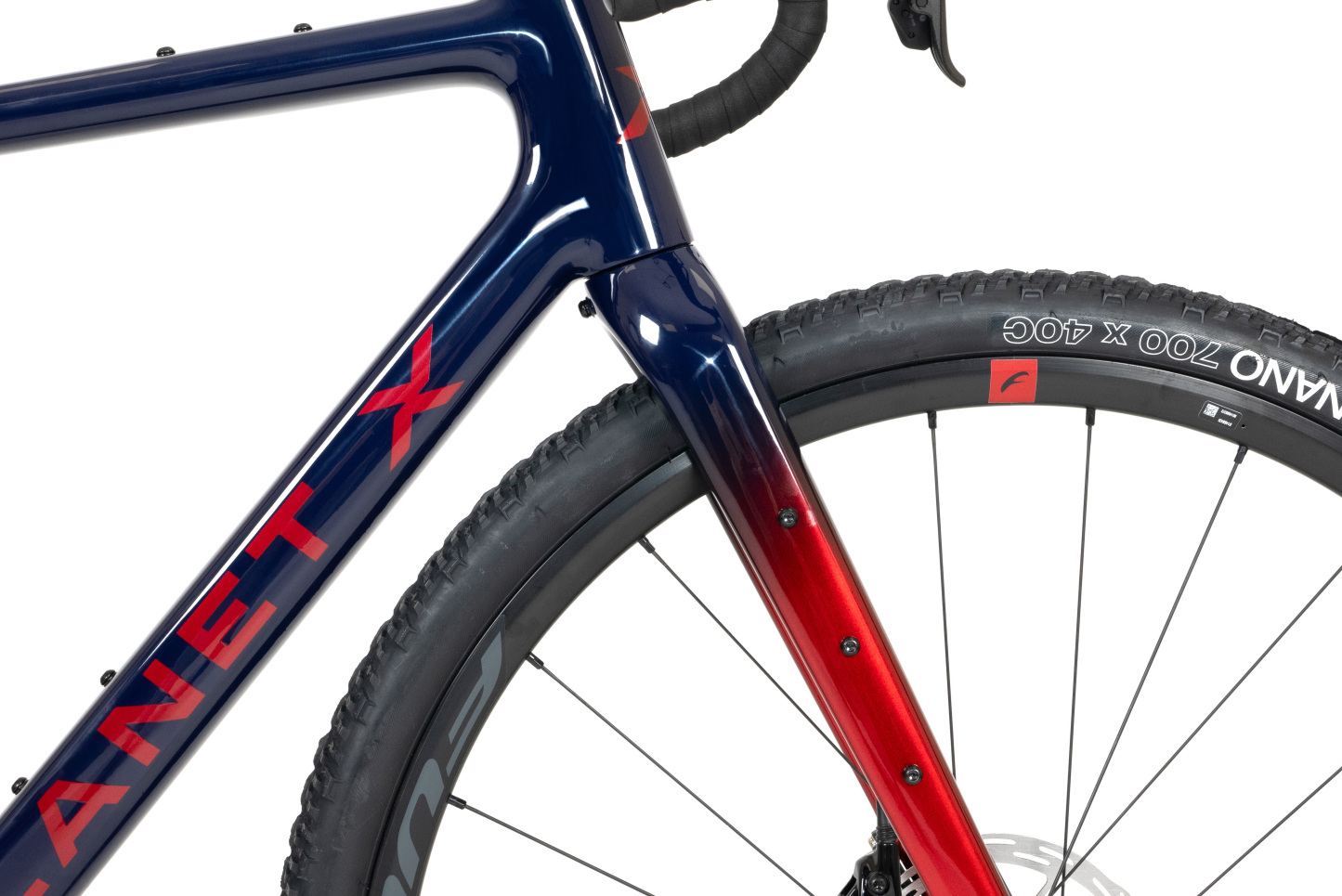

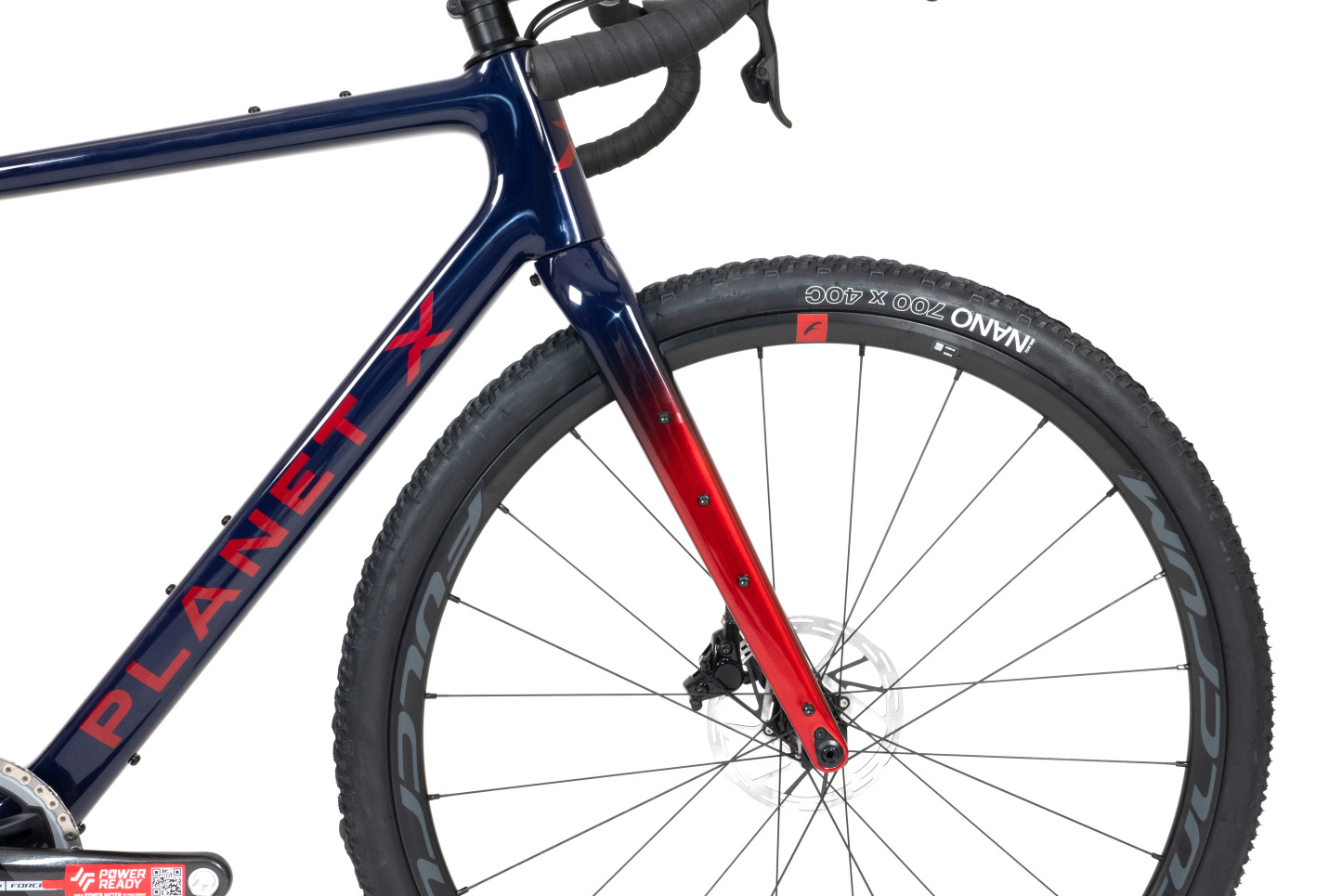

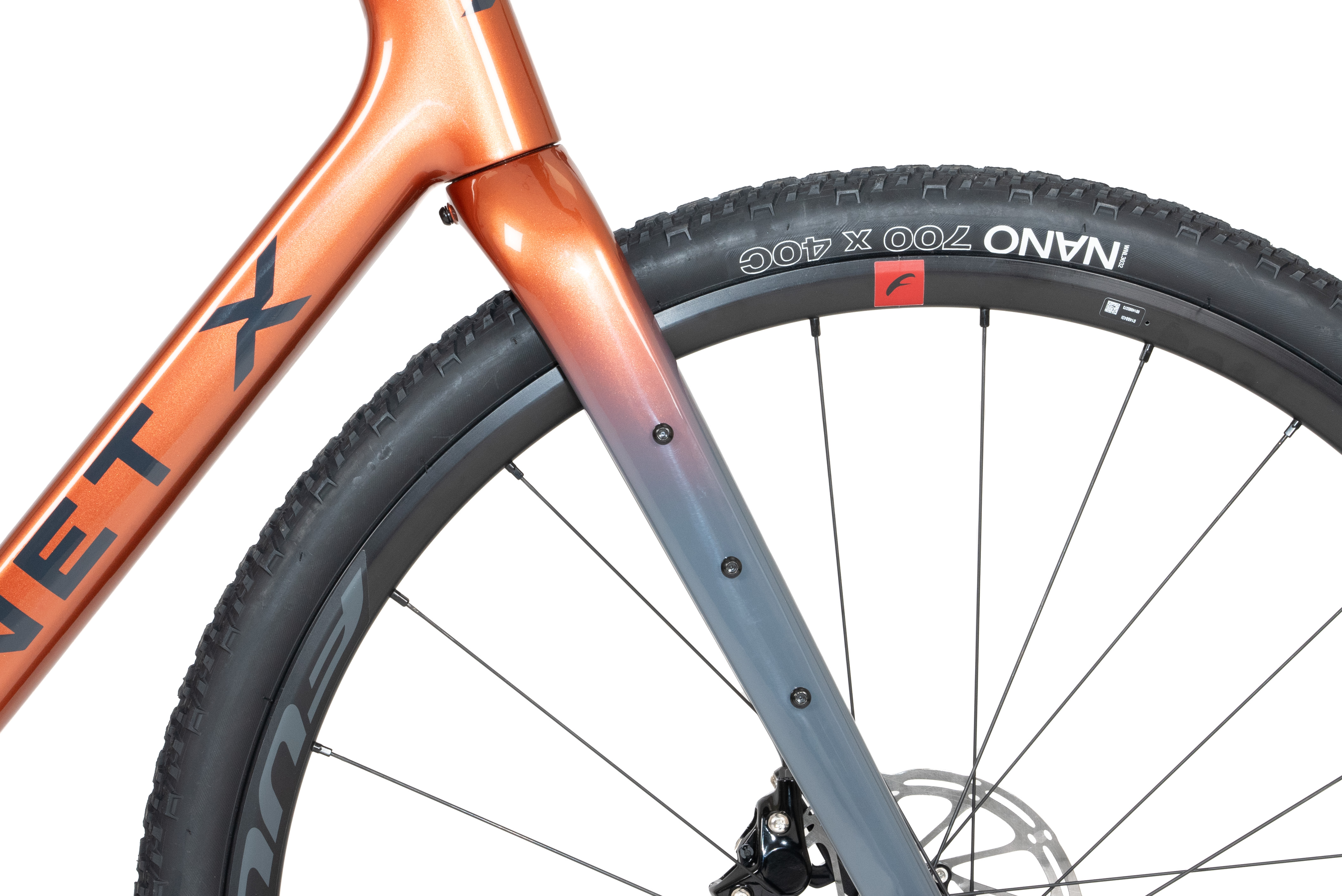

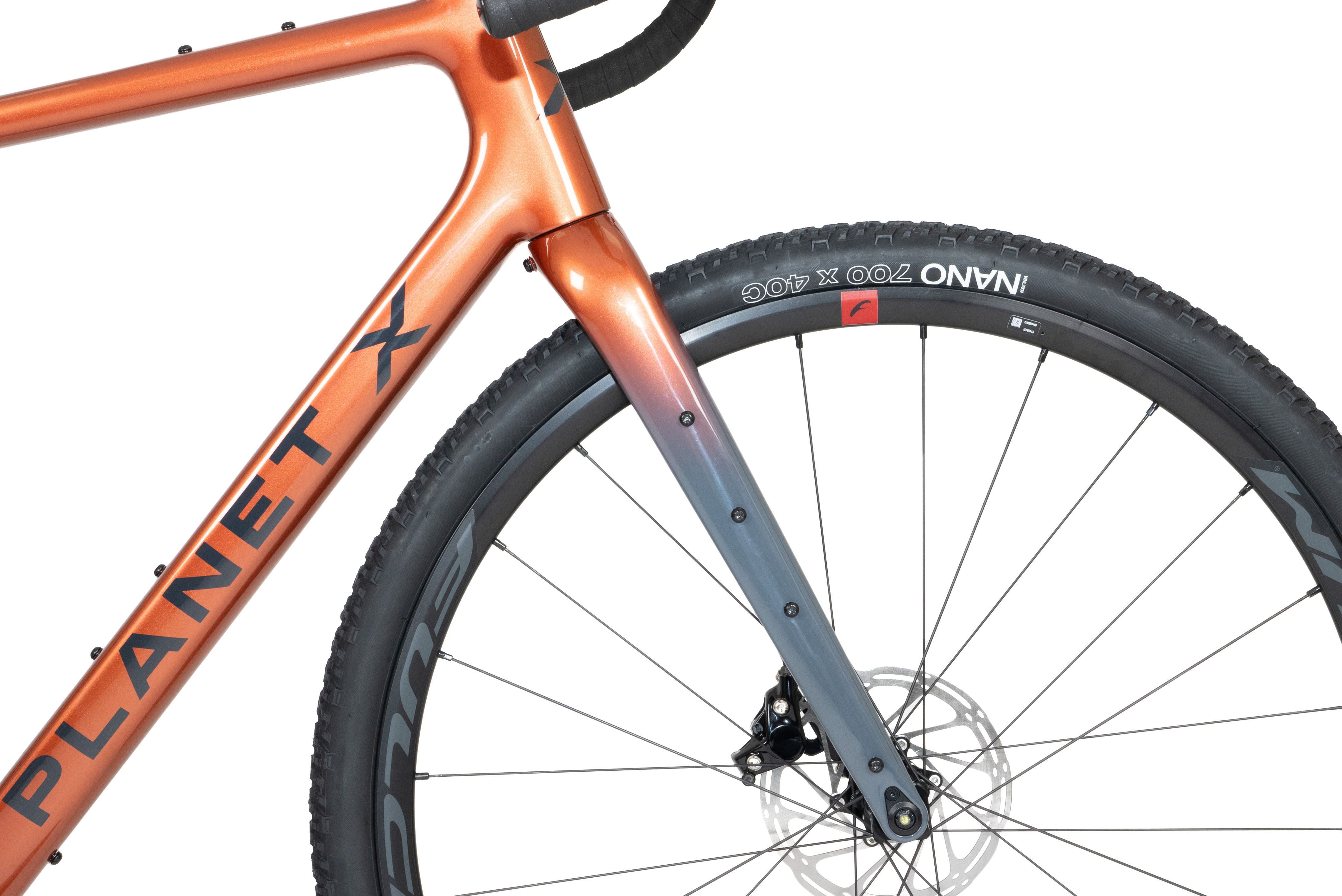

Full Luggage Mounts (Including Fork).
Tyre Clearance 700x50c

View less

$3,533.00

Shipping calculated at checkout.

Expect dispatch in 14 days

Available on Cycle to work

Colour

Midnight Marauder Bronze Raider

X-Small Small Medium Large X-Large

Rider Height	Suggested Frame Size
5′0″ to 5′5″	X-Small
5′5″ to 5′8″	Small
5′7″ to 5′10″	Medium
5′9″ to 6′0″	Large
6′0″ to 6′3″	X-Large

		XS	S	M	L	XL
A	Head Angle (degrees)	70	71	71	71	71
B	Head Tube (mm)	110	125	140	160	185
C	Top Tube Effective(mm)	517	538	551	571	588
D	Seat Tube Angle (degrees)	74	73	73	72.5	72.5
E	Seat Tube C-T Actual (mm)	450	490	520	540	560
F	Chainstays (mm)	435	435	435	435	435
G	BB Drop (mm)	69	69	69	69	69
H	Stack (mm)	530	548	562	581	604
I	Reach (mm)	365	370	379	388	397
J	Front Centre (mm)	596	597	611	626	643
K	Wheelbase (mm)	1021	1023	1036	1052	1069

Please note that our bikes are not supplied with pedals - these must be purchased separately

🔧 Customise your bike

Quantity

CBBIKE-REI-FAX-MED-BRZ

Frame

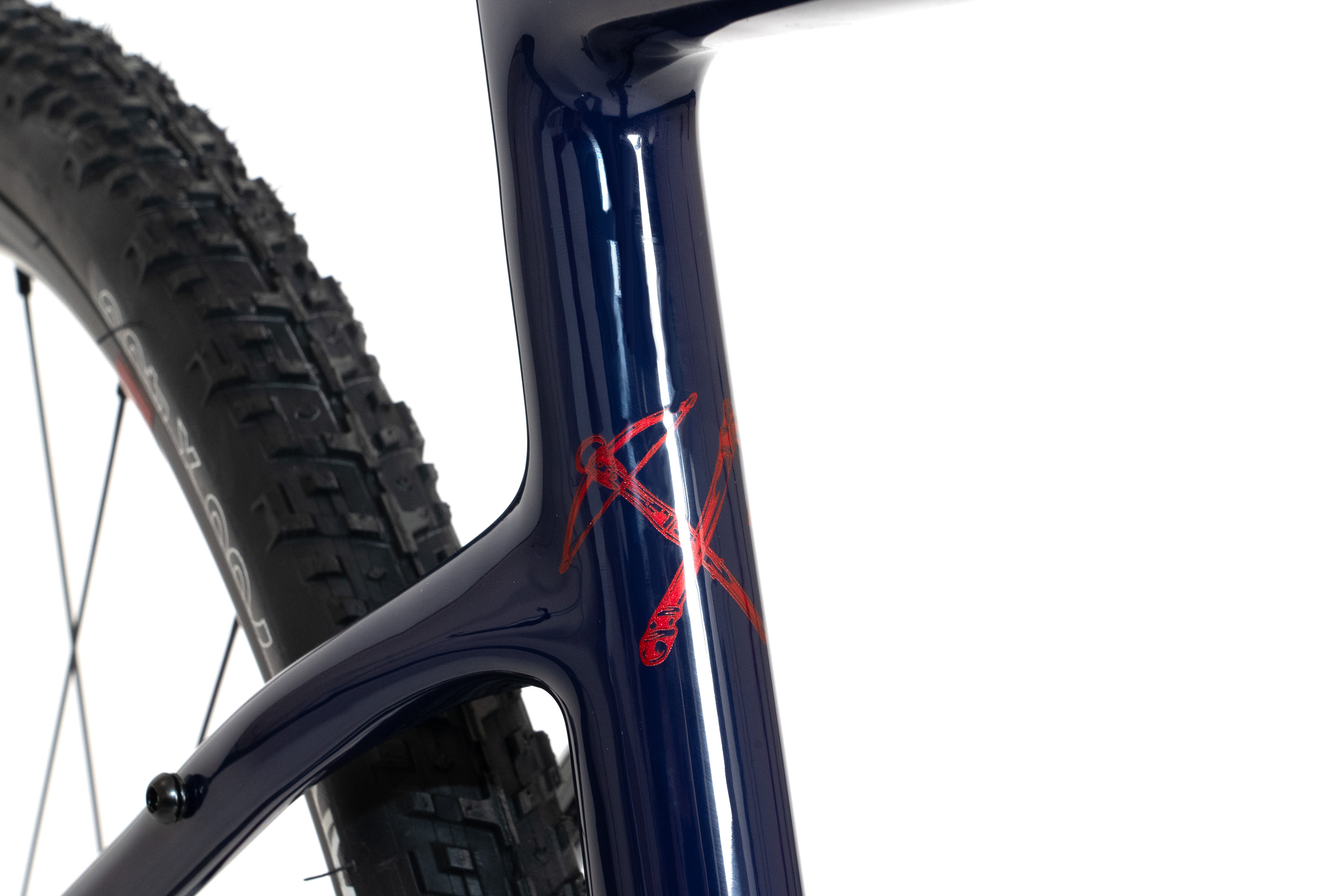

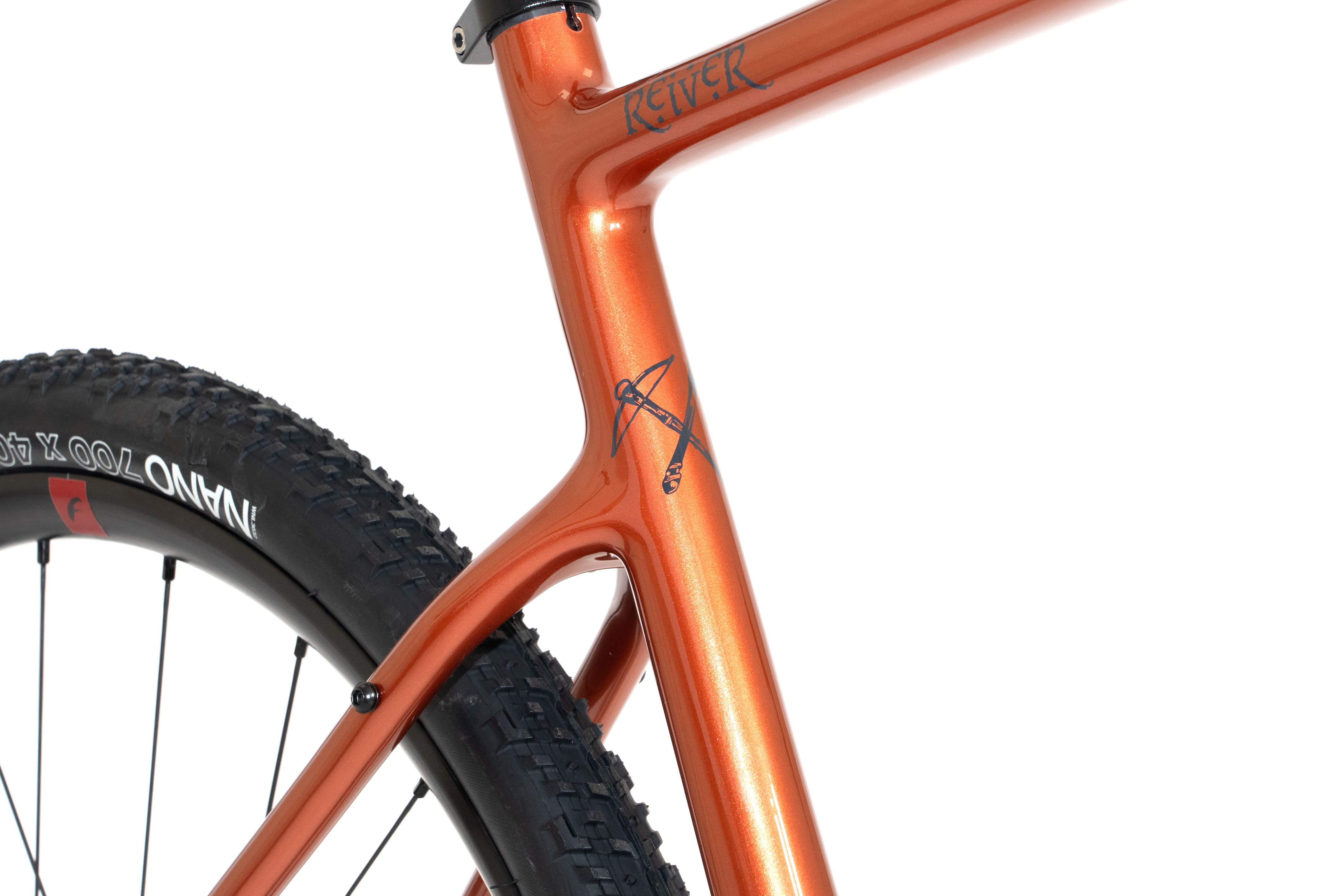

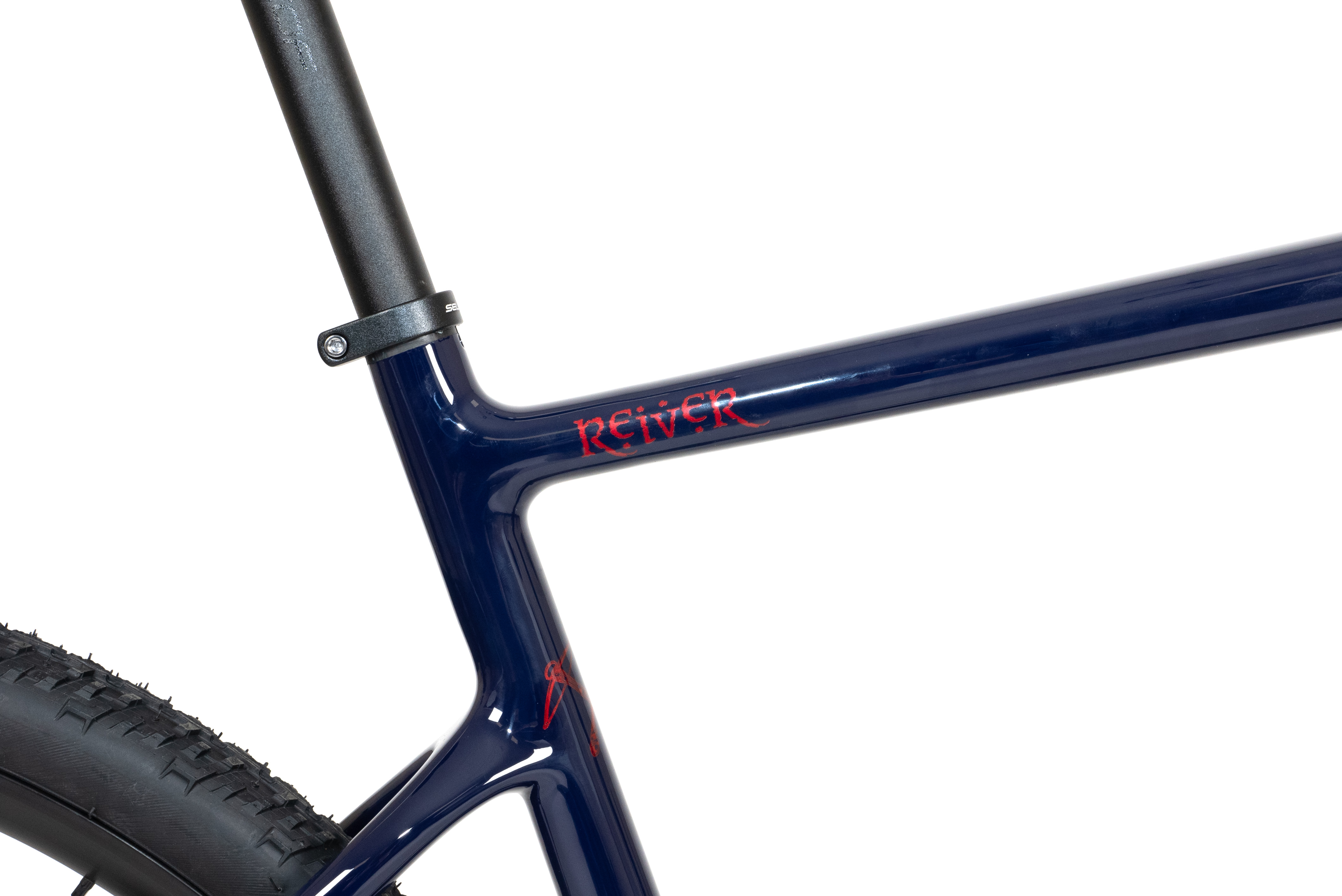

Taking inspiration from multi day endurance gravel racing we set out to develop our own bike, eager to conquer this exciting form of offroad riding where speed and comfort are essential. Each tube profile has been designed to create a stiff yet forgiving ride, the dropped rear stays aid comfort while also giving an aerodynamic gain minimising watt loss to the rear wheel. The up-to-date geometry strikes a perfect balance between speed, handling and comfort. The semi-integrated cockpit gives a clean aesthetic, while the use of a conventional stem and handlebars allows freedom to upgrade and experiment with stem lengths and bar widths without unnecessary cost and complication. The use of a simple creak fee BSA threaded bottom bracket, and UDH hanger means easy maintenance wherever you are. Smaller riders will benefit from the slacker head angle and increased fork offset, minimising wheel toe overlap. Four bottle cage mounts, triple fork mounts, pannier rack and full mudguard mounts make the Reiver easy to live with on long days in the saddle in all but the worst conditions.

Groupset

Effortless Expanded
Meet the drivetrain that matches your dedication to gravel. Force XPLR AXS seamlessly blends resilience and precision in a light and fast gravel-specific package. From simpler setup with a robust Full Mount derailleur to better braking with redesigned controls, this fully wireless 13-speed generation of Force works hard so you don’t have to.

Frame

Taking inspiration from multi day endurance gravel racing we set out to develop our own bike, eager to conquer this exciting form of offroad riding where speed and comfort are essential. Each tube profile has been designed to create a stiff yet forgiving ride, the dropped rear stays aid comfort while also giving an aerodynamic gain minimising watt loss to the rear wheel. The up-to-date geometry strikes a perfect balance between speed, handling and comfort. The semi-integrated cockpit gives a clean aesthetic, while the use of a conventional stem and handlebars allows freedom to upgrade and experiment with stem lengths and bar widths without unnecessary cost and complication. The use of a simple creak fee BSA threaded bottom bracket, and UDH hanger means easy maintenance wherever you are. Smaller riders will benefit from the slacker head angle and increased fork offset, minimising wheel toe overlap. Four bottle cage mounts, triple fork mounts, pannier rack and full mudguard mounts make the Reiver easy to live with on long days in the saddle in all but the worst conditions.

Groupset

Effortless Expanded
Meet the drivetrain that matches your dedication to gravel. Force XPLR AXS seamlessly blends resilience and precision in a light and fast gravel-specific package. From simpler setup with a robust Full Mount derailleur to better braking with redesigned controls, this fully wireless 13-speed generation of Force works hard so you don’t have to.

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′0″ to 5′5″	X-Small
5′5″ to 5′8″	Small
5′7″ to 5′10″	Medium
5′9″ to 6′0″	Large
6′0″ to 6′3″	X-Large

		XS	S	M	L	XL
A	Head Angle (degrees)	70	71	71	71	71
B	Head Tube (mm)	110	125	140	160	185
C	Top Tube Effective(mm)	517	538	551	571	588
D	Seat Tube Angle (degrees)	74	73	73	72.5	72.5
E	Seat Tube C-T Actual (mm)	450	490	520	540	560
F	Chainstays (mm)	435	435	435	435	435
G	BB Drop (mm)	69	69	69	69	69
H	Stack (mm)	530	548	562	581	604
I	Reach (mm)	365	370	379	388	397
J	Front Centre (mm)	596	597	611	626	643
K	Wheelbase (mm)	1021	1023	1036	1052	1069

🔧 Build Kit

🔧 Groupset

GBSRFOAKSE1-RR-2000-FM20	SRAM Force AXS E1 Shift Brake System / Left Lever / Rea
GBSRFOAXSE1-FF-1000-FM20	SRAM Force AMS E1 Shift Brake System / Right Lever / Fr
RMSRFOKPLRAXSE1-M46	SRAM Force AMS E1 13 Speed Rear Mech / Max 46T
1371-1046	SRAM Force XG-1371 13 Speed Cassette / 10-46 Tooth
CHSRFOAXSE1-120	SRAM Force AXS E1 Chain / 120 Link
BBSRDUBBSA-6873	SRAM DUB BSA Bottom Bracket / 6mm Road / 73mm Road Wid
BSSRDBME-15-SIN	SRAM Flat Mount Disc Brake Mounting Hardware / 15mm / S. 0.00.....3460.00
BSSRPL-160	SRAM Paceline Centerlock Disc Brake Rotor / 160mm... ° 0.00. -1-00
FSSRAXSPP-1BA	SRAM Powerpack For AXS / 1 Battery... > ° +92.00. -0.00
BSAVHOSE-BB	SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive. 600.00......634.00
BSAVHOSE-OL	SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive. 600.00......944.00
