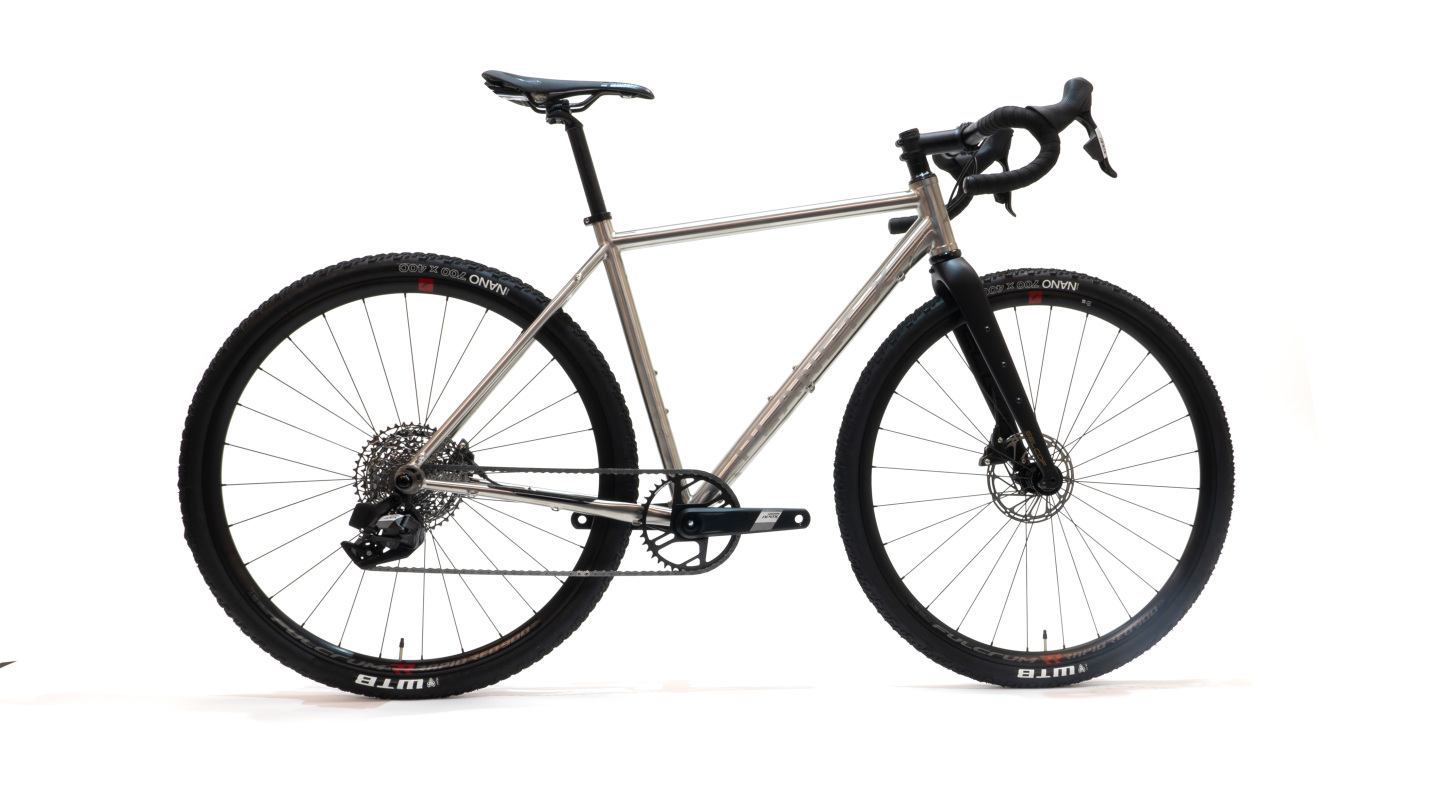

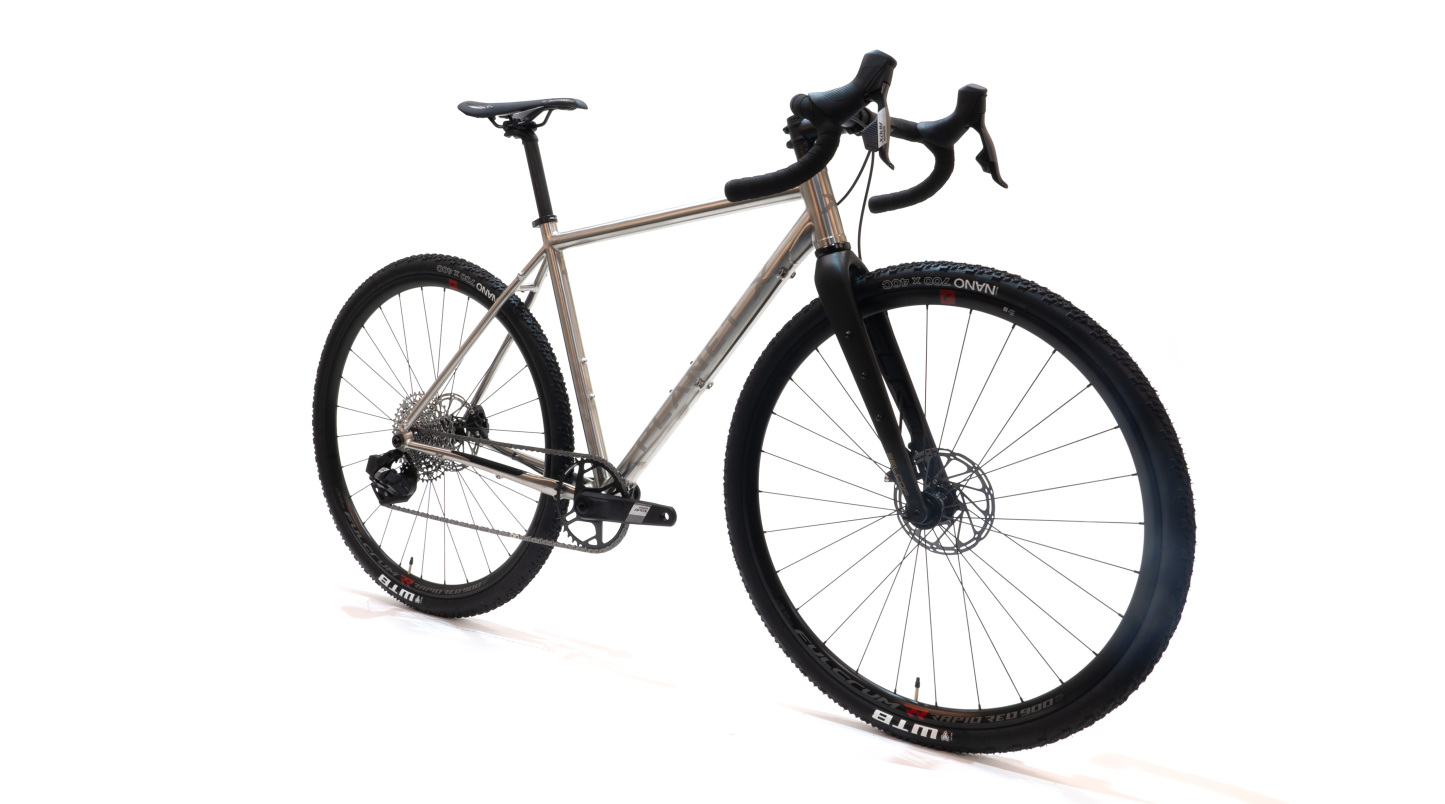

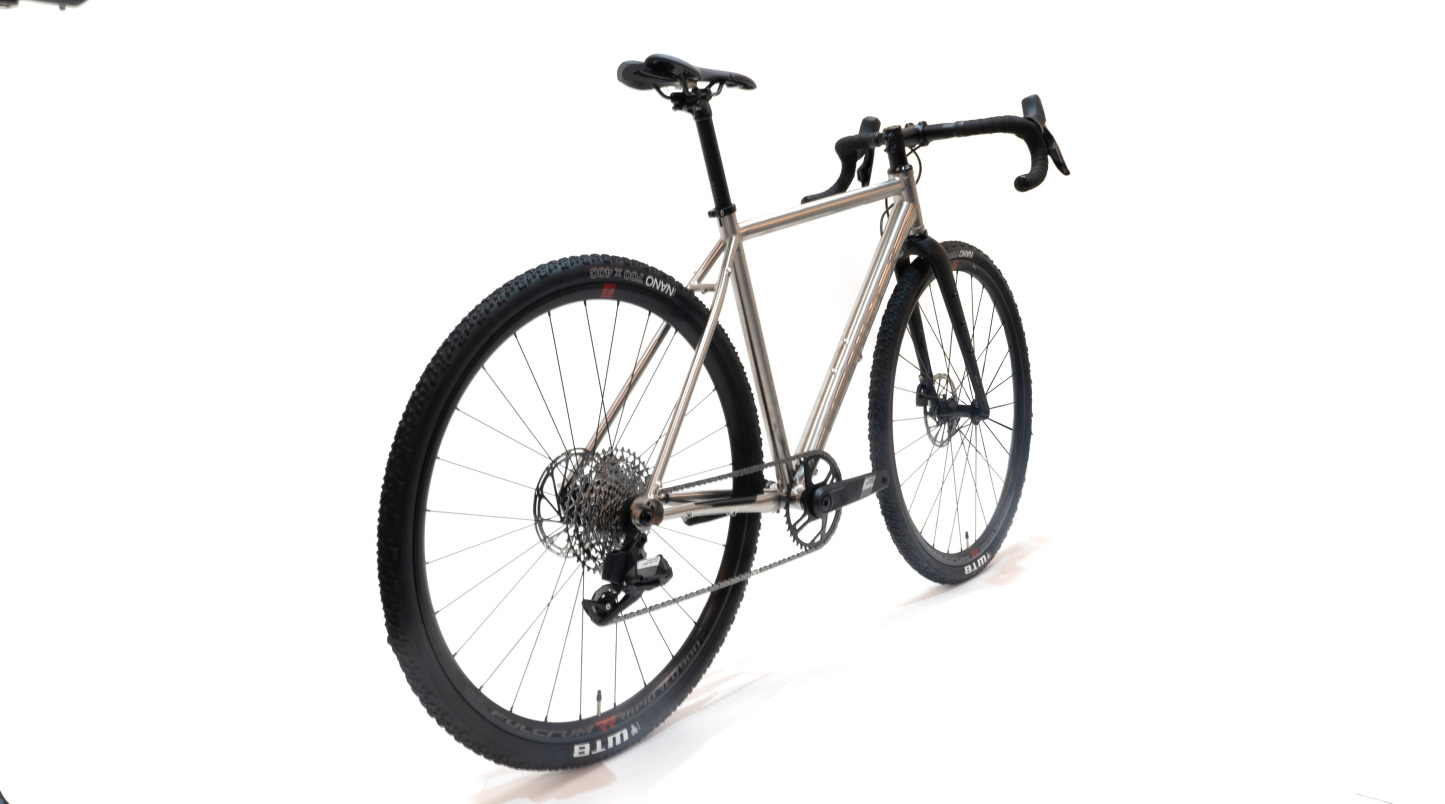

Planet X Tempest SRAM Apex AXS Titanium Gravel Bike

At home on the rough but surprising on the smooth, the titanium Tempest is a gravel bike at heart but still light enough to cover the miles on the road. Using relaxed geometry, a supple titanium frame and plenty of tyre clearance, it's still capable of offering all day comfort off road. Mounts for mudguards and panniers make this a contender for multi-day adventures too.

SRAM APEX AXS Wireless Groupset
SRAM APEX Hydraulic Brakes
Tyre clearance up to 48MM (700C)
Titanium Frame with Carbon Fork
SRAM UDH Hanger

View less

$2,211.00

Shipping calculated at checkout.

Expect dispatch in 5 days

Available on Cycle to work

XSmall Small Medium Large XLarge

Rider Height	Suggested Frame Size
5′0″ to 5′5″	460mm / XSM
5′5″ to 5′8″	490mm / SML
5′7″ to 5′10″	510mm / MED
5′9″ to 6′0″	530mm / LRG
5′11″ to 6′3″	550mm / XL

		XS	S	M	L	XL
A	Head Angle (degrees)	70.5	71.0	71.0	71.5	72.0
B	Head Tube (mm)	100	110	125	155	165
C	Top Tube Effective (mm)	520	535	550	570	590
D	Seat Tube Angle (degrees)	74.5	74.5	74	73.5	73.0
E	Seat Tube C-T (mm)	460	490	510	530	550
F	Chainstays (mm)	440	440	440	440	440
G	BB Drop (mm)	70	70	70	70	70
H	Stack (mm)	532	543	557	587	599
I	Reach (mm)	373	385	390	395	407
J	Front Centre (mm)	588	599	610	620	630
K	Wheelbase (mm)	1018	1029	1039	1050	1061

🔧 Customise your bike

Quantity

CBBIKE-TEM-APA-XSM-TIT

Frame

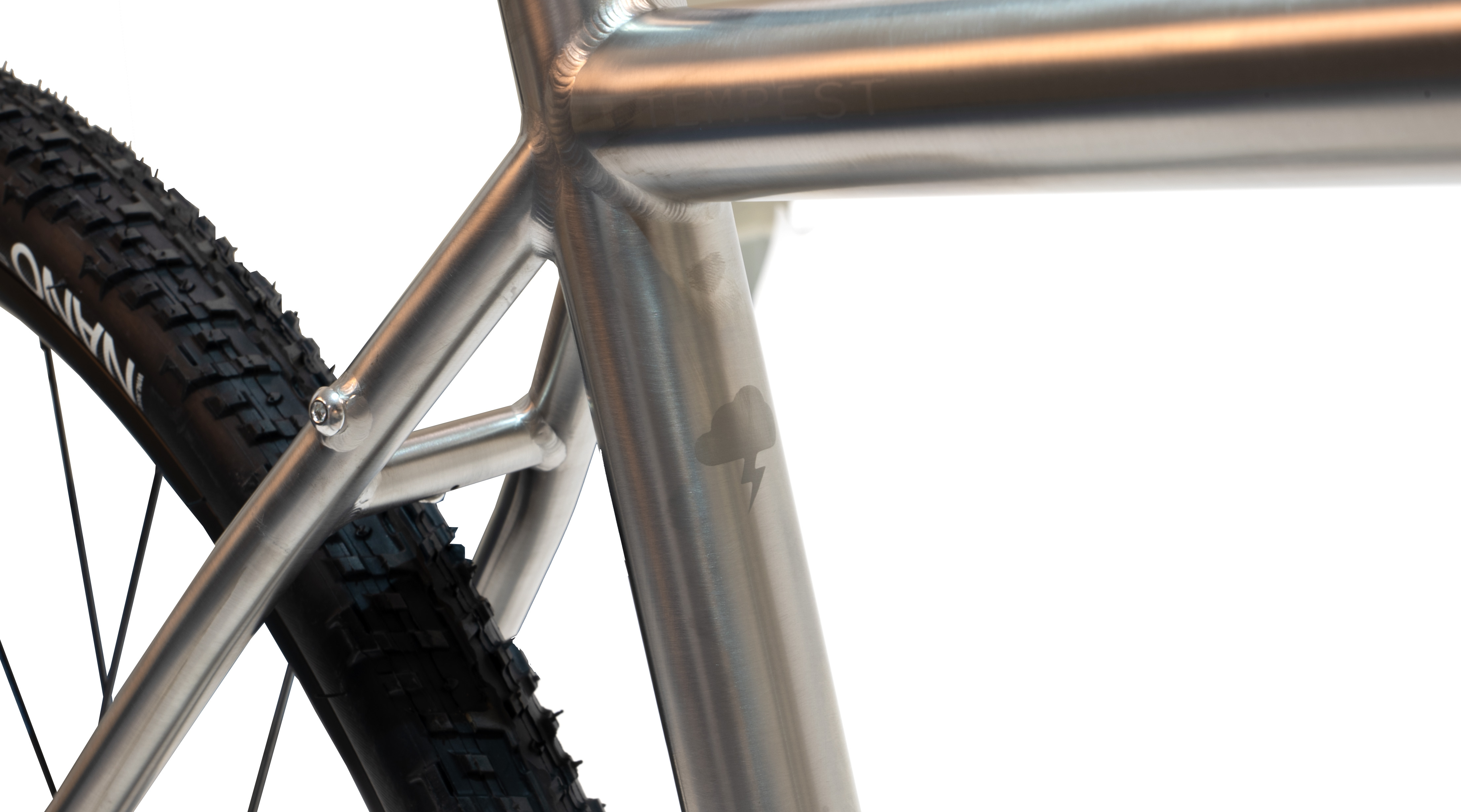

Featuring responsive and agile gravel geometry, and a lightweight, corrosion proof, and extremely durable Aerospace Grade 9 3AL-2.5V Titanium frame, the Tempest is a gravel bike designed to excel off road but remain fast and capable on the tarmac. Tackling singletrack with ease yet keeping the responsiveness of an endurance road bike. Huge tyre clearance of up to 700c x 48mm will give you the confidence that you need on rougher terrain. Full rack and mudguard mounts allow you to load up for your next multi-day adventure.

Groupset

One group, multiple choices.
Apex is the group that knows how to have a good time. Wide-range 1x12 gearing for gravel, bikepacking, adventure, casual cruises, and everything in between. With wireless AXS or classic DoubleTap mechanical shifting, XPLR or Eagle gearing, Apex connects you to your bike with smooth and reliable shifting, chain retention, and controlled and powerful hydraulic braking. Apex is simple to understand and easy to use, keeping the focus on what matters most – finding the fun.

Frame

Featuring responsive and agile gravel geometry, and a lightweight, corrosion proof, and extremely durable Aerospace Grade 9 3AL-2.5V Titanium frame, the Tempest is a gravel bike designed to excel off road but remain fast and capable on the tarmac. Tackling singletrack with ease yet keeping the responsiveness of an endurance road bike. Huge tyre clearance of up to 700c x 48mm will give you the confidence that you need on rougher terrain. Full rack and mudguard mounts allow you to load up for your next multi-day adventure.

Groupset

One group, multiple choices.
Apex is the group that knows how to have a good time. Wide-range 1x12 gearing for gravel, bikepacking, adventure, casual cruises, and everything in between. With wireless AXS or classic DoubleTap mechanical shifting, XPLR or Eagle gearing, Apex connects you to your bike with smooth and reliable shifting, chain retention, and controlled and powerful hydraulic braking. Apex is simple to understand and easy to use, keeping the focus on what matters most – finding the fun.

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′0″ to 5′5″	460mm / XSM
5′5″ to 5′8″	490mm / SML
5′7″ to 5′10″	510mm / MED
5′9″ to 6′0″	530mm / LRG
5′11″ to 6′3″	550mm / XL

		XS	S	M	L	XL
A	Head Angle (degrees)	70.5	71.0	71.0	71.5	72.0
B	Head Tube (mm)	100	110	125	155	165
C	Top Tube Effective (mm)	520	535	550	570	590
D	Seat Tube Angle (degrees)	74.5	74.5	74	73.5	73.0
E	Seat Tube C-T (mm)	460	490	510	530	550
F	Chainstays (mm)	440	440	440	440	440
G	BB Drop (mm)	70	70	70	70	70
H	Stack (mm)	532	543	557	587	599
I	Reach (mm)	373	385	390	395	407
J	Front Centre (mm)	588	599	610	620	630
K	Wheelbase (mm)	1018	1029	1039	1050	1061

🔧 Build Kit

SRAM Flat Mount Disc Brake Mounting Hardware / 27mm / Single

Selcof Carbon Steerer Fork Bung MK 4 / 23-24mm ID

Selcof Forged Alloy Bolt Up Seatclamp V3 / 31.8mm / 12mm / Black

Bike Build Packaging Rear Derailleur Protector

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

Selcof Semi-Integrated Cup Cartridge Bearing Headset

🔧 Groupset

SRAM Apex 12 Speed Chain / 120 Link

SRAM XPLR PG-1231 12 Speed Cassette / 11-44 Tooth

SRAM Apex AXS Shift Brake System With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / Flat Mount 20mm Offset

SRAM Apex AXS Shift Brake System With Flat Mount Caliper / Right Lever / Front Brake / 1300mm / Flat Mount 20mm Offset

SRAM Apex 1 Wide Chainset / 172.5mm / 40 Tooth

SRAM Apex XPLR AXS 1x12 Speed Rear Mech / Max 44 Tooth

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive

Avid Centreline Disc Brake Rotor / 160mm Centrelock

SRAM Flat Mount Disc Brake Mounting Hardware / 15mm / Single

SRAM Powerpack For AXS / 1 Battery

SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide
