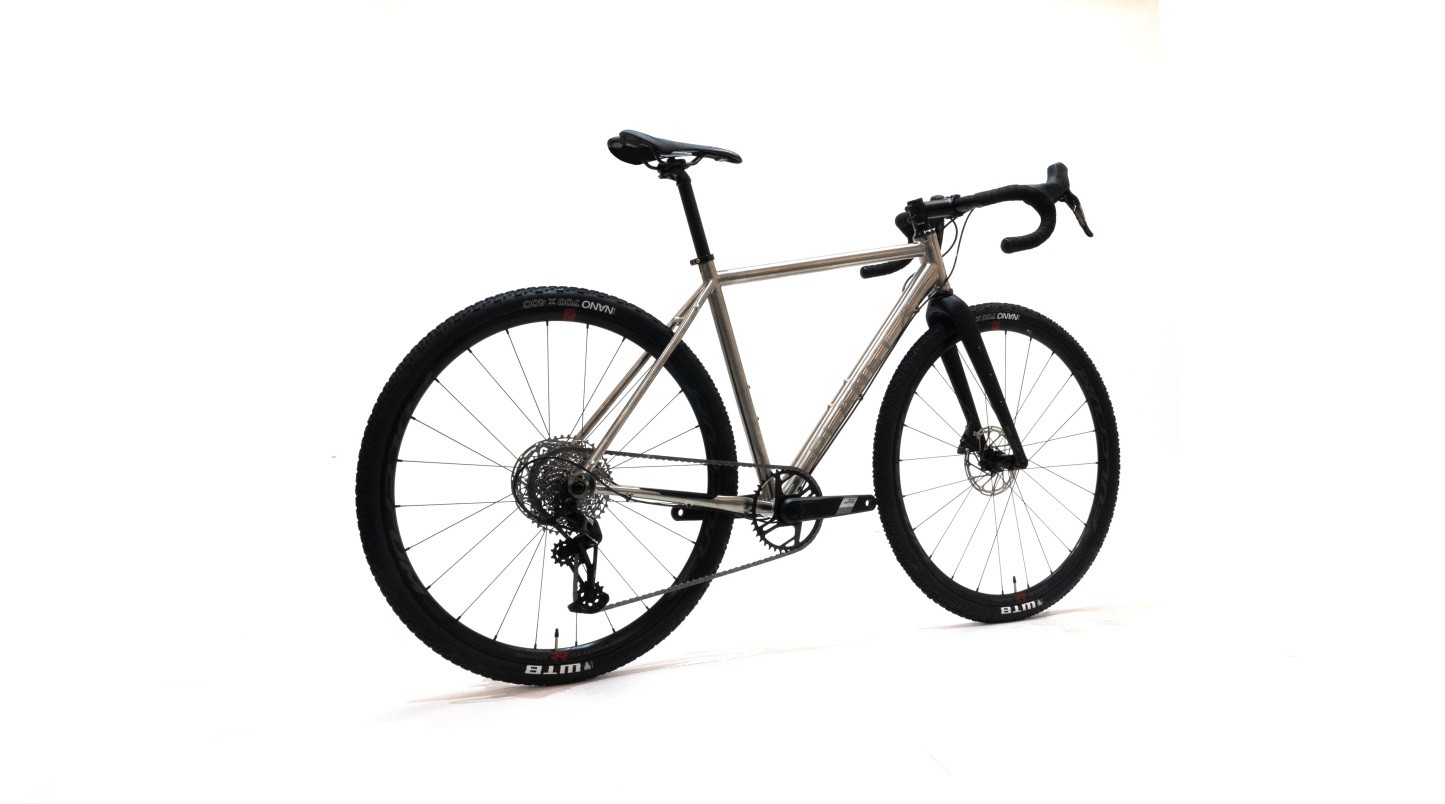

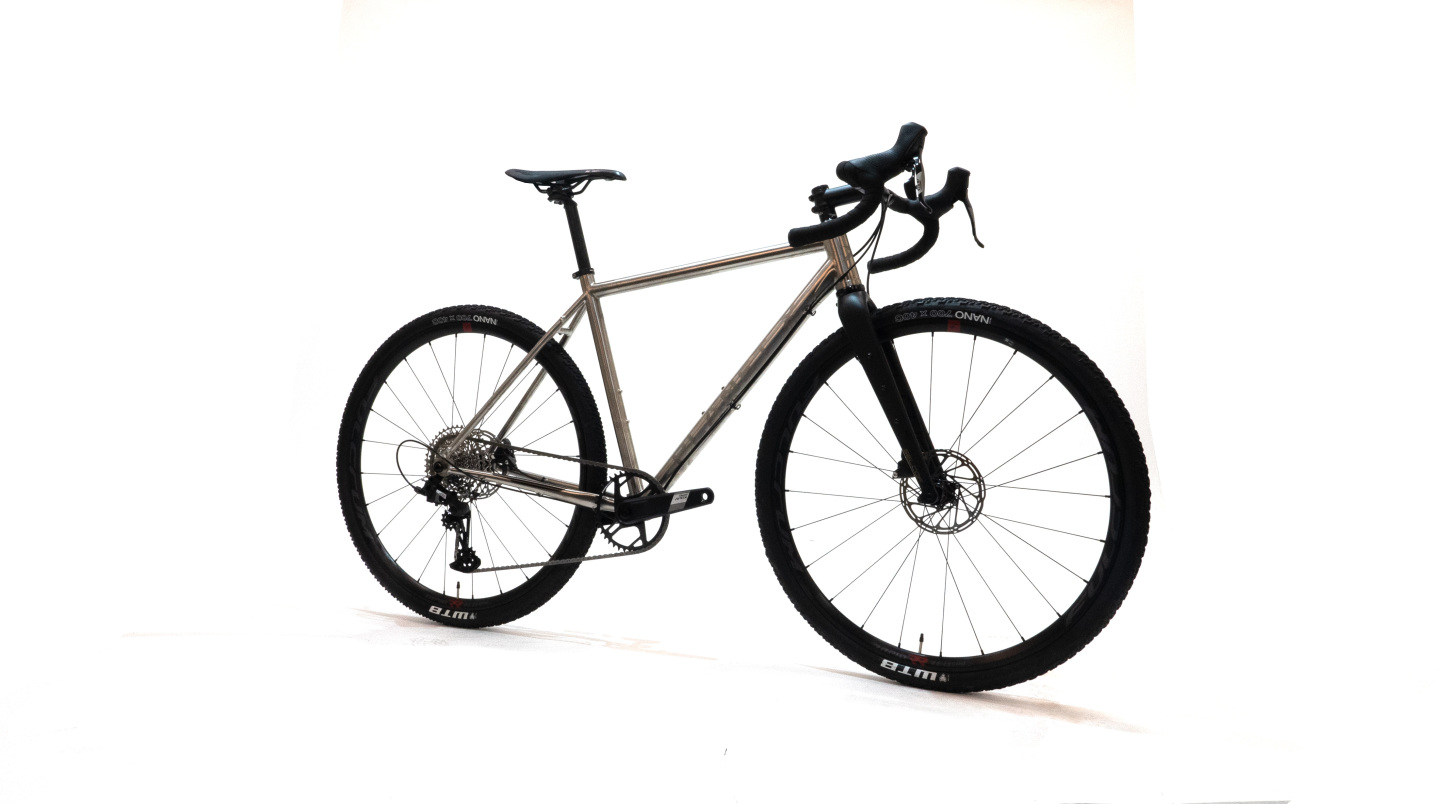

Planet X Tempest SRAM Apex XPLR Titanium Gravel Bike

At home on the rough but surprising on the smooth, the titanium Tempest is a gravel bike at heart but still light enough to cover the miles on the road. Using relaxed geometry, a supple titanium frame and plenty of tyre clearance, it's still capable of offering all day comfort off road. Mounts for mudguards and panniers make this a contender for multi-day adventures too.

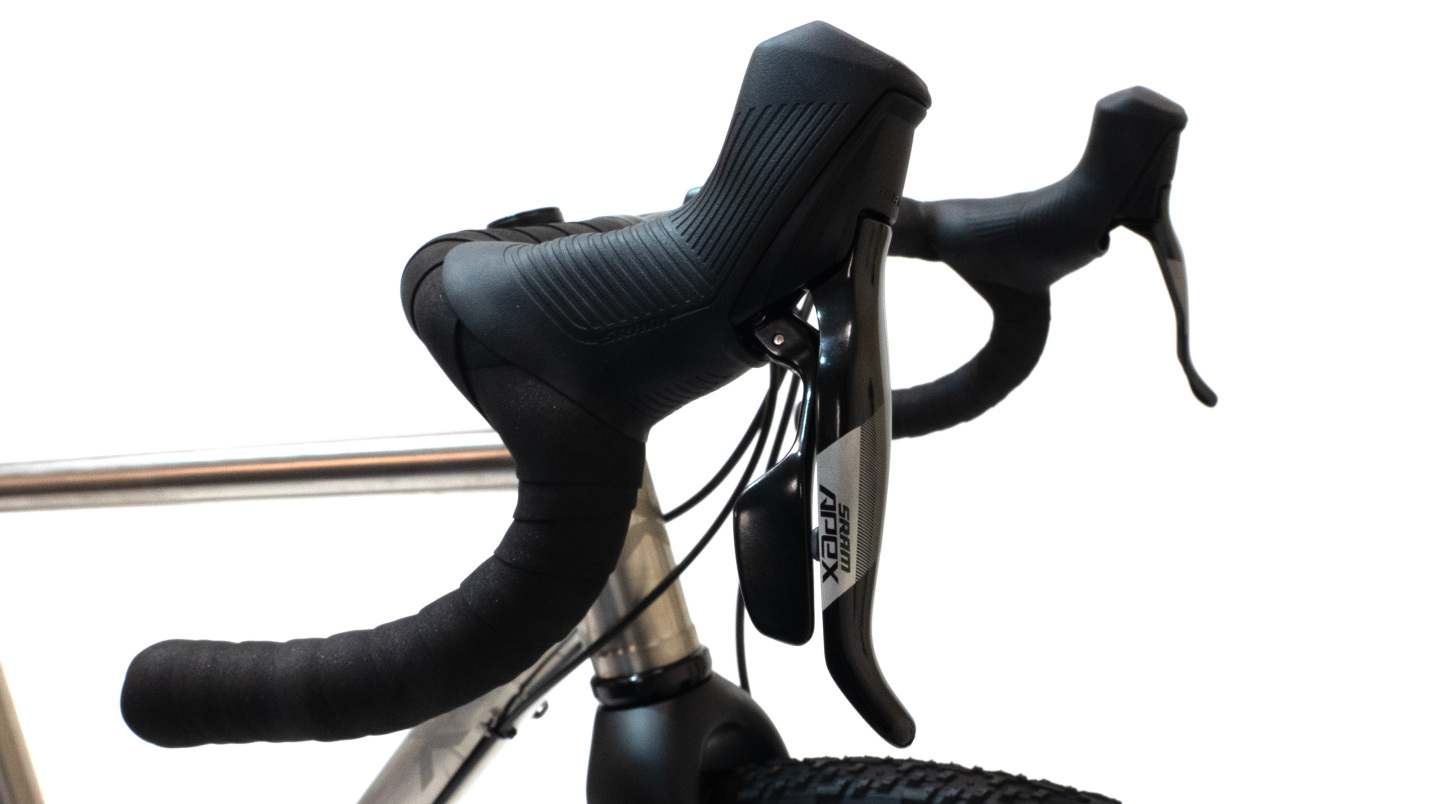

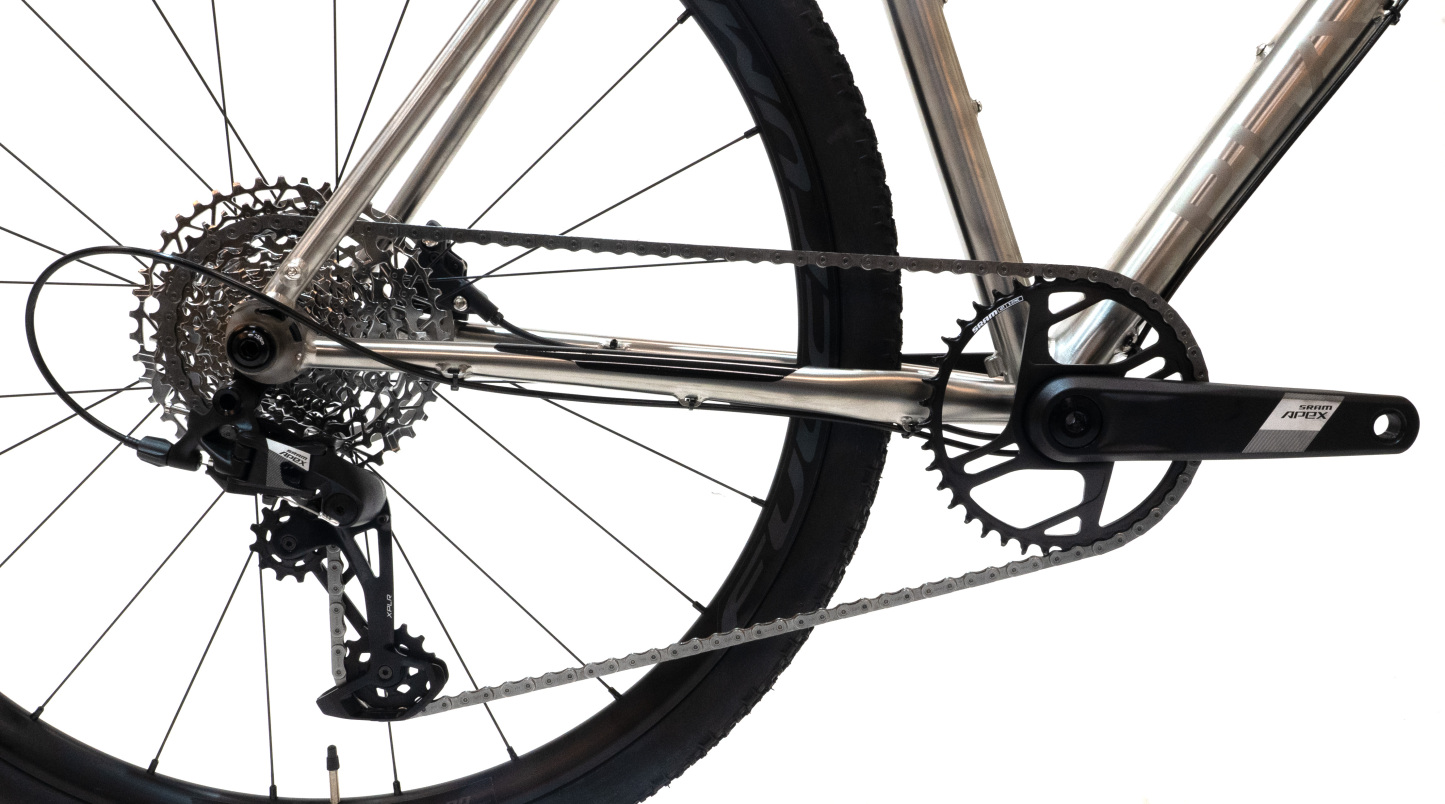

SRAM Apex XPLR 1 x 12 Groupset
Fulcrum Rapid Red Wheels
Tyre clearance up to 48MM (700C)
Titanium Frame with Carbon Fork
SRAM UDH Hanger

View less

$1,991.00

Shipping calculated at checkout.

Expect dispatch in 14 days

Available on Cycle to work

XSmall Small Medium Large XLarge

Rider Height	Suggested Frame Size
5′0″ to 5′5″	460mm / XSM
5′5″ to 5′8″	490mm / SML
5′7″ to 5′10″	510mm / MED
5′9″ to 6′0″	530mm / LRG
5′11″ to 6′3″	550mm / XL

		XS	S	M	L	XL
A	Head Angle (degrees)	70.5	71.0	71.0	71.5	72.0
B	Head Tube (mm)	100	110	125	155	165
C	Top Tube Effective (mm)	520	535	550	570	590
D	Seat Tube Angle (degrees)	74.5	74.5	74	73.5	73.0
E	Seat Tube C-T (mm)	460	490	510	530	550
F	Chainstays (mm)	440	440	440	440	440
G	BB Drop (mm)	70	70	70	70	70
H	Stack (mm)	532	543	557	587	599
I	Reach (mm)	373	385	390	395	407
J	Front Centre (mm)	588	599	610	620	630
K	Wheelbase (mm)	1018	1029	1039	1050	1061

🔧 Customise your bike

Quantity

CBBIKE-TEM-A12-XSM-TIT

Frame

Groupset

Frame

Groupset

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′0″ to 5′5″	460mm / XSM
5′5″ to 5′8″	490mm / SML
5′7″ to 5′10″	510mm / MED
5′9″ to 6′0″	530mm / LRG
5′11″ to 6′3″	550mm / XL

		XS	S	M	L	XL
A	Head Angle (degrees)	70.5	71.0	71.0	71.5	72.0
B	Head Tube (mm)	100	110	125	155	165
C	Top Tube Effective (mm)	520	535	550	570	590
D	Seat Tube Angle (degrees)	74.5	74.5	74	73.5	73.0
E	Seat Tube C-T (mm)	460	490	510	530	550
F	Chainstays (mm)	440	440	440	440	440
G	BB Drop (mm)	70	70	70	70	70
H	Stack (mm)	532	543	557	587	599
I	Reach (mm)	373	385	390	395	407
J	Front Centre (mm)	588	599	610	620	630
K	Wheelbase (mm)	1018	1029	1039	1050	1061

🔧 Build Kit

SRAM Flat Mount Disc Brake Mounting Hardware / 27mm / Single

Selcof Carbon Steerer Fork Bung MK 4 / 23-24mm ID

Selcof Forged Alloy Bolt Up Seatclamp V3 / 31.8mm / 12mm / Black

Bike Build Packaging Rear Derailleur Protector

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

Selcof Semi-Integrated Cup Cartridge Bearing Headset

🔧 Groupset

SRAM Apex 12 Speed Chain / 120 Link

SRAM XPLR PG-1231 12 Speed Cassette / 11-44 Tooth

SRAM Apex 1 Wide Chainset / 172.5mm / 40 Tooth

SRAM Apex XPLR 1x12 Speed Rear Mech / Max 44 Tooth

SRAM Apex Shift Brake System With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / Flat Mount 20mm Offset

SRAM Apex Shift Brake System With Flat Mount Caliper / Right Lever / Front Brake / 1300mm / Flat Mount 20mm Offset

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive

Avid Centreline Disc Brake Rotor / 160mm Centrelock

SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide

Finance with Newpay and Planet X

You could enjoy a credit limit of up to £5000, and once you’ve bought something, you can choose a payment plan to suit you. It’s super-easy to apply and we’ll even do a no-risk check first to see if you're eligible

More Info

Easy Assembly

Assembling your new bike couldn't be easier. Every bike comes expertly packed at least 95% pre assembled, with step by step instructions to get the bike ready to roll.

So you can get out on that first ride without delay!

Hand Built in South Yorkshire

All Planet X, On One, Holdsworth and Titus Bikes are expertly hand built to order in South Yorkshire.

Every bike is comprehensively inspected before shipping to ensure your bike is perfect when it arrives at your door.

Not sure on your size? Get Fitted!

Get fitted to your bike at Planet X Headquarters by one of our trained fitters.

With our Mini Bike Fit, we can advise on sizing, optimise your ride for maximum comfort and efficiency and help you make the right component choices. all for a refundable deposit of £25.
