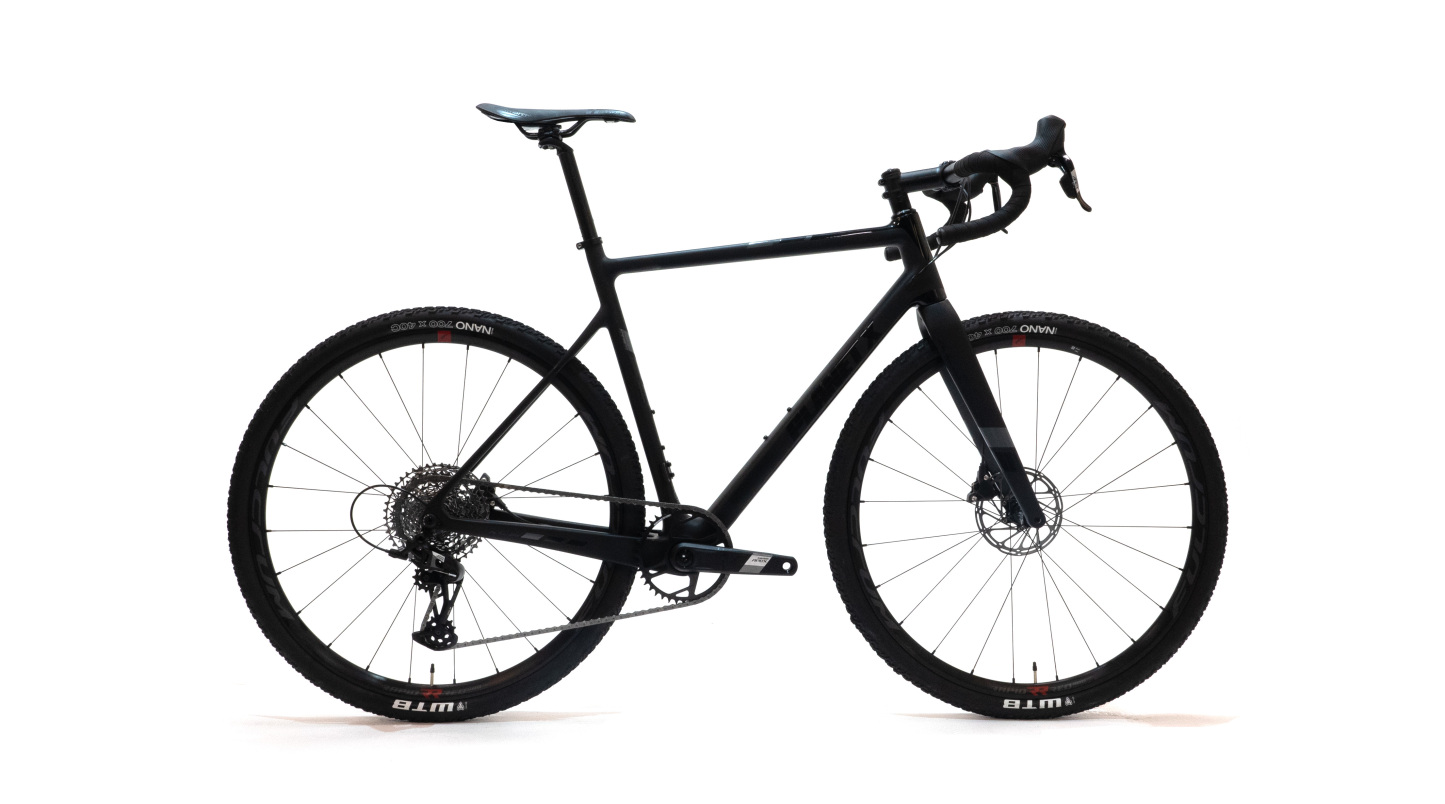

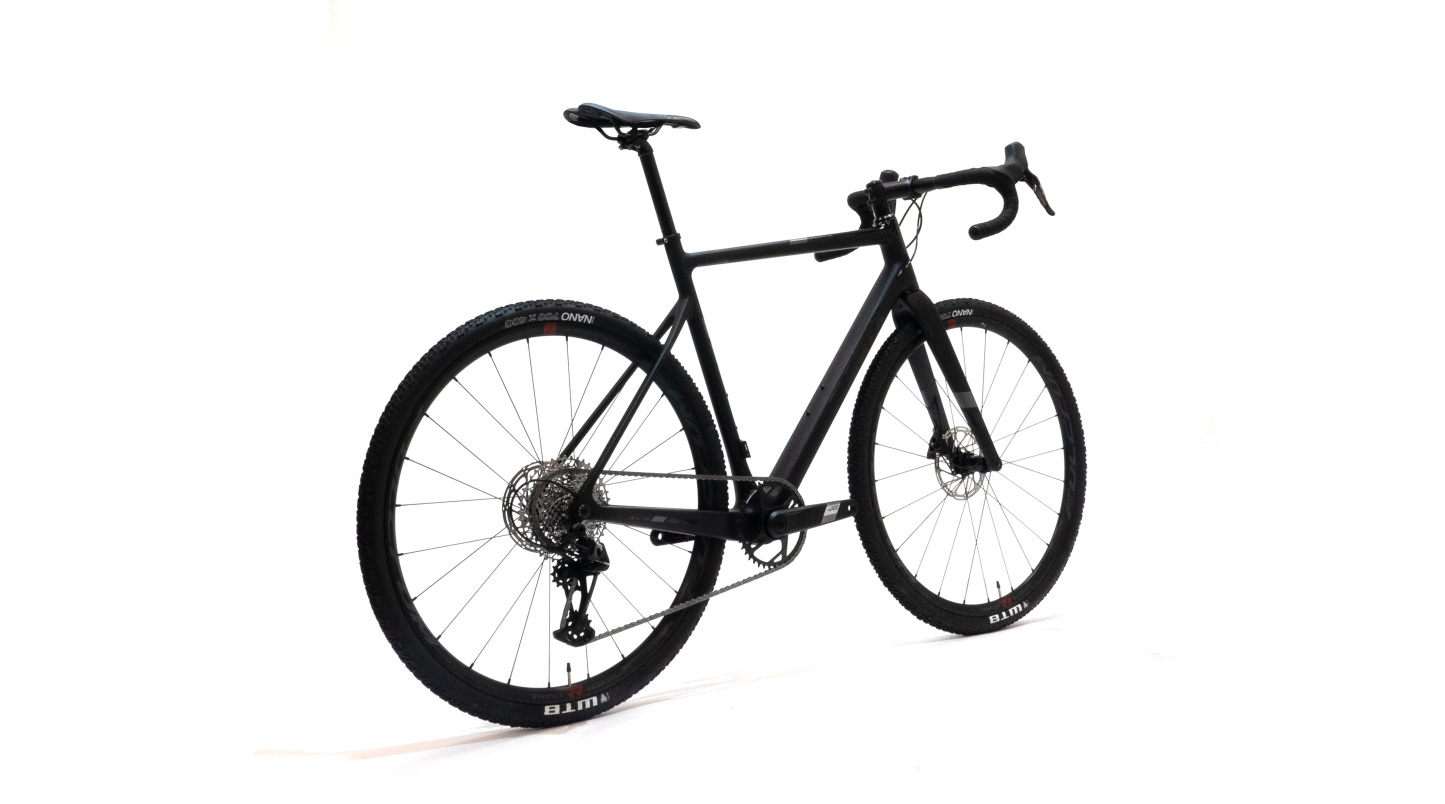

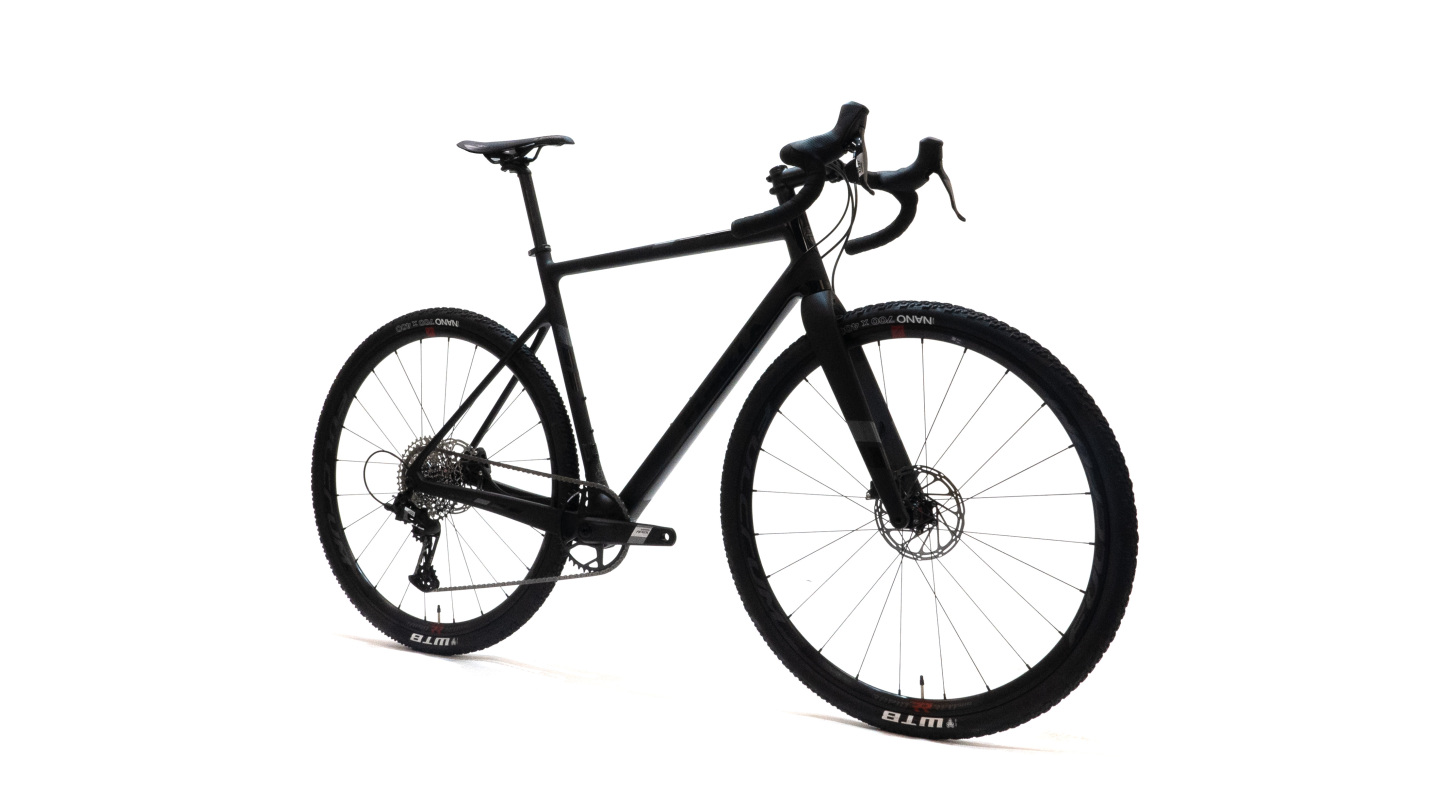

Planet X XLS Evo SRAM Apex XPLR Carbon Cyclocross Bike
$1,786.00
Shipping calculated at checkout.
_375x.svg?w=1024&h=1024)
-(13).png?w=500&h=500)
| Rider Height | Suggested Frame Size |
|---|---|
| 5′3″ to 5′6″ (160cm-167cm) | X-Small / 490 |
| 5′5″ to 5′8″ (165cm-172cm) | Small / 520 |
| 5′7″ to 5′10″ (169cm-178cm) | Medium / 540 |
| 5′9″ to 6′2″ (175cm- 188cm) | Large /560 |
| 6′1″ to 6′4″ (185cm- 193cm) | X-Large / 580 |
| XS 490mm |
SMALL 520mm |
MED 540mm |
LRG 560mm |
XLG 580 |
||
| A | Head Angle (degrees) | 71.0 | 71.5 | 72.0 | 72.0 | 72.0 |
| B | Head Tube (mm) | 110 | 130 | 140 | 160 | 180 |
| C | Top Tube Effective(mm) | 520 | 534 | 545 | 560 | 575 |
| D | Seat Tube Angle (degrees) | 75.0 | 74.0 | 73.5 | 73.0 | 73.0 |
| E | Seat Tube C-T Actual (mm) | 490 | 520 | 540 | 560 | 580 |
| F | Chainstays (mm) | 425 | 425 | 425 | 425 | 425 |
| G | BB Drop (mm) | 64 | 64 | 64 | 64 | 64 |
| H | Stack (mm) | 534 | 553 | 564 | 583 | 602 |
| I | Reach (mm) | 377 | 377 | 378 | 382 | 390 |
| J | Front Centre (mm) | 590 | 591 | 591 | 601 | 616 |
| K | Wheelbase (mm) | 1007 | 1007 | 1008 | 1018 | 1033 |
| SRAM Apex 12 Speed Chain / 120 Link |
| SRAM XPLR PG-1231 12 Speed Cassette / 11-44 Tooth |
| SRAM Apex 1 Wide Chainset / 172.5mm / 40 Tooth |
| SRAM Apex XPLR 1x12 Speed Rear Mech / Max 44 Tooth |
| SRAM Apex Shift Brake System With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / Flat Mount 20mm Offset |
| SRAM Apex Shift Brake System With Flat Mount Caliper / Right Lever / Front Brake / 1300mm / Flat Mount 20mm Offset |
| SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb |
| SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive |
| Avid Centreline Disc Brake Rotor / 160mm Centrelock |
| SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide |
🔧 Customise your bike
Quantity
CBBIKE-XLS-A12-XSM-BLK
.png?w=155&h=155)
Frame
Groupset
1
/
2
📏 Sizing and Geometry
| Rider Height | Suggested Frame Size |
|---|---|
| 5′3″ to 5′6″ (160cm-167cm) | X-Small / 490 |
| 5′5″ to 5′8″ (165cm-172cm) | Small / 520 |
| 5′7″ to 5′10″ (169cm-178cm) | Medium / 540 |
| 5′9″ to 6′2″ (175cm- 188cm) | Large /560 |
| 6′1″ to 6′4″ (185cm- 193cm) | X-Large / 580 |
| XS 490mm |
SMALL 520mm |
MED 540mm |
LRG 560mm |
XLG 580 |
||
| A | Head Angle (degrees) | 71.0 | 71.5 | 72.0 | 72.0 | 72.0 |
| B | Head Tube (mm) | 110 | 130 | 140 | 160 | 180 |
| C | Top Tube Effective(mm) | 520 | 534 | 545 | 560 | 575 |
| D | Seat Tube Angle (degrees) | 75.0 | 74.0 | 73.5 | 73.0 | 73.0 |
| E | Seat Tube C-T Actual (mm) | 490 | 520 | 540 | 560 | 580 |
| F | Chainstays (mm) | 425 | 425 | 425 | 425 | 425 |
| G | BB Drop (mm) | 64 | 64 | 64 | 64 | 64 |
| H | Stack (mm) | 534 | 553 | 564 | 583 | 602 |
| I | Reach (mm) | 377 | 377 | 378 | 382 | 390 |
| J | Front Centre (mm) | 590 | 591 | 591 | 601 | 616 |
| K | Wheelbase (mm) | 1007 | 1007 | 1008 | 1018 | 1033 |
🔧 Build Kit
| SRAM Flat Mount Disc Brake Mounting Hardware / 32mm / Single |
| Selcof Carbon Steerer Fork Bung MK 4 / 23-24mm ID |
| Selcof Forged Alloy Bolt Up Seatclamp V3 / 31.8mm / 12mm / Black |
| Bike Build Packaging Rear Derailleur Protector |
| Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black |
| Selcof SPORT Integrated Cup Angular Contact Cartridge Bearing V2 Headset For Tapered 1" 1/8th 1.5" Fork Steerer |
🔧 Groupset

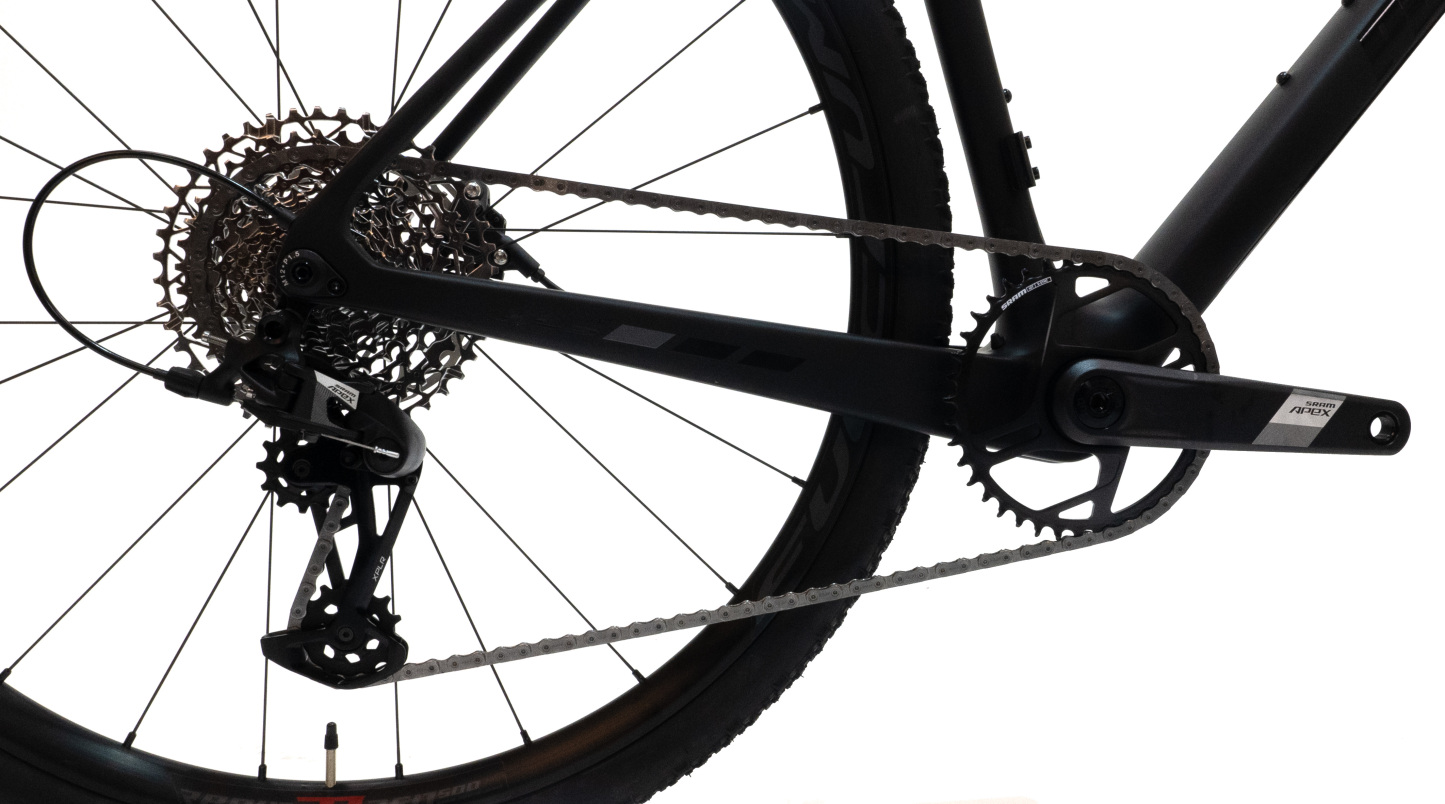

| SRAM Apex 12 Speed Chain / 120 Link |
| SRAM XPLR PG-1231 12 Speed Cassette / 11-44 Tooth |
| SRAM Apex 1 Wide Chainset / 172.5mm / 40 Tooth |
| SRAM Apex XPLR 1x12 Speed Rear Mech / Max 44 Tooth |

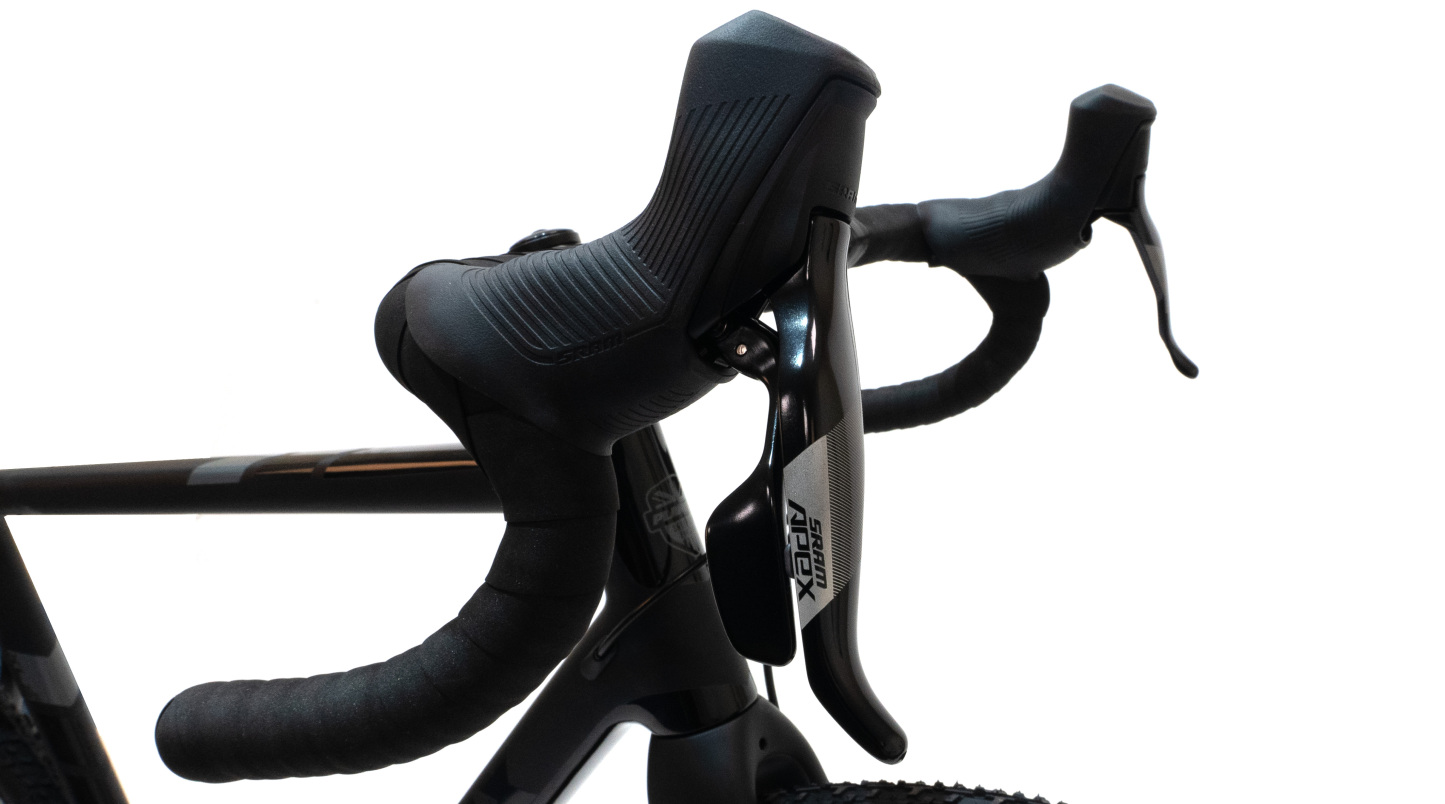

| SRAM Apex Shift Brake System With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / Flat Mount 20mm Offset |
| SRAM Apex Shift Brake System With Flat Mount Caliper / Right Lever / Front Brake / 1300mm / Flat Mount 20mm Offset |
| SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb |
| SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive |
| Avid Centreline Disc Brake Rotor / 160mm Centrelock |
| SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide |
Finance with Newpay and Planet X
You could enjoy a credit limit of up to £5000, and once you’ve bought something, you can choose a payment plan to suit you. It’s super-easy to apply and we’ll even do a no-risk check first to see if you're eligible
Easy Assembly
Assembling your new bike couldn't be easier. Every bike comes expertly packed at least 95% pre assembled, with step by step instructions to get the bike ready to roll.
So you can get out on that first ride without delay!
So you can get out on that first ride without delay!
Hand Built in South Yorkshire
All Planet X, On One, Holdsworth and Titus Bikes are expertly hand built to order in South Yorkshire.
Every bike is comprehensively inspected before shipping to ensure your bike is perfect when it arrives at your door.
Every bike is comprehensively inspected before shipping to ensure your bike is perfect when it arrives at your door.
.png?w=2000&h=1024)
Not sure on your size? Get Fitted!
Get fitted to your bike at Planet X Headquarters by one of our trained fitters.
With our Mini Bike Fit, we can advise on sizing, optimise your ride for maximum comfort and efficiency and help you make the right component choices. all for a refundable deposit of £25.
With our Mini Bike Fit, we can advise on sizing, optimise your ride for maximum comfort and efficiency and help you make the right component choices. all for a refundable deposit of £25.
