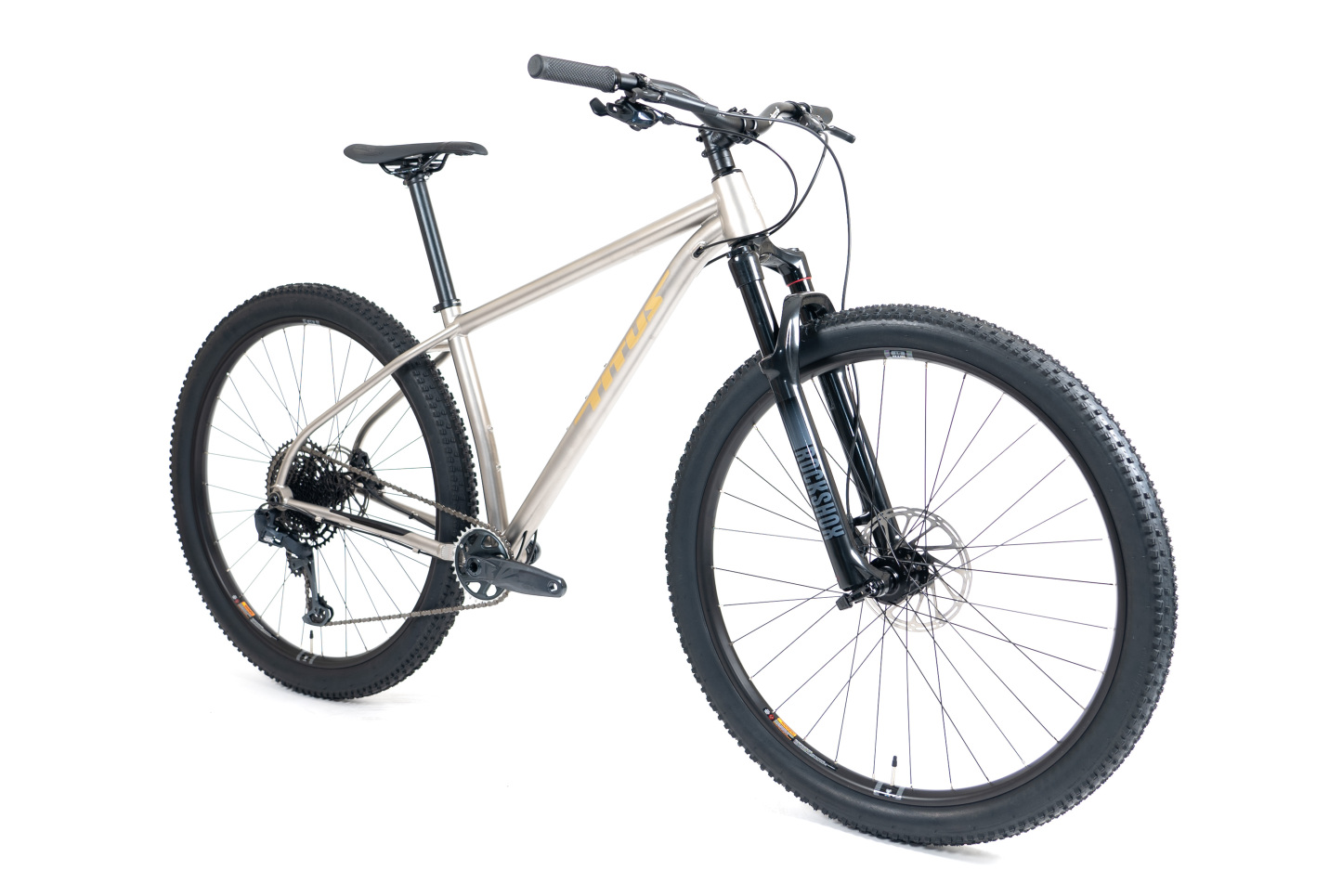

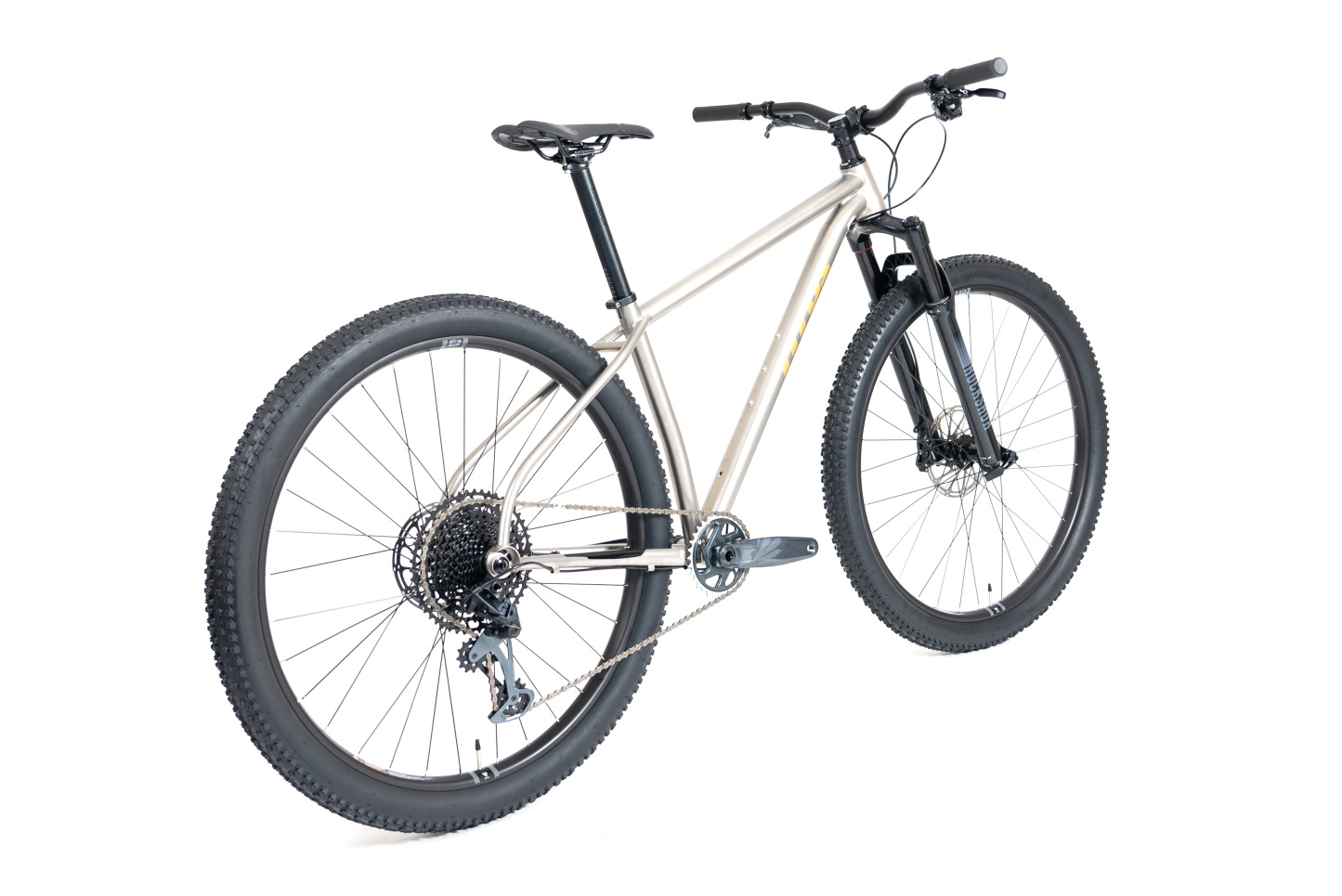

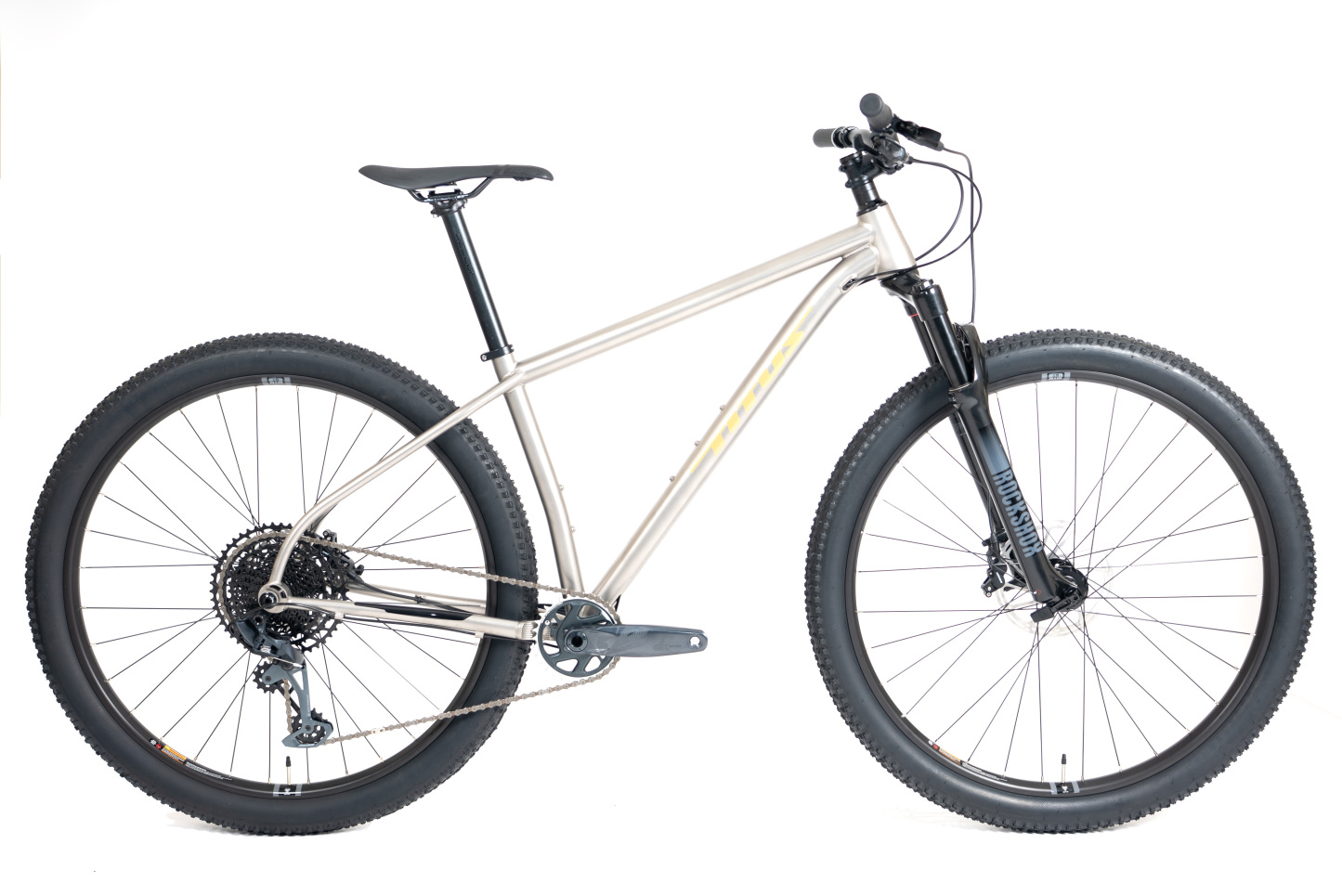

Titus El Viajero SRAM GX Titanium Mountain Bike

The traveller, the voyager, the Titus El Viajero. A more-than capable cross-country bike, it will cover ground fast while also staying composed on rockier terrain. Perfect for fast cross-country loops or all-day epics.

Rockshox 35 Gold 100mm Fork
SRAM GX EAGLE 12 Speed groupset
SRAM G2 R Hydraulic Brakes
WTB I30 Wheelset
Titanium Frame with Lifetime Warranty
Approx Weight (Medium) 13.8KG

View less

$2,092.00

Shipping calculated at checkout.

Expect dispatch in 5 days

Available on Cycle to work

X-Small Small Medium Large X-Large

Rider Height	Suggested Frame Size
5′2″ to 5′5″ (157cm-167cm)	XSM/367mm
5′4″ to 5′7″ (162cm-170cm)	SML/400mm
5′6″ to 5′10″ (168cm-178cm)	MED/430mm
5′9″ to 6′2″ (175cm- 188cm)	LRG/470mm
6′1″ to 6′6″ (185cm- 198cm)	XL/520mm

		XSM 367mm	SML 400mm	MED 430mm	LRG 470mm	XL 520mm
A	Head Angle (degrees)	68.5	68.5	68.5	68.5	68.5
B	Head Tube (mm)	95	95	95	115	130
C	Top Tube Effective(mm)	555	579	604	633	662
D	Seat Tube Angle (degrees)	74	74	74	74	74
E	Seat Tube C-T Actual (mm)	367	400	430	470	520
F	Chainstays (mm)	440	440	440	440	440
G	BB Drop (mm)	64	64	64	64	64
H	Stack (mm)	592	610	610	629	643
I	Reach (mm)	385	404	429	453	478
J	Front Centre (mm)	641	667	692	723	753
K	Wheelbase (mm)	1074	1100	1114	1156	1186

🔧 Customise your bike

Quantity

CBBIKE-ELV-GXE-XSM-TIT

Frame

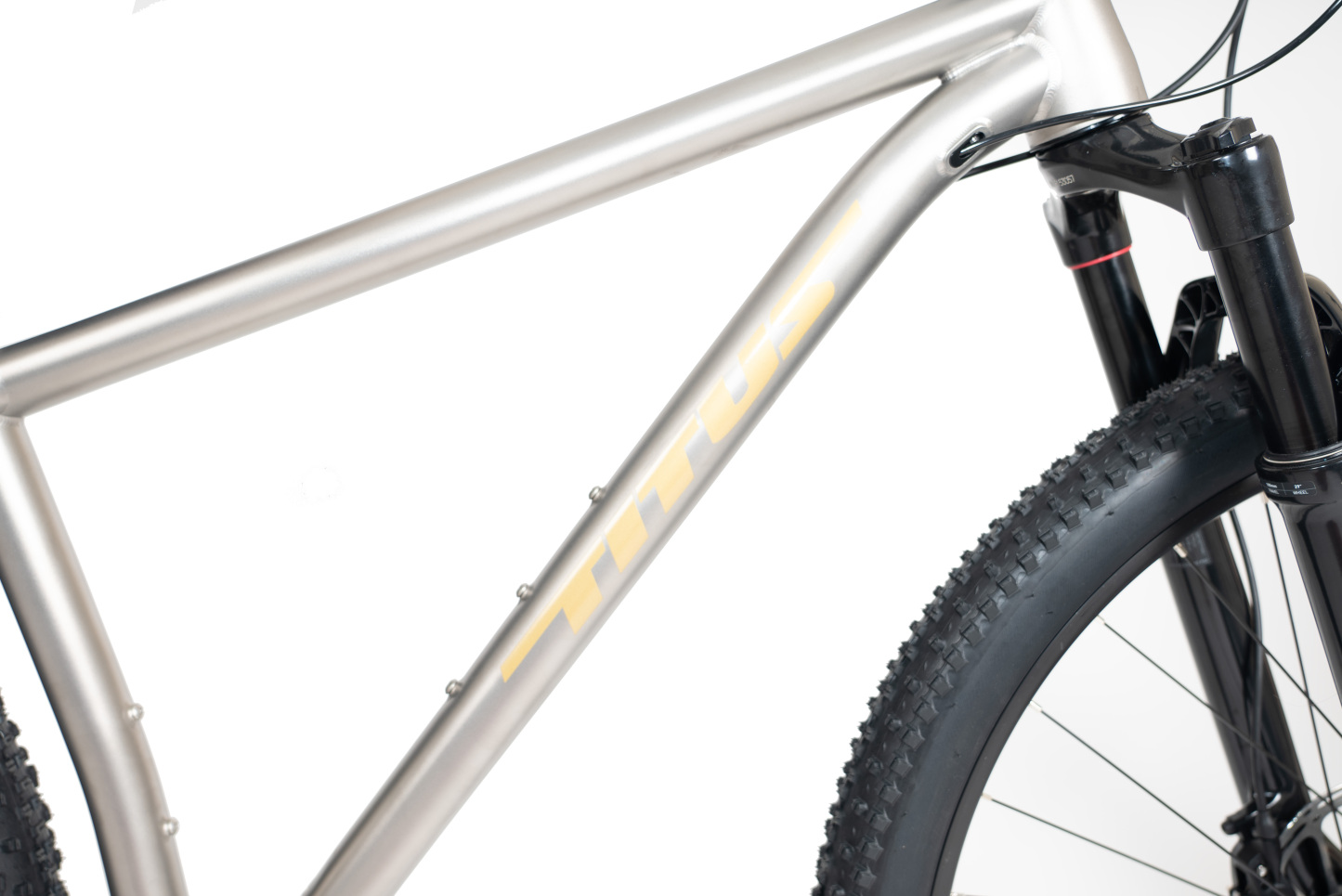

Meticulously designed and constructed using Aerospace Grade 9 3AL-2.5V Titanium to offer unparalleled lightness, strength, and ride quality. The Titus El Viajero is made for the long haul and has a lifetime frame warranty to prove it. The 68.5 degree head angle is a little slacker than more traditional CX bikes. This offers greater mechanical trail for better technical singletrack performance, without affecting climbing credentials. Longer chain stays give stability, especially when loaded. The 64mm BB drop keeps the rider planted whilst ensuring ground clearance. Balanced stack and slightly longer reach figures are suited to fast paced CX or endurance adventures.

Groupset

GX Eagle

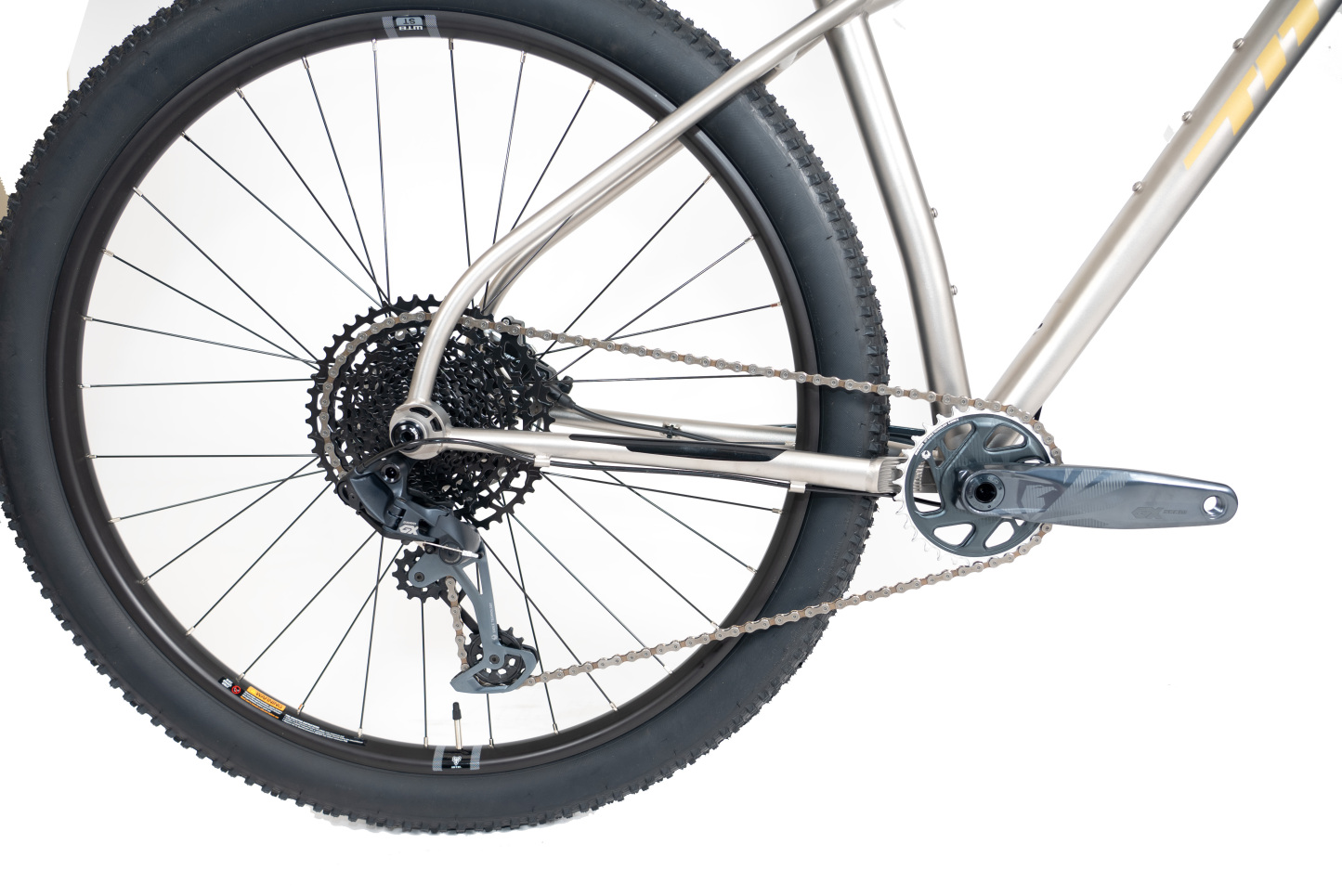

This GX groupset offers impressive performance with plenty of gears. Sharing many features with the higher end of the Eagle Ecosystem like the proven SRAM 1x-specific X-HORIZON™ body design, it can accommodate up to 10-52T cassettes. Eagle is a lighter, simpler, more durable, and easier to use drivetrain.
Reliable wide range 1x gearing
An 11-50 cassette provides a huge gearing range with SRAM’s top of the range aluminium 32 tooth crankset utilising DUB technology. Enough range to ensure you can fly downhill or comfortably spin up the steepest climbs.
G2 hydraulic brakes
The SRAM G2 delivers premium value braking without compromise. Powerful 4 piston callipers provide awesome single finger stopping power and reach adjust makes it easy to adjust your lever for maximum control. Think consistency, reliability and trust.

Frame

Meticulously designed and constructed using Aerospace Grade 9 3AL-2.5V Titanium to offer unparalleled lightness, strength, and ride quality. The Titus El Viajero is made for the long haul and has a lifetime frame warranty to prove it. The 68.5 degree head angle is a little slacker than more traditional CX bikes. This offers greater mechanical trail for better technical singletrack performance, without affecting climbing credentials. Longer chain stays give stability, especially when loaded. The 64mm BB drop keeps the rider planted whilst ensuring ground clearance. Balanced stack and slightly longer reach figures are suited to fast paced CX or endurance adventures.

Groupset

GX Eagle
This GX groupset offers impressive performance with plenty of gears. Sharing many features with the higher end of the Eagle Ecosystem like the proven SRAM 1x-specific X-HORIZON™ body design, it can accommodate up to 10-52T cassettes. Eagle is a lighter, simpler, more durable, and easier to use drivetrain.
Reliable wide range 1x gearing
An 11-50 cassette provides a huge gearing range with SRAM’s top of the range aluminium 32 tooth crankset utilising DUB technology. Enough range to ensure you can fly downhill or comfortably spin up the steepest climbs.
G2 hydraulic brakes
The SRAM G2 delivers premium value braking without compromise. Powerful 4 piston callipers provide awesome single finger stopping power and reach adjust makes it easy to adjust your lever for maximum control. Think consistency, reliability and trust.

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′2″ to 5′5″ (157cm-167cm)	XSM/367mm
5′4″ to 5′7″ (162cm-170cm)	SML/400mm
5′6″ to 5′10″ (168cm-178cm)	MED/430mm
5′9″ to 6′2″ (175cm- 188cm)	LRG/470mm
6′1″ to 6′6″ (185cm- 198cm)	XL/520mm

		XSM 367mm	SML 400mm	MED 430mm	LRG 470mm	XL 520mm
A	Head Angle (degrees)	68.5	68.5	68.5	68.5	68.5
B	Head Tube (mm)	95	95	95	115	130
C	Top Tube Effective(mm)	555	579	604	633	662
D	Seat Tube Angle (degrees)	74	74	74	74	74
E	Seat Tube C-T Actual (mm)	367	400	430	470	520
F	Chainstays (mm)	440	440	440	440	440
G	BB Drop (mm)	64	64	64	64	64
H	Stack (mm)	592	610	610	629	643
I	Reach (mm)	385	404	429	453	478
J	Front Centre (mm)	641	667	692	723	753
K	Wheelbase (mm)	1074	1100	1114	1156	1186

🔧 Build Kit

Selcof Forged Alloy Bolt Up Seatclamp V3 / 35mm / 12mm / Black

Bike Build Packaging Rear Derailleur Protector

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

Selcof Zero Stack / Semi-Integrated Cup Cartridge Bearing Headset For Tapered 1” 1/8th – 1.5” Fork Steerer

🔧 Groupset

SRAM Guide G2 R Hydraulic Disc Brake / Rear / 1800 / 20 Post to IS

SRAM Guide G2 R Hydraulic Disc Brake / Front / 900mm / Post mount (20mm bracket) 20P

SRAM GX Eagle Trigger Shifter (Lunar Colourway) / 12 Speed / Right Hand

SRAM DUB BSA Bottom Bracket / 73mm

SRAM GX Eagle DUB Crankset (Lunar Colourway) / 170mm / 32T / BOOST

SRAM PG-1210 Eagle 12 Speed Cassette / 11-50

SRAM GX Eagle Rear Mech (Lunar Colourway) / 1 x 12 Speed

SRAM Chain PC NX Eagle / 126 Links / 12 Speed

SRAM Centreline Disc Brake Rotor / 160mm 6 Bolt

Avid Centreline Disc Brake Rotor / 180mm 6 Bolt

Avid MMX Matchmaker Clamp Black / Left

Avid MMX Matchmaker Clamp Black / Right

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive
