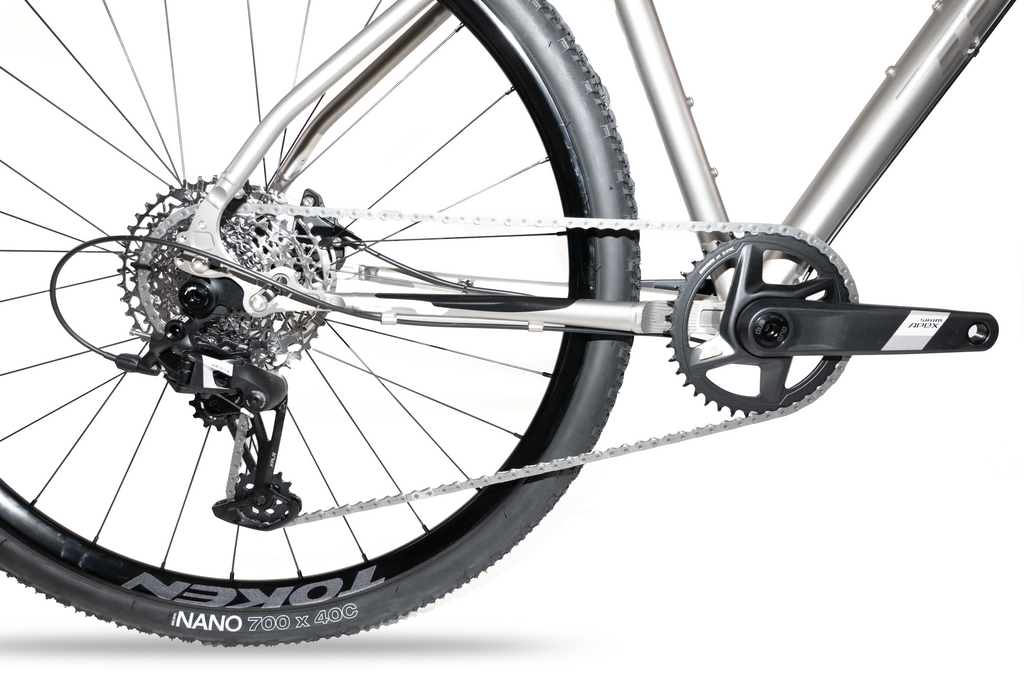

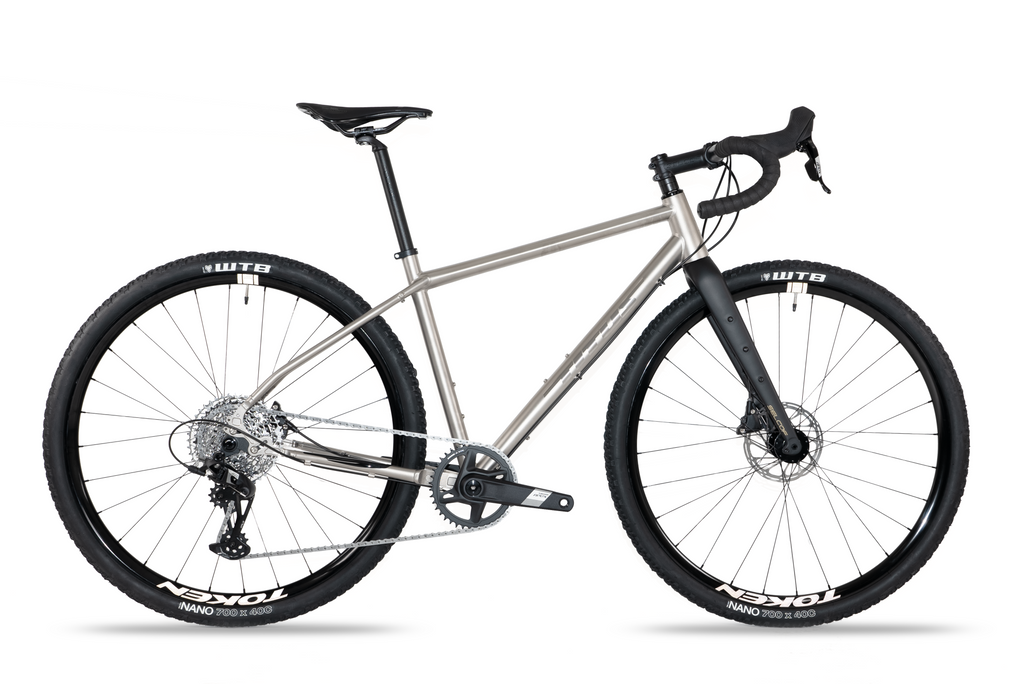

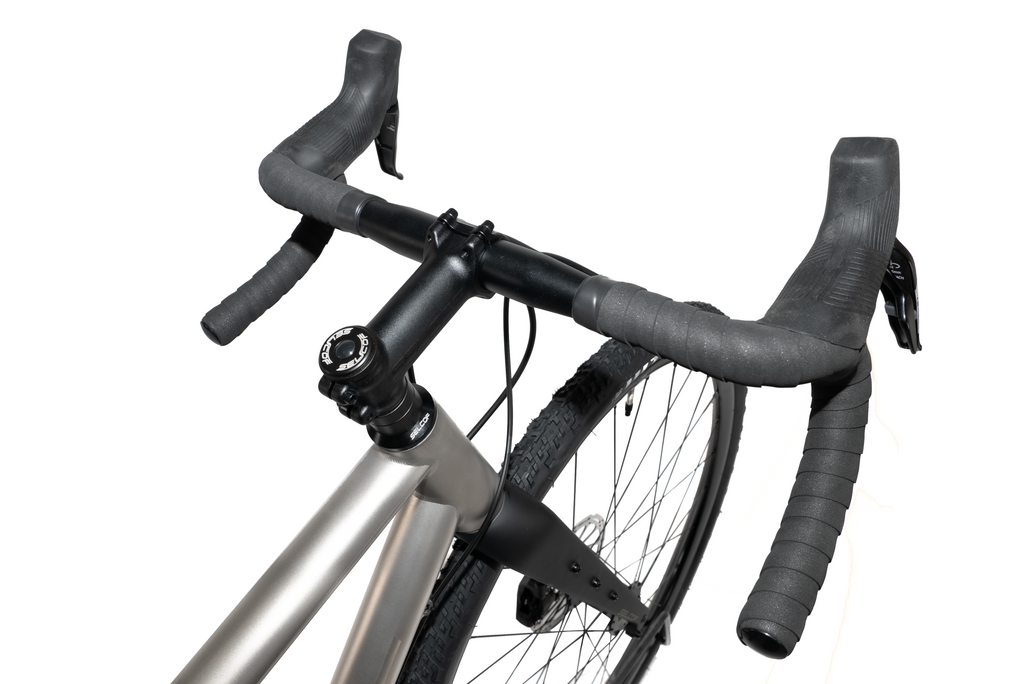

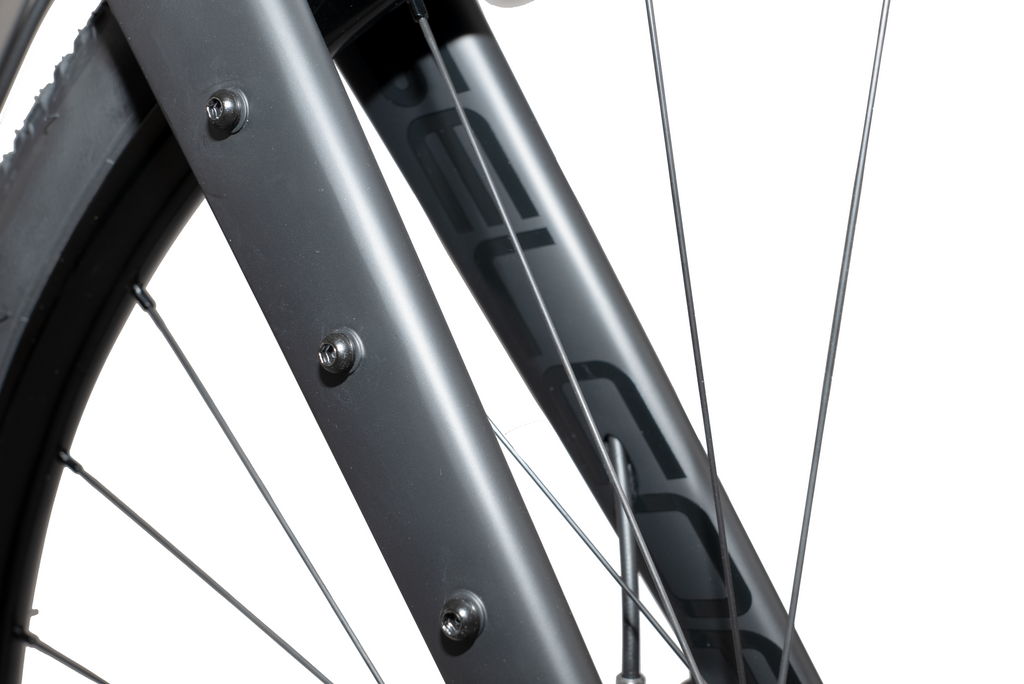

Titus Goldrush SRAM Apex AXS Titanium Gravel Bike

Easily our most capable gravel bike, the titanium framed Goldrush is designed to be a great bike-packing steed but offers so much more. With a low and relaxed frame design, youll be reconsidering what a gravel bike is capable of. The adjustable dropouts also allow you to change the geometry and wheel size if you wish. If you want a bike that will inspire confidence off road and be your companion for all other types of adventure too, this is the one.

SRAM Apex AXS Wireless Groupset
Tyre Clearance up to 48mm
Titanium frame with carbon fork
Lifetime frame warranty

View less

$2,301.00

Shipping calculated at checkout.

Expect dispatch in 5 days

Available on Cycle to work

Small Medium Large XLarge

Rider Height	Suggested Frame Size
5′3″ to 5′7″ (160cm-170cm)	Small
5′6″ to 5′10″ (168cm-178cm)	Medium
5′9″ to 6′2″ (175cm- 188cm)	Large
6′1″ to 6′4″ (185cm- 193cm)	X-Large

		S	M	L	XL
A	Head Angle (degrees)	69.5	69.5	70	70.5
B	Head Tube (mm)	105	130	160	185
C	Top Tube Effective(mm)	520	540	569	585
D	Seat Tube Angle (degrees)	74.5	74.0	74.0	73.5
E	Seat Tube C-T Actual (mm)	435	460	510	552
F	Chainstays (mm)	433	433	433	433
G	BB Drop (mm)	72.5	72.5	72.5	72.5
H	Stack (mm)	533	557	587	613
I	Reach (mm)	372	380	400	403
J	Front Centre (mm)	602	619	644	652
K	Wheelbase (mm)	1024	1042	1067	1075

🔧 Customise your bike

Quantity

CBBIKE-GLD-APA-SML-TIT

Frame

Meticulously designed and constructed using Aerospace Grade 9 3AL-2.5V Titanium to offer unparalleled lightness, strength, and ride quality, it’s made for the long haul and has a lifetime frame warranty to prove it. With generous 700c x 48mm tyre clearance, and full utilitarian bikepacking credentials, whether used for short weekend rides or round the world excursions. Three sets bottle cage bosses, three-point adventure mounts on fork legs, pannier mounts and full-length mudguard mounts. There’s a mounting point for all your kit.

Groupset

One group, multiple choices.
Apex is the group that knows how to have a good time. Wide-range 1x12 gearing for gravel, bikepacking, adventure, casual cruises, and everything in between. With wireless AXS or classic DoubleTap mechanical shifting, XPLR or Eagle gearing, Apex connects you to your bike with smooth and reliable shifting, chain retention, and controlled and powerful hydraulic braking. Apex is simple to understand and easy to use, keeping the focus on what matters most – finding the fun.

Frame

Meticulously designed and constructed using Aerospace Grade 9 3AL-2.5V Titanium to offer unparalleled lightness, strength, and ride quality, it’s made for the long haul and has a lifetime frame warranty to prove it. With generous 700c x 48mm tyre clearance, and full utilitarian bikepacking credentials, whether used for short weekend rides or round the world excursions. Three sets bottle cage bosses, three-point adventure mounts on fork legs, pannier mounts and full-length mudguard mounts. There’s a mounting point for all your kit.

Groupset

One group, multiple choices.
Apex is the group that knows how to have a good time. Wide-range 1x12 gearing for gravel, bikepacking, adventure, casual cruises, and everything in between. With wireless AXS or classic DoubleTap mechanical shifting, XPLR or Eagle gearing, Apex connects you to your bike with smooth and reliable shifting, chain retention, and controlled and powerful hydraulic braking. Apex is simple to understand and easy to use, keeping the focus on what matters most – finding the fun.

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′3″ to 5′7″ (160cm-170cm)	Small
5′6″ to 5′10″ (168cm-178cm)	Medium
5′9″ to 6′2″ (175cm- 188cm)	Large
6′1″ to 6′4″ (185cm- 193cm)	X-Large

		S	M	L	XL
A	Head Angle (degrees)	69.5	69.5	70	70.5
B	Head Tube (mm)	105	130	160	185
C	Top Tube Effective(mm)	520	540	569	585
D	Seat Tube Angle (degrees)	74.5	74.0	74.0	73.5
E	Seat Tube C-T Actual (mm)	435	460	510	552
F	Chainstays (mm)	433	433	433	433
G	BB Drop (mm)	72.5	72.5	72.5	72.5
H	Stack (mm)	533	557	587	613
I	Reach (mm)	372	380	400	403
J	Front Centre (mm)	602	619	644	652
K	Wheelbase (mm)	1024	1042	1067	1075

🔧 Build Kit

SRAM Flat Mount Disc Brake Mounting Hardware / 17mm / Single

Selcof Carbon Steerer Fork Bung MK 4 / 23-24mm ID

Selcof Forged Alloy Bolt Up Seatclamp V3 / 31.8mm / 12mm / Black

Bike Build Packaging Rear Derailleur Protector

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

Token Omega Headset For Tapered 1" 1/8th – 1.5" Fork Steerer

🔧 Groupset

SRAM Apex 12 Speed Chain / 120 Link

SRAM XPLR PG-1231 12 Speed Cassette / 11-44 Tooth

SRAM Apex AXS Shift Brake System With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / Flat Mount 20mm Offset

SRAM Apex AXS Shift Brake System With Flat Mount Caliper / Right Lever / Front Brake / 1300mm / Flat Mount 20mm Offset

SRAM Apex 1 Wide Chainset / 172.5mm / 40 Tooth

SRAM Apex XPLR AXS 1x12 Speed Rear Mech / Max 44 Tooth

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive

Avid Centreline Disc Brake Rotor / 160mm Centrelock

SRAM Flat Mount Disc Brake Mounting Hardware / 15mm / Single

SRAM Powerpack For AXS / 1 Battery

SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide
