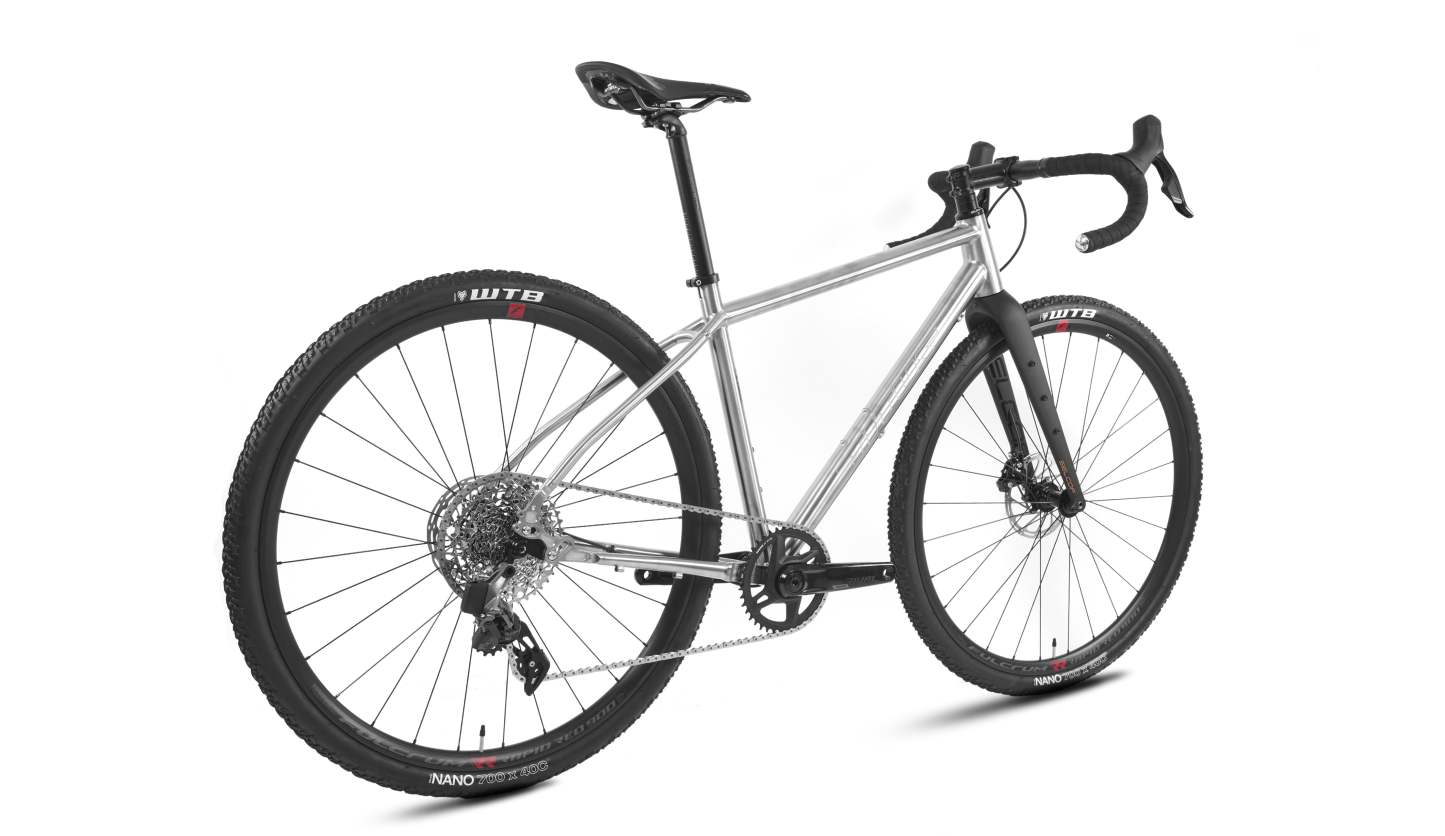

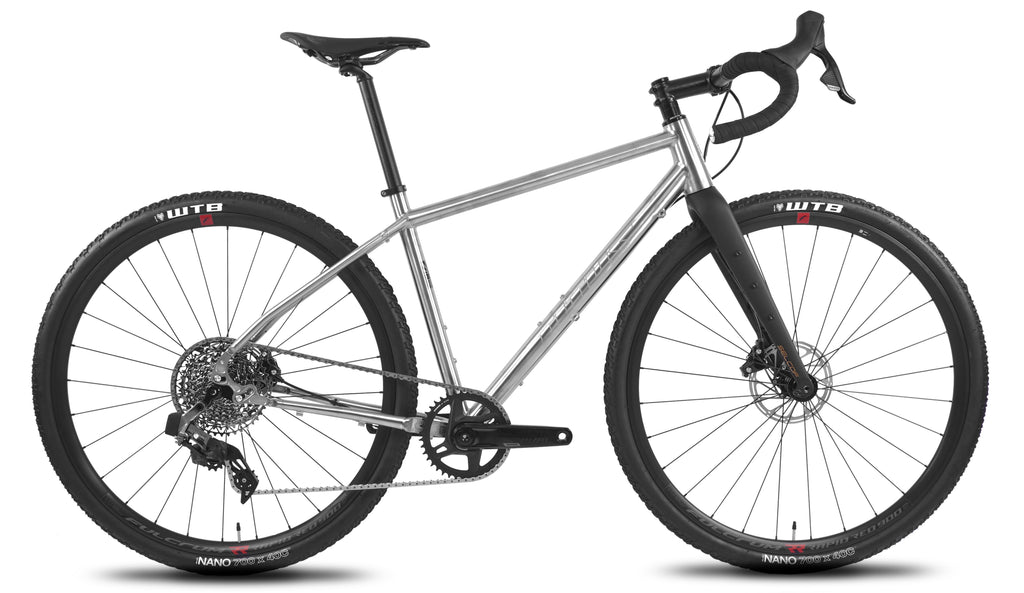

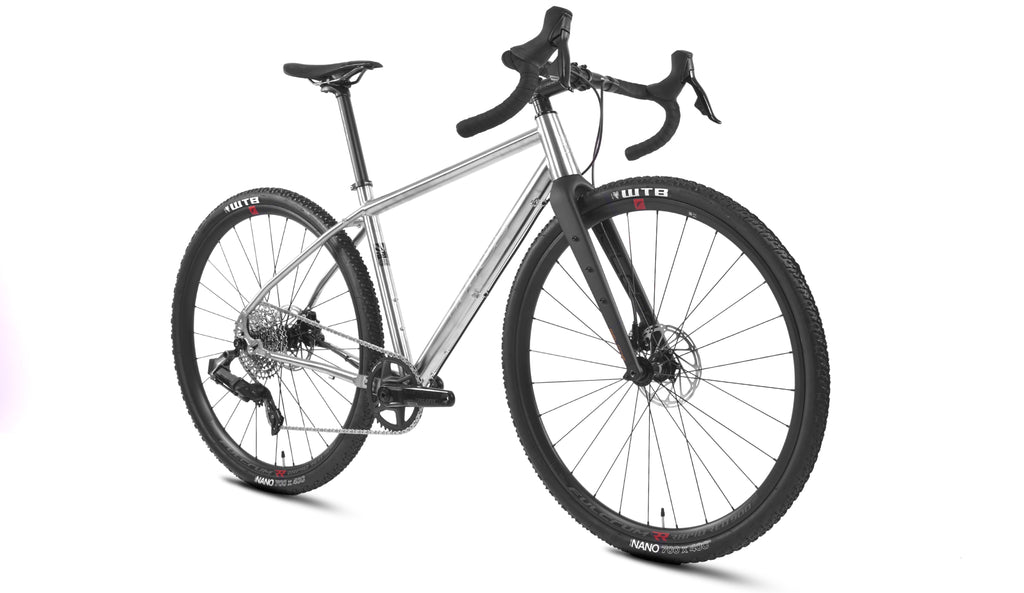

Titus Goldrush SRAM Rival AXS XPLR Gravel Bike

Easily our most capable gravel bike, the titanium framed Goldrush is designed to be a great bike-packing steed but offers so much more. With a low and relaxed frame design, youll be reconsidering what a gravel bike is capable of. The adjustable dropouts also allow you to change the geometry and wheel size if you wish. If you want a bike that will inspire confidence off road and be your companion for all other types of adventure too, this is the one.

SRAM Rival AXS Wireless Groupset
Vision Team AGX Disc Gravel Wheels
Tyre Clearance up to 48mm
Titanium frame with carbon fork
Lifetime frame warranty

View less

$2,550.00

Shipping calculated at checkout.

Expect dispatch in 21 days

Available on Cycle to work

Small Medium Large X-Large

Rider Height	Suggested Frame Size
5′3″ to 5′7″ (160cm-170cm)	Small
5′6″ to 5′10″ (168cm-178cm)	Medium
5′9″ to 6′2″ (175cm- 188cm)	Large
6′1″ to 6′4″ (185cm- 193cm)	X-Large

		S	M	L	XL
A	Head Angle (degrees)	69.5	69.5	70	70.5
B	Head Tube (mm)	105	130	160	185
C	Top Tube Effective(mm)	520	540	569	585
D	Seat Tube Angle (degrees)	74.5	74.0	74.0	73.5
E	Seat Tube C-T Actual (mm)	435	460	510	552
F	Chainstays (mm)	433	433	433	433
G	BB Drop (mm)	72.5	72.5	72.5	72.5
H	Stack (mm)	533	557	587	613
I	Reach (mm)	372	380	400	403
J	Front Centre (mm)	602	619	644	652
K	Wheelbase (mm)	1024	1042	1067	1075

Please note that our bikes are not supplied with pedals - these must be purchased separately

🔧 Customise your bike

Quantity

CBBIKE-GLD-RAX-SML-TIT

Frame

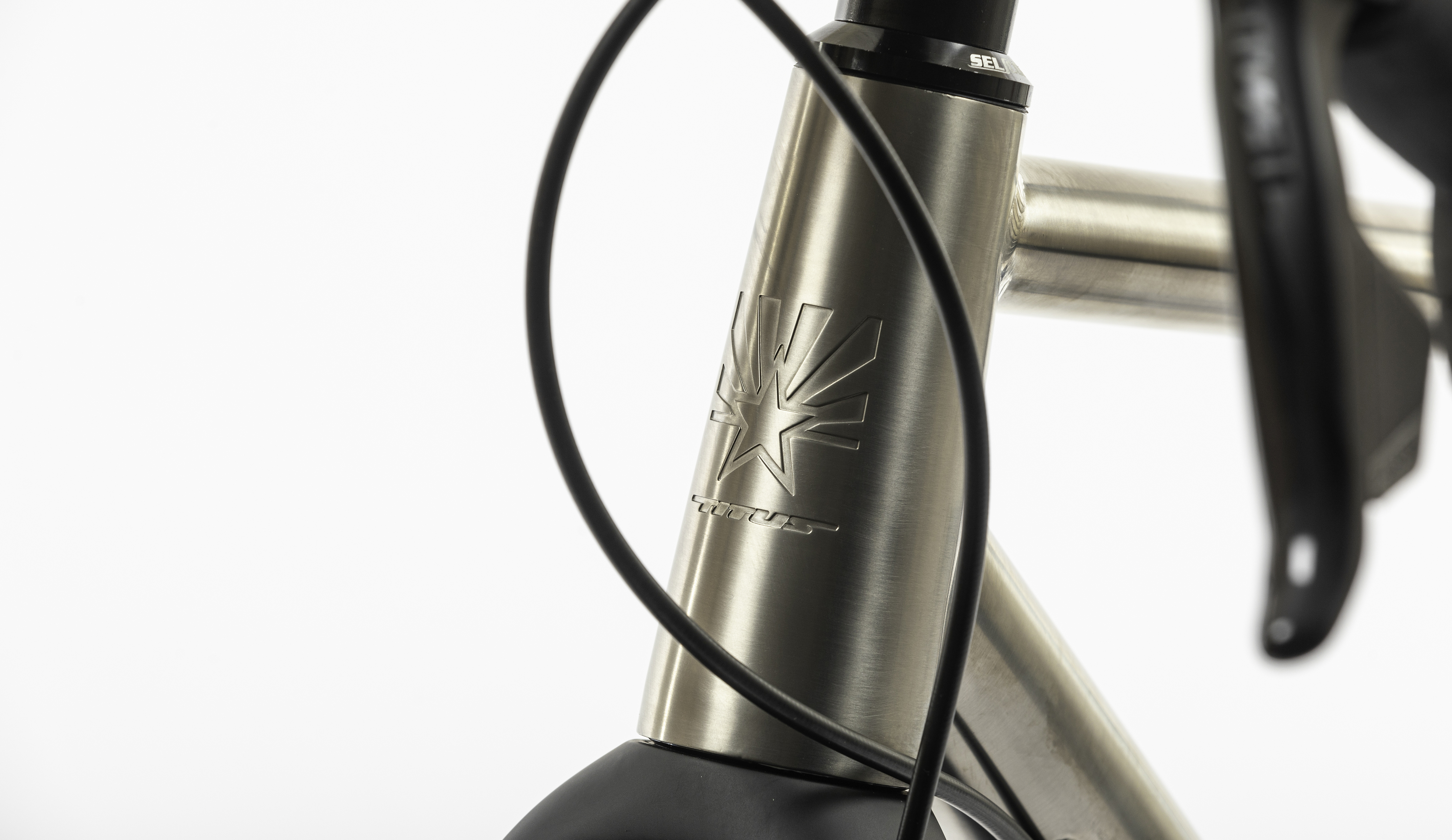

Meticulously designed and constructed using Aerospace Grade 9 3AL-2.5V Titanium to offer unparalleled lightness, strength, and ride quality, it’s made for the long haul and has a lifetime frame warranty to prove it. With generous 700c x 48mm tyre clearance, and full utilitarian bikepacking credentials, whether used for short weekend rides or round the world excursions. Three sets bottle cage bosses, three-point adventure mounts on fork legs, pannier mounts and full-length mudguard mounts. There’s a mounting point for all your kit.

Groupset

SRAM Rival AXS XPLR
Featuring ultra-reliable wireless shifting, intuitive gearing, AXS App connectivity, and refined hydraulic disc brakes. It’s everything you could ask for in a modern gravel groupset.
Wireless Shifting
Clean, safe, and reliable. SRAM Rival AXS XPLR wireless gear shifting is simple and intuitive. One button to go easier, one to go harder. Simple. A 60-minute battery charge can offer weeks and weeks of rides, it’s 100% waterproof and proven in the hardest conditions on earth. No cables to stretch or get clogged with dirt. SRAM Rival AXS XPLR just works.
Efficient and Capable Gearing

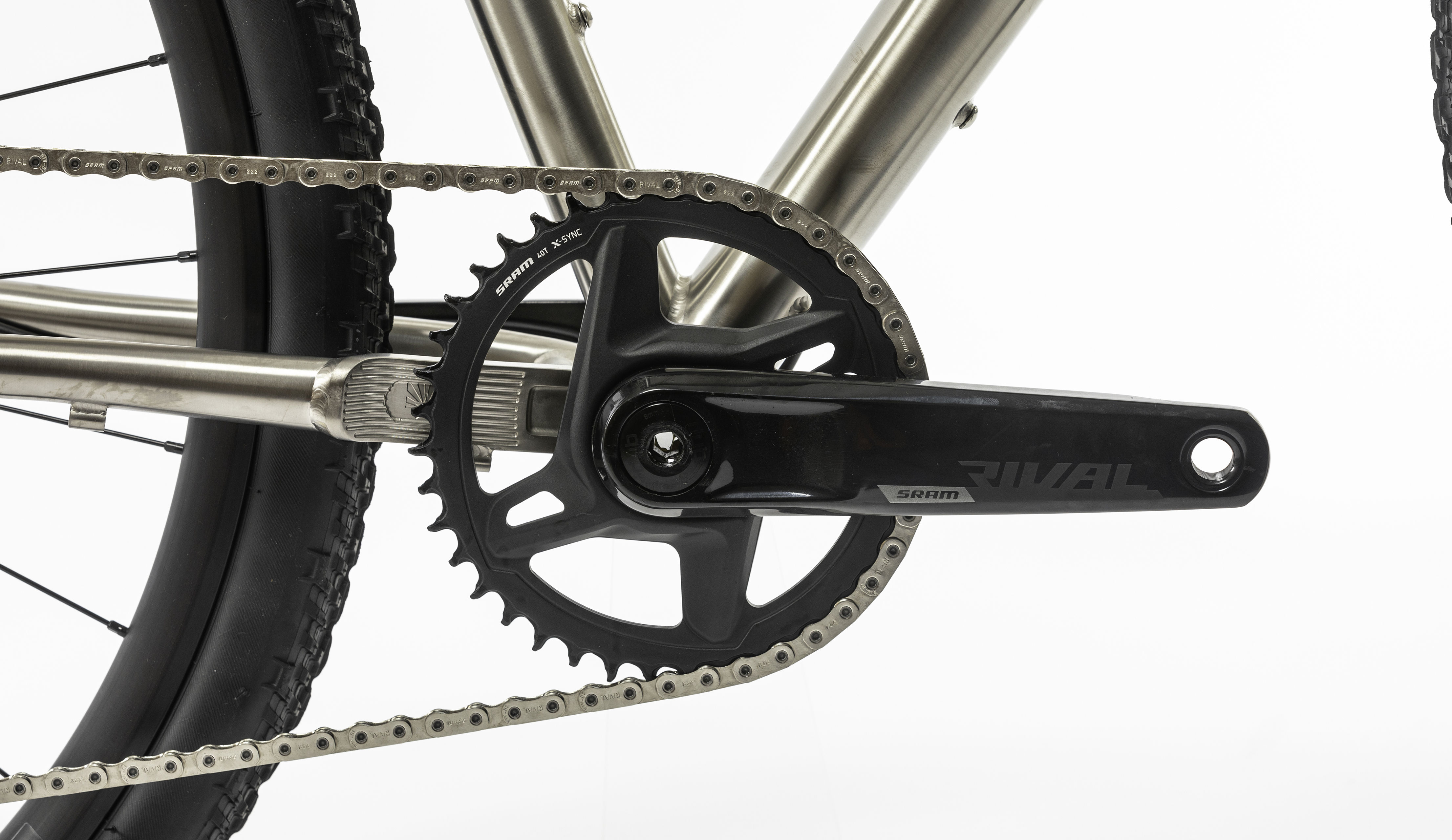

12-speed gearing provides huge range but keeps jumps tight where needed. Meaning you’ll always be able to find the right gear. Combining an incredible 440% gear range. Whether spinning up the steepest gravel singletrack or rolling fast on the road. We’ve paired the 40-tooth chainset to the XPLR XG-1251 10-44 tooth rear cassette. The dedicated XPLR rear mech is lightning fast and reliable.
AXS Mobile App
Control, personalisation, and monitoring are at your fingertips with the AXS mobile app. See how much time you spend in each cog, customise your shifting configuration, check battery charge status, and update firmware as needed right from your phone.
Disc Brakes for ultimate control
SRAM Rival AXS XPLR provides the best braking experience for all riders. Powerful hydraulic disc braking to inspire confidence, whatever the terrain or weather. No more achy hands after long descents. Reach adjustability for different hand sizes mean suitability for everyone.

Frame

Meticulously designed and constructed using Aerospace Grade 9 3AL-2.5V Titanium to offer unparalleled lightness, strength, and ride quality, it’s made for the long haul and has a lifetime frame warranty to prove it. With generous 700c x 48mm tyre clearance, and full utilitarian bikepacking credentials, whether used for short weekend rides or round the world excursions. Three sets bottle cage bosses, three-point adventure mounts on fork legs, pannier mounts and full-length mudguard mounts. There’s a mounting point for all your kit.

Groupset

SRAM Rival AXS XPLR
Featuring ultra-reliable wireless shifting, intuitive gearing, AXS App connectivity, and refined hydraulic disc brakes. It’s everything you could ask for in a modern gravel groupset.
Wireless Shifting
Clean, safe, and reliable. SRAM Rival AXS XPLR wireless gear shifting is simple and intuitive. One button to go easier, one to go harder. Simple. A 60-minute battery charge can offer weeks and weeks of rides, it’s 100% waterproof and proven in the hardest conditions on earth. No cables to stretch or get clogged with dirt. SRAM Rival AXS XPLR just works.
Efficient and Capable Gearing
12-speed gearing provides huge range but keeps jumps tight where needed. Meaning you’ll always be able to find the right gear. Combining an incredible 440% gear range. Whether spinning up the steepest gravel singletrack or rolling fast on the road. We’ve paired the 40-tooth chainset to the XPLR XG-1251 10-44 tooth rear cassette. The dedicated XPLR rear mech is lightning fast and reliable.
AXS Mobile App
Control, personalisation, and monitoring are at your fingertips with the AXS mobile app. See how much time you spend in each cog, customise your shifting configuration, check battery charge status, and update firmware as needed right from your phone.
Disc Brakes for ultimate control
SRAM Rival AXS XPLR provides the best braking experience for all riders. Powerful hydraulic disc braking to inspire confidence, whatever the terrain or weather. No more achy hands after long descents. Reach adjustability for different hand sizes mean suitability for everyone.

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′3″ to 5′7″ (160cm-170cm)	Small
5′6″ to 5′10″ (168cm-178cm)	Medium
5′9″ to 6′2″ (175cm- 188cm)	Large
6′1″ to 6′4″ (185cm- 193cm)	X-Large

		S	M	L	XL
A	Head Angle (degrees)	69.5	69.5	70	70.5
B	Head Tube (mm)	105	130	160	185
C	Top Tube Effective(mm)	520	540	569	585
D	Seat Tube Angle (degrees)	74.5	74.0	74.0	73.5
E	Seat Tube C-T Actual (mm)	435	460	510	552
F	Chainstays (mm)	433	433	433	433
G	BB Drop (mm)	72.5	72.5	72.5	72.5
H	Stack (mm)	533	557	587	613
I	Reach (mm)	372	380	400	403
J	Front Centre (mm)	602	619	644	652
K	Wheelbase (mm)	1024	1042	1067	1075

🔧 Build Kit

SRAM Flat Mount Disc Brake Mounting Hardware / 17mm / Single

Selcof Carbon Steerer Fork Bung MK 4 / 23-24mm ID

Selcof Forged Alloy Bolt Up Seatclamp V3 / 31.8mm / 12mm / Black

Bike Build Packaging Rear Derailleur Protector

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

Selcof SPORT Integrated Cup Angular Contact Cartridge Bearing V2 Headset For Tapered 1" 1/8th 1.5" Fork Steerer

🔧 Groupset

SRAM Rival AXS HRD Hydraulic Disc Brake Lever With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / FM 20mm Offset

SRAM Rival AXS HRD Hydraulic Disc Brake Lever With Flat Mount Caliper / Right Lever / Front Brake / 1000mm / FM 20mm Offset

SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide

SRAM XPLR XG-1271 12 Speed Cassette / 10-44 Tooth

SRAM Rival XPLR AXS 1x12 Speed Rear Mech / Max 44 Tooth

SRAM Rival AXS 12 Speed Chain / 120 Link

SRAM Flat Mount Disc Brake Mounting Hardware / 15mm / Single

Avid Centreline Disc Brake Rotor / 160mm Centrelock

Ashima Flat Mount Adapter - Direct To 20mm

SRAM GXP Bottom Bracket Spacer 2.5mm Single / Matt Black

SRAM Powerpack For AXS / 1 Battery

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Barb

SRAM Hydraulic Hose Fitting Kit Includes Barb And Olive / Single Olive
