If Cyclocross racing is your aim, the XLS-EVO will carry you to the top of the podium
Built using Japanese Toray T700 carbon fibre, this lightweight, ultra-durable racing CX bike features confidence inspiring geometry, a power transferring BB shell and chainstays, and enough rear end compliance to take the edge off the even the roughest of courses. The XLS-EVO is all about the race. With plenty of tyre clearance for racing in the muddiest conditions. We’ve lowered the BB, extended the wheelbase and slackened the head angle to improve handling and give you bags of confidence when racing flat out.

Discover XLS EVO

Brake later, corner quicker and don't worry about riding in the wet. You'll have controlled and powe
Lightweight, ultra-durable racing CX frame features confidence inspiring geometry, a power transferring BB shell and chainstays, and enough rear end compliance to take the edge off the even the roughest of courses.
Clearance for 35mm tyres
Brake later, corner quicker and don't worry about riding in the wet. You'll have controlled and powerful braking available every time you pull the lever.

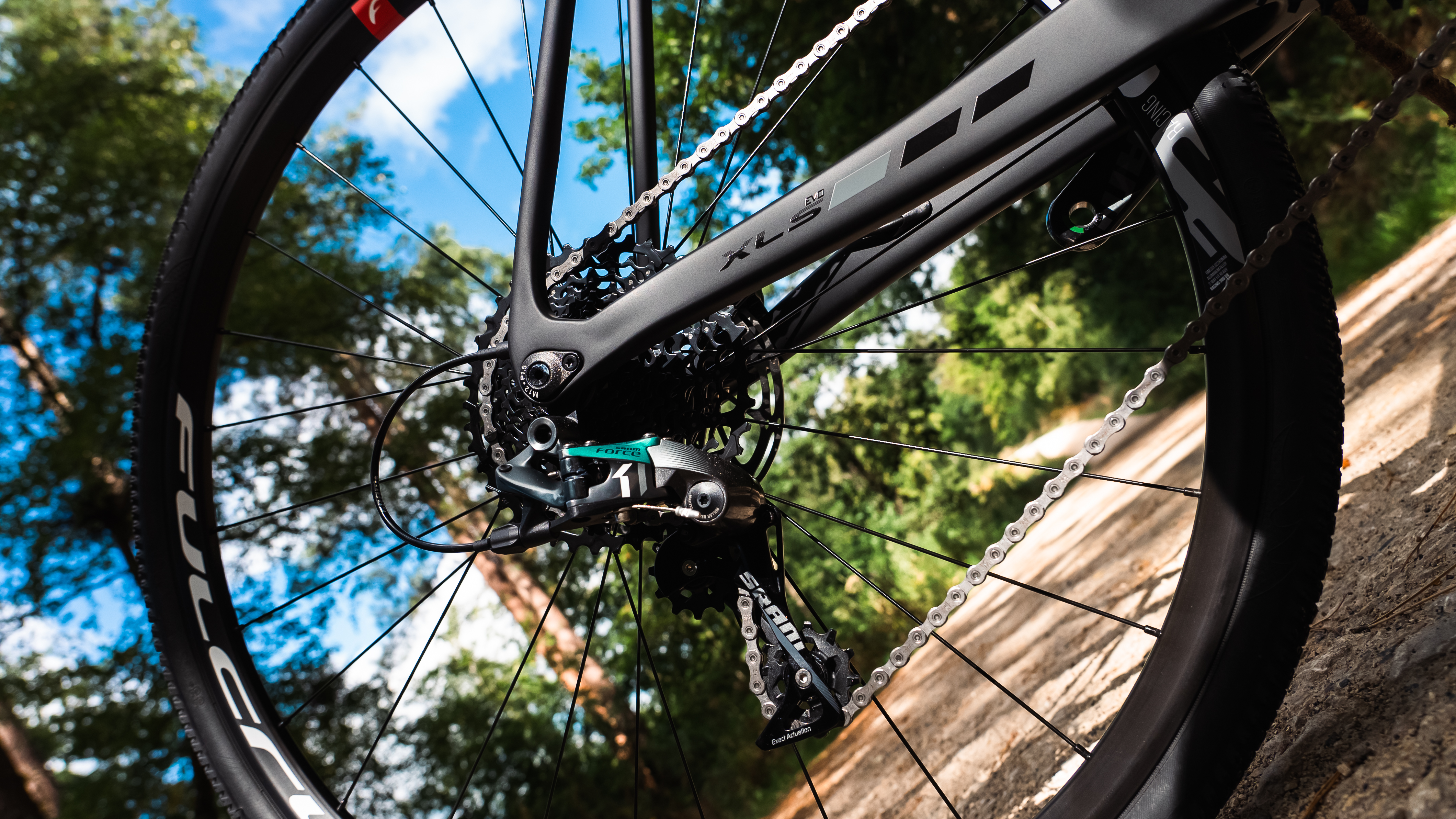

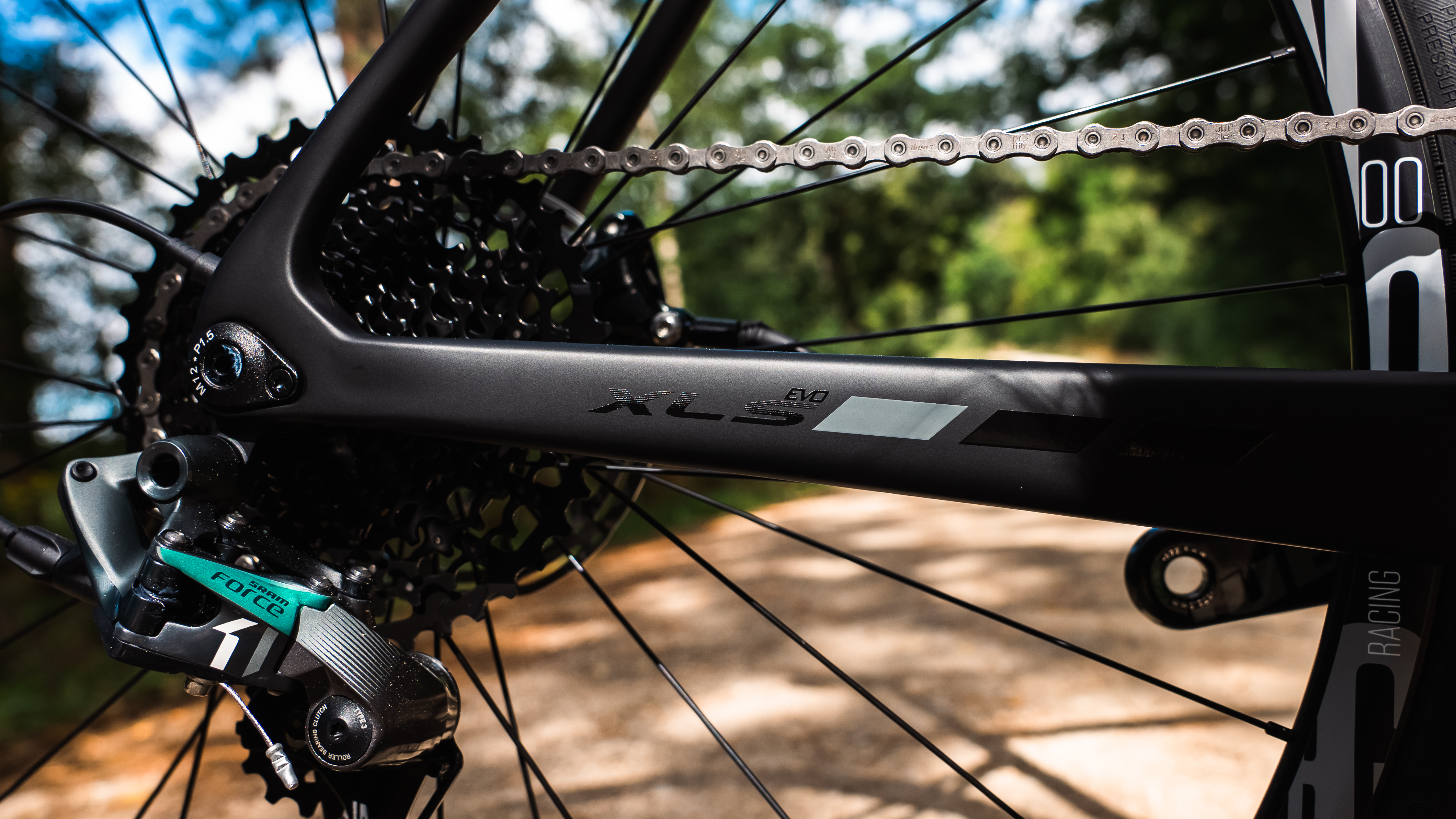

1 x 11 Sram Groupsets for reliable simplicty
Engineered for smooth, reliable shifting, great off-road capability and gears that won’t run out on you.
Plenty of room for shedding mud with 33mm CX race tyres, or fit 35mm tyres and ride paths less trave
Plenty of room for shedding mud with 33mm CX race tyres, or fit 35mm tyres and ride paths less traveled.
Brake later, corner quicker and don't worry about riding in the wet. You'll have controlled and powe
Lightweight, ultra-durable racing CX frame features confidence inspiring geometry, a power transferring BB shell and chainstays, and enough rear end compliance to take the edge off the even the roughest of courses.
Clearance for 35mm tyres
Brake later, corner quicker and don't worry about riding in the wet. You'll have controlled and powerful braking available every time you pull the lever.
1 x 11 Sram Groupsets for reliable simplicty
Engineered for smooth, reliable shifting, great off-road capability and gears that won’t run out on you.
Plenty of room for shedding mud with 33mm CX race tyres, or fit 35mm tyres and ride paths less trave
Plenty of room for shedding mud with 33mm CX race tyres, or fit 35mm tyres and ride paths less traveled.

XLS Evo Size and Geometry

Rider Height Suggested Frame Size
5′3″ to 5′6″ (160cm-167cm) X-Small / 490
5′5″ to 5′8″ (165cm-172cm) Small / 520
5′7″ to 5′10″ (169cm-178cm) Medium / 540
5′9″ to 6′2″ (175cm- 188cm) Large /560
6′1″ to 6′4″ (185cm- 193cm) X-Large / 580


    XS
490mm
SMALL
520mm
MED
540mm
LRG
560mm
XLG
580
A Head Angle (degrees) 71.0 71.5 72.0 72.0 72.0
B Head Tube (mm) 110 130 140 160 180
C Top Tube Effective(mm) 520 534 545 560 575
D Seat Tube Angle (degrees) 75.0 74.0 73.5 73.0 73.0
E Seat Tube C-T Actual (mm) 490 520 540 560 580
F Chainstays (mm) 425 425 425 425 425
G BB Drop (mm) 64 64 64 64 64
H Stack (mm) 534 553 564 583 602
I Reach (mm) 377 377 378 382 390
J Front Centre (mm) 590 591 591 601 616
K Wheelbase (mm) 1007 1007 1008 1018 1033
