Big Dog

Big Dog

Big Dog

About Discover Shop Gallery Sizing & Geometry
Your new trail best friend, a smooth rolling, sweetly sprung all rounder with tons of character.
Massively adaptable, The Big Dog will instil fun, agility, and confidence to your ride. From the trial centre, to technical singletrack, and on to multi day bikepacking epics, The Big Dog is at home on all. The 65 degree head angle gives confidence on steep chutes. 444mm chainstays for technical stability. The 58mm BB drop keeps rider planted whilst ensuring ground clearance. Balanced stack and slightly longer reach figures offer versatility, from endurance adventures to hardcore hardtail territory. The 75-degree seat tube angle puts you above the crank for better climbing efficiency.

Discover Big Dog

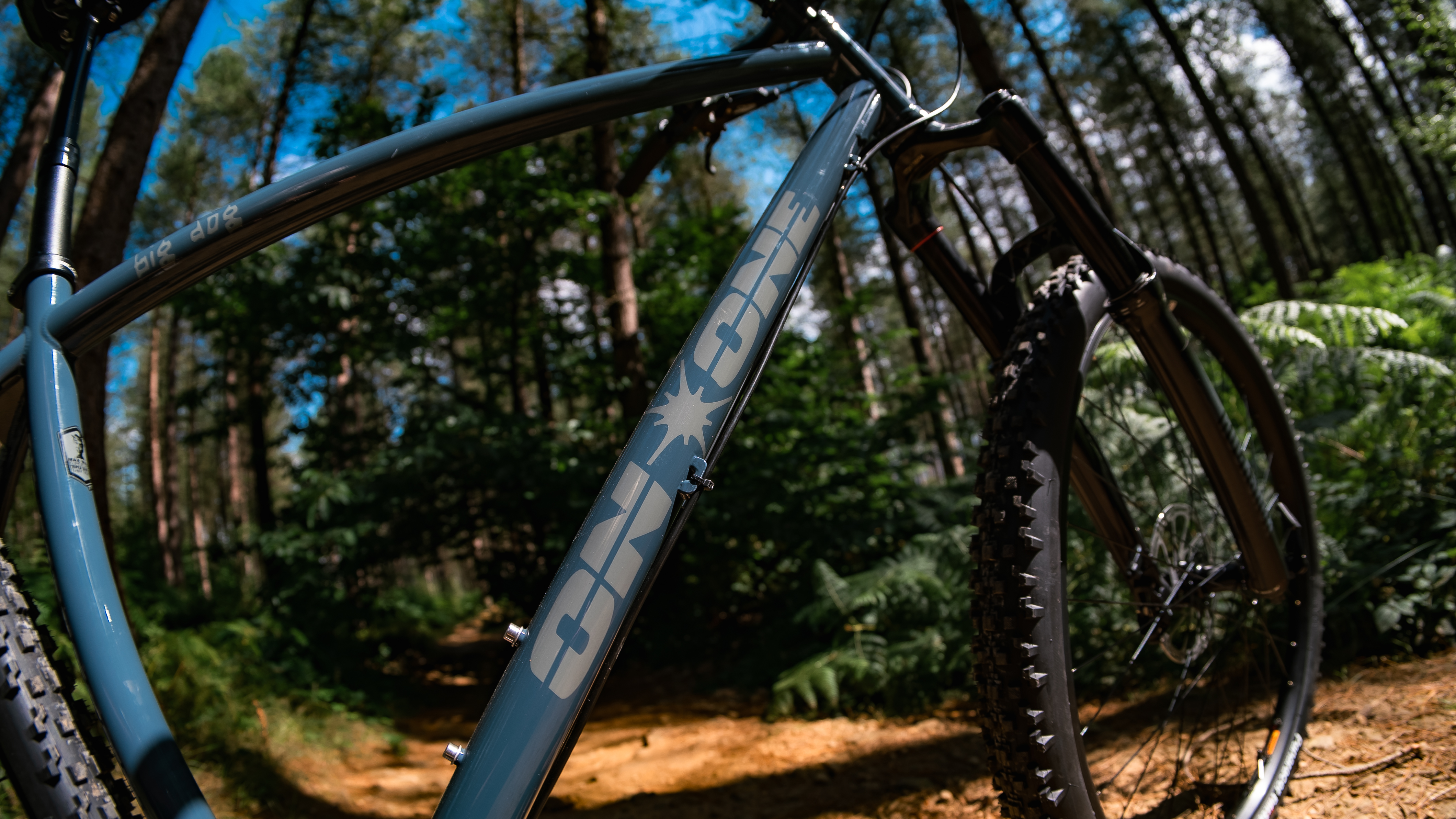

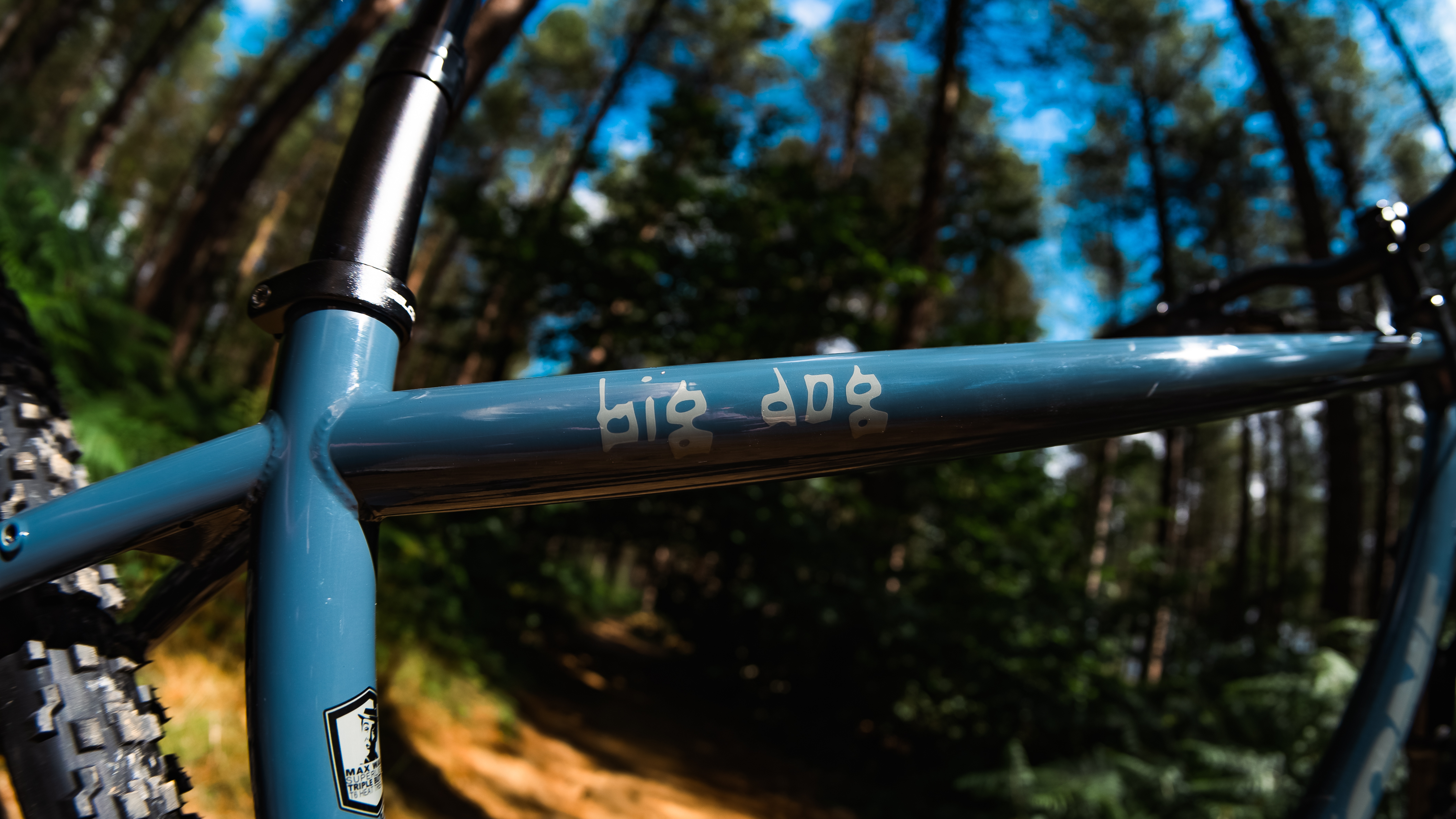

Comfortable and Responsive Steel Frame
Instils fun, agility, and confidence to your ride. From the trail centre, to technical singletrack, and on to multi day bikepacking epics
130mm of Trail Eating Travel
Proper trail forks from RockShox, 130mm of travel to take the hits and reduce trail chatter.

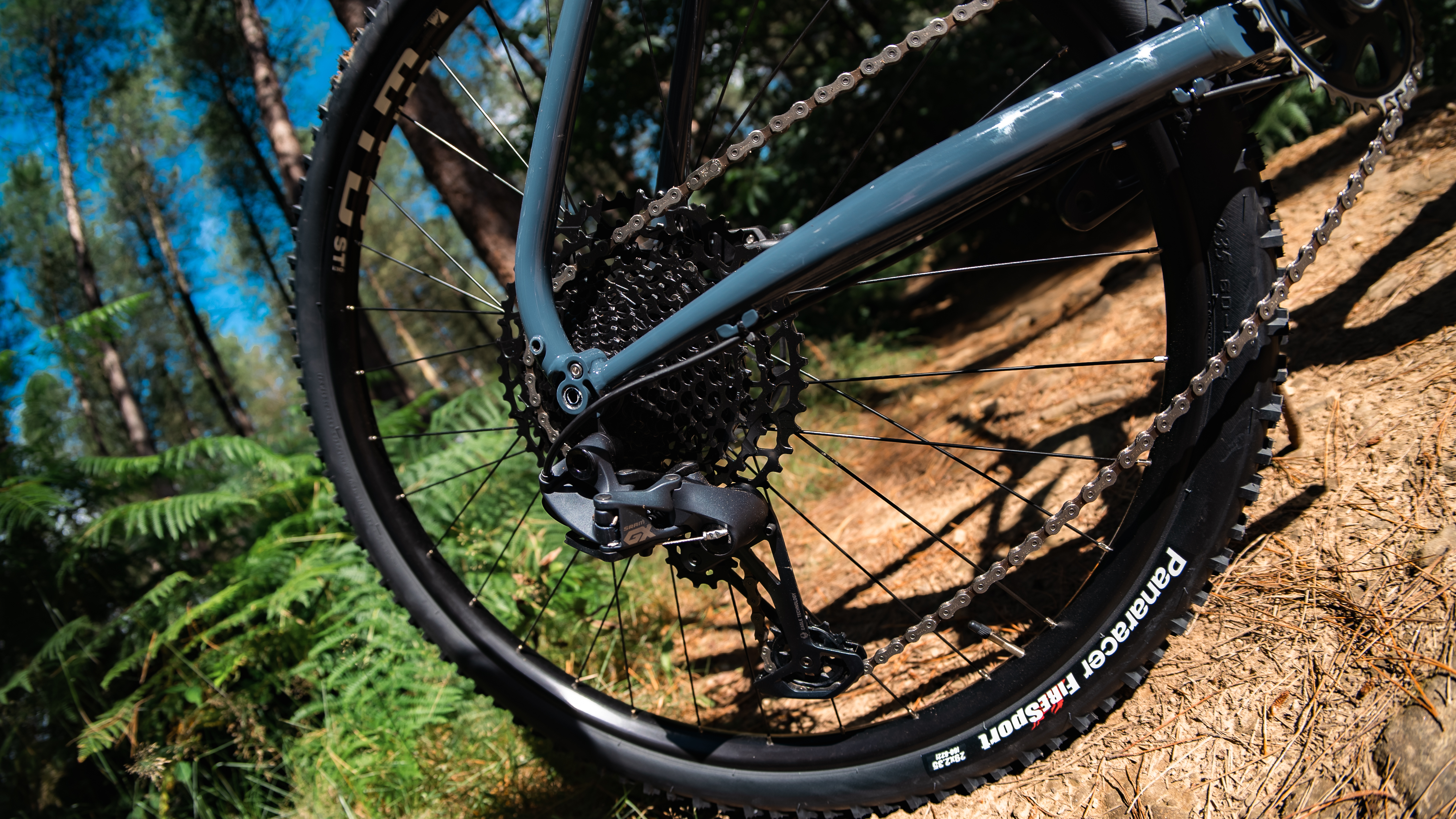

Versatile 1 x 12 Sram Eagle Groupsets
Huge range from a single chainring, to ensure you can fly downhill or comfortably spin up the steepest climbs.
Wide, Supportive Rims and plenty of room for Big Rubber
30mm rims and clearance for larger tyres ensure maximum speed and grip out on the trail
Comfortable and Responsive Steel Frame
Instils fun, agility, and confidence to your ride. From the trail centre, to technical singletrack, and on to multi day bikepacking epics
130mm of Trail Eating Travel
Proper trail forks from RockShox, 130mm of travel to take the hits and reduce trail chatter.
Versatile 1 x 12 Sram Eagle Groupsets
Huge range from a single chainring, to ensure you can fly downhill or comfortably spin up the steepest climbs.
Wide, Supportive Rims and plenty of room for Big Rubber
30mm rims and clearance for larger tyres ensure maximum speed and grip out on the trail

Big Dog Sizing and Geometry

Rider Height Suggested Frame Size
5′4″ to 5′7″  Small
5′7″ to 5′10″  Medium
5′10″ to 6′1″  Large
6′1″ to 6′3″  X-Large

    SMALL  MED  LRG XLG
A Head Angle (degrees) 65.0 65.0 65.0 65.0
B Head Tube (mm) 100 110 120 135
C Top Tube Effective(mm) 580 615 630 655
D Seat Tube Angle (degrees) 75 75 75 75
E Seat Tube C-T Actual (mm) 380 420 460 500
F Chainstays (mm) 444 444 444 444
G BB Drop (mm) 58 58 58 58
H Stack (mm) 609 619 628 641
I Reach (mm) 415 446 460 480
J Front Centre (mm) 725 762 779 807
K Wheelbase (mm) 1169 1206 1223 1251
