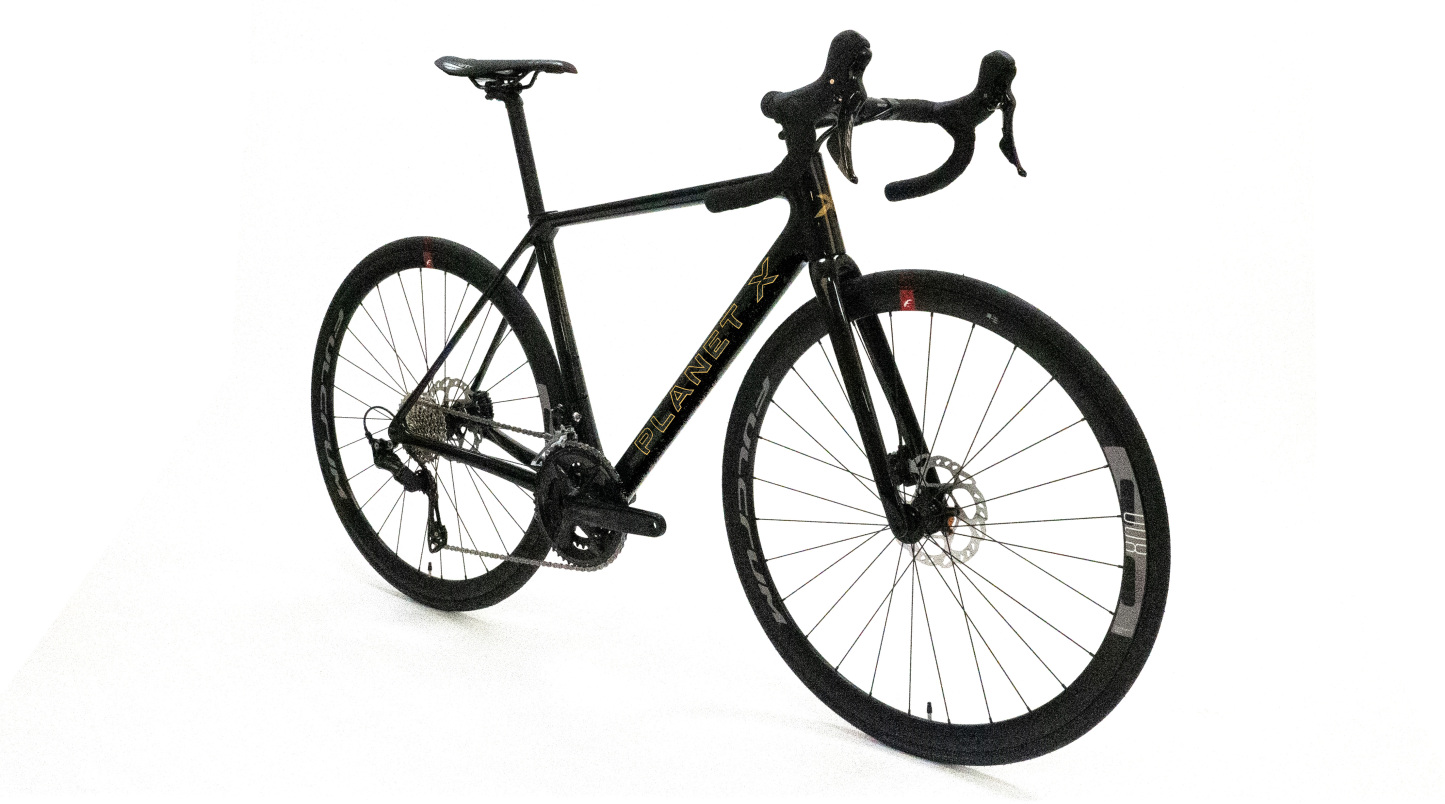

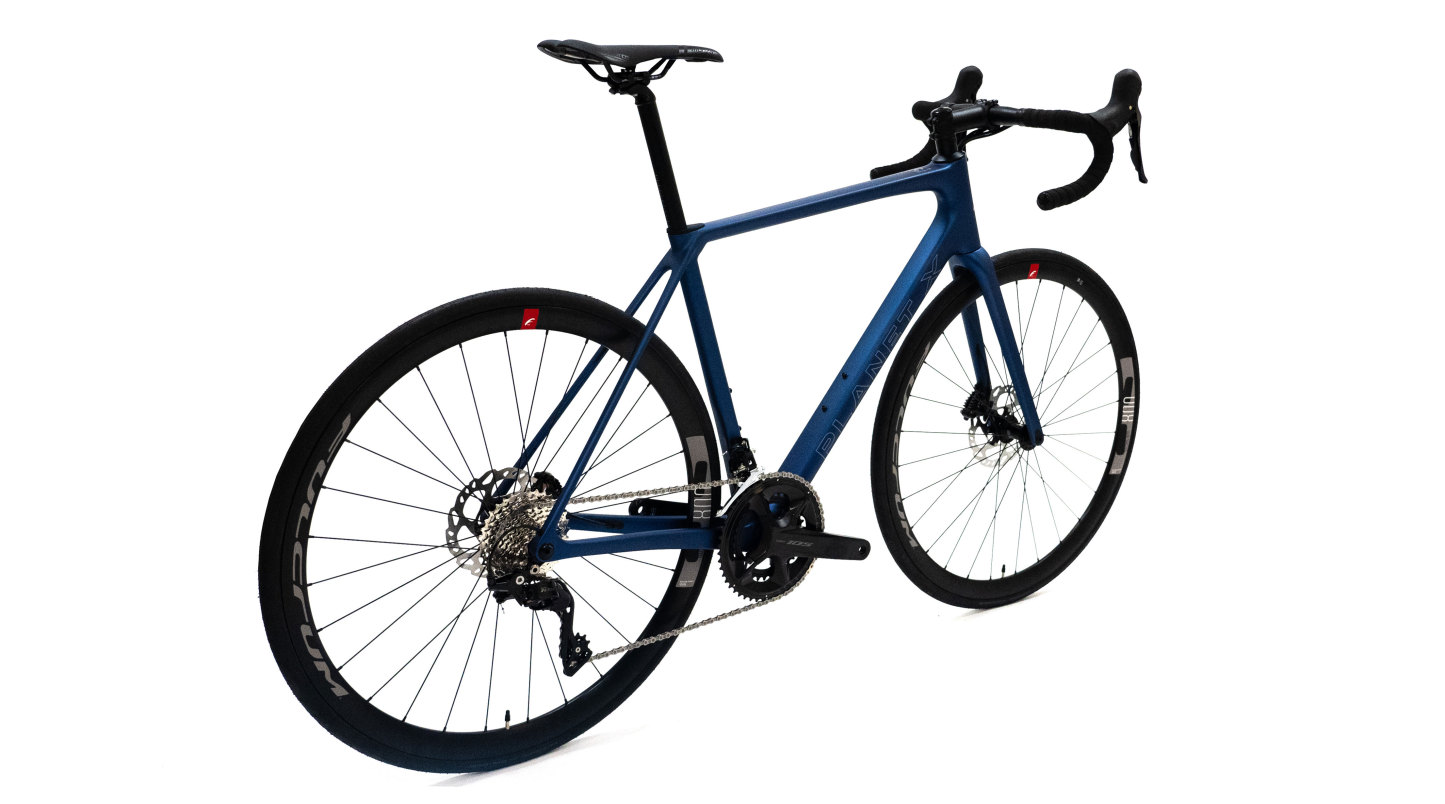

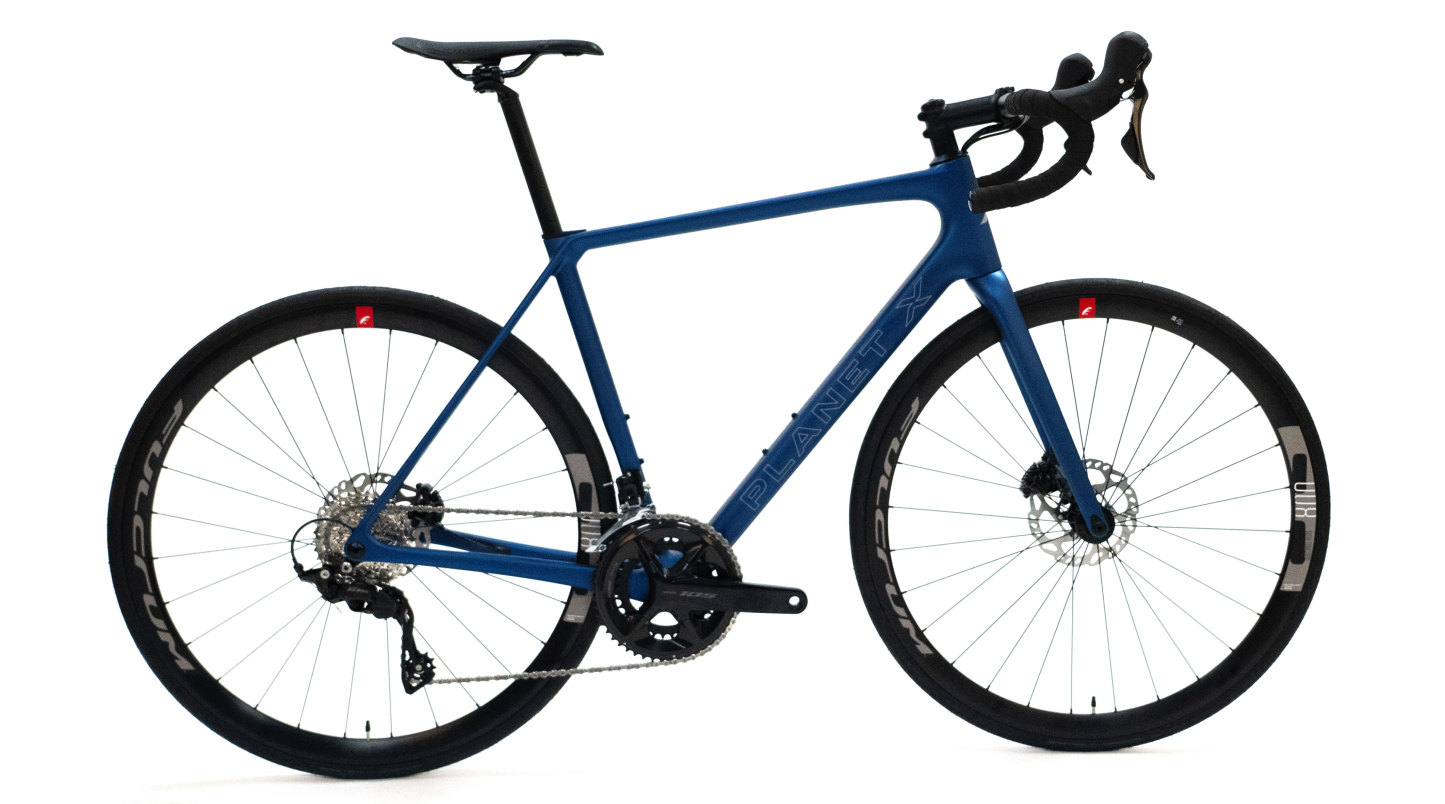

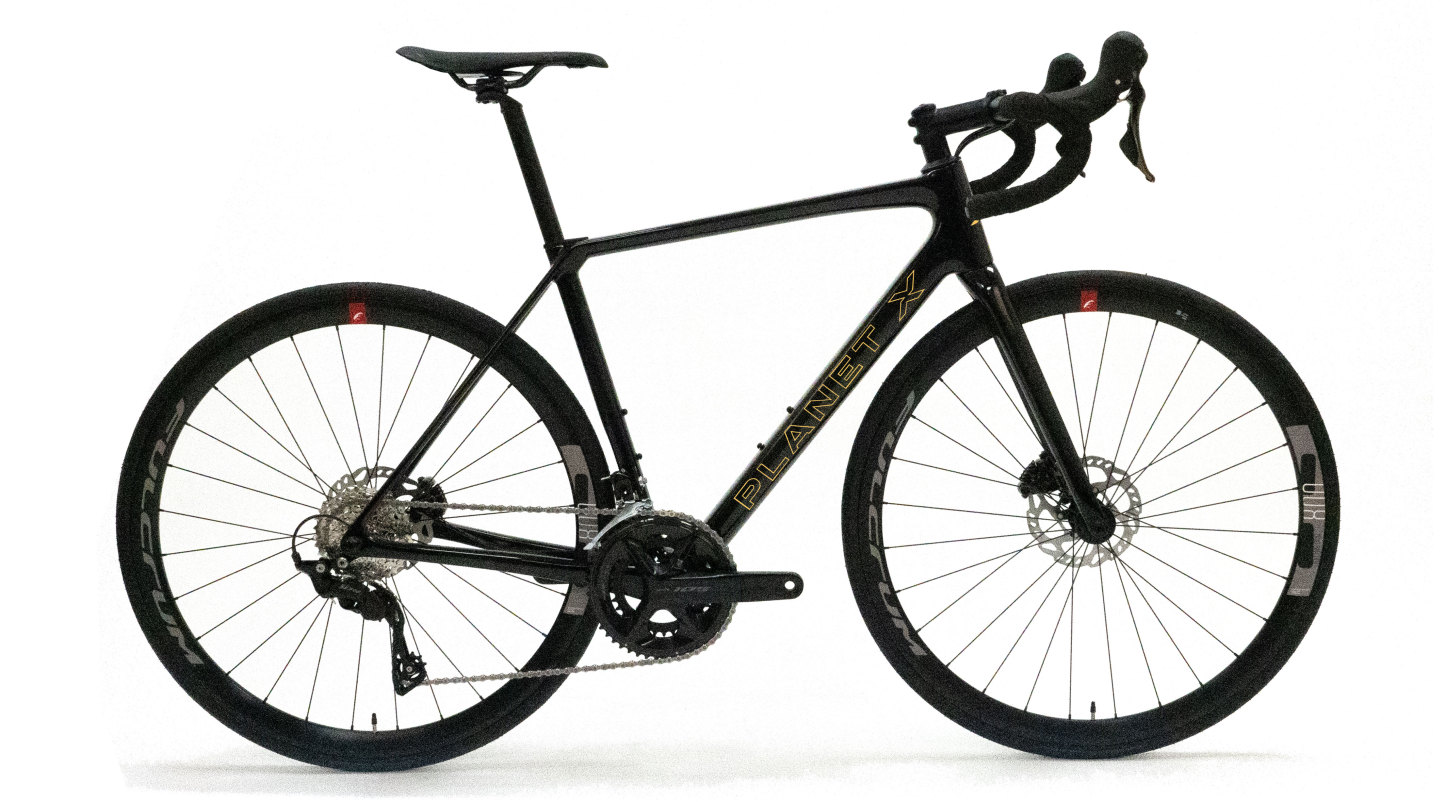

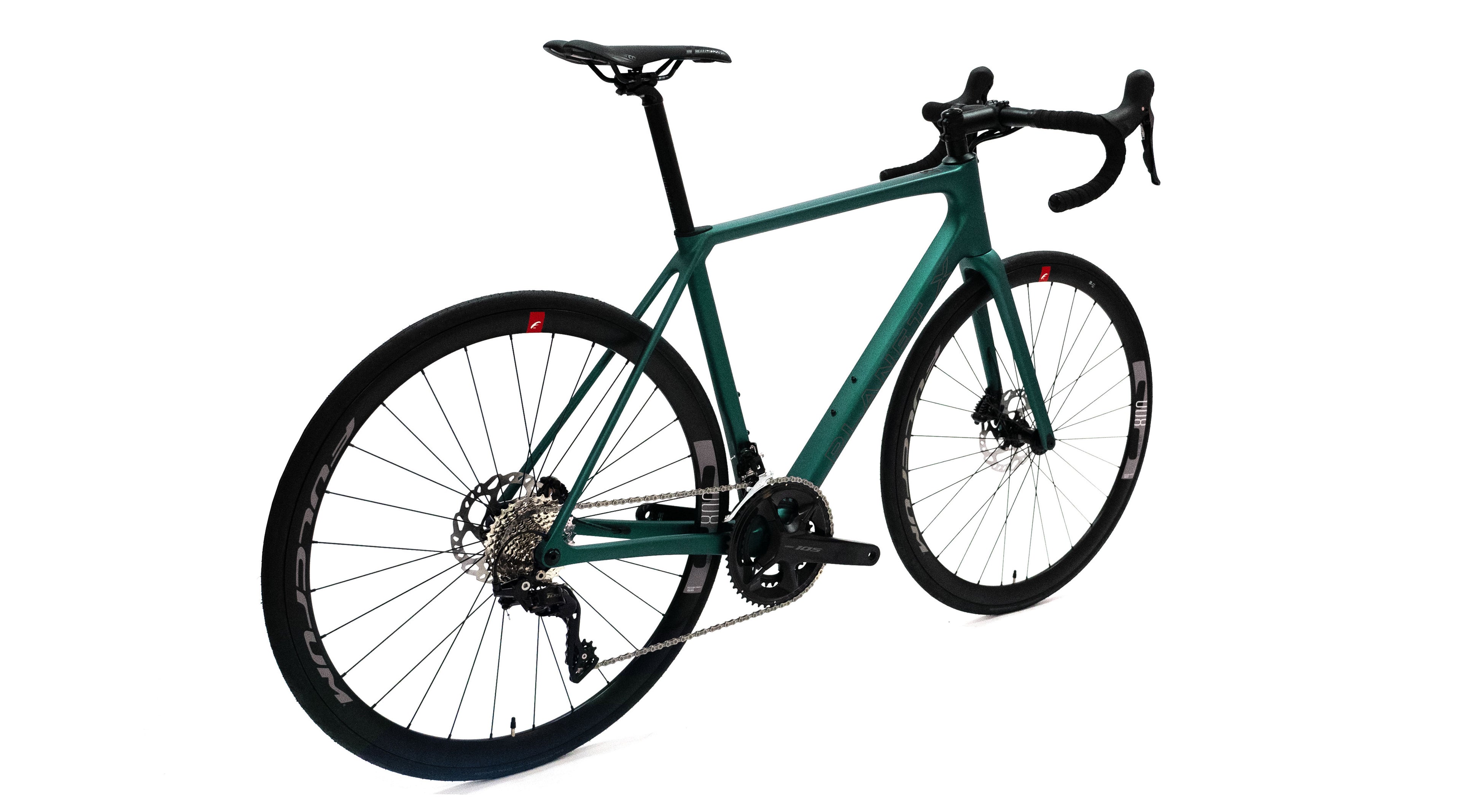

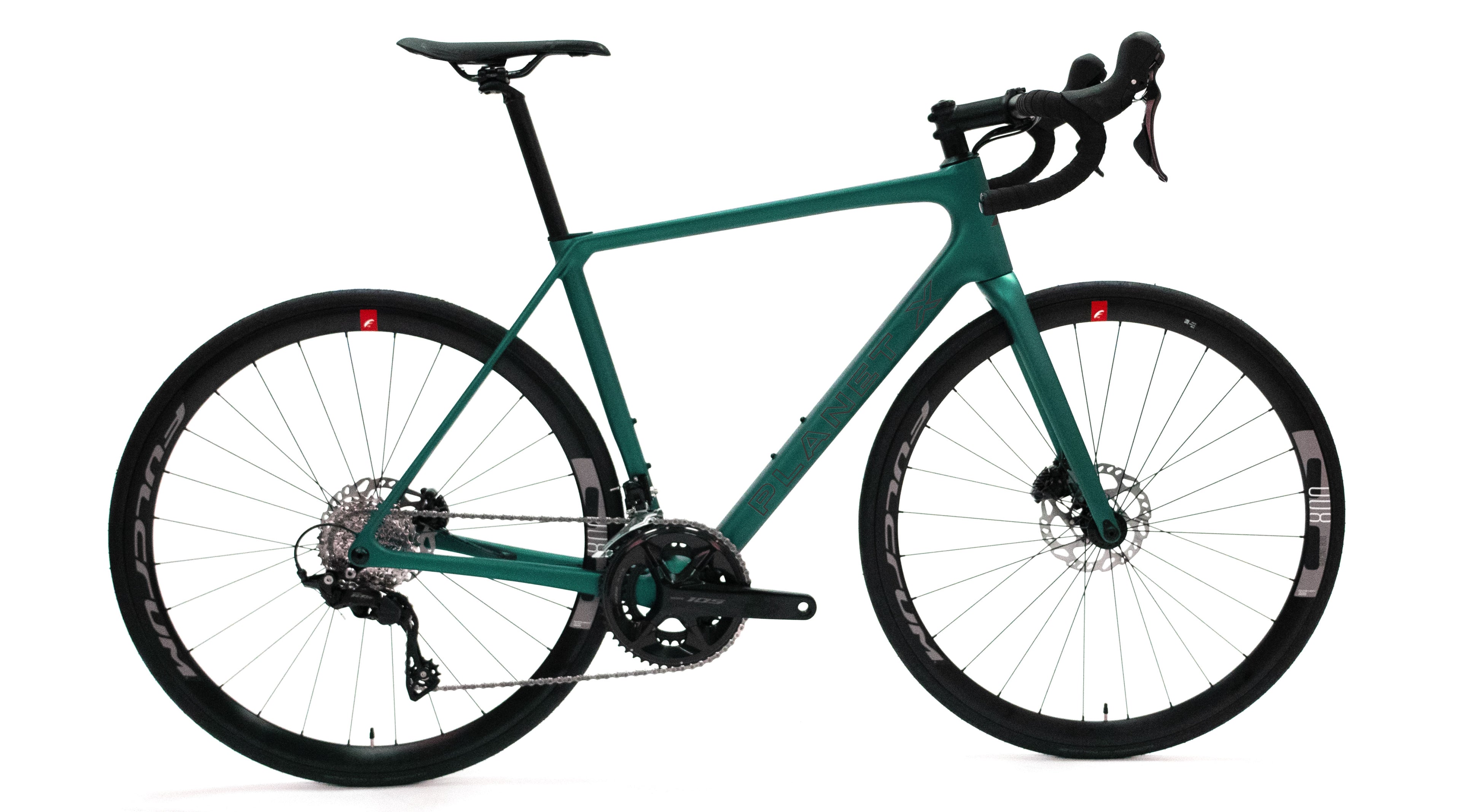

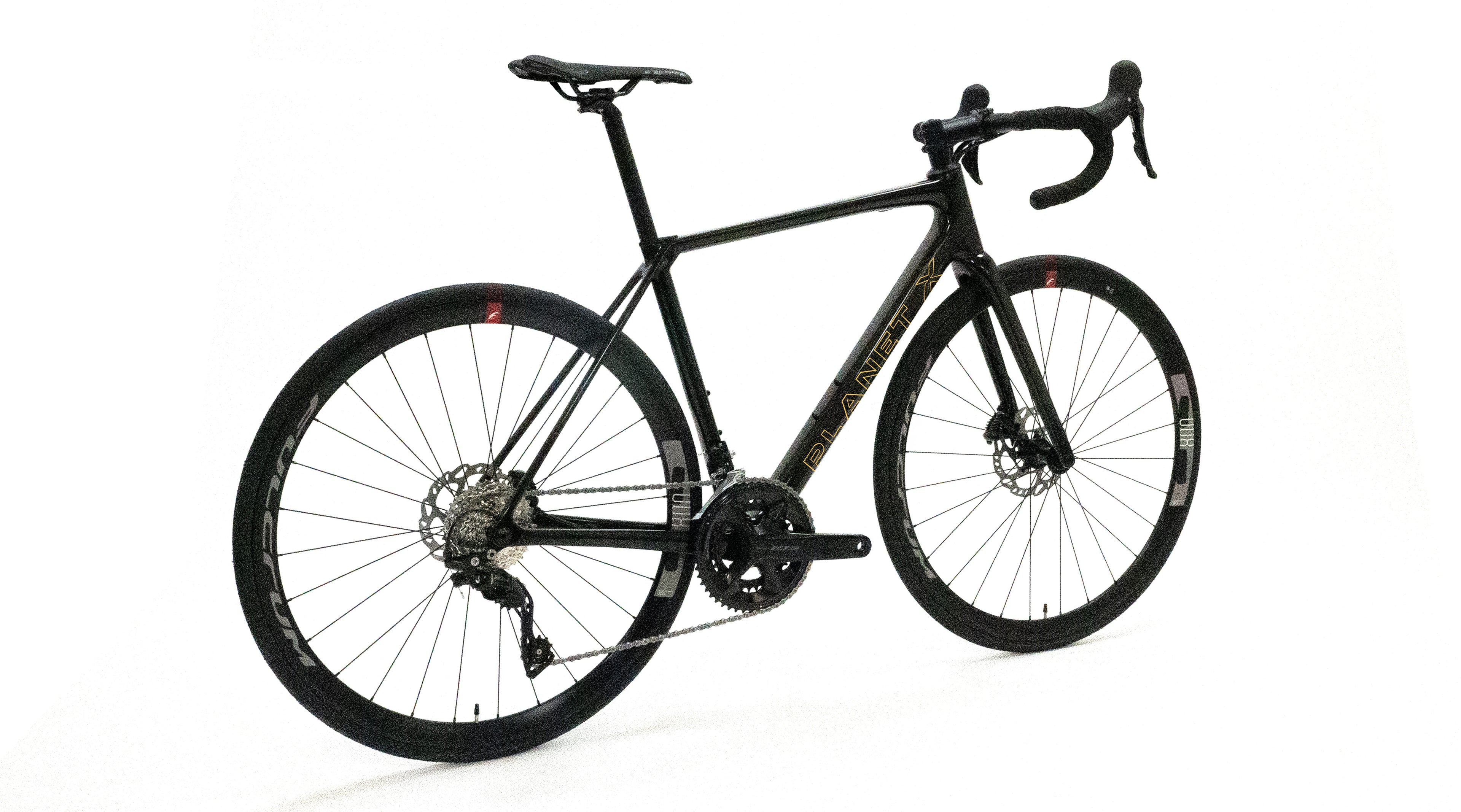

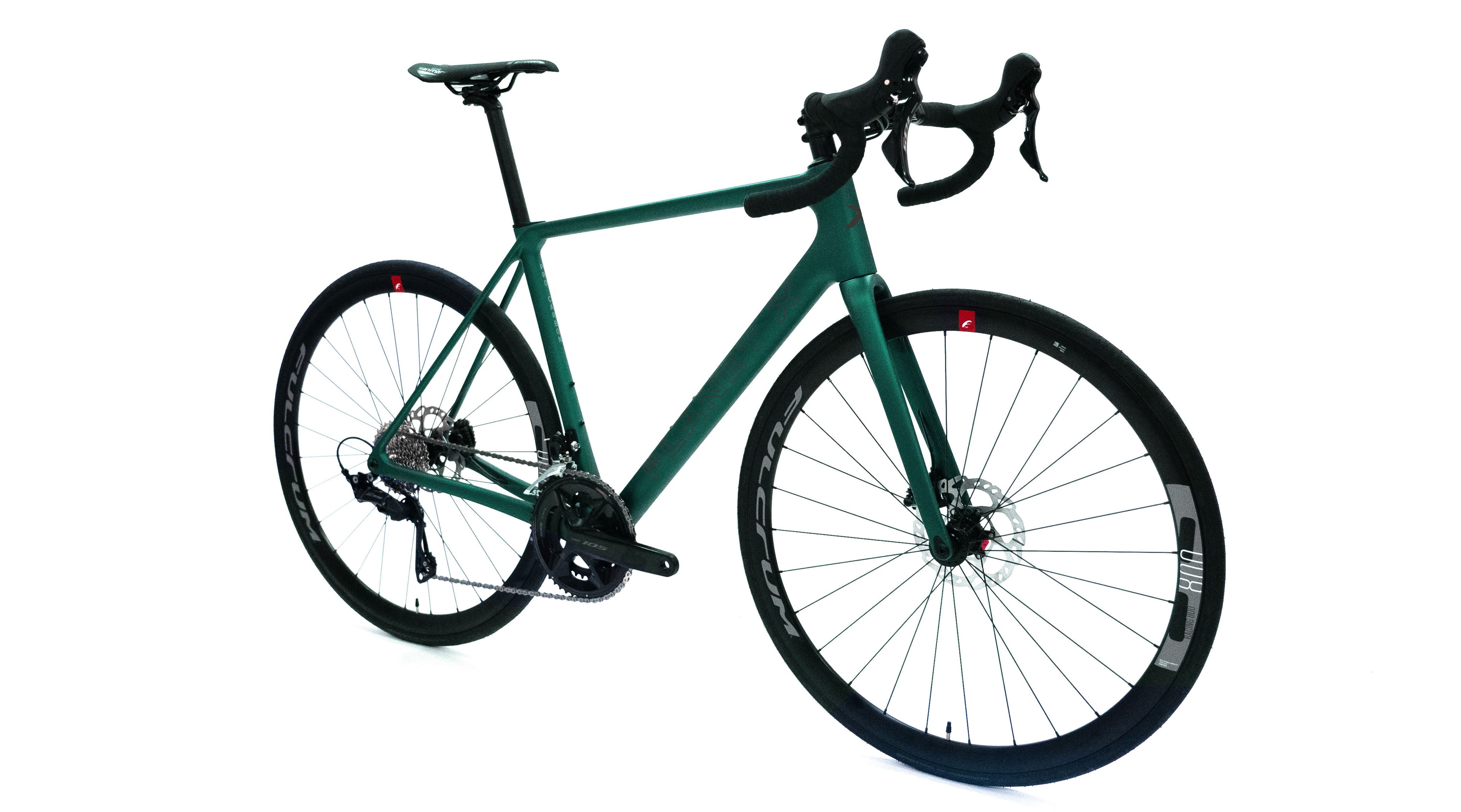

Planet X Pro Carbon XV Shimano 105 Road Bike

The Pro Carbon offers all the right things to produce a road bike with no compromise. Utilising endurance geometry and aero profiled tubing with compliance in the right places, youll be able to push higher speeds on the flats while staying in comfort on the climbs.

Shimano 105 Drivetrain
Shimano 105 Hydraulic Brakes
Fulcrum Racing 800 Disc Wheelset
Full Carbon Frameset

View less

$2,031.00

Shipping calculated at checkout.

£2199.99

Introductory Price. Ends 02/12

Expect dispatch in 21 days

Available on Cycle to work

Part-ex with Planet X-Change

Colour

Black Blue Green

Size

Small Medium Large X-Large X-Small

Rider Height	Suggested Frame Size
5′2″ to 5′7″	XSM
5′6″ to 5′8″	SML
5′7″ to 5′10″	MED
5′9″ to 6′1″	LRG
6′0″ to 6′4″	XLG

Size	A Head Angle	B Head Tube	C Top Tube	D Seat Angle	E Seat Tube (C-T)	F Chainstay Length	G BB Drop	H Stack	I Reach	J Front Centre	K Offset	Wheelbase
XSM	71.5°	110	509	75.5°	420	410	72	519	375	576	45	976
SML	72.5°	120	532	74°	440	410	72	530	380	581	45	980
MED	72°	140	542	74°	475	410	72	551	384	587	45	986
LRG	73°	160	564	73.5°	500	410	72	571	395	599	45	988
XLG	73°	180	577	73.5°	520	410	72	591	402	612	45	1011

Please note that our bikes are not supplied with pedals - these must be purchased separately

🔧 Customise your bike

Quantity

CBBIKE-PCX-105-SML-BLK

30 Day ride guarantee

Shop with confidence.

Rated Excellent

By over 10,000 customers

Frame

With classic road endurance geometry, The Pro Carbon features stable yet responsive steering and a proven reach figure to result in an agile ride. A taller headtube allows for heightened stack, ensuring endurance comfort. The lightweight, comfortable, and durable T700 carbon construction, a 27.2mm seatpost, and tyre clearance of 30mm means you’ll be comfortable however long you spend in the saddle. While the aerodynamic frame profile won’t hold you back at high speed.

Groupset

Shimano’s 105 series has been designed for ultra reliable road performance, with a wide gear range, and precise shifting. 105 represents the top tier of 12 speed mechanical shifting. Hydraulic brakes levers incorporate SERVO WAVE technology for unrivaled stopping power.

Frame

With classic road endurance geometry, The Pro Carbon features stable yet responsive steering and a proven reach figure to result in an agile ride. A taller headtube allows for heightened stack, ensuring endurance comfort. The lightweight, comfortable, and durable T700 carbon construction, a 27.2mm seatpost, and tyre clearance of 30mm means you’ll be comfortable however long you spend in the saddle. While the aerodynamic frame profile won’t hold you back at high speed.

Groupset

Shimano’s 105 series has been designed for ultra reliable road performance, with a wide gear range, and precise shifting. 105 represents the top tier of 12 speed mechanical shifting. Hydraulic brakes levers incorporate SERVO WAVE technology for unrivaled stopping power.

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′2″ to 5′7″	XSM
5′6″ to 5′8″	SML
5′7″ to 5′10″	MED
5′9″ to 6′1″	LRG
6′0″ to 6′4″	XLG

Size	A Head Angle	B Head Tube	C Top Tube	D Seat Angle	E Seat Tube (C-T)	F Chainstay Length	G BB Drop	H Stack	I Reach	J Front Centre	K Offset	Wheelbase
XSM	71.5°	110	509	75.5°	420	410	72	519	375	576	45	976
SML	72.5°	120	532	74°	440	410	72	530	380	581	45	980
MED	72°	140	542	74°	475	410	72	551	384	587	45	986
LRG	73°	160	564	73.5°	500	410	72	571	395	599	45	988
XLG	73°	180	577	73.5°	520	410	72	591	402	612	45	1011

🔧 Build Kit

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

SRAM Flat Mount Disc Brake Mounting Hardware / 32mm / Single

🔧 Groupset

Shimano 105 ST-R7120 / BR-R7170 Left Hand Shifter

Shimano 105 ST-R7120 / BR-R7170 Right Hand Shifter

Token 878 GXP 68mm BSA Bottom Bracket / Black

Shimano 105 FC-R7100 Chainset / 172.5mm / 50/34T

Shimano CS-R7100-12 Speed 11-34 Cassette

Shimano 105 RD-R7100 GS 12-Speed Rear Mech

Shimano 105 FD-R7100 Braze On Front Mech

Shimano CN-M6100 12 Speed Chain 114L

Shimano SM-RT70 160mm Centrelock Rotor

Shimano SM-MA-R160D/D Mount Adapter

Shimano SM-BH90 Olive And Connector Insert
