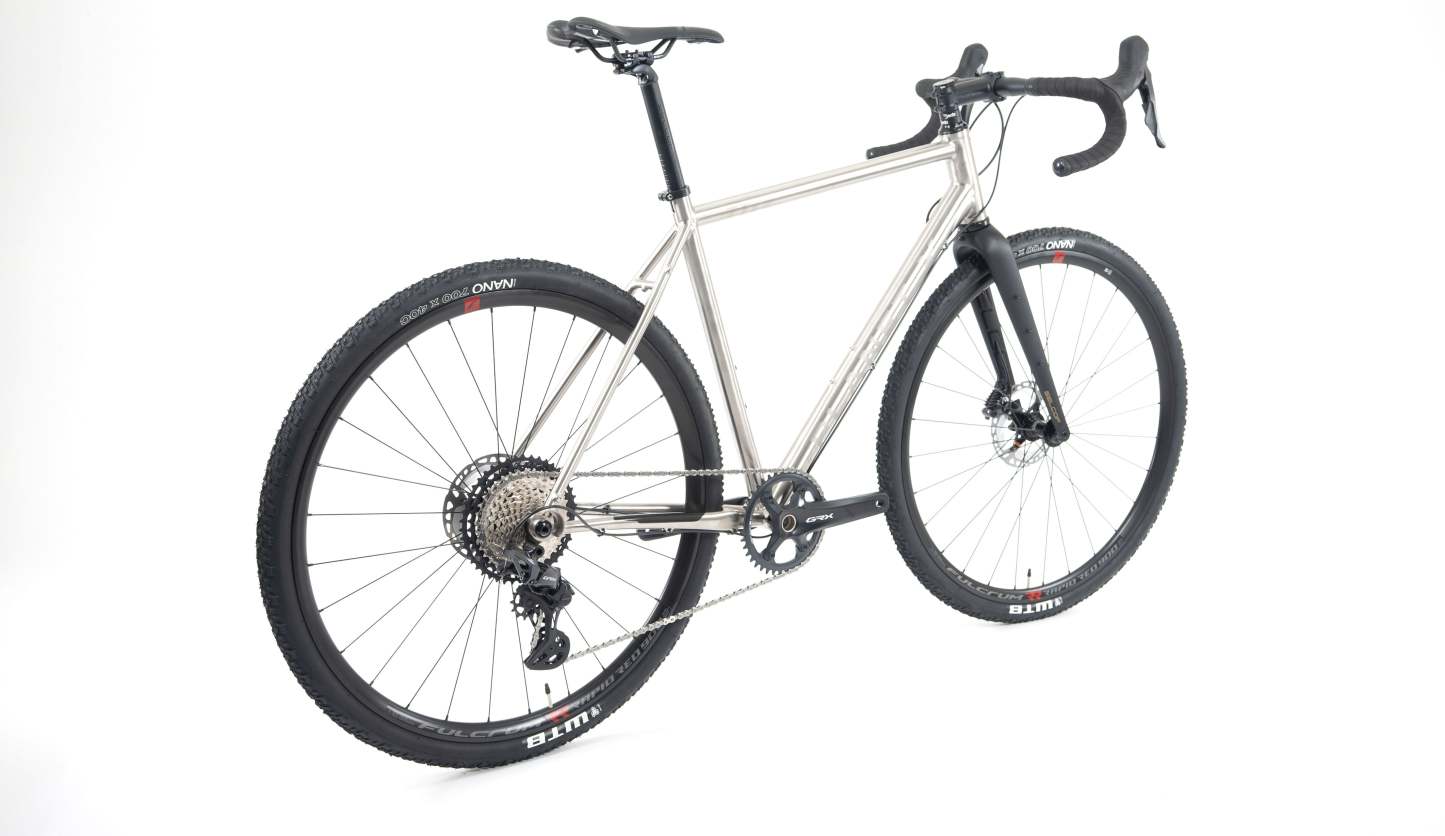

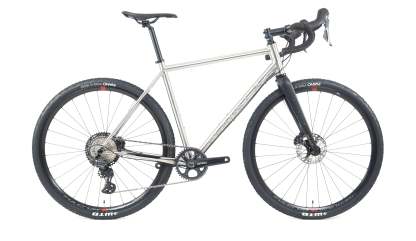

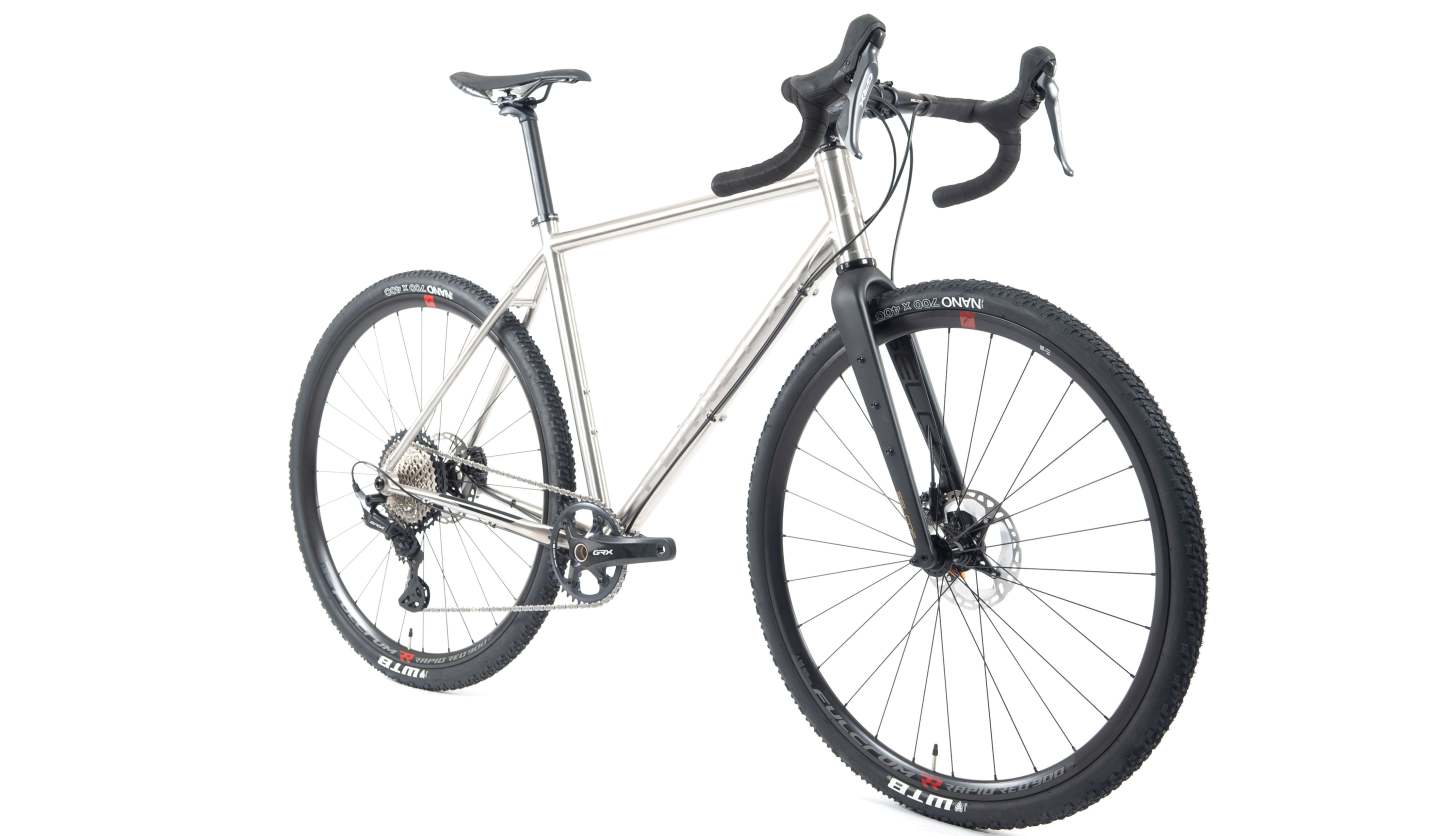

Planet X Tempest Shimano GRX RX820 Titanium Gravel Bike

At home on the rough but surprising on the smooth, the Titanium Tempest is a gravel bike at heart but still light enough to cover the miles on the road. Using relaxed geometry, a supple titanium frame and plenty of tyre clearance, it's still capable of offering all day comfort off road. Mounts for mudguards and panniers make this a contender for multi-day adventures too.

Tyre clearance up to 48MM (700C)
Titanium Frame with Carbon Fork
Approx Bike Weight (Medium) - 9.8kg
SRAM UDH Hanger
Shimano GRX RX820 1 x 12 Speed Drivetrain
Powerful Hydraulic Disc Brakes
Mavic Allroad Disc Wheelset 700c Disc Wheelset / Shimano Microspline

View less

$2,411.00

Shipping calculated at checkout.

Expect dispatch in 14 days

Available on Cycle to work

X Small Small Medium Large X Large

Rider Height	Suggested Frame Size
5′0″ to 5′5″	460mm / XSM
5′5″ to 5′8″	490mm / SML
5′7″ to 5′10″	510mm / MED
5′9″ to 6′0″	530mm / LRG
5′11″ to 6′3″	550mm / XL

		XS	S	M	L	XL
A	Head Angle (degrees)	70.5	71.0	71.0	71.5	72.0
B	Head Tube (mm)	100	110	125	155	165
C	Top Tube Effective (mm)	520	535	550	570	590
D	Seat Tube Angle (degrees)	74.5	74.5	74	73.5	73.0
E	Seat Tube C-T (mm)	460	490	510	530	550
F	Chainstays (mm)	440	440	440	440	440
G	BB Drop (mm)	70	70	70	70	70
H	Stack (mm)	532	543	557	587	599
I	Reach (mm)	373	385	390	395	407
J	Front Centre (mm)	588	599	610	620	630
K	Wheelbase (mm)	1018	1029	1039	1050	1061

Please note that our bikes are not supplied with pedals - these must be purchased separately

🔧 Customise your bike

Quantity

CBBIKE-TEM-820-XLG-TIT

Frame

Featuring responsive and agile gravel geometry, and a lightweight, corrosion proof, and extremely durable Aerospace Grade 9 3AL-2.5V Titanium frame, the Tempest is a gravel bike designed to excel off road but remain fast and capable on the tarmac. Tackling singletrack with ease yet keeping the responsiveness of an endurance road bike. Huge tyre clearance of up to 700c x 48mm will give you the confidence that you need on rougher terrain. Full rack and mudguard mounts allow you to load up for your next multi-day adventure.

Groupset

Gravel cycling is rooted in its simplicity, inclusivity, and curiosity. Everyone from first-timers to grizzled veterans counts on Shimano GRX, the industry’s first gravel-specific groupset, for smooth shifting, reliable braking, and exceptional gravel comfort. The new RX820 series offers premium performance at an incredible value, with thoughtful ergonomic designs and gravel-centric gearing for all manners of unpaved adventures

Frame

Featuring responsive and agile gravel geometry, and a lightweight, corrosion proof, and extremely durable Aerospace Grade 9 3AL-2.5V Titanium frame, the Tempest is a gravel bike designed to excel off road but remain fast and capable on the tarmac. Tackling singletrack with ease yet keeping the responsiveness of an endurance road bike. Huge tyre clearance of up to 700c x 48mm will give you the confidence that you need on rougher terrain. Full rack and mudguard mounts allow you to load up for your next multi-day adventure.

Groupset

Gravel cycling is rooted in its simplicity, inclusivity, and curiosity. Everyone from first-timers to grizzled veterans counts on Shimano GRX, the industry’s first gravel-specific groupset, for smooth shifting, reliable braking, and exceptional gravel comfort. The new RX820 series offers premium performance at an incredible value, with thoughtful ergonomic designs and gravel-centric gearing for all manners of unpaved adventures

1 / 2

📏 Sizing and Geometry

Rider Height	Suggested Frame Size
5′0″ to 5′5″	460mm / XSM
5′5″ to 5′8″	490mm / SML
5′7″ to 5′10″	510mm / MED
5′9″ to 6′0″	530mm / LRG
5′11″ to 6′3″	550mm / XL

		XS	S	M	L	XL
A	Head Angle (degrees)	70.5	71.0	71.0	71.5	72.0
B	Head Tube (mm)	100	110	125	155	165
C	Top Tube Effective (mm)	520	535	550	570	590
D	Seat Tube Angle (degrees)	74.5	74.5	74	73.5	73.0
E	Seat Tube C-T (mm)	460	490	510	530	550
F	Chainstays (mm)	440	440	440	440	440
G	BB Drop (mm)	70	70	70	70	70
H	Stack (mm)	532	543	557	587	599
I	Reach (mm)	373	385	390	395	407
J	Front Centre (mm)	588	599	610	620	630
K	Wheelbase (mm)	1018	1029	1039	1050	1061

🔧 Build Kit

Selcof Carbon Bike Packing Fork / Matt Black

SRAM Flat Mount Disc Brake Mounting Hardware / 27mm / Single

Selcof Carbon Steerer Fork Bung MK 4 / 23-24mm ID

Selcof Forged Alloy Bolt Up Seatclamp V3 / 31.8mm / 12mm / Black

Bike Build Packaging Rear Derailleur Protector

Selcof Headset Spacer Set / 1 1/8" / 15mm + 10mm + 5mm / Black

Selcof Semi-Integrated Cup Cartridge Bearing Headset

🔧 Groupset

Shimano GRX BL-RX820 / BR-RX820 Left Hand Shifter

Shimano GRX ST-RX820 / BR-RX820 Right Hand Shifter

Token 878 GXP 68mm BSA Bottom Bracket / Black

Shimano GRX FC-RX820-1 Chainset / 172.5mm / 40T

Shimano CS-M8100 12-Speed 10-45 Cassette

Shimano GRX RD-RX822 12-Speed Rear Mech

Shimano CN-M6100 12 Speed Chain 116L

Shimano RT-MT800 160mm Centrelock Rotor

Shimano SM-MA-R160D/D Mount Adapter

Shimano SM-BH90 Olive And Connector Insert

Token G23HD 700C Alloy Disc Gravel Wheelset / Centrelock / Front 12mm / Rear 12 X 142mm / Shimano Microspline
