Discover Kaffenback
.png?w=750&h=800)

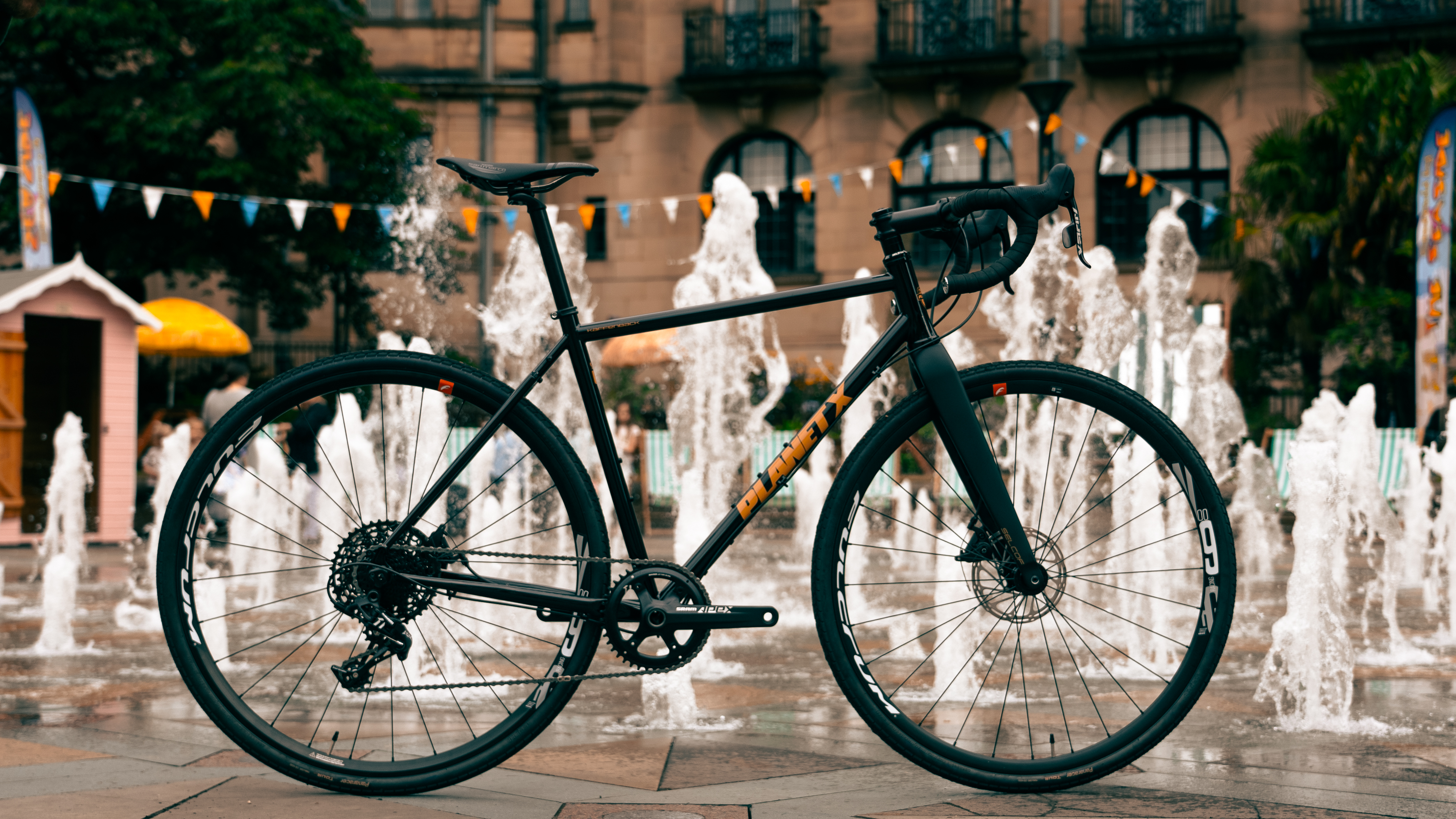

Reliable and Comfortable Steel Frame
Powerful Disc Brakes
1x simplicity to keep you rolling
Huge Clearance for up to 40mm Tyres

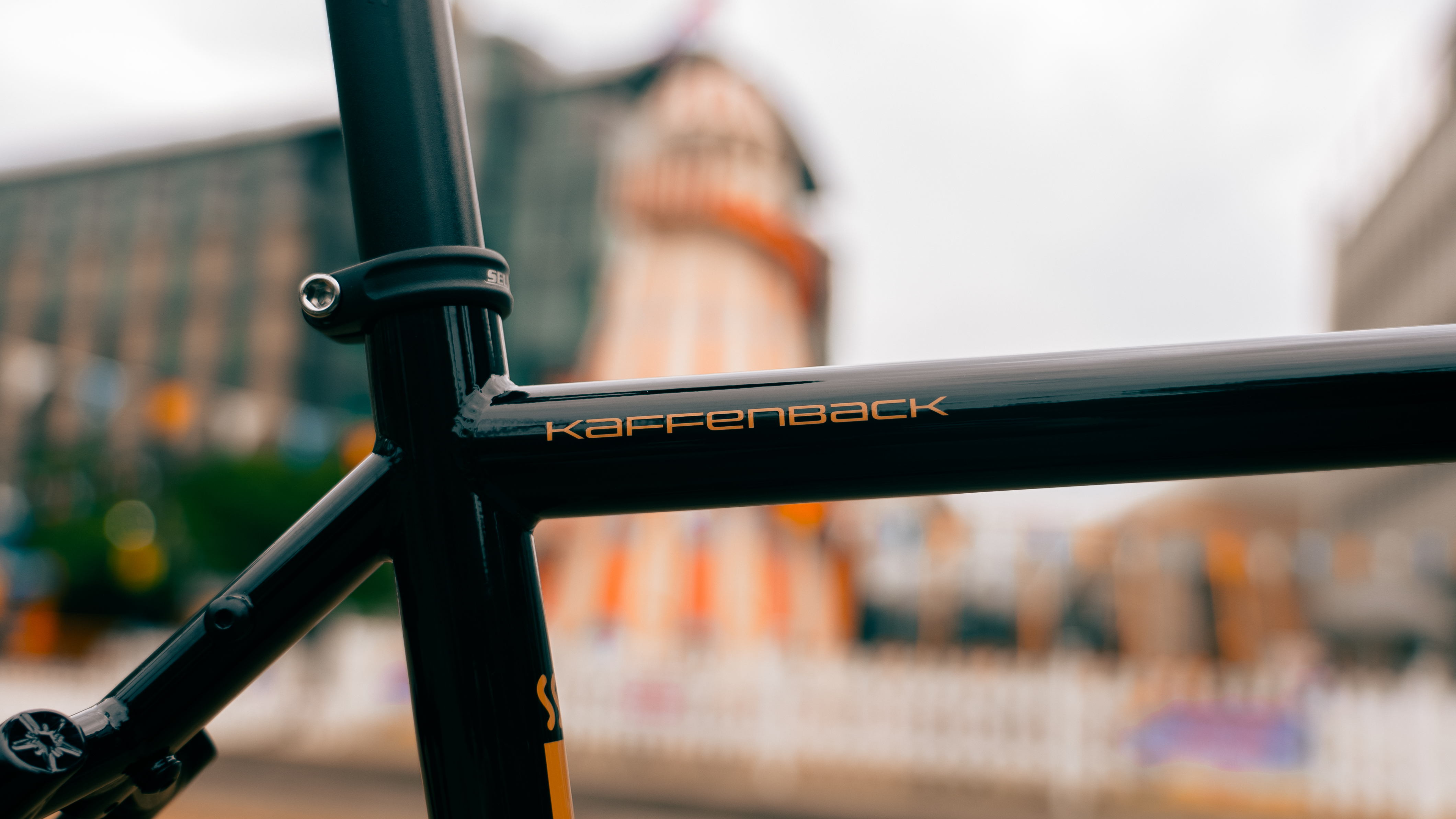

Reliable and Comfortable Steel Frame
Powerful Disc Brakes
1x simplicity to keep you rolling
Huge Clearance for up to 40mm Tyres
Sorry, there are no products in this category
Kaffenback Sizing & Geometry
Rider Height | Suggested Frame Size |
---|---|
5′4″ to 5′8″ | 480mm / SML |
5′8″ to 5′10″ | 500mm / MED |
5′10″ to 6′0″ | 520mm / LRG |
6′0″ to 6′3″ | 540mm / XL |
S | M | L | XL | ||
A | Head Angle (degrees) | 71.0 | 72.0 | 72.0 | 72.5 |
B | Head Tube (mm) | 125 | 145 | 165 | 185 |
C | Top Tube Effective(mm) | 535 | 550 | 570 | 590 |
D | Seat Tube Angle (degrees) | 74.5 | 74.0 | 73.0 | 73.0 |
E | Seat Tube C-T (mm) | 480 | 500 | 520 | 540 |
F | Chainstays (mm) | 425 | 425 | 425 | 425 |
G | BB Drop (mm) | 72 | 72 | 72 | 72 |
H | Stack (mm) | 536 | 558 | 577 | 598 |
I | Reach (mm) | 386 | 390 | 394 | 407 |
J | Front Centre (mm) | 594 | 595 | 605 | 620 |
K | Wheelbase (mm) | 1013 | 1014 | 1030 | 1045 |
