Discover Roadrunner

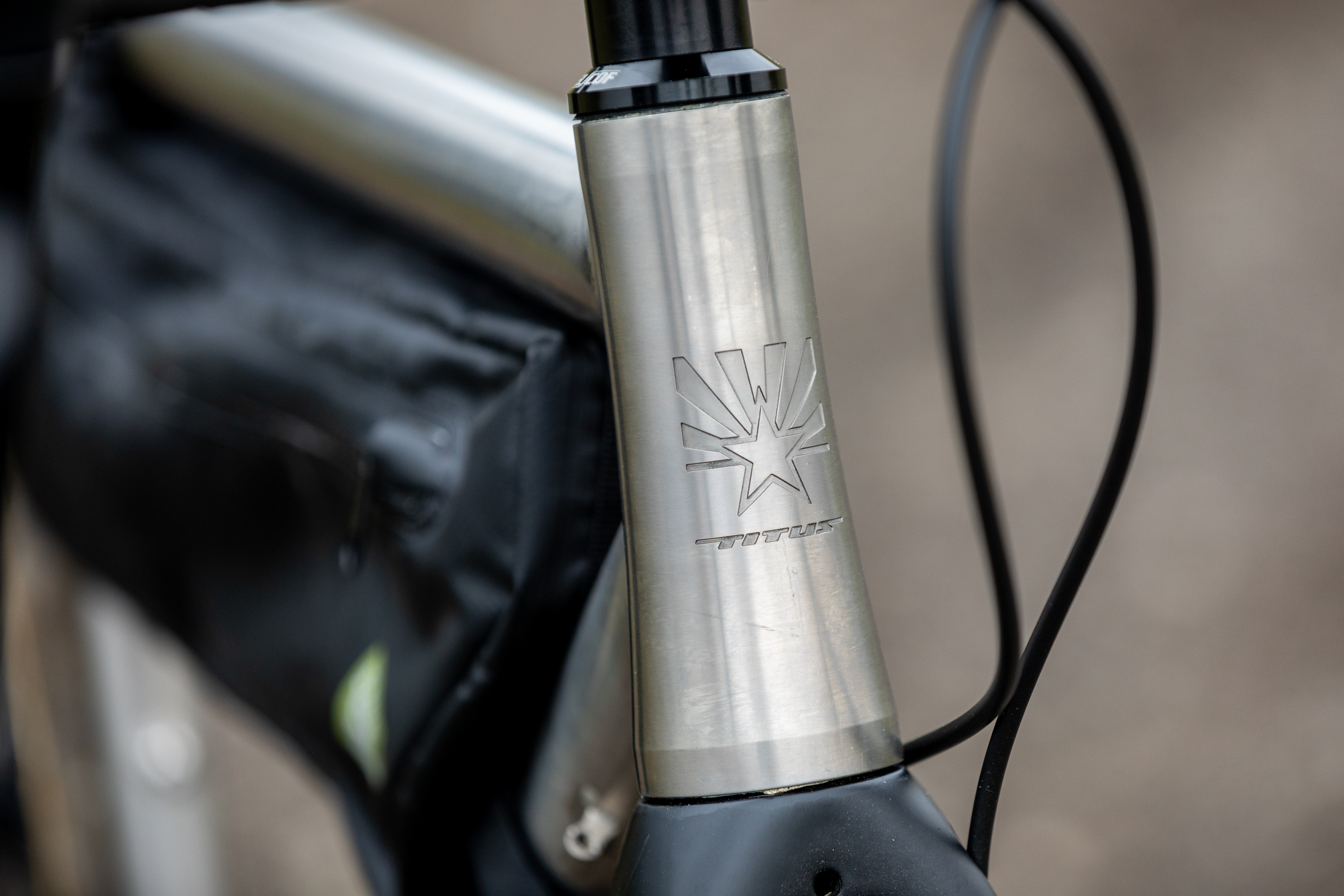

Smooth and Reliable Titanium frame
Powerful Disc Brakes

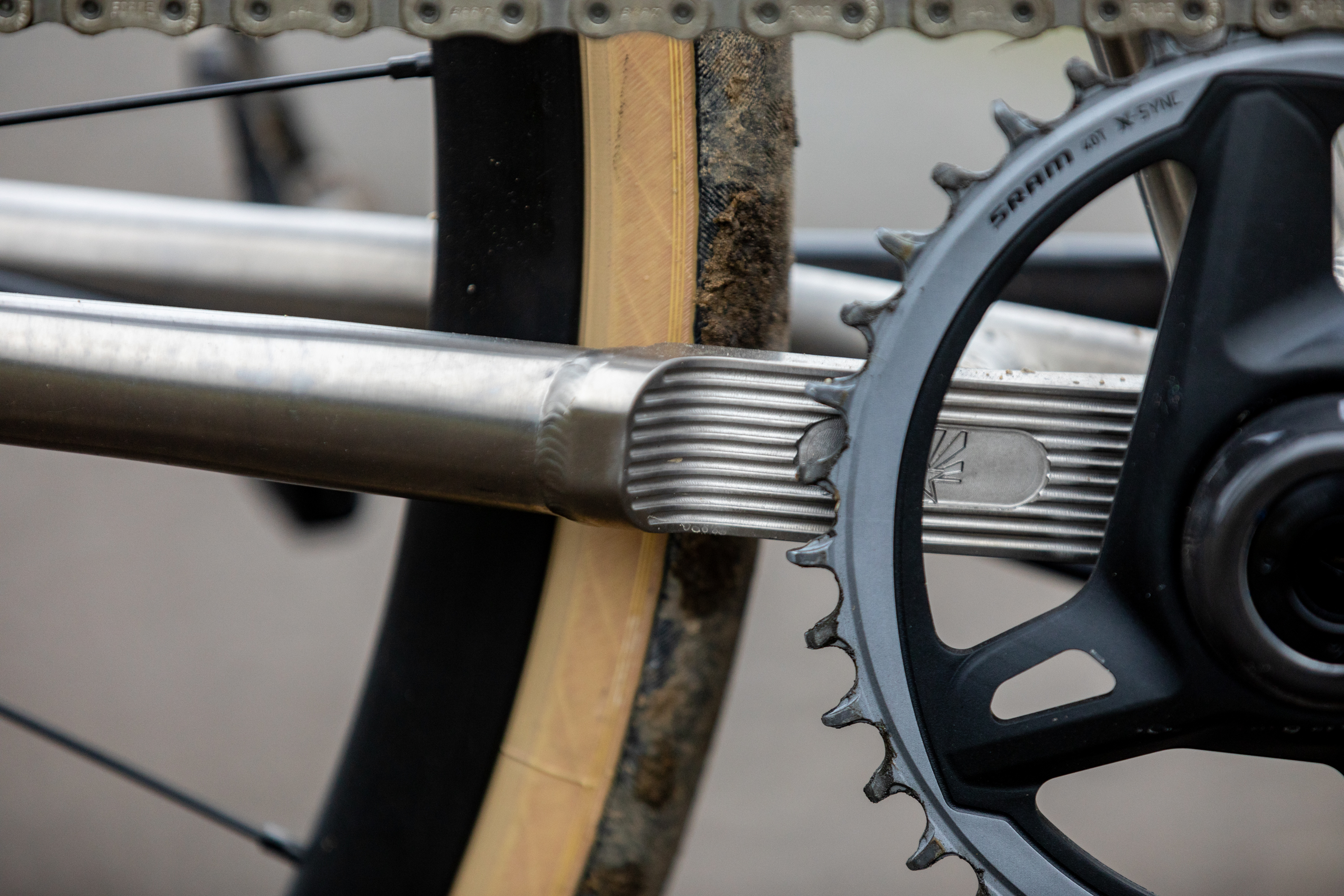

1x simplicity to keep you rolling

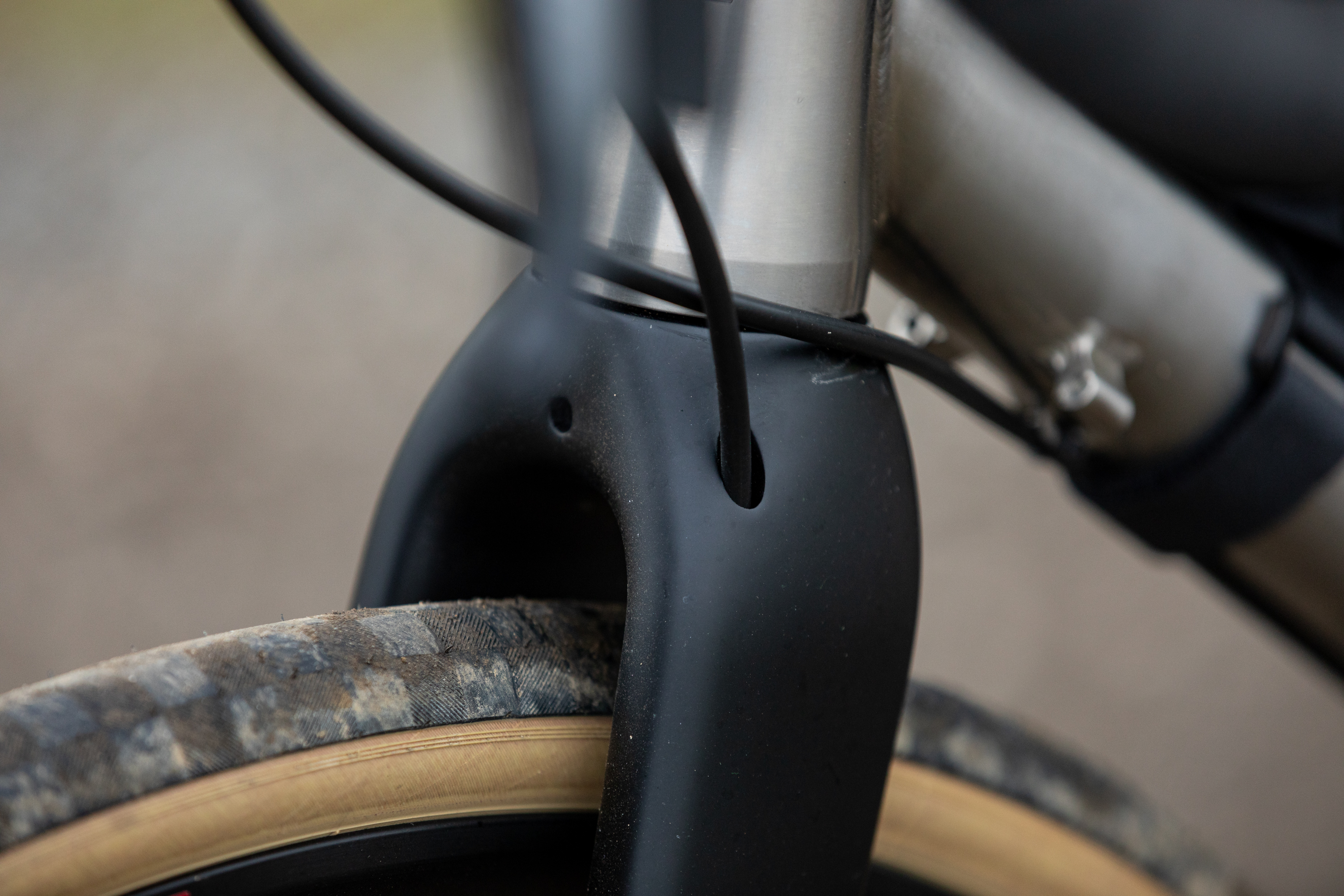

Huge Clearance for up to 35mm Tyres
Smooth and Reliable Titanium frame
Powerful Disc Brakes
1x simplicity to keep you rolling
Huge Clearance for up to 35mm Tyres
-
Titus Roadrunner SRAM Red AXS XPLR All-Road Bike
Titus Roadrunner SRAM Red AXS XPLR All-Road Bike
$4,747.00 -
Titus Roadrunner SRAM Rival AXS XPLR All-Road Bike
Titus Roadrunner SRAM Rival AXS XPLR All-Road Bike
$2,786.00
Roadrunner Sizing & Geometry
Rider Height | Suggested Frame Size |
---|---|
5′3″ to 5′6″ (160cm-168cm) | SML/480mm |
5′6″ to 5′10″ (168cm-178cm) | MED/510mm |
5′10″ to 6′1″ (178cm- 185cm) | LRG/540mm |
6′1″ to 6′3″ (185cm- 191cm) | XL/570mm |
S |
M | L | XL | ||
A | Head Angle (degrees) | 70 | 71 | 71 | 71.3 |
B | Head Tube (mm) | 120 | 140 | 160 | 180 |
C | Top Tube Effective(mm) | 520 | 540 | 560 | 590 |
D | Seat Tube Angle (degrees) | 74.0 | 74.0 | 74.0 | 73.0 |
E | Seat Tube C-T Actual (mm) | 480 | 510 | 540 | 570 |
F | Chainstays (mm) | 435 | 435 | 435 | 435 |
G | BB Drop (mm) | 70 | 70 | 70 | 70 |
H | Stack (mm) | 528 | 550 | 569 | 588 |
I | Reach (mm) | 368 | 382 | 397 | 410 |
J | Front Centre (mm) | 598 | 610 | 631 | 647 |
K | Wheelbase (mm) | 1023 | 1035 | 1056 | 1073 |
